Tranny question

Thread Tools

Search this Thread

Old Apr 19, 2003 | 03:04 PM
  #1
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"
Tanny question

When you are removing the tranny. Do you have to seperate the flywheel from the pp or can you remove the tranny by leaving the pp and clutch attched to the engine.
Reply
Old Apr 19, 2003 | 03:16 PM
  #2
xstacy7's Avatar
I love when things work
Tenured Member 05 Years

Joined: Aug 2002
Posts: 1,090
Likes: 0
From: Nashville, TN
you can go either way
by separating the flywheel and pressure plate, you just take off the 6 bolts that hold it onto the flywheel and it comes right off
to separate the tranny itself and leave the pressure plate and clutch on the flywheel, you have to pull out the throwout bearing and it'll come right off
Reply
Old Apr 19, 2003 | 06:35 PM
  #3
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"
Ok thanks I got it. Another question, I found heat spots on my pressure plate and flywheel, not to bad though. Does this mean I definaltely need to change them or can I get them turned. How do you know if it is time to change the disk.
Reply
Old Apr 19, 2003 | 10:50 PM
  #4
duboisr's Avatar
Rotary Freak
Tenured Member 05 Years

Joined: Jan 2002
Posts: 2,171
Likes: 1
From: Nashville Tn
Turned if the hot spots are not to deep. the machine shop will tell you so after they turn it . The fly wheel should cost about $35 around here.
Reply
Old Apr 20, 2003 | 02:56 AM
  #5
skunks's Avatar
I'm a CF and poop smith
Tenured Member 10 Years

Joined: Aug 2001
Posts: 3,957
Likes: 1
From: Hawaii
how do you pull out the throwout bearing?
Reply
Old Apr 20, 2003 | 10:46 AM
  #6
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"
I wouls like to know about the Throwout bearing also. My pilot bearring seems to have blown up, I am able to pull out metal shavings. Let post some pics of th clutch and pp.
Reply
Old Apr 20, 2003 | 10:50 AM
  #7
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"

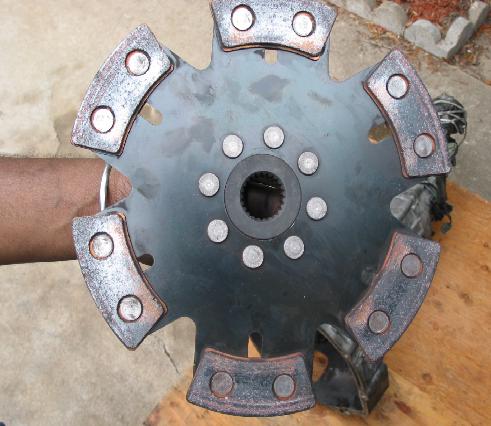

here a pic of the disk
Reply
Old Apr 20, 2003 | 10:53 AM
  #8
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"

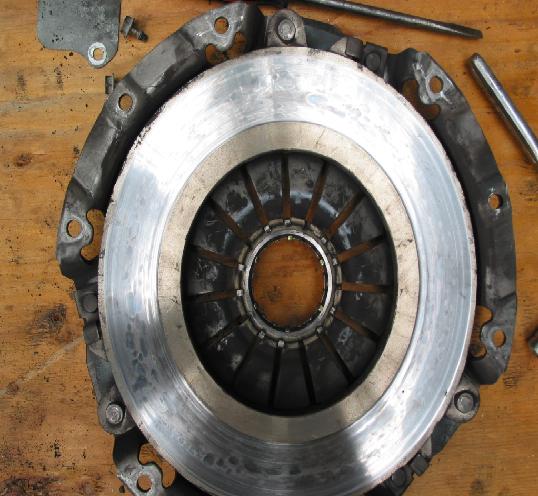

heres the pp
Reply
Old Apr 20, 2003 | 10:56 AM
  #9
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"
Reply
Old Apr 20, 2003 | 04:55 PM
  #10
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"
Do they look like they need to be replaced?
Reply
Old Apr 20, 2003 | 07:31 PM
  #11
xstacy7's Avatar
I love when things work
Tenured Member 05 Years

Joined: Aug 2002
Posts: 1,090
Likes: 0
From: Nashville, TN
you just pull the bearing out with a flathead screwdriver, just make sure you "inch" each side out by going around the edge with the driver so your not to bend it. It pulls out towards the transmission (if it were to be in the car) Last night I bent mine while it was on the car and had to drop the tranny, you don't want to bend it on the car (I felt like a total dumbass) Hope I make sense
Reply
Old Apr 20, 2003 | 07:39 PM
  #12
xstacy7's Avatar
I love when things work
Tenured Member 05 Years

Joined: Aug 2002
Posts: 1,090
Likes: 0
From: Nashville, TN
if you bend urs it'll look like this
Reply
Old Apr 20, 2003 | 07:42 PM
  #13
xstacy7's Avatar
I love when things work
Tenured Member 05 Years

Joined: Aug 2002
Posts: 1,090
Likes: 0
From: Nashville, TN
or this, this one is fudged up

whatever you do *YOU DO NOT WANT TO BEND THIS WHILE IT'S IN THE CAR*
Reply
Old Apr 20, 2003 | 08:09 PM
  #14
Turbo_F1's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Mar 2002
Posts: 140
Likes: 0
From: "Forecast for tomorrow, a few sprinkles of genius with a chance of doom!"
Do you have a normal one to compare it to?
Reply
Old Apr 21, 2003 | 04:24 PM
  #16
solideas's Avatar
Junior Member
Tenured Member 05 Years

Joined: Apr 2003
Posts: 6
Likes: 0
From: fl
Since you seem to be in the thick of it, I though perhaps you could offer some advice. Thanks Tired of driving the wifeys SUV PLEASE HELP!!!!

Whats the best way to support the engine while pulling the tranny? will it stay with just the motor mounts?

Is this a really time consuming undertaking compared to other cars?
Someone said it took like 35 hours the first time he did it?

ARe there any special tools that I'll need to do the work that you've been talking about. I think my pilot bearing may need replacing as well.
Reply
