Hello,

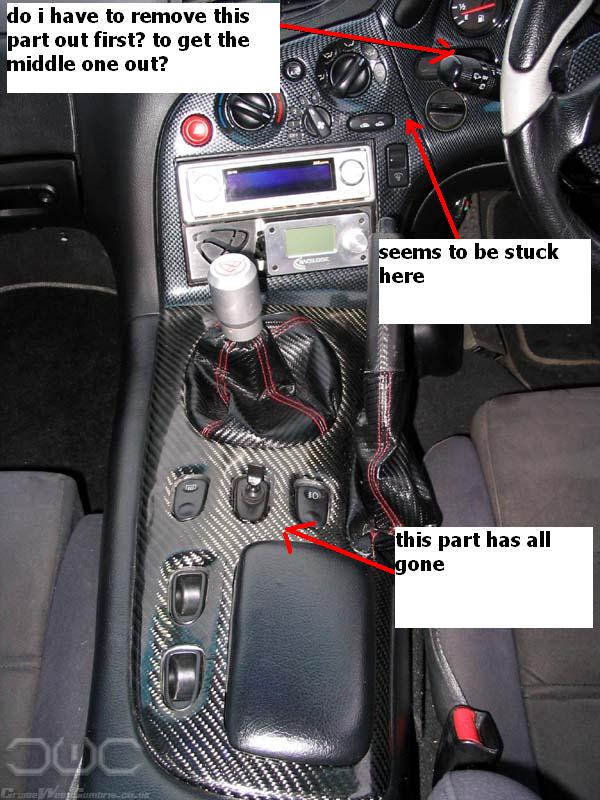

Im trying to remove my center pannel of the dash but it seem to be stuck were it joins onto the main display are there screws behind there? or do i have to remove the main dial display to get it off. dont want to snap any thing ive attached pic of what i mean.

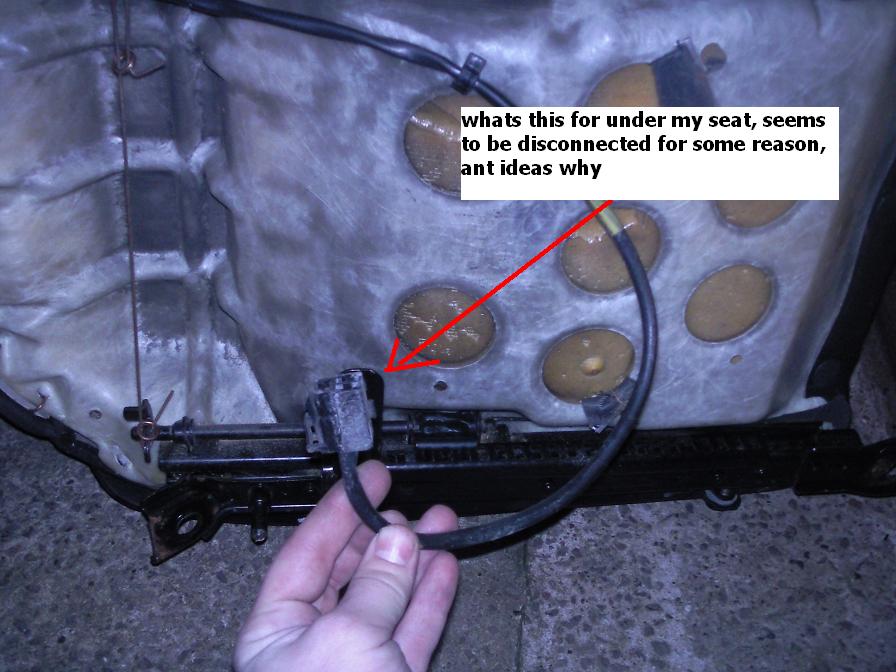

Also what is the cable for under my seat?


any help would be great thanks

darkside7

iTrader: (12)

if i remember correctly, you need to remove the dash hood first. you should see 2 screws holding the middle part of the dash.

sereneseven

the connector under the seat is for exhaust temp sensor for the over heat exh light you don't have

apexFD

What CF surround is that?



=Ben

dgeesaman

iTrader: (7)

Correct.

Take your time with each step. It's not hard once you see how it's held on, but the learning process can be awfully expensive...

Phaz

http://www.cruisewestcumbria.co.uk/i...e/203_0350.JPG - was a full custom kit. (not a sleave replaces dash)


sorry im a bit lost by the dash hood, do you mean the non carbon fiber part?

caredden

iTrader: (148)

You have to pull the gauge cluster first to get to the screws holding the A/C panel.

http://carbonfiberinnovation.com/con...%20cluster.pdf

For more info, just search this forum (gauge cluster removal) or search in the interior/exterior section.

good luck

IRPerformance

iTrader: (41)

That connector is actually for the air bag/seat belt indicator light. The exhaust overheat sensor plugs in elsewhere, not on the seat.

Phaz

thanks for that, thats what i needed. thanks for eveyone else's help too. ive just found a hidden switch under the dash which i have no idea what it is for ill take a pic tonight

Gorilla RE

iTrader: (1)

+1....I was about to say that
