Stock dyno chart

Anyone got a dyno graph of a bone stock USDM FD? That or a compressor map(s) for the stock twins?

Reply Like

11-21-05, 03:08 PM

DamonB

Lives on the Forum

Join Date: Feb 2001

Location: Dallas

Posts: 9,617

Likes: 0

Received 8 Likes on 7 Posts

This is my car. Completely stock engine wise other than an M2 dual catback. Stock ecu, intercooler, intake, turbos etc.

Reply Like

11-21-05, 03:20 PM

dgeesaman

Moderator

iTrader: (7)

Join Date: May 2002

Location: Fort Kickass

Posts: 12,302

Likes: 7

Received 16 Likes on 15 Posts

You can find more dynos at www.zeroglabs.com. I have never seen a compressor map for the HT-12s.

Dave

Reply Like

11-21-05, 03:45 PM

ArmitageGVR4

ArmitageFD3S

Thread Starter

iTrader: (13)

Join Date: Oct 2002

Location: Herndon, Virginia

Posts: 2,238

Likes: 6

Received 23 Likes on 15 Posts

Good stuff guys, thanks

Reply Like

11-21-05, 04:12 PM

MrRx

Rotary on a budget

iTrader: (1)

Join Date: Sep 2003

Location: Austin, Tx

Posts: 823

Likes: 0

Received 0 Likes on 0 Posts

Has anyone every found one? I would like to compair them to my twin setup.

Quote:

Originally Posted by dgeesaman

You can find more dynos at www.zeroglabs.com. I have never seen a compressor map for the HT-12s.

Dave

Reply Like

11-21-05, 08:48 PM

dgeesaman

Moderator

iTrader: (7)

Join Date: May 2002

Location: Fort Kickass

Posts: 12,302

Likes: 7

Received 16 Likes on 15 Posts

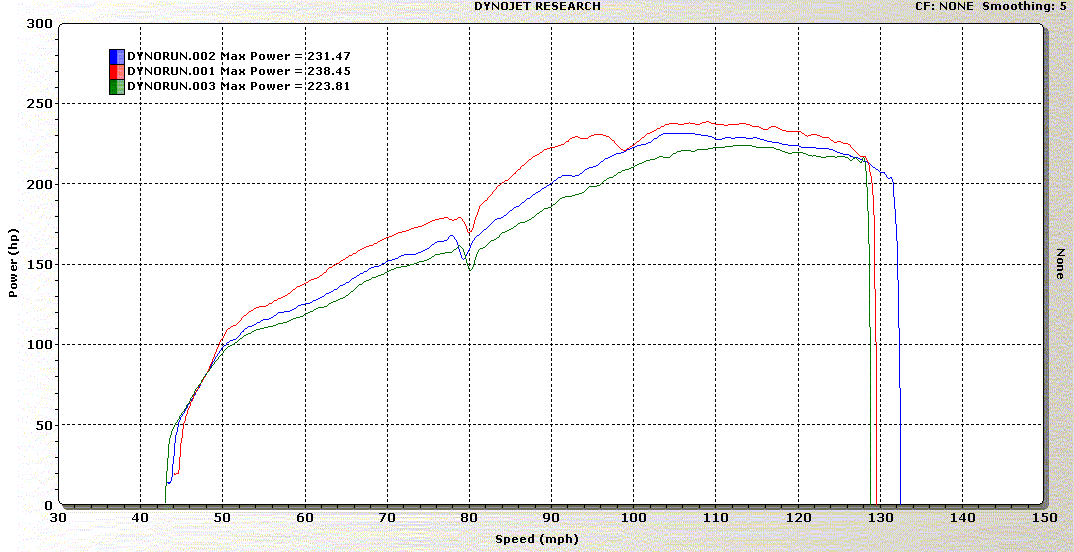

Here's another stock dyno run. Downpipe was the only mod. You can see the power go down as the UIM heatsoaked.

Dave

Attached Thumbnails

Last edited by dgeesaman; 11-21-05 at 08:51 PM.

Reply Like

11-21-05, 09:48 PM

turbojeff

Do it right, do it once

iTrader: (30)

Join Date: Apr 2001

Location: Eugene, OR, usa

Posts: 4,830

Likes: 0

Received 12 Likes on 8 Posts

Wow you guys are getting quite a bit of power out of a stock FD (1 mod) 239rwhp and 233rwhp.

The dynos I've seen are usually between 210-220rwhp.

Reply Like

Trending Topics

1993 Hardtop Part-Out

23

735
How Far Can We Turn Back Time? A Near Total Restoration

19

429
Turbo 2 replacement cats?

16

240
DCT / Dual-Clutch Gearbox on 13b engine ?

157

53k
Something a little different. EWP with thermostat.

23

2k

11-21-05, 09:50 PM

sonix7

Banned. I got OWNED!!!

Join Date: Jul 2004

Location: ft. collins, colorado

Posts: 1,766

Likes: 0

Received 1 Like on 1 Post

yeah that seems like really good stock numbers.

Reply Like

11-21-05, 10:02 PM

technonovice

Jinx

Join Date: Mar 2001

Location: Raleigh, NC

Posts: 1,260

Likes: 0

Received 0 Likes on 0 Posts

Did your stock AFR's run into the 10s under WOT past 4000 rpms?

Reply Like

11-21-05, 10:26 PM

#10

t-von

Rotor Head Extreme

iTrader: (8)

Join Date: Apr 2002

Location: Midland Texas

Posts: 6,719

Likes: 0

Received 26 Likes on 17 Posts

^ I would like to know as well. If 4k is the point were the ecu goes full rich, I would like to see the A/F ratio before that since full boost comes on at 2.6k.

Reply Like

11-22-05, 10:48 AM

#11

DamonB

Lives on the Forum

Join Date: Feb 2001

Location: Dallas

Posts: 9,617

Likes: 0

Received 8 Likes on 7 Posts

Quote:

Originally Posted by turbojeff

Wow you guys are getting quite a bit of power out of a stock FD (1 mod) 239rwhp and 233rwhp.

The dynos I've seen are usually between 210-220rwhp.

My original (tired) motor dynoed at 209. The dyno I posted above is a bone stock Mazda reman with the same exhaust and also fresher (but still used) stock turbos. The car was even on the same dyno both times!

Forgot to add the car does have a K&N filter inside the stock, uncut airbox.

Last edited by DamonB; 11-22-05 at 10:50 AM.

Reply Like
