Steering Wheel Removal and Efini Installation
02-13-05, 02:12 PM
#1
Slow RX-7
Thread Starter
Join Date: Sep 2004
Location: Virginia
Posts: 1,715
Likes: 0
Received 0 Likes
on
0 Posts
Steering Wheel Removal and Efini Installation
Here is a step by step removal and installation. I kind of rigged the ending part but it looks like it will work! Pictures are pretty much in order.
Step 1: Remove the screws from the back of the wheel where the key goes in. There will be 3 screws, Phillips head.

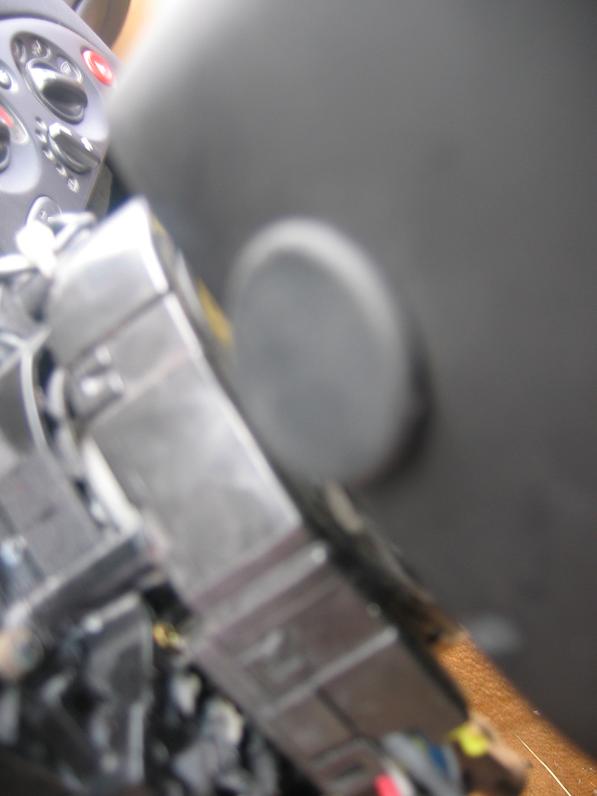

Step 2: Locate the Rubber things that will contain the bolts that hold the front of the wheel on. Take the rubber things off, there should be 3.
Step 3: Unbolt the 3 bolts with a 10 mm socket.

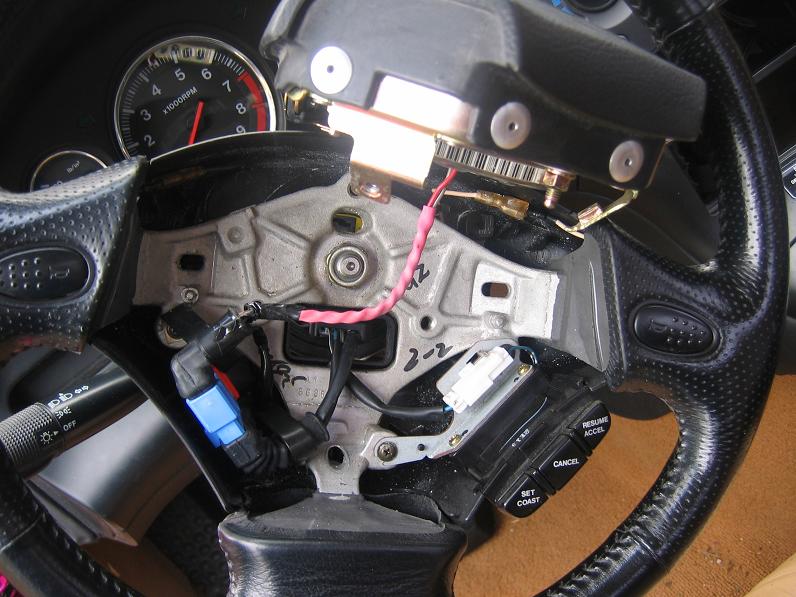

Step 4: Move Air Bag away from the wheel to be able to see the plugs.
Step 1: Remove the screws from the back of the wheel where the key goes in. There will be 3 screws, Phillips head.
Step 2: Locate the Rubber things that will contain the bolts that hold the front of the wheel on. Take the rubber things off, there should be 3.
Step 3: Unbolt the 3 bolts with a 10 mm socket.
Step 4: Move Air Bag away from the wheel to be able to see the plugs.
02-13-05, 02:23 PM
#2
Slow RX-7
Thread Starter
Join Date: Sep 2004
Location: Virginia
Posts: 1,715
Likes: 0
Received 0 Likes
on
0 Posts

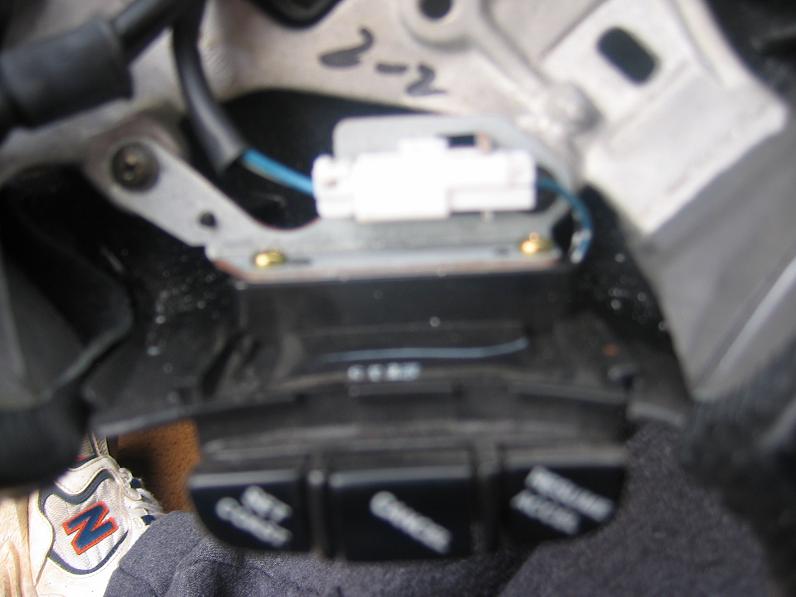

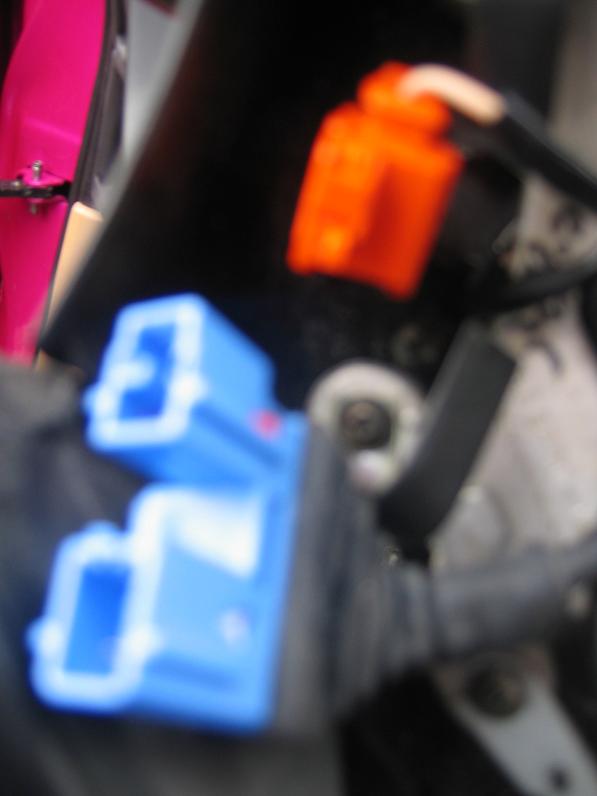

Step 5: Unhook the Cruise Control plug (white) and then unlpug the orange and blue connector. It it wierd and can cause a litte trouble get it unhooked. Just take your time.
Step 6: Locate the steering wheel nut. It is in the middle. Get either a 21 mm (from what I have heard) socket or a 13/16 socket (What I used) and unbolt the nut.
Step 7: Wiggle the steering wheel from left to right, then up and down. It will come off, be patient and keep moving it.
Step 6: Locate the steering wheel nut. It is in the middle. Get either a 21 mm (from what I have heard) socket or a 13/16 socket (What I used) and unbolt the nut.
Step 7: Wiggle the steering wheel from left to right, then up and down. It will come off, be patient and keep moving it.
02-13-05, 02:25 PM
#3
Slow RX-7
Thread Starter
Join Date: Sep 2004
Location: Virginia
Posts: 1,715
Likes: 0
Received 0 Likes
on
0 Posts

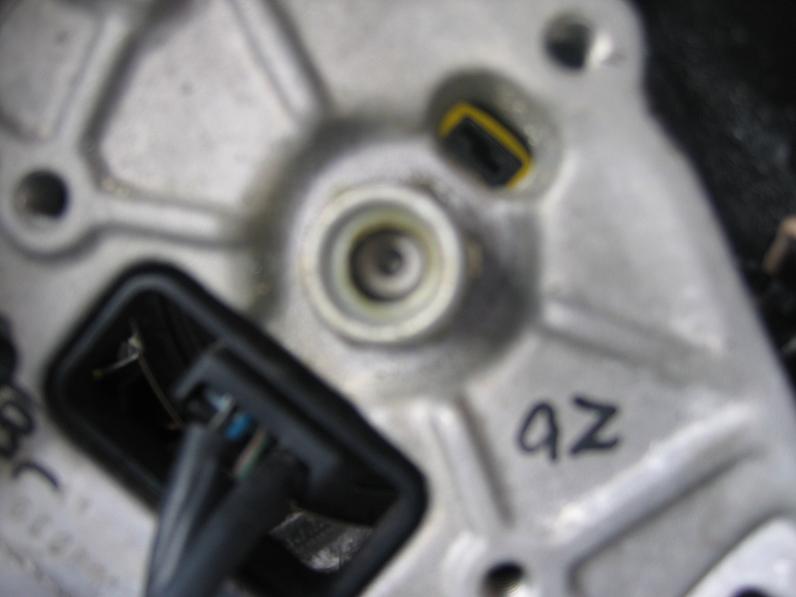

Step 8: Remove the clock spring held by 3 phillips head screws. (Only do this if you want only the horn, you might want to keep it but I didn't.)

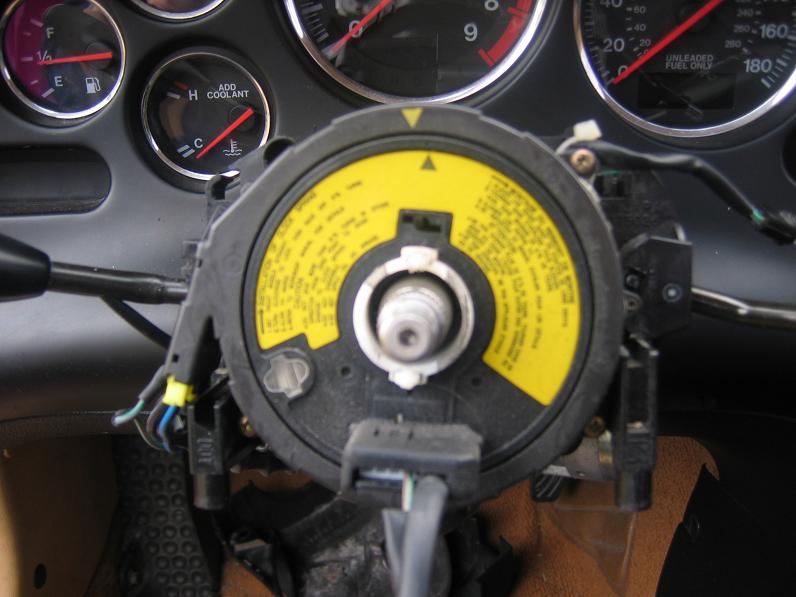

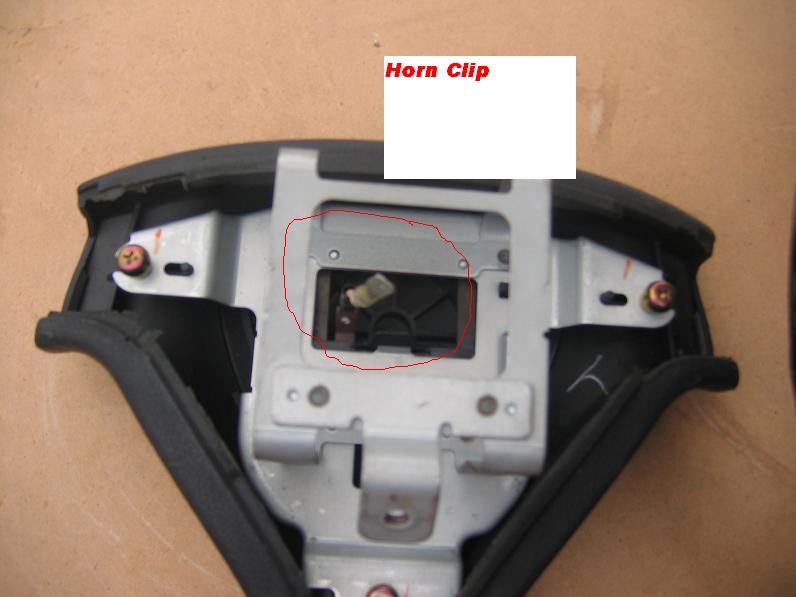

Step 9: Take the efini wheel apart. Get the horn clip and sauter a wire to it. (Look in pictures)

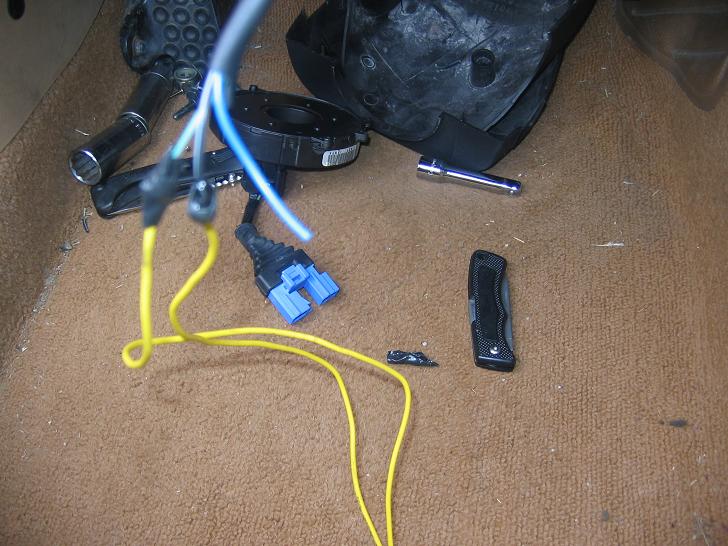

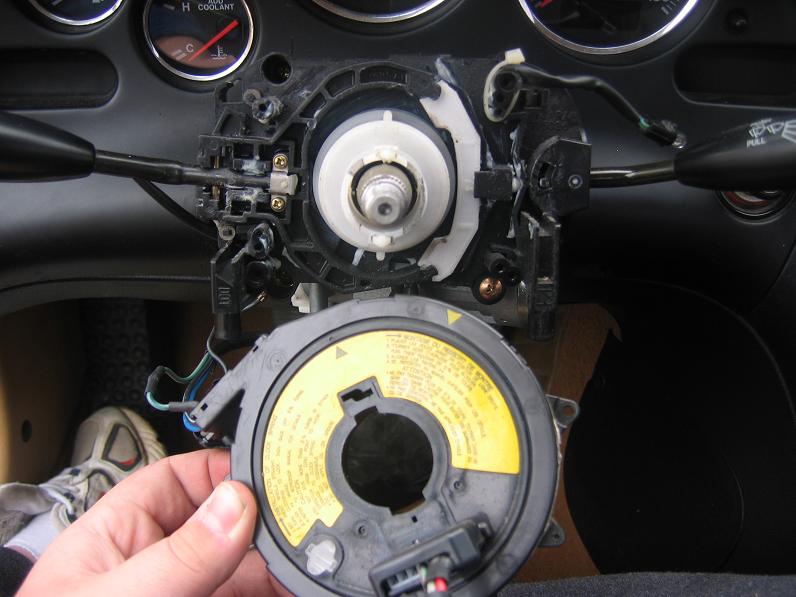

Step 10: Strip the black and green wires from the clock spring. Just cut the others and tape them up.

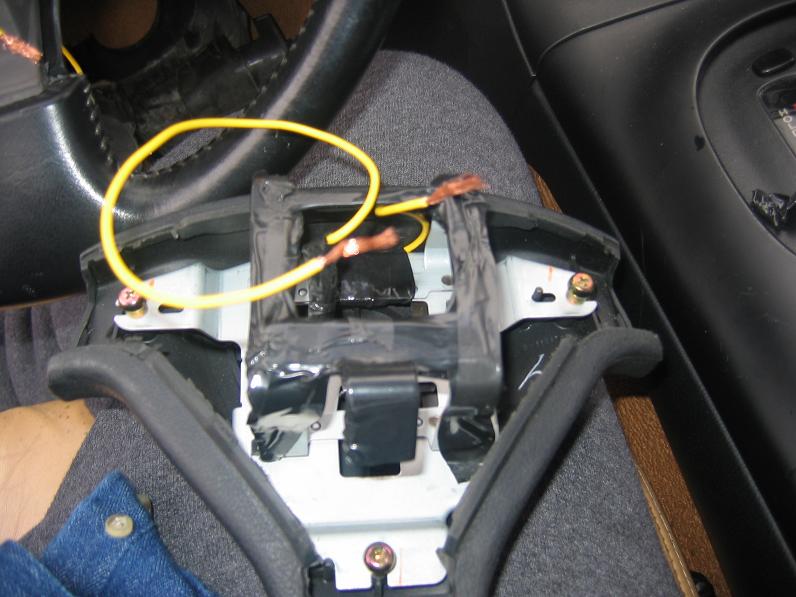

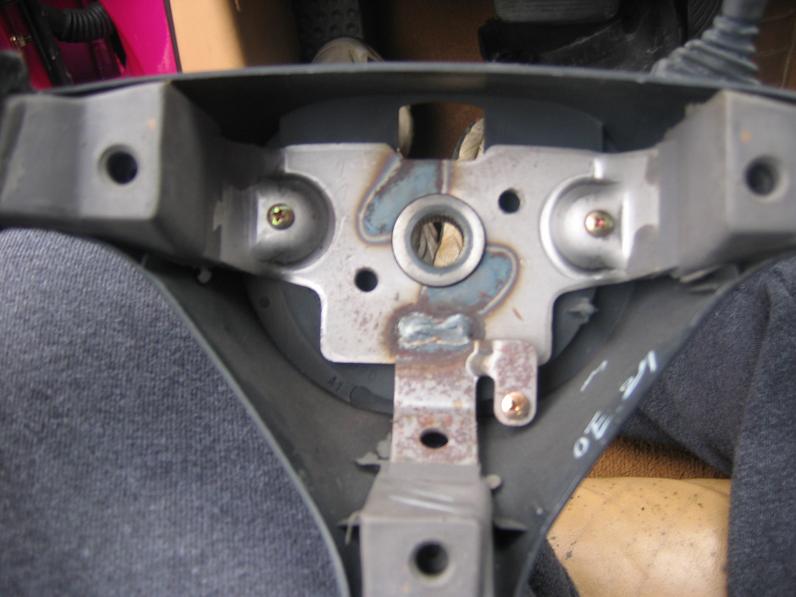

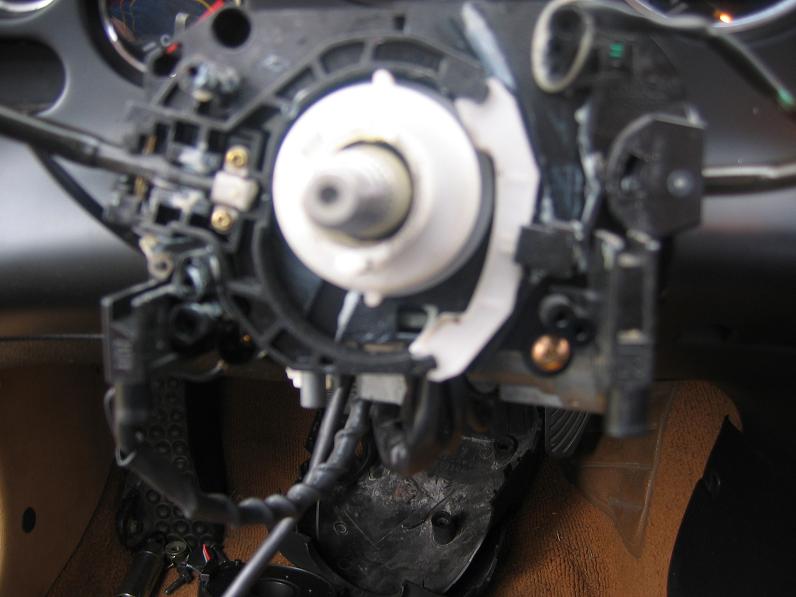

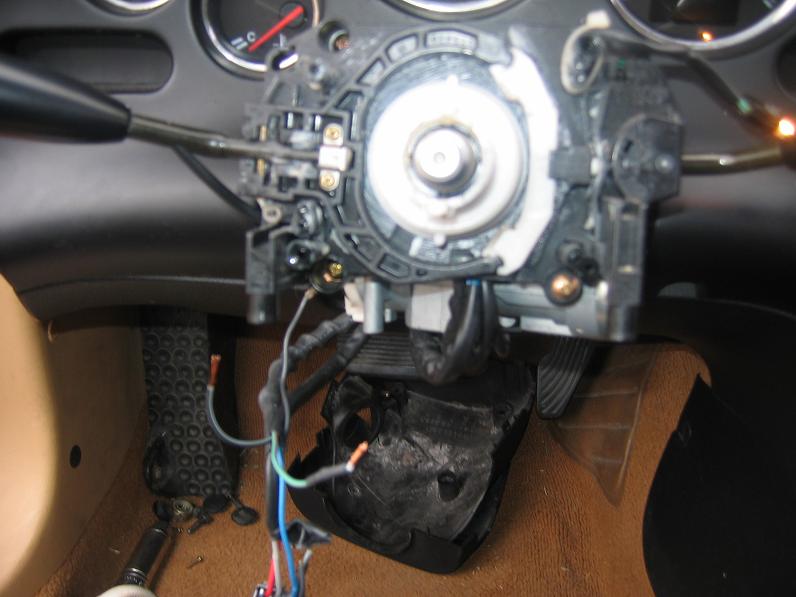

Step 11: Pull off the metal covering, 3 phillips head screws and hook 2 wires to it, one to the Horn Clip and one to the brass insert or in betwwen the cover. MAKE SURE TO MAKE THESE FAIRLY LONG, AS YOU WILL NEED EXCESS WIRE TO BE ABLE TO STEER THE WHEEL AROUND.
Step 9: Take the efini wheel apart. Get the horn clip and sauter a wire to it. (Look in pictures)
Step 10: Strip the black and green wires from the clock spring. Just cut the others and tape them up.
Step 11: Pull off the metal covering, 3 phillips head screws and hook 2 wires to it, one to the Horn Clip and one to the brass insert or in betwwen the cover. MAKE SURE TO MAKE THESE FAIRLY LONG, AS YOU WILL NEED EXCESS WIRE TO BE ABLE TO STEER THE WHEEL AROUND.
Last edited by rotorsownyou7; 02-13-05 at 02:30 PM.
02-13-05, 02:26 PM
#4
Slow RX-7
Thread Starter
Join Date: Sep 2004
Location: Virginia
Posts: 1,715
Likes: 0
Received 0 Likes
on
0 Posts

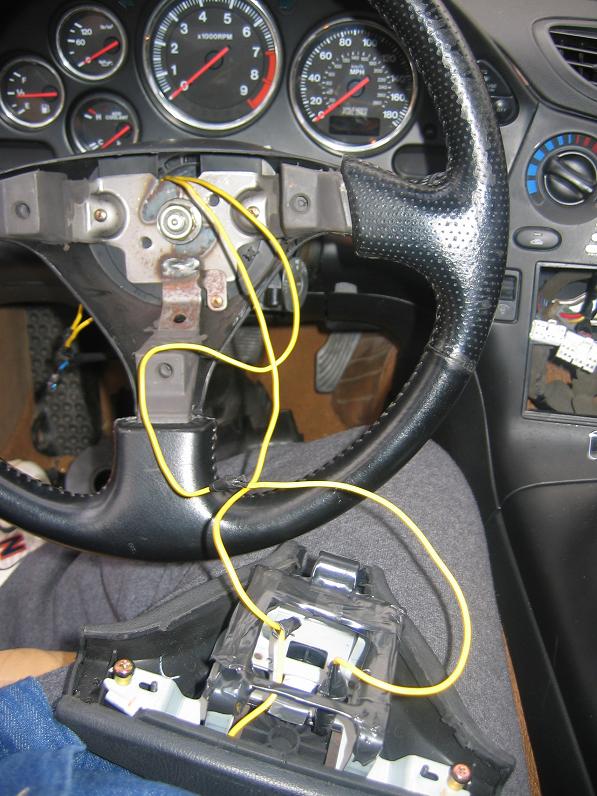

Step 12:MAKE SURE YOU COVER THE METAL WITH ELECTRICAL TAPE! Hook the wires you hooked to the cover to the wires you stripped. Make sure along the way you check to make sure it is beeping before you put it back! IF YOUR CAR CATCHES ON FIRE BECAUSE YOU HAVE SOMETHING GROUNDED YOU CAN NOT BLAME ME!!!!!!!!! CHECK THE WIRES BEFORE YOU PUT EVERYTHING BACK ON!

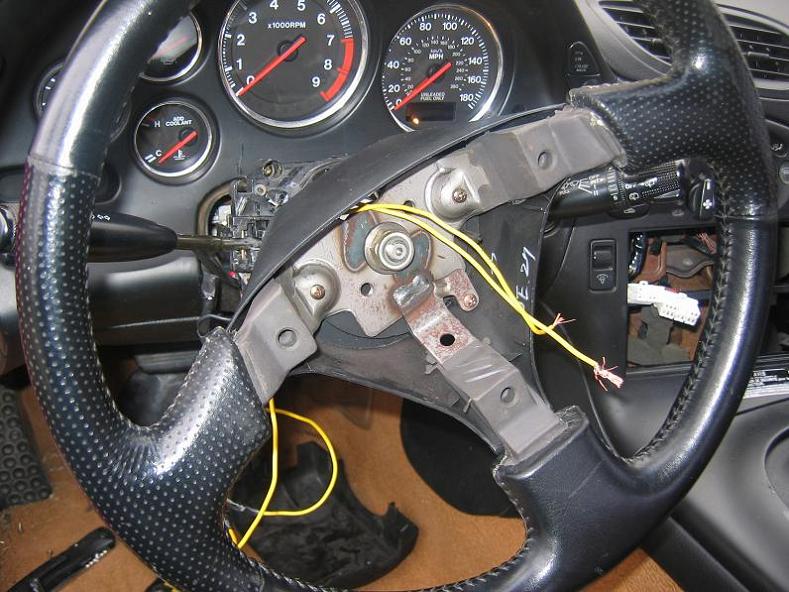

Step 13: Replace the wheel, just push it on tight, the replace the nut tight.

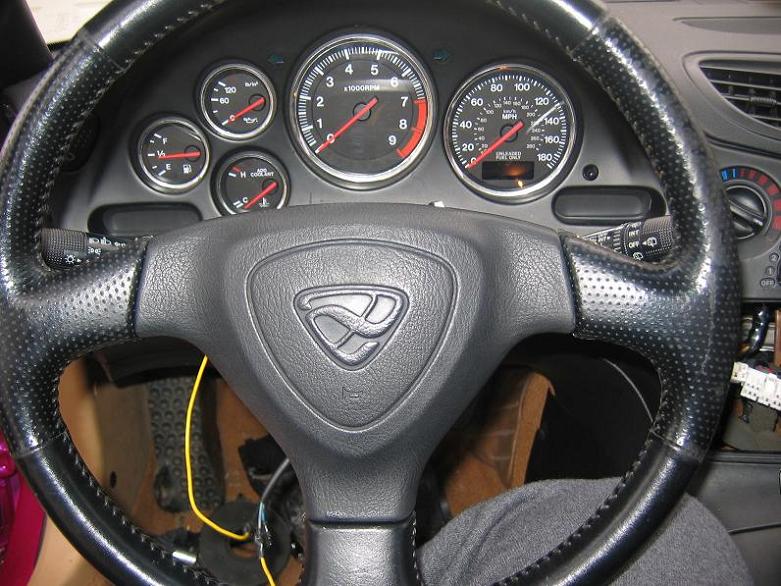

Step 14: Replace the cover and you are done!
Step 13: Replace the wheel, just push it on tight, the replace the nut tight.
Step 14: Replace the cover and you are done!
Last edited by rotorsownyou7; 02-13-05 at 02:34 PM.
02-13-05, 04:19 PM
#7
Slow RX-7
Thread Starter
Join Date: Sep 2004
Location: Virginia
Posts: 1,715
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by badddrx7
Please note to MAKE SURE the battery is disconnected, SRS connector disconnected and the brake pedal pushed for a minute or so to discharge the Air bag circuit. These things can kill you.
tom
tom
YES! I forgot! Air Bags are very dangerous! Anyone with anything to add just post it!
