Starter wiring question
#1
Starter wiring question
Hi all,
Replacing my starter today and realized the starter wiring from the replacement is opposite of what came off the car. Is the replacement incorrect?

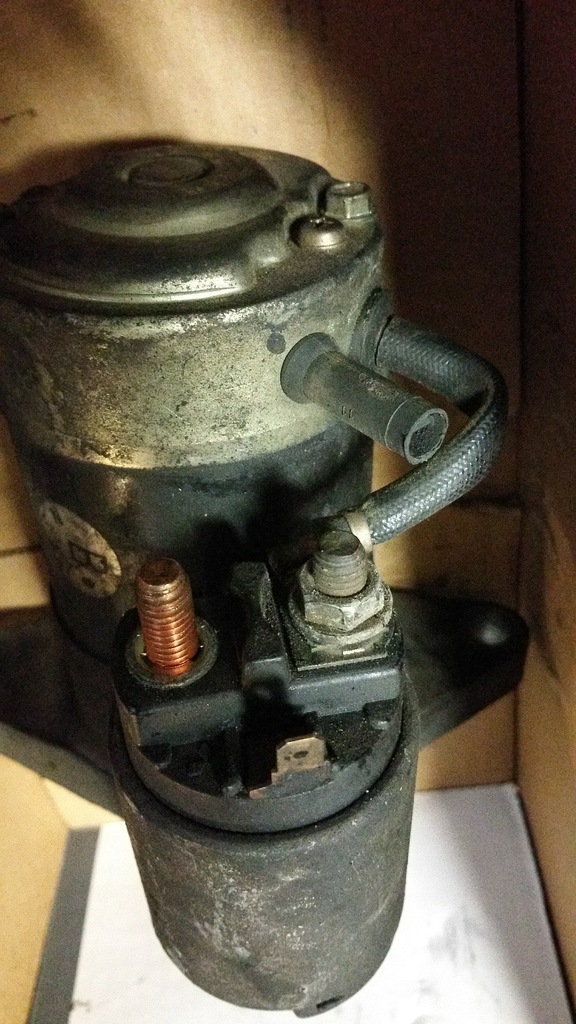

New Starter (Excel Automotive from Rockauto)

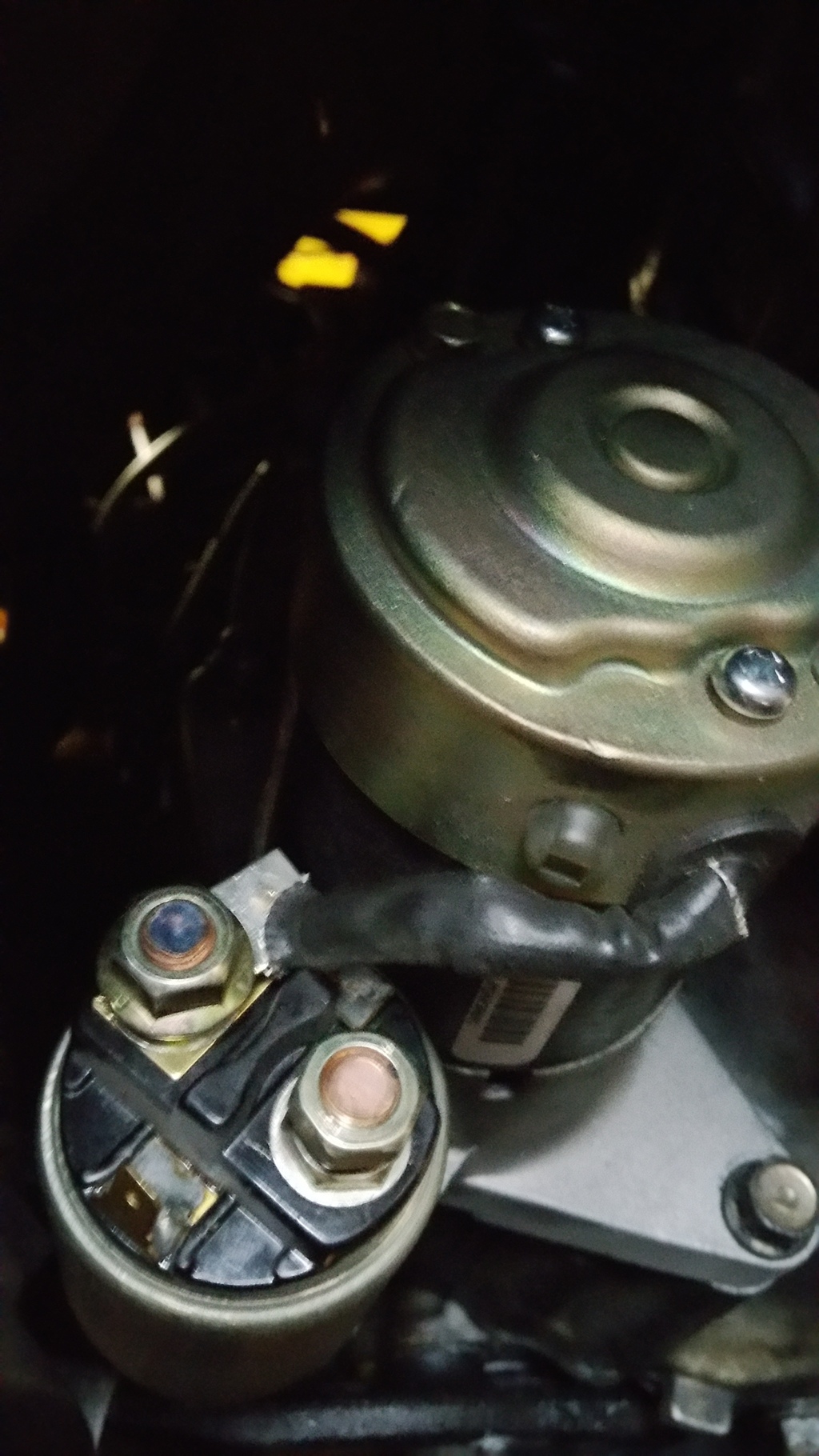

Old Starter (OEM(?)/Mitsubishi)
Thanks!!
Replacing my starter today and realized the starter wiring from the replacement is opposite of what came off the car. Is the replacement incorrect?
New Starter (Excel Automotive from Rockauto)
Old Starter (OEM(?)/Mitsubishi)
Thanks!!
Last edited by RevUp13b; 06-28-15 at 07:42 PM.
#2
I don't think it makes to much difference what side it's on as it's just a coil u should be able to switch it over
I've never done this but would try it and if it goes bang it wasn't me lol
I've never done this but would try it and if it goes bang it wasn't me lol
#4
--------->
iTrader: (12)
Join Date: May 2010
Location: USA
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Hey, Makes a BIG difference... +12volts (from Battery) and +12volts (from ignition switch) cannot be on same pole. So, check continuity (male-spade connector to each large stud). The large starter wire will be connected to the large-stud that DOES have continuity with the small male-spade connector. Battery +12v cable connects to the other stud.
#5
Ahh have I miss understood thort that the solenoid wire the fat 1 u was on about that it was on the upper pole not the lower pole ?
As the trigger side is the little spade
As the trigger side is the little spade
Last edited by imitek; 06-29-15 at 02:50 AM.
#7
Goodfalla Engine Complete
iTrader: (28)
Hey, Makes a BIG difference... +12volts (from Battery) and +12volts (from ignition switch) cannot be on same pole. So, check continuity (male-spade connector to each large stud). The large starter wire will be connected to the large-stud that DOES have continuity with the small male-spade connector. Battery +12v cable connects to the other stud.
Trending Topics
#8
--------->
iTrader: (12)
Join Date: May 2010
Location: USA
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
^
When you turn ignition switch to "start" +12v goes directly to ground (starter housing) via solenoid coil resistance. Then, solenoid/relay closes & battery cable +12 is connected to starter motor.
Refer to: Wiring Manual (Starting System Wiring Diagram sect A-1), nice drawing of complete circuit.
When you turn ignition switch to "start" +12v goes directly to ground (starter housing) via solenoid coil resistance. Then, solenoid/relay closes & battery cable +12 is connected to starter motor.
Refer to: Wiring Manual (Starting System Wiring Diagram sect A-1), nice drawing of complete circuit.
