Started my vacuum hose change to silicone, and it sucks so far!
#53
I live in a Museum
Join Date: Apr 2004
Location: NY, 10992
Posts: 930
Likes: 0
Received 0 Likes
on
0 Posts
Howmuch do used solenoids usually go for.. im simplifying my system and im gonna have some extra solenoids if someone is interested in them.. ill include all plugs for the solenoids because they are in great condition i only have 26k on my car/ motor. PM me if interested
#54
Update,
I started to put the rats nest back into the car.. Damn its just about as hard to put the thing back into the car than taking it out!
Tip: connect the harness back to the solenoids first before you screw the rats nest back (which is the freaking hardest part)
I'm sad to say, im going to continue the project without changing one of the hoses... and thats the one that goes from the LIM to the Y-Pipe. It's just out of my reach. The nipple points DOWN from the Ypipe, its just unreachable! and I dont have the heart to pull the Ypipe off now....... I hope that hose isnt important as the others....
I started to put the rats nest back into the car.. Damn its just about as hard to put the thing back into the car than taking it out!
Tip: connect the harness back to the solenoids first before you screw the rats nest back (which is the freaking hardest part)
I'm sad to say, im going to continue the project without changing one of the hoses... and thats the one that goes from the LIM to the Y-Pipe. It's just out of my reach. The nipple points DOWN from the Ypipe, its just unreachable! and I dont have the heart to pull the Ypipe off now....... I hope that hose isnt important as the others....
#55
development
Change it wimp. To pull the y-pipe is two bolts for efini, which I doubt you have since your scared to pull the stock Y is one clamp...unless, the bracket is still attached, then its two bolts and one clamp....frankly I don't see how you pulled the rats nest out and don't have the heart to pull the Y.
#56
I Like Beer
Join Date: Aug 2001
Location: Vancouver Island Oceanside
Posts: 808
Likes: 0
Received 2 Likes
on
2 Posts
Hey the Y-Pipe is not that tough, dude!
One thing that was not obvious to me the 1st time was that the y-pipe is really in 2 pieces, and once you've got the 4 nuts off, you can move the whole assembly...the part with the actuator will pull away from the y-pipe proper, then you can easily remove them from the bay. I didn't realize this till I had the assembly out (after loosening the ABS mounts, etc. sheesh)
One thing that was not obvious to me the 1st time was that the y-pipe is really in 2 pieces, and once you've got the 4 nuts off, you can move the whole assembly...the part with the actuator will pull away from the y-pipe proper, then you can easily remove them from the bay. I didn't realize this till I had the assembly out (after loosening the ABS mounts, etc. sheesh)
#57
Moderator
iTrader: (7)
Originally Posted by dubulup
Change it wimp. To pull the y-pipe is two bolts for efini, which I doubt you have since your scared to pull the stock Y is one clamp...unless, the bracket is still attached, then its two bolts and one clamp....frankly I don't see how you pulled the rats nest out and don't have the heart to pull the Y.
Then remove the rear turbo inlet pipe (2 nuts reached from under the car, 1 screw from on top)
Then remove the 4 nuts that hold down the y-pipe assembly.
IMO, you really should remove it. You'll probably never be in under the UIM again, and those are some of the most highly heated hoses in the engine.
Dave
#58
development
Originally Posted by dgeesaman
You'll probably never be in under the UIM again
LOL!!
but your are right about the disassembly...Bu, I'm thinking he can replace that hose with just removing the crossover pipe accessing the nipple pointing down.
#59

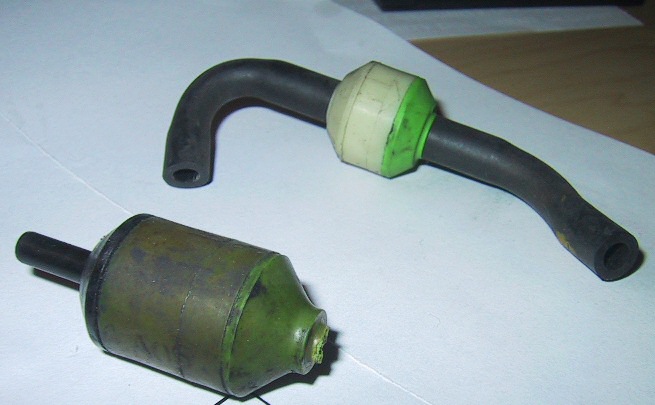

One of the check valves broke. Its the one thats on the line goin from the Y-pipe to pressure chamber.
Since I am eliminating the double throttle solenoid, I have one check valve to spare, however this check valve is smaller than the one used on the y-pipe. Can I use the DT one to substitute or no? They are both one-way, just different size.
RX794 told me they are different in size to hold different amounts of air. I just want to get some other opinions on this matter. Will it be ok? Or will the size have no ill effects?
Thanks!
Since I am eliminating the double throttle solenoid, I have one check valve to spare, however this check valve is smaller than the one used on the y-pipe. Can I use the DT one to substitute or no? They are both one-way, just different size.
RX794 told me they are different in size to hold different amounts of air. I just want to get some other opinions on this matter. Will it be ok? Or will the size have no ill effects?
Thanks!
#62
I Like Beer
Join Date: Aug 2001
Location: Vancouver Island Oceanside
Posts: 808
Likes: 0
Received 2 Likes
on
2 Posts
BLOCKING OFF VAC HOSES:
Is there any good reason why I couldn't simply block off a hose by gluing a bolt or screw in the end of it, rather than buying caps?
I mean, the factory cap on the 'boost gauge' nipple on the extension manifold slides off pretty easily, and it is exposed to boost obviously.
thanks
edv
Is there any good reason why I couldn't simply block off a hose by gluing a bolt or screw in the end of it, rather than buying caps?
I mean, the factory cap on the 'boost gauge' nipple on the extension manifold slides off pretty easily, and it is exposed to boost obviously.
thanks
edv
#64
Originally Posted by edv
BLOCKING OFF VAC HOSES:
Is there any good reason why I couldn't simply block off a hose by gluing a bolt or screw in the end of it, rather than buying caps?
I mean, the factory cap on the 'boost gauge' nipple on the extension manifold slides off pretty easily, and it is exposed to boost obviously.
thanks
edv
Is there any good reason why I couldn't simply block off a hose by gluing a bolt or screw in the end of it, rather than buying caps?
I mean, the factory cap on the 'boost gauge' nipple on the extension manifold slides off pretty easily, and it is exposed to boost obviously.
thanks
edv
#65
I'm replacing the hoses at the actuators (wastegate & turbo precontrol). The diagram reads REPLACE RESTRICTOR. I ripped apart the old rubber hoses and sure enuff theres a tiny piece in there im guess is the restrictor. Can I reuse this pieces and just shove them into the silicone hoses?
Thanks
Thanks
#67
Moderator
iTrader: (7)
Originally Posted by kevinvr6
I'm replacing the hoses at the actuators (wastegate & turbo precontrol). The diagram reads REPLACE RESTRICTOR. I ripped apart the old rubber hoses and sure enuff theres a tiny piece in there im guess is the restrictor. Can I reuse this pieces and just shove them into the silicone hoses?
Thanks
Thanks
Dave
#68
Originally Posted by dgeesaman
Yeah, exactly. Just make you don't get them switched, and keep the hole aligned with the hose. They're brass so they'll never wear out.
Dave
Dave
Help!
Progress report: I've been feeling really bad about leaving that one hose rubber since I could not get to it. Well I figured out today that I do not need to remove the Y-pipe to get to that almost unreachable nipple. I just took off the airpump and voila! instant access! of course this was after I got the nest back into the car............. so....... I disconnected everything again... pulled the nest out..... and got that hose in..... now thats dedication.......
#69
Help!
Ok i just put everything back together. car started fine. I kinda rushed putting all the intake stuff quickly and didnt clamp on a few hoses. going down my street i gave it some gas and i heard a WHOOOOOOOOSH like a line blew off.. pulled over.. it appears to be the coupling from the elbow to the intercooler. i clamped off all the hoses and went for another run. I'm getting ZERO boost.
Note: The hoses I replaced at the actuators (wastegate and prespool) are just the lines w/o pills but I believe even without the pills I should be boosting 7-5-7.
Initially I started this hose job because my secondary turbo wasnt coming online, it never has since I bought the car. But I would get a good 10-11psi out of the primary and then it dips down to 5psi and stays there.
Now what's causing my 0 boost?
Also I connected my laptop and ran datalogit. And using the monitor function. For the Sensor VTA1, it says 4.97 and its in RED. what is that? I believe its a warning but I don't know what.
Note: The hoses I replaced at the actuators (wastegate and prespool) are just the lines w/o pills but I believe even without the pills I should be boosting 7-5-7.
Initially I started this hose job because my secondary turbo wasnt coming online, it never has since I bought the car. But I would get a good 10-11psi out of the primary and then it dips down to 5psi and stays there.
Now what's causing my 0 boost?
Also I connected my laptop and ran datalogit. And using the monitor function. For the Sensor VTA1, it says 4.97 and its in RED. what is that? I believe its a warning but I don't know what.
#70
TRINGLS
Join Date: Apr 2004
Location: Clermont, FL
Posts: 1,053
Likes: 0
Received 0 Likes
on
0 Posts
I am still in the middle of this.... gotta report to work in the morning too without a ride I broke two solenoids otherwise I'd be golden as everything else has been smooth as silk...
~Kris
~Kris
#71
Silly me, i keep jumping to conclusions, VTA1 was red because the harness was not plugged it onto the throttle body.
my car wasn't boosting because the LOWER HOSE on the IC popped off which I didnt see the first time.
Car is boosting but it does buck around 3.5k rpm. Feels like im hitting fuel cut. Again I don't have the pills in so maybe that will solve the problem? I'll wait.... Got some leaky coolant now, not sure where...
It seems to be flowing a lot better though. Because the hose change, when idle and revved, the car would barely build any boost until up around 6krpm.. now when im idle and rev, it builds boost and blows off with every blip. sooooooooo dunno
my car wasn't boosting because the LOWER HOSE on the IC popped off which I didnt see the first time.
Car is boosting but it does buck around 3.5k rpm. Feels like im hitting fuel cut. Again I don't have the pills in so maybe that will solve the problem? I'll wait.... Got some leaky coolant now, not sure where...
It seems to be flowing a lot better though. Because the hose change, when idle and revved, the car would barely build any boost until up around 6krpm.. now when im idle and rev, it builds boost and blows off with every blip. sooooooooo dunno
#72
BOOOYAHHHH!
check to make sure u secured the coolant line that is in between the airpump and altenator and infront of the solenoid rack. i made the mistake of not and had a leak.
#73
I live in a Museum
Join Date: Apr 2004
Location: NY, 10992
Posts: 930
Likes: 0
Received 0 Likes
on
0 Posts
Why does the coolant run throw the TB? I disconnected the robber hose from the TB and ran it right to the nipple betweent he airpump and alternator to by pass the TB and remove another hard line. Will this do anything harmful?
#74
I Like Beer
Join Date: Aug 2001
Location: Vancouver Island Oceanside
Posts: 808
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by iluvmy3rdgen
Why does the coolant run throw the TB? I disconnected the robber hose from the TB and ran it right to the nipple betweent he airpump and alternator to by pass the TB and remove another hard line. Will this do anything harmful?
You may remove it with impunity, provided the car warms up properly before driving hard.
There is a 'How-to' for this, on the Robinette archive, I think.
#75
TRINGLS
Join Date: Apr 2004
Location: Clermont, FL
Posts: 1,053
Likes: 0
Received 0 Likes
on
0 Posts
You can just bypass the line by disconnecting it and routing it past the TB with a Male/Male 3/8" barb. I fully intend to seal off the passages from the motor and on the TB in the future for the sake of a clean look.
~Kris
~Kris
