Some pics of my ignition setup

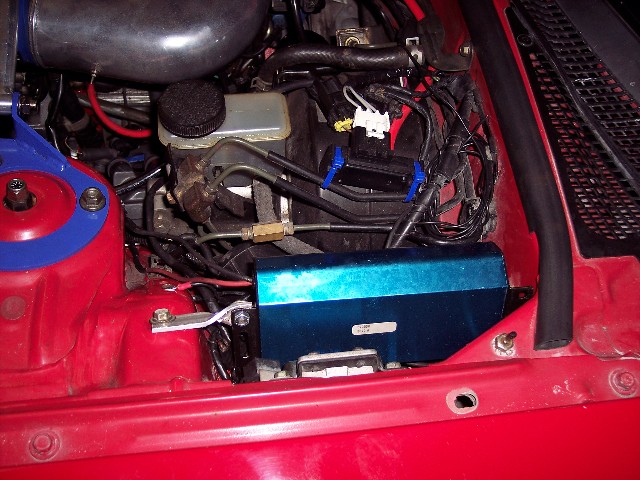

I have had a few PMs asking specifics about my ignition system, where I mounted the amp and coil, etc.
I'm running a Jacobs rotary pro pak, along with an FC coil and newly installed stock plug wires. I also just bought and installed a pair of low mileage trailing coils. I'm currently running 10.5s and 9s, but do run 9s all around depending on what kind of driving I plan to do. Having p/s and a/c delete makes changing the plugs a breeze, typically it's a 5-10 minute job.
Thanks go out to Howard Coleman for selling me this sweet setup, which included some great installation instructions and a nice bracket for the fc coil.
Thanks also go out to Chris Carlisi, who helped me with the install and performed all the fun electrical/soldering work while I was changing my oil and installing the turbo pipe pictured below
I'm running a Jacobs rotary pro pak, along with an FC coil and newly installed stock plug wires. I also just bought and installed a pair of low mileage trailing coils. I'm currently running 10.5s and 9s, but do run 9s all around depending on what kind of driving I plan to do. Having p/s and a/c delete makes changing the plugs a breeze, typically it's a 5-10 minute job.
Thanks go out to Howard Coleman for selling me this sweet setup, which included some great installation instructions and a nice bracket for the fc coil.
Thanks also go out to Chris Carlisi, who helped me with the install and performed all the fun electrical/soldering work while I was changing my oil and installing the turbo pipe pictured below
Last edited by GoodfellaFD3S; 03-26-06 at 11:24 AM.
#3
Original Gangster/Rotary!
Thread Starter
iTrader: (213)

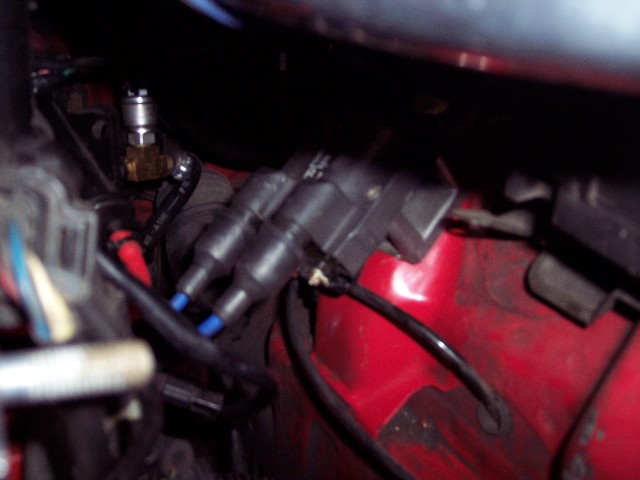

FC leading coil mounted on the bracket I got from Howard, mounted under the driver's side shock tower. I used an existing hole, just had to tap it. You can also see my Defi Fuel Pressure sending unit in the background.
#4
#5
Original Gangster/Rotary!
Thread Starter
iTrader: (213)

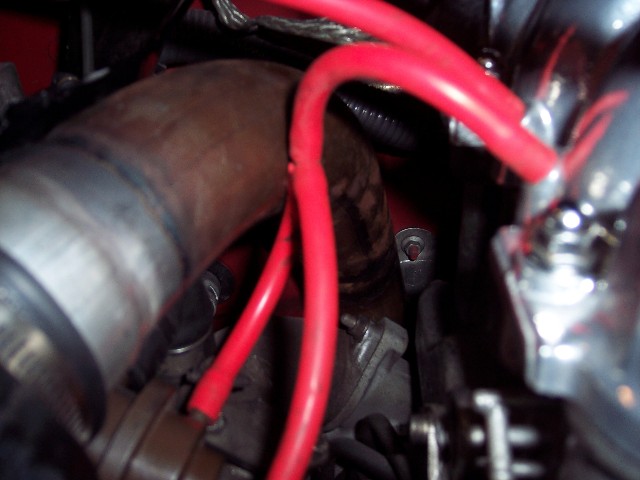

This last is a pic of my rear turbo mandrel bent inlet pipe that I picked up from Chuck Westbrook. Theoretically it should help spool up.....I installed the amp and pipe at the same time, so it's hard to say how much of an effect it had. I will say I felt a huge difference in throttle response, driveability, and pull through the rpm range, especially above 6k rpms or so.
Trending Topics
#9
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by 93silverbullet
Hey Rich,
Everthing looks well thought out and a clean install to boot! One question on the pic above. Is it just me (or possibly the quality of the pic ) or does the front vaccum line in the pic spliced or does it have a kink/hole in it???
and to all you haters out there, I plan on changing the brake fluid pronto
#16
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by Improved FD
didn't mean to hate on your FD Rich....looks good
#20
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by Node
you dont happen to have a pic of that rear turbo inlet pipe not installed? kinda hard to see./
looks cool rich, nice stuff
looks cool rich, nice stuff
I never snapped a pic. Maybe Chuck has one, I havent seen him post in a while though. It is a nice 'U' shape, mandrel bent and bolts right up.
#22
Original Gangster/Rotary!
Thread Starter
iTrader: (213)
Originally Posted by airborne
But what really makes me jealous is the perfect alignment of your ic and duct.

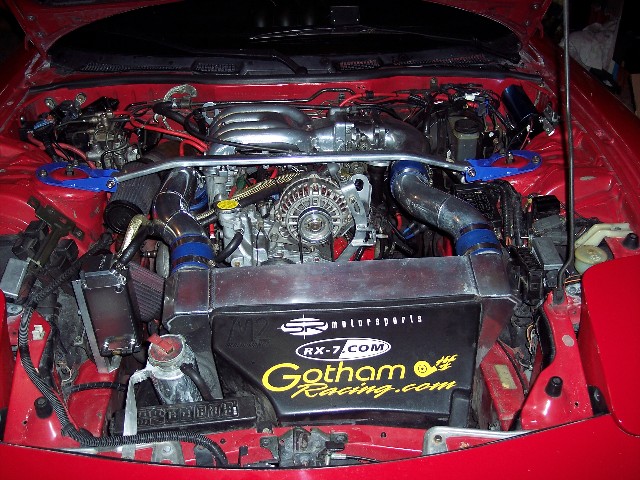

while chris and I were installing the amp, my younger brother Ryan (bridgeported12a here on the forum) was polishing all the stuff in my engine bay, and also spent some time adjusting the intercooler so the duct was better aligned with the core. After that, he cleaned and polished all four Fikses. My friends think I am lucky for the free labor, but I think he is just building up a case for a free future motor build
Rich
#24
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
