Simplified Sequential Wire Harness Simplification
Hello, I have been searching for about an hour and cannot find what I am looking for so I figured I would post. Basically I removed all my emissions stuff and would like to slim down the wire harness to complement it. My initial harness was completely shot so I picked up a good used one. Does anyone have a diagram showing exactly what can be removed? I also plan on removing the OMP wires as I am going to be running premix. Any help would be appreciated. I can’t wait to finally drive my car!
#4
Senior Member
Thread Starter
iTrader: (38)
Join Date: Jul 2008
Location: Brick, NJ
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts

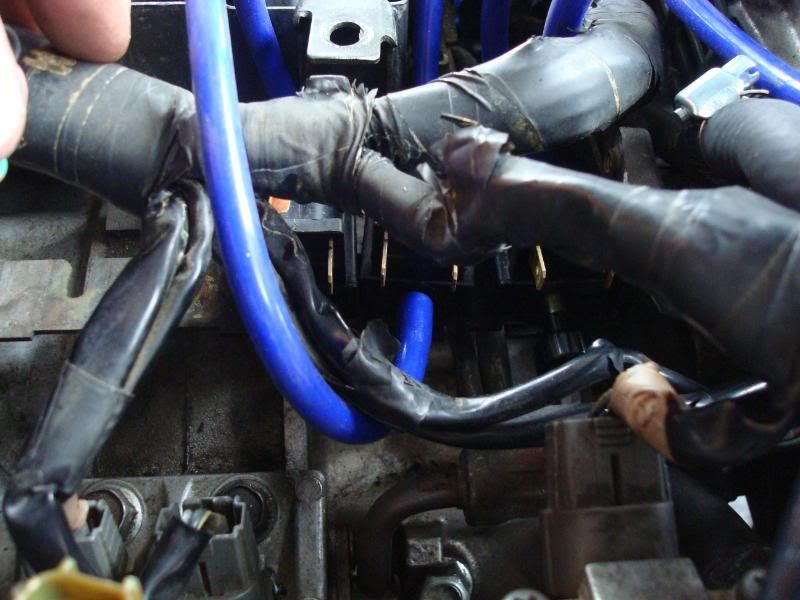

Can anyone help me out with the colors on the rats nest solenoids?
Orange is FPR
Yellow is EGR
Not sure on the rest. I am finally working on the car again and want to simplify this harness as much as possible.
Thanks!
Orange is FPR
Yellow is EGR
Not sure on the rest. I am finally working on the car again and want to simplify this harness as much as possible.
Thanks!
#5
RAWR!!!!!!!!
iTrader: (1)
Join Date: Oct 2003
Location: RR, NC
Posts: 440
Likes: 0
Received 0 Likes
on
0 Posts
I did mine by: Breaking the harness down. Label every connector. Pull out connectors 1 at a time, and used a small punch to remove the wire from the ECU plug. Take your time, and you'll come out ok.
As for the wire colors, I don't remember them, you might wanna grab a copy of the Electrical FSM to help out. That is unless someone has it in front of them.
As for the wire colors, I don't remember them, you might wanna grab a copy of the Electrical FSM to help out. That is unless someone has it in front of them.
#6
Senior Member
iTrader: (8)
1- Black(top) - Charge relief
2- Green - Double throttle control
3- White - Charge control
4- Brown - Turbo control
5- Yellow - EGR solenoid
6- Gray - Switching
7- Blue - Relief 1
8- Orange- FPR regulator control
i only ran the Charge relief, charge control, the 2 turbo control solenoids and manual boost controllers instead of the wastegate and precontrol solenoids. Also for my harness i didnt want to hack it all up so i just put resistors at each unused connector and called it a day.
2- Green - Double throttle control
3- White - Charge control
4- Brown - Turbo control
5- Yellow - EGR solenoid
6- Gray - Switching
7- Blue - Relief 1
8- Orange- FPR regulator control
i only ran the Charge relief, charge control, the 2 turbo control solenoids and manual boost controllers instead of the wastegate and precontrol solenoids. Also for my harness i didnt want to hack it all up so i just put resistors at each unused connector and called it a day.
