Series 7 Vacuum Diagram

I guys , i am batteling with my Series 7 and the twins . My second turbo does not come online most of the time . However if i blip the throttle a few times over 4500 rpm , the second turbo comes online and boosts 0.7 kg/cm2 . From what i read it sounds like a vacuum problem ? I know there should be a check valve to the vacuum tank but i cant find where exactly that should be . The car was directly imported from japan and the sequential system never worked properly . If anyone can give me a series 7 diagram i would apprechiate it a lot . At idle 900 rpm the car has a vacuum of -270 mmHg at 912 rpm its -309 mmHg . If i rev the car in neutral i get 0.26 kg/cm2 at 6270 rpm. If anyone has any diagram from a series 7 please help !
Old 08-18-14, 02:52 PM
  #2
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts

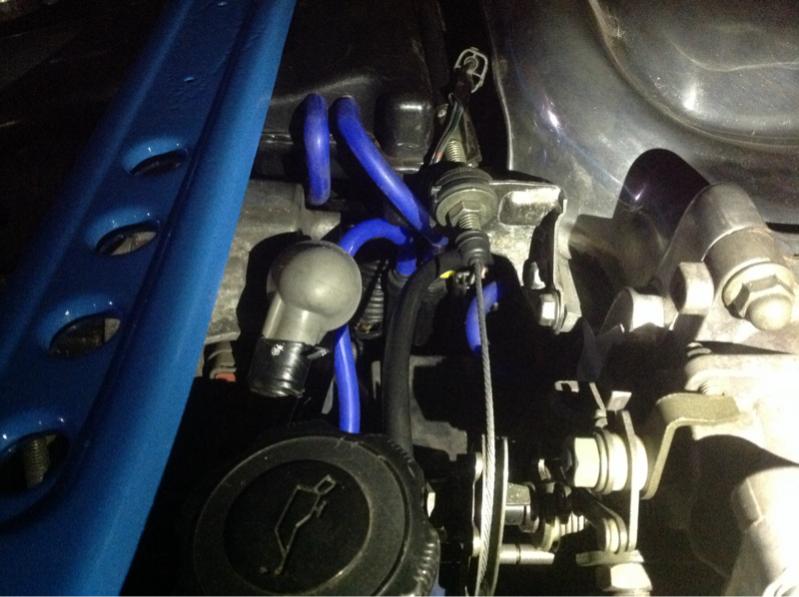

This is what it looks like . The left line from my pressure chamber goes to the y pipe like in the diagram . The right one goes to a black plastic piece . Thr line lrft of that plastic piece goes to the vacuum tank directly with no splice or check valve . So i think the routing of the vacuum lines is not right
Attached Thumbnails Series 7 Vacuum Diagram-image-2301521013.jpg
Old 08-18-14, 05:43 PM
  #3
Rotary Freak


billyboy's Avatar

Join Date: Jun 2005
Location: sydney
Posts: 1,535
Received 261 Likes on 199 Posts
Can't make out anything useful from your picture!

Diagram is here -

https://www.rx7club.com/3rd-generati...diagam-792369/

there are better ones out there, coloured, etc, not on this forum though, afaik.

Usual issues you should check in order of failure are the one way valves, the odd dead or sticky solenoid - especially the ones that have high duty cycle, air leaks in the black box, vacuum and pressure chambers and lastly, the actuators.
Old 08-18-14, 07:32 PM
  #4
Rotary Enthusiast


96fd3s's Avatar

Join Date: Apr 2008
Location: NZ
Posts: 1,092
Likes: 0
Received 4 Likes on 4 Posts
Yes it sounds like a vacuum problem..
You need to remove the upper intake manifold and make sure all the hoses are connected..
You cant do much without taking it off! There is about a dozen hoses under there that you cant see because the intake manifold is in the way..(i have a S7)
Old 08-19-14, 01:53 AM
  #5
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts
Thanks guys for pointing me to the S7/S8 Vacuum diagram ( I haven been looking for weeks without success )

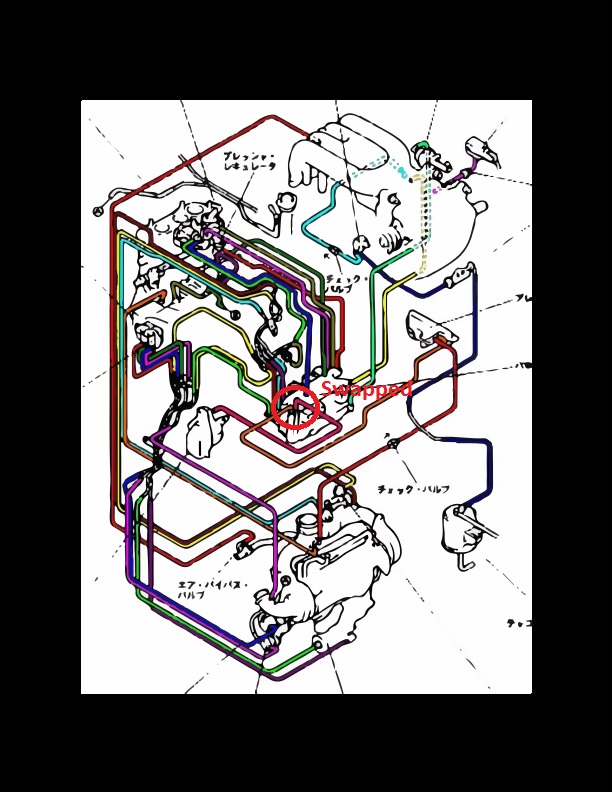

I went over it last night and saw that the hose from the Vacum Chamber and the hose from the Pressure Chamber are the wrong way arround on my car ( see attached diagram ) . I will try tonight after work and hope its just that . If not i will take of the UIM of and go line by line on the weekend ....
Attached Thumbnails Series 7 Vacuum Diagram-my-rats-nest-.jpg
Old 08-21-14, 04:26 PM
  #6
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts

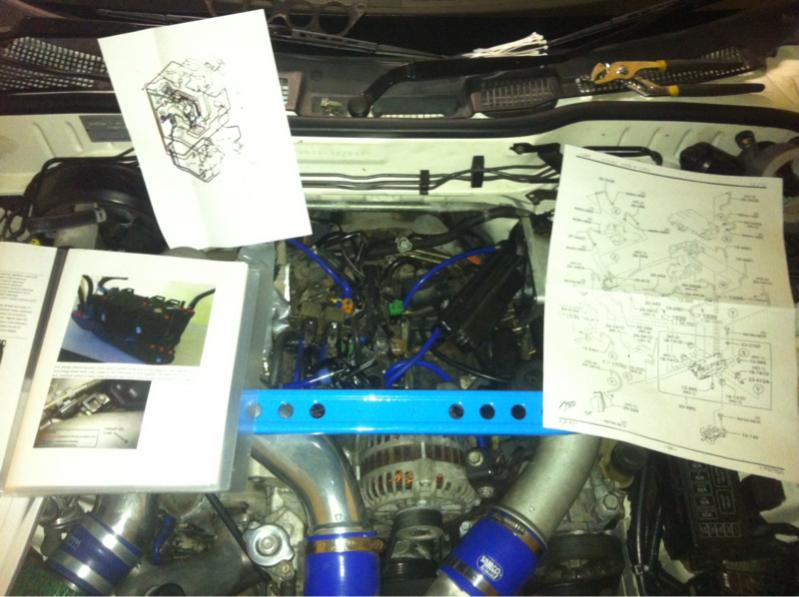

She finally boosts !!!!!!! found another pair of swapped vaccuum pipes and one old rubber pipe that didn't seem to seal very nice . Drove her just now and it's awesome when the twins work .
Attached Thumbnails Series 7 Vacuum Diagram-image-2807309742.jpg
Old 01-05-15, 06:20 AM
  #7
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts
Hi guys ran into a lot more problems with my twins . I found 3 solenoids that where dead . Replaced them and now I get a solid 0.8 kg/cm2 on the first turbo , after that it makes the transition to the 2nd turbo but then only boosts 0.44 kg/cm2 ( 6.8 PSI) I then started to diagnose the second turbo and found the line to waste gate has been replaced but without the destructor pill . Went to my local Rotary tuner and got a hose with pill from one of the turbos he had lying arround . I checked if the line had the pill in , and then installed it . Still the same result 0.44 kg/cm2 only on the second turbo . I have a power fc and i also played arround with duty cycle but no change at all . Anyone got a hint what else it could be ?
Old 01-07-15, 09:43 AM
  #8
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts
Found my problem , my wastegate actuator diaphrame is buggered .
Old 01-07-15, 12:05 PM
  #9
Senior Member


fd3s7007's Avatar

Join Date: Nov 2001
Location: Malaysia
Posts: 567
Likes: 0
Received 0 Likes on 0 Posts
Hey Markus glad you sorted your boost issues. I'm doing the same and i know how frustrating it can get ��
Old 01-07-15, 02:46 PM
  #10
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts
Thanks , still need to get a new one and fit it
Old 01-08-15, 12:28 AM
  #11
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts
Does anyone have a good tip how to replace the wastegate actuator with the least disassembly possible ?
Old 01-08-15, 09:06 AM
  #12
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts

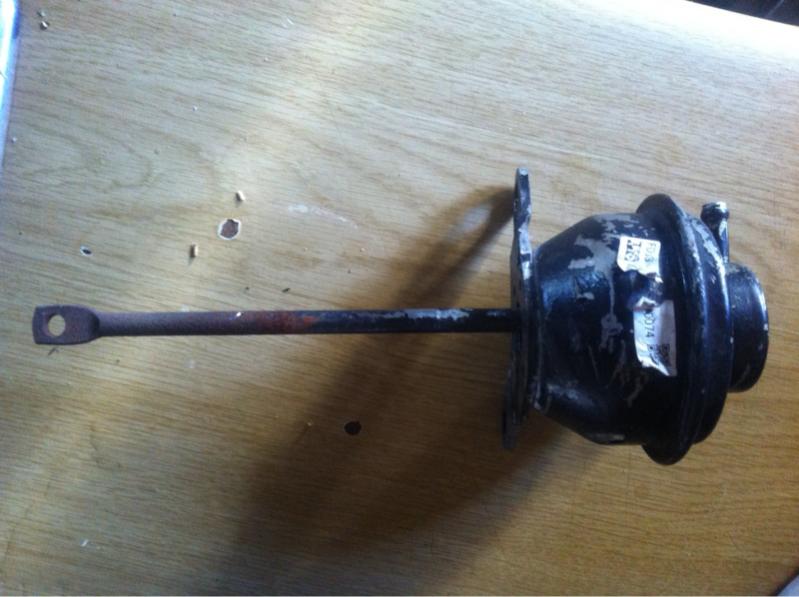

Never mind managed to get the actuator out from the top , it's tight in there but not impossible , now just need to get a new one
Attached Thumbnails Series 7 Vacuum Diagram-image-990957080.jpg
Old 01-10-15, 10:13 AM
  #13
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts
turned out this wasn't my problem either . Had my wastegate and precontrol solenoid connectors swapped and a leaky pressure tank . Now she boosts like never before on both turbos . I love the working sequential twins
Old 01-23-15, 12:21 AM
  #14
Full Member

iTrader: (12)

p51hellfire's Avatar

Join Date: Nov 2013
Location: St Augustine, FL
Posts: 77
Likes: 0
Received 0 Likes on 0 Posts
Just out of curiosity, I have recently acquired a 99 rats nest and I have a 93. I'm trying to figure out if this is something I could install in my 93.. Anyone heard of such a thing? Is it worth my time? I have the wiring harness for the 99 as well. Thanks all!
Old 01-23-15, 03:47 AM
  #15
Senior Member

Thread Starter

Markus1981's Avatar

Join Date: Aug 2013
Location: Wolnzach Germany
Posts: 613
Received 44 Likes on 34 Posts

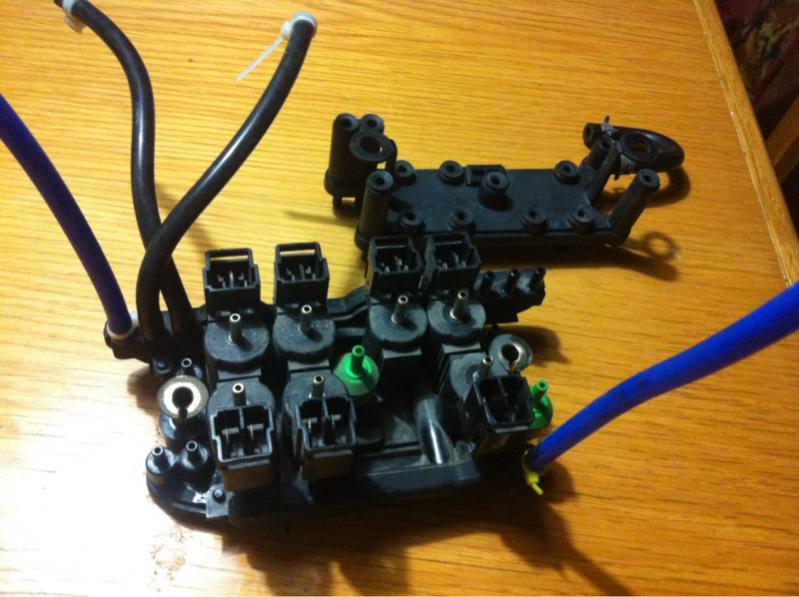

Yes you can install it , but I honestly don't see a benefit . My personal opinion . Benefits of the plastic box : -looks neat and less hoses to worry about -RX8 solenoids are a straight replacement Drawbacks : - looking neat but you anyways can't see it because it's hidden behind the pressure tank so pointless in my opinion -it's made out of plastic and takes more space under the UIM ( in my view less cooling flow below UIM ) -For every solenoid and 1 way check valve (2 are inside the box ) you have to take the box apart and hope it doesn't break ( I did that a few times and touch wood everything is fine ) -you have to use the Mazda check valves as the superior and by far cheaper viton check valves won't fit in the box ( too wide ) -if you break a nipple of the plastic box you are 700$ out of pocket . Summary : In terms of rigidity the old rats nest is better than the plastic box once you did a hose job and a lot less to worry about .( this is my personal opinion ) As an alternative to the harness change you can also take the box apart and fit the old series 6 solenoids . They fit straight into the box and then you have the correct connectors .
Attached Thumbnails Series 7 Vacuum Diagram-image-1431798920.jpg
