seq boost controller
I have my boost controller like the first version. With ths version I seem to only control the secondary turbo. If I use the second version will I control the primary too?
Also I understand that the secondary turbo can be turned up to 13psi with the correct mods of course. So can the primary turbo be turned up to 13 also?
Also I understand that the secondary turbo can be turned up to 13psi with the correct mods of course. So can the primary turbo be turned up to 13 also?
Last edited by Thomas1277; 10-11-06 at 08:23 PM.
10-11-06, 09:52 PM
#3
MY78U
Thread Starter
Join Date: Sep 2005
Location: Nashville TN
Posts: 261
Likes: 0
Received 0 Likes
on
0 Posts
upgraded fuel pump, power fc tuned, datalogit, greddy fmic, greddy intake, full exhaust, ported wastgate, HKS twin pack, innovate wideband, fluidyne radiator, ast
Boost patter is 10-8-13. Everytime I adj. the boost it only adj. the second turbo.
Boost patter is 10-8-13. Everytime I adj. the boost it only adj. the second turbo.
10-12-06, 10:46 AM
#6
Full Member
Join Date: Nov 2001
Location: Toronto
Posts: 228
Likes: 0
Received 0 Likes
on
0 Posts

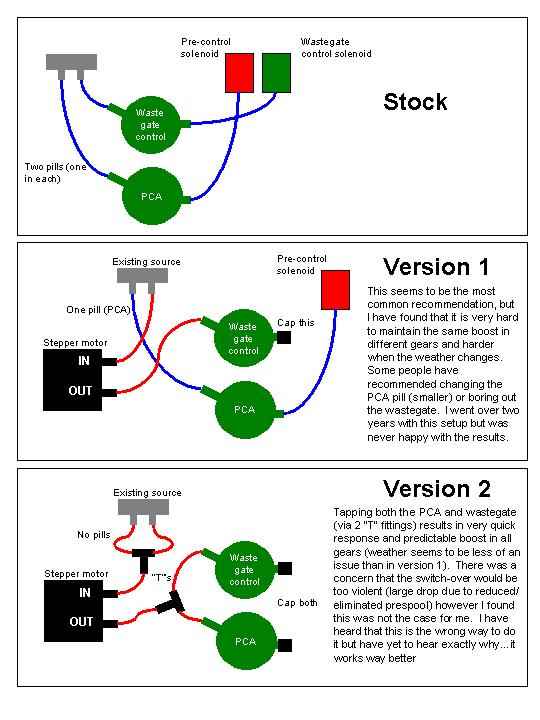

I had a problem with boost spike using version 1 (I'm the guy who put that diagram together). I've been driving with version 2 for 5 years now without any boost issues on either turbo. I appreciate that version one is technically correct, however couldn't get it to work. There have been no adverse side effects from using version 2 (only positive).
MCF
MCF
Trending Topics
10-12-06, 09:42 PM
#8
Rotary Enthusiast
iTrader: (5)
Join Date: Mar 2005
Location: Boxford, MA
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
mcf what was your response like compared with version one (like what boost at what rpm) if you remember? Also, what boost were you running? Do you see much difference in the transition spike behavior? After thinking about it a little it seems like this would affect prespool. I'm thinking as soon as the primary hits full boost the solenoid will effectively start prespooling the secondary, which seems like it might work alright. I admit I don't understand the sequential system as well as I would like to so I'd like to hear your observations.
Last edited by Maximum; 10-12-06 at 10:03 PM.
10-14-06, 06:56 AM
#12
Full Member
Join Date: Nov 2001
Location: Toronto
Posts: 228
Likes: 0
Received 0 Likes
on
0 Posts
Maximum,
You can read up on the version 1/ version 2 debate at http://fd3s.net/profec_install.html
As far as boost response - primary boost improved in my case (speed at which it came on, and maxmimum boost hit), transition may be slightly more noticeable, and secondary came on as with the stock setup. I run 15-16 lbs boost.
MCF
You can read up on the version 1/ version 2 debate at http://fd3s.net/profec_install.html
As far as boost response - primary boost improved in my case (speed at which it came on, and maxmimum boost hit), transition may be slightly more noticeable, and secondary came on as with the stock setup. I run 15-16 lbs boost.
MCF
10-14-06, 05:59 PM
#13
Rotary Enthusiast
iTrader: (5)
Join Date: Mar 2005
Location: Boxford, MA
Posts: 791
Likes: 0
Received 0 Likes
on
0 Posts
Sounds good MCF, I'll probably give that a try at some point. It surprises me that it would change how quickly primary boost came on, but I guess the more pronounced transition makes sense since it's not really prespooling as it was designed to.
