Safely running boost creep? - RX7Club.com - Mazda RX7 Forum

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

Safely running boost creep?

Reply



Old 01-08-18, 04:14 AM
  #1
Junior Member
Thread Starter

Join Date: Aug 2015
Location: Auckland, NZ
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Safely running boost creep?

Hey guys, im in the middle of pulling my motor, as im replacing the clutch and installing a 3in full exhaust. Ive read about the boost creep people experience when theyve put in a larger exhaust and i was wondering if my power fc is able to adjust for the increase in boost to run it safely, or is porting my wastegate an absolute must?
Aramir is offline
Reply With Quote
Old 01-08-18, 05:23 AM
  #2
Put it in the microwave!
iTrader: (18)

kensin's Avatar

Join Date: Jul 2009
Location: CA
Posts: 1,208
Thanked 9 Times in 9 Posts
with a full 3inch exhaust a ported wastegate is pretty much standard.

the amount of air is just too much for the tiny wastegate. even with a boost controller. its best to port the wastegate no matter what.
since your motor is out. its pretty wise to do so.
and i also suggest you pull the injectors and have them sent out for service. RC dose a great job and like 24$ per injector ?
changed the orings while your at it. heck, do the fuel lines too. test your coils since your already there. the list goes on but lets not get too ahead of our selfs lol
kensin is offline
Reply With Quote
Old 01-08-18, 10:36 AM
  #3
Sponsor
RX7Club Vendor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 10,806
Thanked 13 Times in 12 Posts
You cannot adjust for boost creep. The only thing you can do is tune for the boost level it creeps to providing your fuel and ignition systems can keep up. That being said, I strongly advise against running a full 3" exhaust on a twin turbo car unless you port the wastegate and even then it sometimes isn't enough to stop the creep completely. Temporarily you can add a 2.5 or 2.25" restrictor plate in the exhaust to try and prevent the creep.
IRPerformance is offline
Reply With Quote
Old 01-08-18, 11:11 AM
  #4
RX-7 Bad Ass
iTrader: (48)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 10,220
Thanked 101 Times in 84 Posts
There is actual creep, where the waste gate can't keep up with flow, and there's the stock boost control system running away with boost.

If you have the engine out, take the time and port the waste gates. Isn't that hard and won't take you very long. I would also research boost control, either using a Datalogit and MAC solenoids or an aftermarket boost controller.

Dale
DaleClark is offline
Reply With Quote
Old 01-12-18, 07:11 PM
  #5
Junior Member
Thread Starter

Join Date: Aug 2015
Location: Auckland, NZ
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks for the replys, my next question is which wastegate am i acutally porting?
Aramir is offline
Reply With Quote
Old 01-13-18, 02:13 AM
  #6
Put it in the microwave!
iTrader: (18)

kensin's Avatar

Join Date: Jul 2009
Location: CA
Posts: 1,208
Thanked 9 Times in 9 Posts
Open the flapper on the second pic and then enlarge the hole
kensin is offline
Reply With Quote
Old 01-13-18, 07:53 AM
  #7
***** "Nazi"...lol!

bajaman's Avatar

Join Date: Jul 2001
Location: near Wichita, Kansas
Posts: 4,947
Thanked 11 Times in 11 Posts
Originally Posted by kensin View Post
Open the flapper on the second pic and then enlarge the hole
Is there a write-up on this anywhere? Drawing/specs?
bajaman is offline
Reply With Quote
Old 01-13-18, 09:50 AM
  #8
RX-7 Bad Ass
iTrader: (48)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 10,220
Thanked 101 Times in 84 Posts
There may be. The principle is you want to open the hole up underneath the flapper but still have enough material for the flapper to seal to. Really you only need 1-2mm of lip around the hole to seal up to the wastegate flapper.

Also, just a small amount of porting makes a pretty substantial difference.

Dale
DaleClark is offline
Reply With Quote
Old 01-13-18, 04:59 PM
  #9
Junior Member
Thread Starter

Join Date: Aug 2015
Location: Auckland, NZ
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
yeah i was thinking that would be the case, what is the function of the other gate? looks like it redirects gas through that spacer chamber to the other turbo or something?
Aramir is offline
Reply With Quote
Old 01-30-18, 12:20 PM
  #10
Junior Member
iTrader: (1)

dburks10's Avatar

Join Date: Aug 2010
Location: granbury, tx
Posts: 15
Thanked 0 Times in 0 Posts
In general, is porting the wastegate worthwhile if you already have the engine out?
dburks10 is offline
Reply With Quote
Old 01-30-18, 12:28 PM
  #11
Sponsor
RX7Club Vendor
iTrader: (41)

IRPerformance's Avatar

Join Date: Apr 2003
Location: NJ
Posts: 10,806
Thanked 13 Times in 12 Posts
Originally Posted by dburks10 View Post
In general, is porting the wastegate worthwhile if you already have the engine out?
If the motor is out and you plan to run a full exhaust on twins you might as well port the wastegate.
IRPerformance is offline
Reply With Quote
The Following User Says Thank You to IRPerformance For This Useful Post:
dburks10 (01-30-18)
Old 01-30-18, 09:27 PM
  #12
Just Boosting
iTrader: (6)

existanzrx7's Avatar

Join Date: Mar 2004
Location: Chy-Town
Posts: 1,055
Thanked 0 Times in 0 Posts

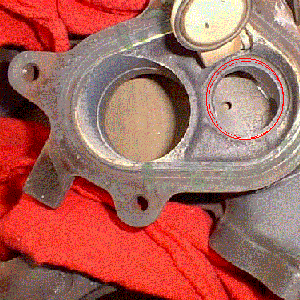

Here's a pick that can help you when porting. Be careful not to port too much the flapper still needs to seal.
Attached Thumbnails Safely running boost creep?-img_4380.bmp
existanzrx7 is offline
Reply With Quote
Old 01-31-18, 12:48 PM
  #13
sold--no longer in debt

cloead's Avatar

Join Date: Dec 2002
Location: Cleveland, Ohio
Posts: 1,640
Thanked 4 Times in 2 Posts
Originally Posted by Aramir View Post
Thanks for the replys, my next question is which wastegate am i acutally porting?
might want to replace/fix whatever is showing all of those cracks in it
cloead is offline
Reply With Quote
Old 01-31-18, 05:17 PM
  #14
Viable fossil
iTrader: (9)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 9,449
Thanked 51 Times in 46 Posts
Originally Posted by cloead View Post
might want to replace/fix whatever is showing all of those cracks in it
Those cracks are common/inevitable and on every used set of twins I've seen. And I've seen alot worse. You can't practically do anything about them. As long as they don't extend beyond the gasket they're usually not an issue.
Sgtblue is offline
Reply With Quote
