RX7 FD wont rev past 3k RPM!!

Old 01-14-19, 01:23 PM
  #126
Full Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Florida
Posts: 124
Liked 0 Times in 0 Posts
Originally Posted by DaleClark View Post
Awesome news, glad to hear it!

On the fans, I have a thread on how the fans work. Short version, the ECU can control one fan speed, and there is a thermoswitch in the back of the thermostat housing that controls another. You can upgrade to the 89-91 FC thermoswitch to lower that fan turn-on point from 107 deg. C to 97 deg. C. Most people set the ECU temp in the PowerFC to 85 C or so. My car typically runs about mid-80's on a typical day, it will get into the 90's on a really hot day, AC on, slow traffic.

Dale
DaleClark Is this the thermoswitch you are referring to? I just want to be sure I order the correct one. This is from Atkins Rotary.

https://www.atkinsrotary.com/store/8...tegory_id=1220

Cheers
Trinityevo13 is offline
Old 01-14-19, 02:32 PM
  #127
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,161
Liked 270 Times in 230 Posts
https://www.atkinsrotary.com/store/8...tegory_id=1220

That's the correct part. Ray Crowe probably has it cheaper than that.

Dale
DaleClark is offline
Old 01-15-19, 04:40 PM
  #128
Full Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Florida
Posts: 124
Liked 0 Times in 0 Posts
Originally Posted by DaleClark View Post
https://www.atkinsrotary.com/store/8...tegory_id=1220

That's the correct part. Ray Crowe probably has it cheaper than that.

Dale
Thanks much Dale

Cheers
Trinityevo13 is offline
Old 01-15-19, 04:44 PM
  #129
Full Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Florida
Posts: 124
Liked 0 Times in 0 Posts

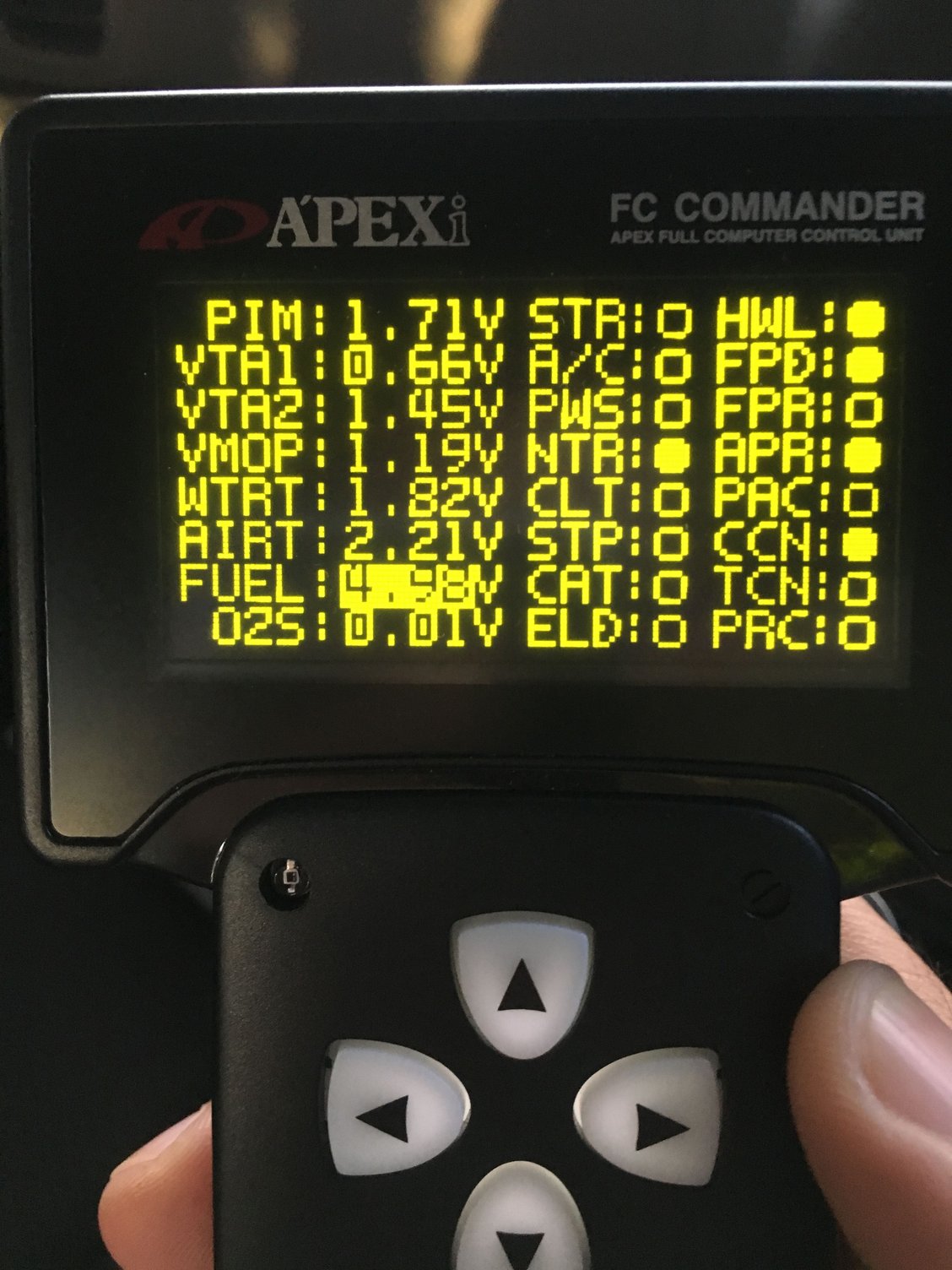

Here is the readings I get from the sensor check.
The VMOP only shows 1.19V and when I rev the engine it barely moves to about 1.34V to about 1.45V. Should I be concerned or is that normal operation? I think the range is 1 - 5V during normal operation.

Or should I be premixing just to be safe due to a possible faulty OMP?



Cheers.
Trinityevo13 is offline
Old 01-15-19, 04:46 PM
  #130
Full Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Florida
Posts: 124
Liked 0 Times in 0 Posts


The yellow and black vac line is what runs to the oil injectors. (Ts out to two lines). Fed from the turbo air inlet. The oil lines themselves from the OMP seems to have oil in them.

Cheers
Trinityevo13 is offline
Old 01-18-19, 01:53 PM
  #131
Full Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Florida
Posts: 124
Liked 0 Times in 0 Posts
Anyone can comment on the VMOP in the pic above? Would appreciate any feedback.

Cheers
Trinityevo13 is offline
Old 02-01-19, 08:03 AM
  #132
Full Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Florida
Posts: 124
Liked 0 Times in 0 Posts
BUMP for the VMOP reading....
Trinityevo13 is offline
Old 02-01-19, 01:32 PM
  #133
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,161
Liked 270 Times in 230 Posts
A faulty OMP will typically show up as a reverse highlighted row on the Commander. Similar to how the Fuel is highlighted in the picture.

The OMP's really are hardy and work well as long as the wiring and plumbing for it is all hooked up and good. It can be beneficial to mix a small amount of premix just to make the engine happier, though.

Dale
DaleClark is offline
Old 02-01-19, 07:29 PM
  #134
Full Member
Thread Starter
iTrader: (1)

Join Date: Jan 2016
Location: Florida
Posts: 124
Liked 0 Times in 0 Posts
Thanks a lot Dale as always.

I did premix just to be safe. And the fuel is highlighted since I switched to the rywire harness and the fuel temp sensor isnít plugged in. (No plug for it)

To be sure and for the break-in of the engine I will continue to premix the fuel.

Cheers
Trinityevo13 is offline
