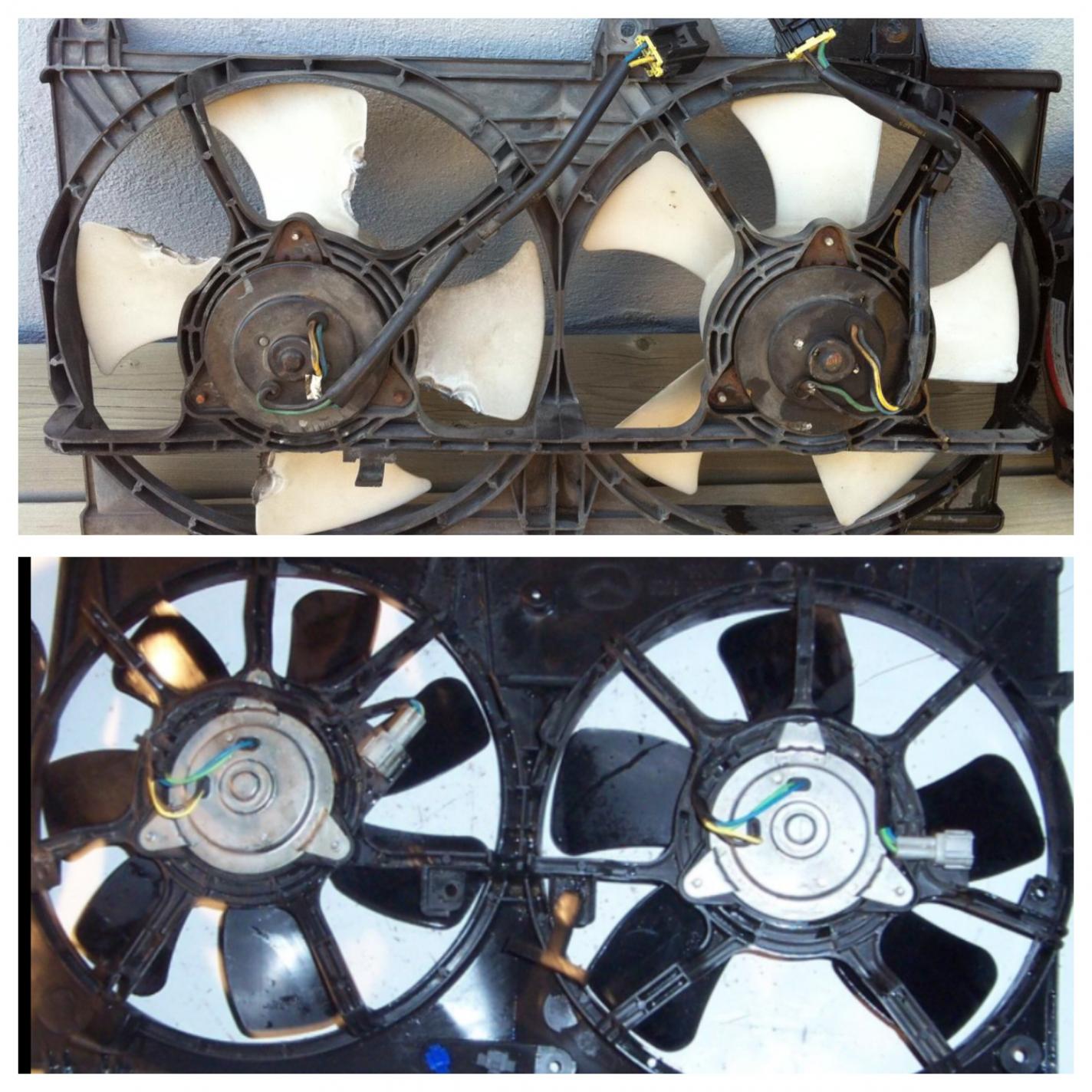

The motors and blades are the same as the JDM 1999+ FD3S. To use a 1999+ FD fan assembly all you need to do is re-wire the harness.
I have found them to be quieter. As far as efficiency, who knows...
#3
Full Member
Thread Starter
You would need to re-wire the harness and re-mount them to the FD support, in a round about way, yes.
The motors and blades are the same as the JDM 1999+ FD3S. To use a 1999+ FD fan assembly all you need to do is re-wire the harness.
I have found them to be quieter. As far as efficiency, who knows...
The motors and blades are the same as the JDM 1999+ FD3S. To use a 1999+ FD fan assembly all you need to do is re-wire the harness.
I have found them to be quieter. As far as efficiency, who knows...
#5
Thrashing your Roy score!
iTrader: (19)
If you cannot tell strait away looking at it how to do the wires, find an electrician.
Pic of 99+ fans.
https://www.google.co.jp/search?q=5%...YKwAg#imgdii=_
Pic of 99+ fans.
https://www.google.co.jp/search?q=5%...YKwAg#imgdii=_
