Relocating fuel filter, is this the place to put it?

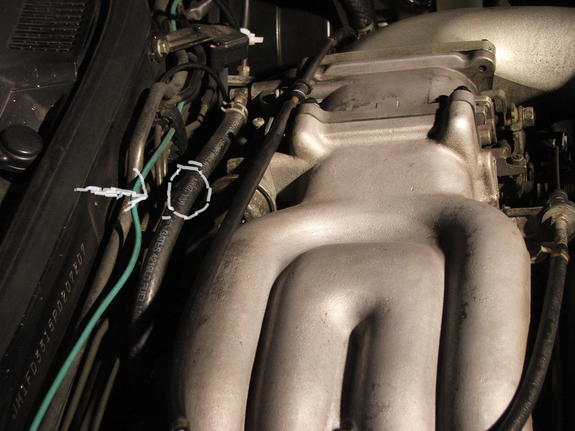

I will be relocating the fuel filter because all of you know why. I was wondering where is the best place to put it? I was thinking the line marked "fuel" on top behind the UIM, this seems to be the easiest place to install it. Any other suggestions? .......Is this the line i want, it attaches to the backside of the TB?
The following users liked this post:
turbodog (09-14-23)
Trending Topics
#8
Originally Posted by RE-Amemiya7
I will be relocating the fuel filter because all of you know why. I was wondering where is the best place to put it? I was thinking the line marked "fuel" on top behind the UIM, this seems to be the easiest place to install it. Any other suggestions? .......Is this the line i want, it attaches to the backside of the TB?
Last edited by apex_sideway; 09-10-06 at 10:07 PM.
#9
Original Gangster/Rotary!
iTrader: (213)
It's a good thing you asked the forum. That would have sucked. Rotary Experiment Seven did mine about 2 years ago and I'm very happy with my 5 minute fuel filter changes
#10
Senior Member
Join Date: Jan 2004
Location: St. Louis
Posts: 548
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Rotary Experiment Seven
No do not put it there. Here is the proper place to put it. Make sure you use high pressure fuel line designed for fuel injection. If you want to get fancy you can drill and tap the subframe and use the stock bracket to mount it.
#11
Sponsor
iTrader: (41)
I did a write up about this a couple years ago if you search. There isn't much to it except getting the stock filter out of its location which can be a pain. All you really do is replacew the hoses and extend them down through the openings of the subframe. Make sure you use the right hose and secure it so it doesn't rub on anything.
