Zatzy

iTrader: (3)

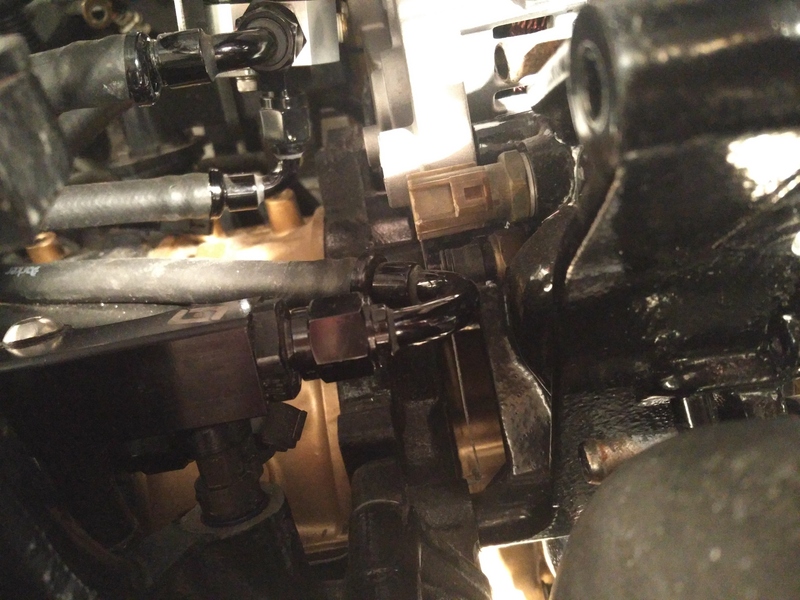

Its been 3 years since I've pulled the motor apart and its finally time to put her all back together. starting to bolt all the goods on and I noticed this random threaded hole. Is something missing? its the one up and to the right of the spark plug (no those are not the plugs im using lol)

IRPerformance

iTrader: (41)

Coolant sensor for the stock gauge goes in there.

Zatzy

iTrader: (3)

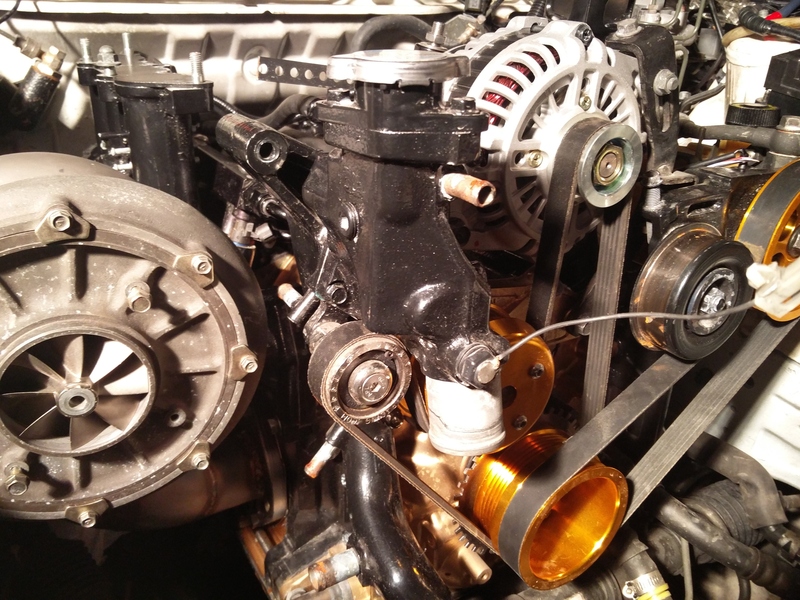

I have two sensors at the front of the motor...I thought one of those was the temp sensor. Or is there one for the ecu and one for the gauge?

IRPerformance

iTrader: (41)

There are two sensors on the back of the waterpump housing. The top green one is the coolant sensor for the ecu. The one below that is black and is the fan switch. If you have an automatic car it will have a third sensor on the front of the thermostat cover. The one you have missing on the rear iron is the coolant sensor for the factory gauge.

Zatzy

iTrader: (3)

Then I think I have some things mixed up. Wise wisdom welcome

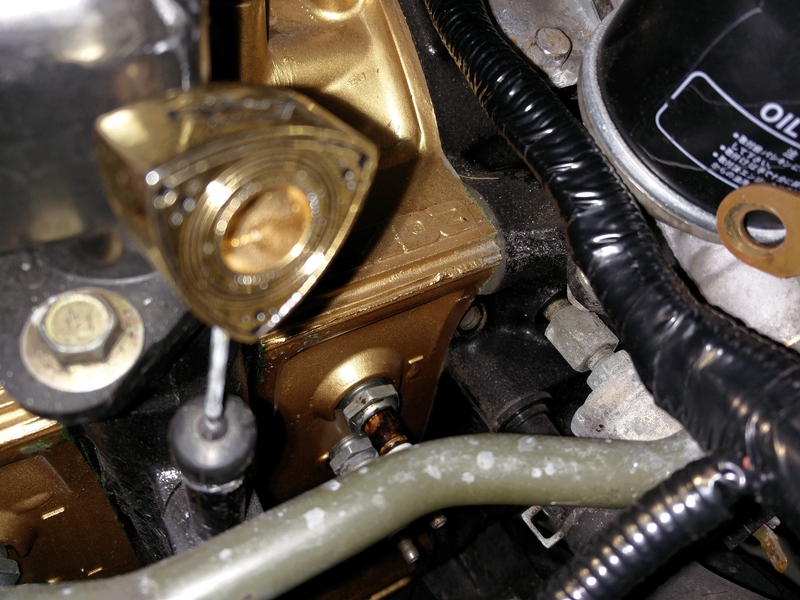

I did have a pic when I pulled the motor apart and it shows them to be in the right place

Houstonderk

iTrader: (3)

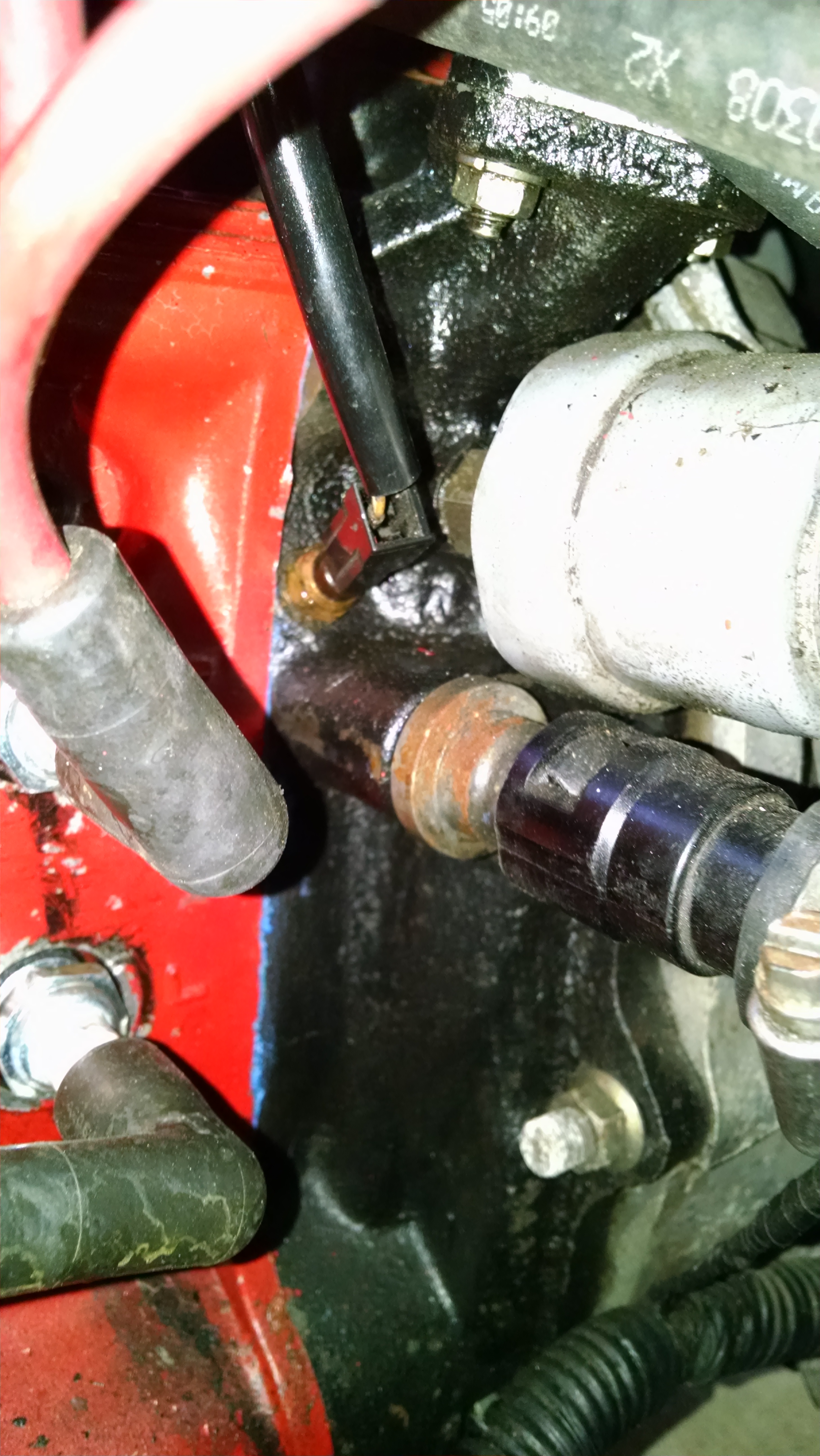

Went out and grabbed a picture of mine.

TomU

iTrader: (11)

That''s a good place for an aftermarket sensor. It''s not NPT tho

Zatzy

iTrader: (3)

Thanks Houston! Now to hunt down that little bastard lol. An aftermarket sensor would read incorrectly on the stock gauge wouldn't it?

TomU

iTrader: (11)

The stock gauge is crap. It is not linear and won't read hot till it's too late. You need an aftermarket gauge to adequately monitor engine temps

GoodfellaFD3S

iTrader: (213)

What kind of turbo are you running? Looks a bit odd

Zatzy

iTrader: (3)

It's an IHI Rx8 turbo. Rare turbo to go on a street car. Probably why it looks so odd
