crazy9ceguy

Hi,

I was just wondering if it is a good idea to put a puller type of fan behind the oil coolers and the vmount intercooler with a vented hood?

Dudemaaanownsanrx7

iTrader: (23)

well it may not hurt, but for the most part the only time you need to be running extra air through the intercooler and oil cooler is when you are running the car hard, and boosting.

if you're running the car hard most likely you're accelerating, and wind is being pushed through. After i think about 30 mph the fans wouldnt really contribute to pulling air in and may actually hinder more air coming through. Now if you're doing lots of burn out contests where the car is being pushed hard but not really moving the fans would probably be a good idea. This is just my personal thoughts with no experience on the matter first hand.

gracer7-rx7

iTrader: (16)

Depends. If your temps are OK, then whats the point?

crazy9ceguy

just wondering like say if it would be beneficial if you are in a stop and go traffic on a hot day or somthing.

JM1FD

iTrader: (1)

It would probably help to have a fan on the oil cooler, although that would be a rather small fan. If you decide to put one on, take some oil temperature measurements before and after and let us know how much it helps. You should also straighten out the fins on your oil cooler if you haven't already....they tend to get beaten all to hell by rocks and bugs and such.

Intercooler fan, not so much. As stated above, the only time an I/C fan would be beneficial is if you're under boost, and if you're under boost then you're likely to be moving down the road at a fair pace, stuffing air in through the nose of the car.

badddrx7

iTrader: (7)

Show me a 12v fan small enough to mount behind our oil coolers.



Later

crazy9ceguy

What I am wondering is if I have the fan behind the oil cooler as a puller, lets say if Im moving, will the fan cause any sort of ventilation block behind the oil cooler?

JM1FD

iTrader: (1)

How about:

http://etxiow.accpaconline.com/itemd...&item=30103013

If that's too big...maybe this one...

http://etxiow.accpaconline.com/itemd...&item=30103018

alexdimen

iTrader: (13)

The width of the fan isn't the problem. It's the depth. It would have to be as flat as a couple pancakes... or you'd have to move the lower cooler mounts and do something with the sheet metal, coolant, and washer resevoirs.

joe-c

iTrader: (2)

that thing looks like a computer fan

GARCO MOTORWORKS

I have a fan behind the innercooler and use it in stop and go, if the temps are up when I turn it on then the temps may not go higher but the temps do not drop very fast . My guess is it is better than nothing.

David Hayes

iTrader: (6)

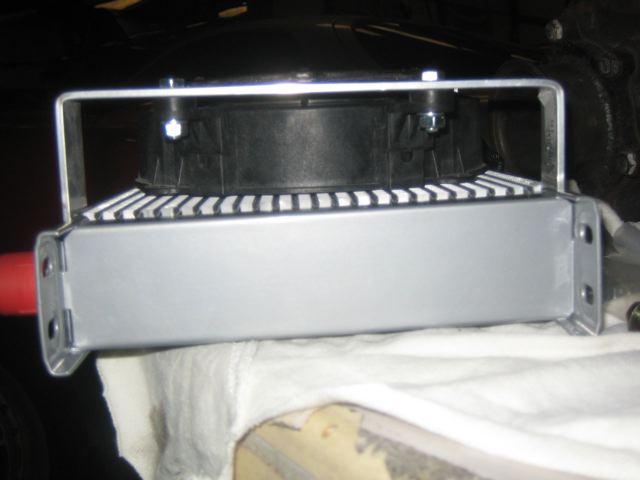

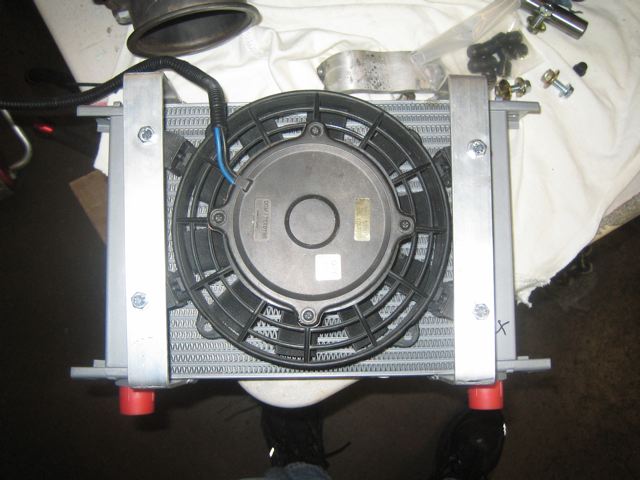

Here you go:

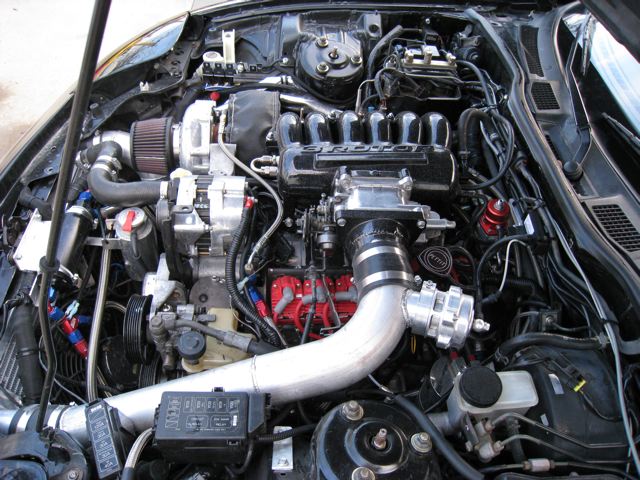

Gotham attached these to my three rotor because I was having temp problems while idling/sitting in traffic during the summer. I also have two pull-type fans attached to my intercooler. Here is a pic of the two pull fans on the intercooler:



They're kind of hard to see but they're there. Temp problems solved!

scotty305

iTrader: (2)

Thanks for sharing, David. I believe Max Cooper installed a fan on his intercooler a long time ago, and he seemed to like it. Pretty sure his username on here is maxcooper.

Another good way to keep your intake temps down would be to install water or methanol injection.

-s-

David Hayes

iTrader: (6)

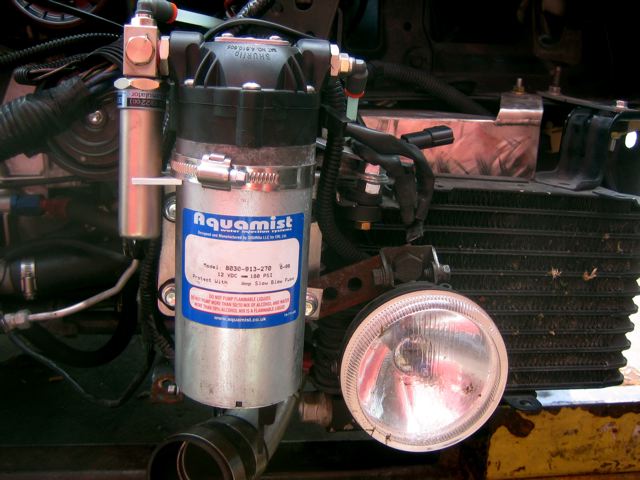

Yes, have that also:

13Foxtrot

The fan on the oil cooler idea crossed my mind as well the other day... I was sitting in 96 degree heat in the Taco Hell drive-thru... Longest wait in the history of drive-thrus I would bet.... and my oil temps got up to 190 and my water temps got to 104 C. I haven't seen temps like that... EVER. My Dual Mocal 19-row oil coolers usually keep my oil temps below 160 and with the Koyo radiator, I almost never see anything higher than 88 C.
