PowerFC Installation: Should We Consider Cutting Five Wires Instead of Four?

Thread Tools

Search this Thread

Old 04-21-24, 02:53 AM
  #1
Senior Member
Thread Starter
iTrader: (7)

CREEPENJEEPEN's Avatar

Join Date: Jul 2017
Location: Florida
Posts: 253
Received 29 Likes on 22 Posts
PowerFC Installation: Should We Consider Cutting Five Wires Instead of Four?

For those that are familar with the PowerFC installtion, the four wires we cut are as follows. (Written by Dale Clark)

1. EGR Solenoid output (4O)
2. AWS Solenoid output (4P)
3. Split air Bypass solenoid valve (4F)
4. EGR Switch input (3J)

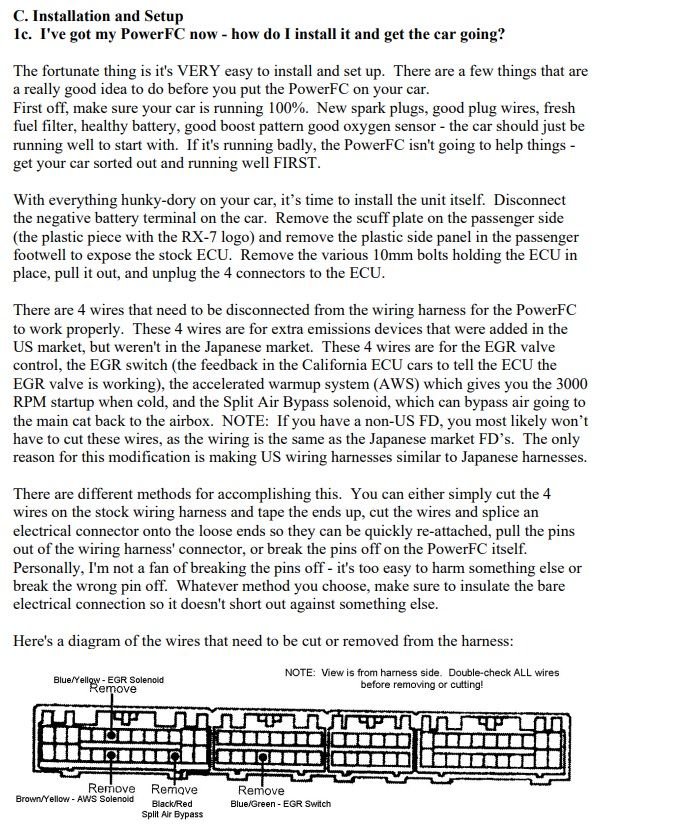

"These 4 wires are for extra emissions devices that were added in the US market, but weren't in the Japanese market" "The only reason for this modification is making US wiring harness similar to Japanese harnesses."

Given these modifications, it appears that a fifth wire, the Solenoid Valve Relief 2 (3K), should also be cut. JDM models do not include certain components like the EGR and AWS, which is why we've already cut wires for the EGR Solenoid, EGR Switch, and AWS Solenoid. This brings us to the ACV configuration in USDM models, which consists of three valves and two actuators: the Split Air Bypass, Port Air Bypass, and Relief 2, along with actuators for Switching and Relief. It's important not to confuse the Relief actuator with the Relief 2 solenoid valve. We've already cut the wire for the Split Air Bypass Solenoid Valve (4F). So, why do we keep the Relief 2 solenoid valve (3K) when it isn't present in JDM ACVs, meaning the pinout is not present in the PowerFC?


Ignore the red (only image available)

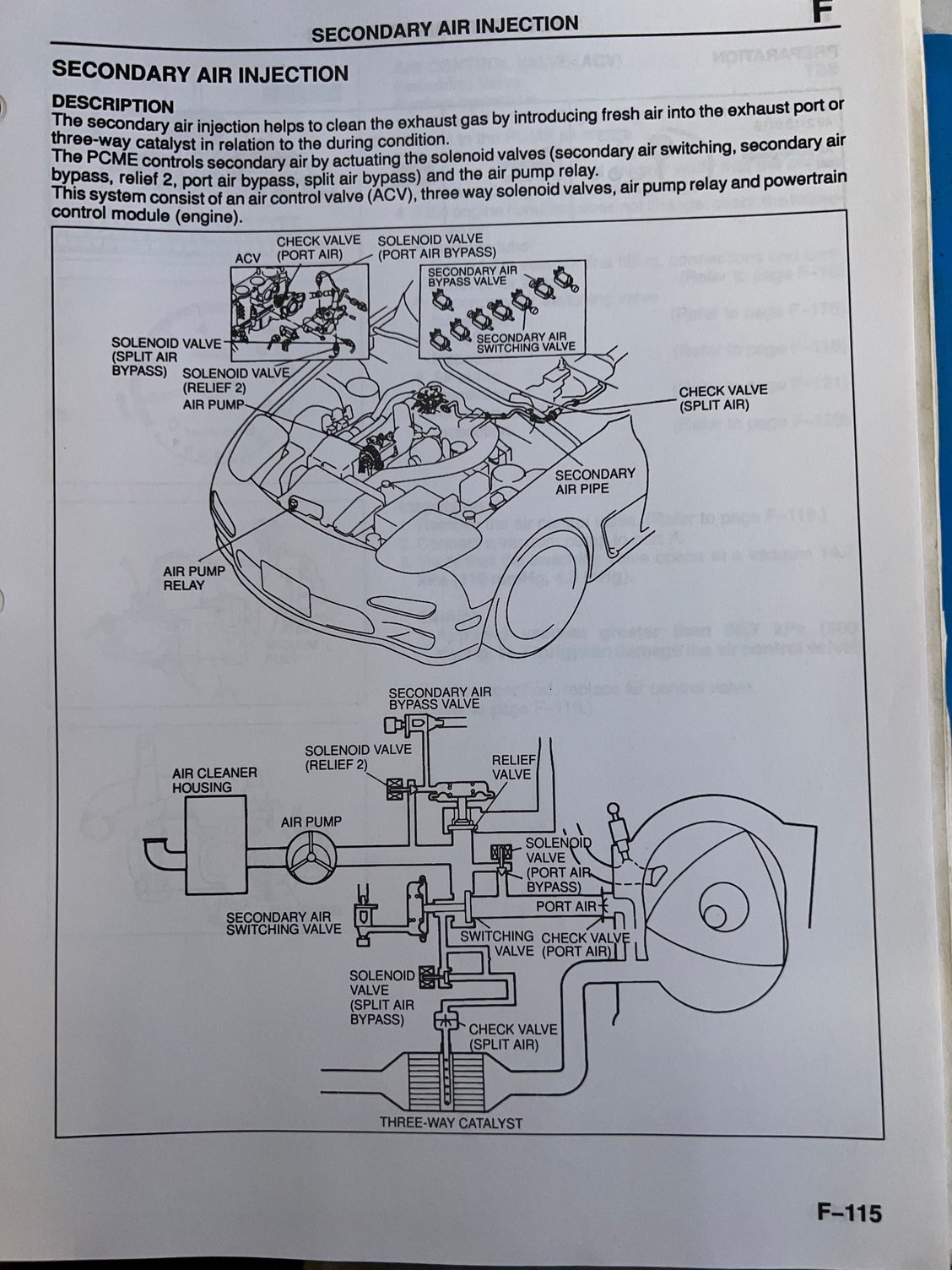

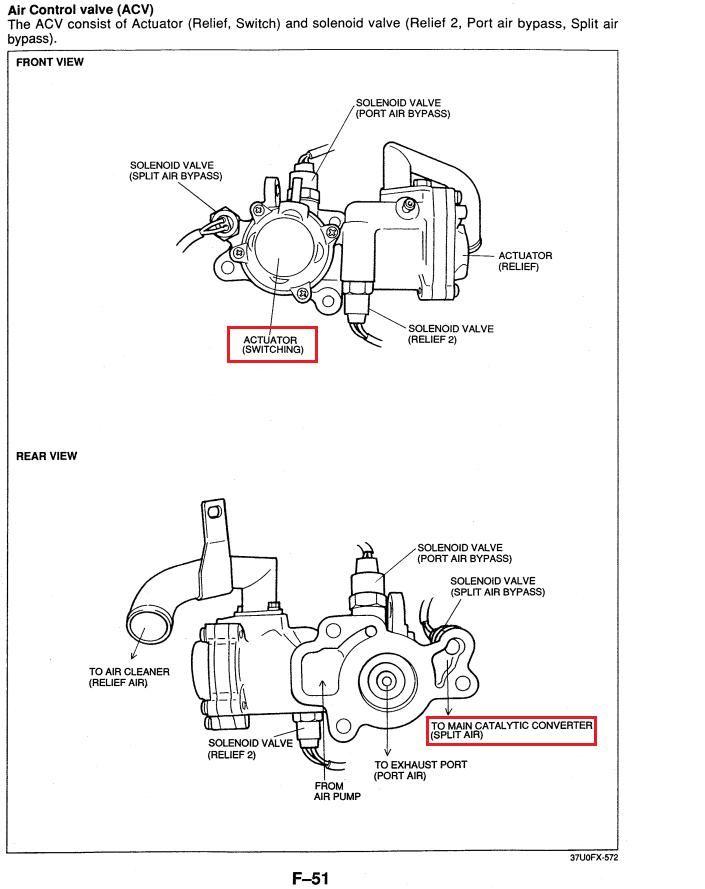

USDM ACV, featuring three solenoid valves and two actuators.


JDM ACV, only the Port Air Bypass solenoid valve is present. The area circled in the image indicates where the Split Air Bypass solenoid valve would typically be installed, but note that this spot is cast over, preventing installation.

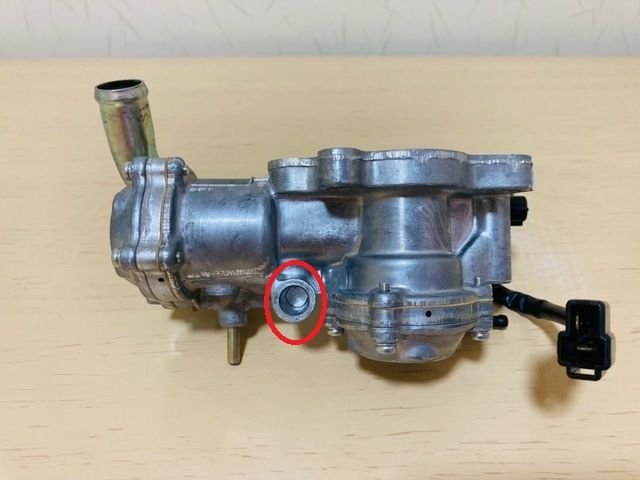

The area circled in the image indicates where the Relief 2 solenoid valve would typically be installed, but note that this spot is cast over, preventing installation.

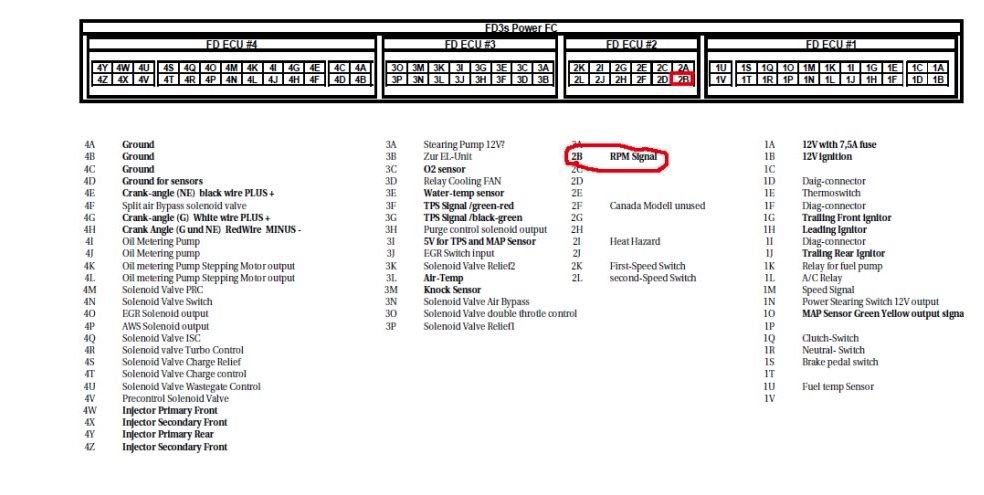

This leads us back to the original question: if our goal is to align the USDM harness with the Japanese harness, why aren’t we cutting the Relief 2 solenoid valve (3K) just as we are cutting the Split Air Bypass solenoid valve (4F)? Additionally, if we kept the four wires (or five) connected, would they connect to an unused pin on the PowerFC? Do we even need to cut these wires? I'm also in search of a pinout for the 1992-1995 JDM ECUs to compare with the USDM ECU pinout I have above. Unfortunately, I can’t find a high-quality JDM pinout for a proper comparison. Does anyone have access to this information?
