I started taking my car apart a week ago to start my alarm install, I have connected all the wires but I get no input from the alarm. Since part of my engine has been taken apart, I can't completely start my car yet. I got a Viper V791VX and the alarm comes with 10 harnesses.
1. primary harness:
2. secondary harness
3. door lock harness
4. remote start (primary)
5. heavy gauge inline
6. remote start (secondary)
7. led
8. valet
9. antenna
10. shock sensor

here is what I have done so far:

primary harness:
orange - 500mA armed output - DID NOT USE
white - light flash output - connected to red/black wire (fuse panel)
white/blue - remote start act input - DID NOT USE
Black/white - 200mA domelight supervision - DID NOT USE
Green - (-)door trigger - connected to Blue/White (-)
Blue - mulitplexed input zone 4 - DID NOT USE
Violet - (+) Door trigger input zone 3 - DID NOT USE
Black - ground to chasis
Brown - siren output - connected to red wire of siren
Red - constant power - connected to black/green wire
red/white - (-)200mA channel 2 validity - DID NOT USE

Secondary Harness - DID NOT USE
light blue - second unlock ouput
white/black - programmable channel 5 output
violet/black - porgrammable channel 4 output
green/white - factory rearm
gray/black - wait to start input
light green/black - factory disarm

door lock harness: DID NOT USE YET
green - (-)Lock (+) unlock output
blue - (+) Lock (-) unlock output

Remote start primary harness - DID NOT USE
pink/white - 200mA (-) programmable IGN2/ACC2 relay turn on
yellow - IGN input to alarm
pink - (-) 200 mA IGN relay turn on
orange - (-)200mA Acces relay turn on
purple - (-)200mA Starter relay turn on
orange/Black - antiground/ground when armed output
blue - (-) 200mA status output

Heavy gauge inline connector:
purple - (+) output to start (start side) - cut starter cable, connected black/blue wire closest to firewall
green - onboard start kill (key side) - other side of starter cable, connected black/blue wire closest to steering wheel
red - high current 12V input - connected to black/green wire
orange - output to accessory output - connected to blue wire
pink - output to primary IGN - connected to black/white wire
red - high current 12V input - hooked up to the other red wire on this harness
pink/white - output to second IGN - connected to black/yellow wire
red/white - high current 12V - DEI connected back to red wire/harness

remote start secondary harness: DID NOT USE
blue/white - (-)200mA 2nd status/rear defogger
gray - Hood pinswitch input
brown - brack shutdown wire
violet/white - tach input wire
black/white - neutral safety switch

valet: plugged into brain
antenna: plugged into brain
LED: plugged into brain
shock sensor: plugged to brain
siren: red - connected to brown wire on main harness; black wire- grounded to chassis

I got some of my information from here:
http://www.the12volt.com/installbay/...333&type=Alarm
I did not use any resistors/diode, the door lock comes with a relay, but again I have not installed the actuator or ran the wires throgh the door jam. All the fuses are good and connected.

Can anyone see I what have done wrong or am missing?? I do not care for the remote start or even the starter kill, really got it for the keyless entry and since this was a discounted price at bestbuys, I bought the unit....only no install from them.

I would appreciate any help from anyone, I would like to drive my car around again.

FDNewbie

iTrader: (10)

This should be in the interior/exterior/audio section...

silvercvic

iTrader: (17)

I know..... I placed it here because there were more hits to this side of the forum and I REALLY need the help. Sorry about that

rotoboy661

u need to run 2 relays to your doorlocks

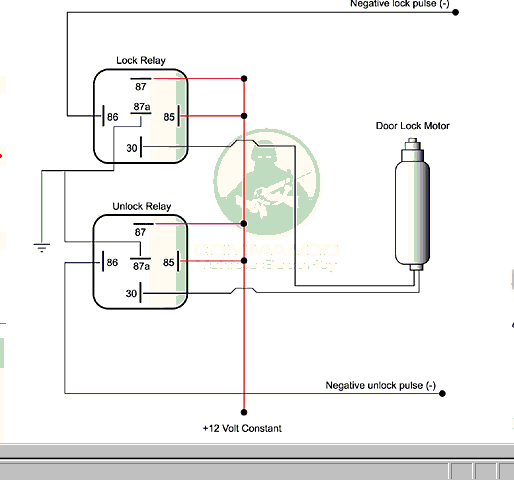

like this

silvercvic

iTrader: (17)

Thanks man, got that link and pic ready to go, just need to mount the damn actuator....but the problem is that when i hook the battery up, the alarm doesn't arm and when I press the transmitter, the transmitter chirps, but doesn't arm or disarm.

Did I wire it up right?

The frist step I am trying to take it getting the alarm to work, then the keyless entry...but can't get the first to work

silvercvic

iTrader: (17)

please don't be shy
