im going to be putting on a bigger fuel setup i wanna se what you guys are running to get a good idea of what fittings i need and placement of the FPR and lines. thanks alot

willjs7

iTrader: (1)

anyone

13bhavoc

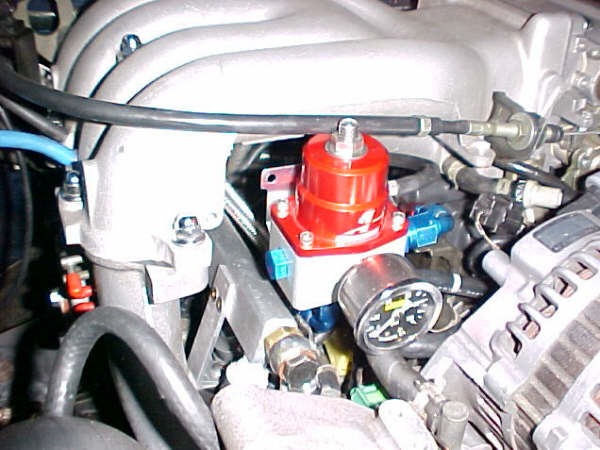

I just got done with mine a week ago. Was a pain in the *** to get the lines made cause we had a dull hack saw. All I did is route the new lines exactly like the stock ones. The system I bought from rx7store.net came with all I needed, just bolted up the new fuel rail and injectors, be sure to pull out the fuel atomizers and packings out of the LIM. Used the stock banjo bolt that connects the primaries to the secondaries, hooked up the straight -6 adapter to the back of the fuel rail, and ran fuel line to the side of the FPR using a 90 degree -6 adapter. I then blocked off the other side with a plug, then ran another 90 degree from the bottom of the FPR to the return line. Secured that with a hose clamp. We then installed the resistor onto the harness, started up the car and set fuel pressure at 40 psi. Hope these pics help out some, and good luck!!

Fish

I have a word doc that has loads of pictures. I tried to upload it, but it's too big.

Mail me if you want me to send it to you.

Fish

willjs7

iTrader: (1)

top.

papsmagu

iTrader: (19)

this should help

aREX4X

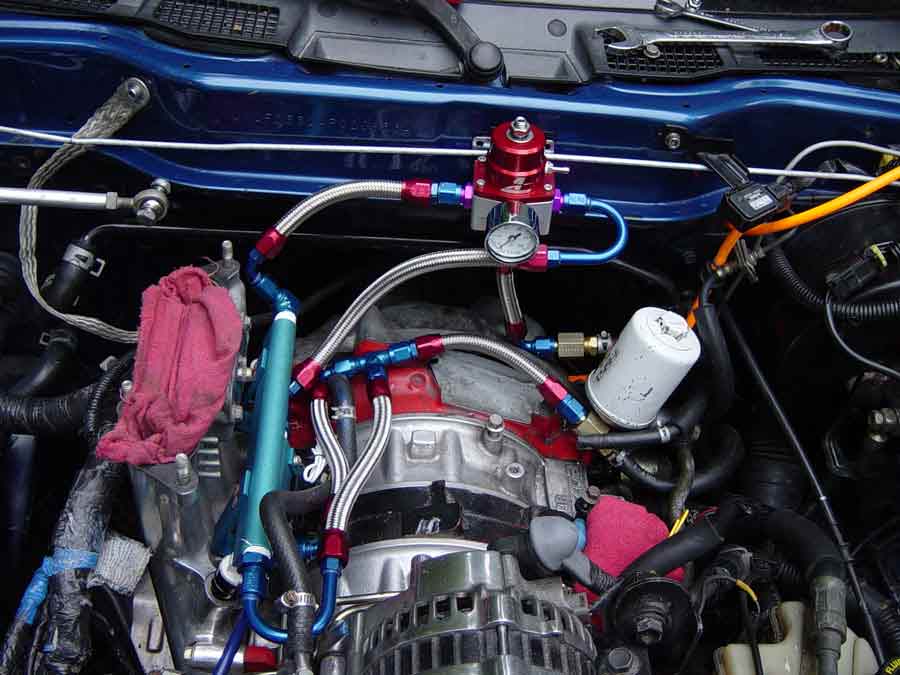

Mine looks like 13Bhavoc's, but I made a custom bracket to hold it there.

You can kinda see it in this picture



X...

willjs7

iTrader: (1)

thats an awsome picture, where did u find it?

Neptune.

Here you are.

speedsilver7

iTrader: (8)

bump

kuroi FD

this thread is awesome!

willjs7

iTrader: (1)

is that sarcasm?

patfat

Nice car dave

papsmagu

iTrader: (19)

i don't really remeber.....i had it saved in my computer but the guys webpage was really infomative about fuel systems. i'll look around for the link....if i find it i will post if for you

kuroi FD

No that picture is really useful.

HDP

iTrader: (2)

More pics of different plumbing?
