Pic of steering wheel cruise wiring ?

Hi, I'm specifically looking for a pic of wheel with OEM cruise control buttons on the wheel + connected to the clockspring, if anyone has one ?

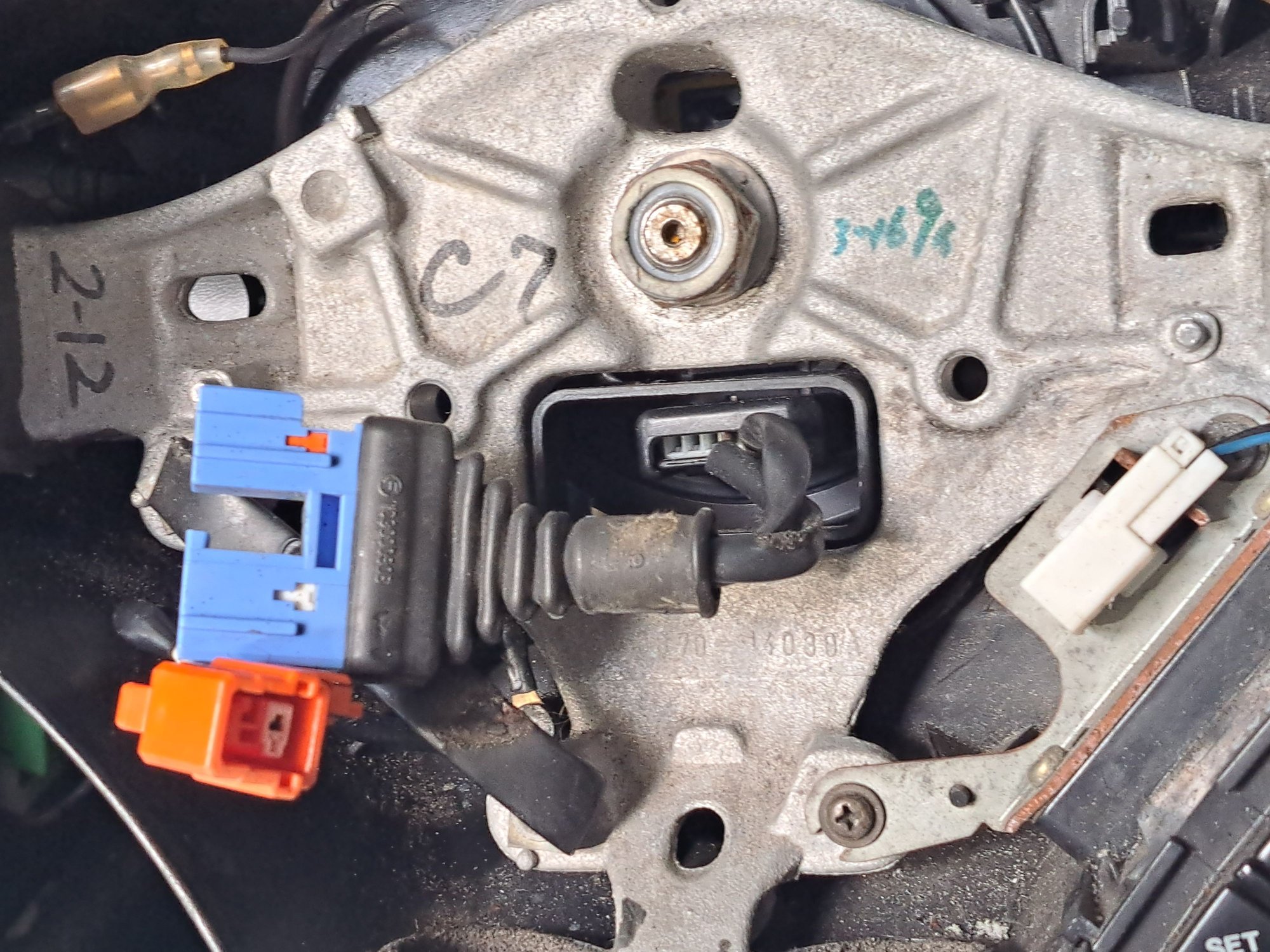

93 touring wheel with missing cruise connector

The reason being, my clockspring has no cruise white male connector from the clockspring connector right below the wheel mounting nut.
I'm pretty sure my cruise would work if I could just source (or make) the 2 wire harness that plugs into the white 2 prong female connector on the right side.
There are three vacant clockspring connect points and so I dont know which 2 of the 3 are used or connector types for either end of the 2 wire harness. I've never seen one. The page Z108 wiring diagram shows 2 connects and an asterisk at a 3rd connect point and nothing more.
A male white cruise button connector part # would be great, if someone has encountered this before ?
​​​​​​​
Thanks.
