Airbag and horn wiring

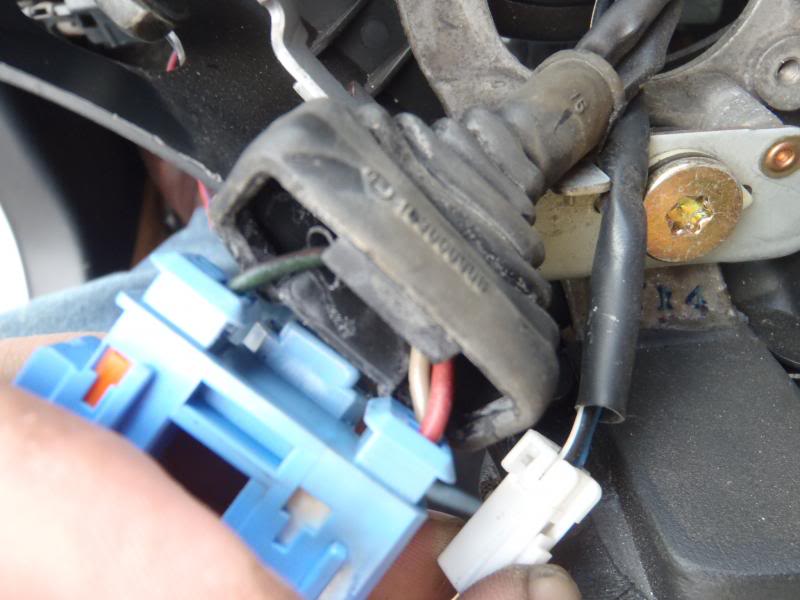

I have searched for this many times. the 93 wiring diagram chunks I have found don't match. of course the 94 is way off. I just want to know what these 5 wires do that are under my steering wheel in my 93.
Small white 2 pin connector, 1 black/white wire and one blue wire
Large blue connector, 4 pin (3 used), Red, Tan, and Green/Red.
My initial thoughts were that the white one was horn. But there is an extra wire.
I also thought the blue connector was for the airbag, but again, an extra wire.
Please help. I want to make these functions work.
Small white 2 pin connector, 1 black/white wire and one blue wire
Large blue connector, 4 pin (3 used), Red, Tan, and Green/Red.
My initial thoughts were that the white one was horn. But there is an extra wire.
I also thought the blue connector was for the airbag, but again, an extra wire.
Please help. I want to make these functions work.
#3
Full Member
Thread Starter
iTrader: (2)
Join Date: Feb 2013
Location: Pacific Northwest
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Can someone with a stock 93 please take off your steering wheel center and snap a pic? We're talking about 10 minutes and 2 bolts...
Thanks for the reply rexset
