Oil catch can setup on my race car.

Old 04-17-11, 11:31 PM
  #76
Radioactive Rotary Rocket
10 Year Member

GodSquadMandrake's Avatar

Join Date: Aug 2005
Location: Minneapolis, MN
Posts: 1,061
Thanks: 0
Thanked 0 Times in 0 Posts
This might be a stupid question, but is a recirculating catch can useful? I know in piston engines they are popular because they prevent pressure building up behind the pistons. But would that be beneficial to the rotary or is it best to just vent to atmosphere?
GodSquadMandrake is offline
Old 04-18-11, 12:39 AM
  #77
500+hp club
5 Year Member
iTrader: (26)

silverfdturbo6port's Avatar

Join Date: Sep 2007
Location: Spokane Wa
Posts: 2,212
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by TURSTY View Post
I got the following reply on another forum and was considering giving it a try. What are your thoughts on this design?
lol that design would work for sure but i love the note that says the line to be lower than the oil level so it does not blow up from crank case pressure lol!!!! its going to have pressure at every point of the crank case
silverfdturbo6port is offline
Old 04-19-11, 06:29 PM
  #78
Feed me fake Feed
iTrader: (6)

RE-Mamamia's Avatar

Join Date: Dec 2006
Location: SoCal
Posts: 723
Thanks: 0
Thanked 2 Times in 1 Post
any updates for those using stock twins?
RE-Mamamia is offline
Old 06-06-11, 12:57 AM
  #79
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,584
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by GodSquadMandrake View Post
This might be a stupid question, but is a recirculating catch can useful? I know in piston engines they are popular because they prevent pressure building up behind the pistons. But would that be beneficial to the rotary or is it best to just vent to atmosphere?
My catch can setup drains back into the oil pan. I never have to empty it.

thewird
thewird is offline
Old 06-06-11, 01:28 AM
  #80
Radioactive Rotary Rocket
10 Year Member

GodSquadMandrake's Avatar

Join Date: Aug 2005
Location: Minneapolis, MN
Posts: 1,061
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by thewird View Post
My catch can setup drains back into the oil pan. I never have to empty it.

thewird
I meant recirculating the air not the oil.
GodSquadMandrake is offline
Old 06-06-11, 01:29 AM
  #81
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,584
Thanks: 0
Thanked 0 Times in 0 Posts
That's how the stock setup does it. It vents everything back into the engine. Don't think theres anything wrong with that except it leaves oil in your IC & piping.

thewird
thewird is offline
Old 06-22-11, 11:41 PM
  #82
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
quick update to my thread based on question someone asked on the level viewer thing I added to my catch can. I took that off the previous can i had, but here is where you can get the parts to make/add one:


Check this mcmaster page:
http://www.mcmaster.com/#catalog/117/172

Maybe somthing like product#51055K48 for the elbow fittings, then just some clear plastic 1/4 inch tube to connect them (plastic that can handle oil) like mcmaster part #53945K111
damian is offline
Old 06-23-11, 12:30 AM
  #83
Dirty
iTrader: (4)

allenhah's Avatar

Join Date: Jul 2001
Location: Austin
Posts: 771
Thanked 0 Times in 0 Posts
As always, super helpful information! I tried looking through the McMaster website before but wasn't sure which part would work. Luckily, you just spelled it out for me! Now I have everything (minus the bracket to mount the can itself) and can finally put this thing together. I'll post up my own results when I'm done.

Thanks again Damian!
allenhah is offline
Old 04-25-13, 07:16 PM
  #84
JBF
Senior Member
iTrader: (13)

JBF's Avatar

Join Date: Apr 2011
Location: Willow Springs, CA
Posts: 606
Thanks: 0
Thanked 0 Times in 0 Posts
Up from the dead. How is this setup still holding up?
JBF is offline
Old 04-25-13, 09:49 PM
  #85
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Originally Posted by JBF View Post
Up from the dead. How is this setup still holding up?
It always worked well however I sold the entire setup a while back as my current setup will be dry sump so my old setup no longer applied :-)
damian is offline
Old 04-25-13, 09:51 PM
  #86
JBF
Senior Member
iTrader: (13)

JBF's Avatar

Join Date: Apr 2011
Location: Willow Springs, CA
Posts: 606
Thanks: 0
Thanked 0 Times in 0 Posts
Oh you fancy, huh
JBF is offline
Old 03-24-15, 09:48 PM
  #87
Full Member

Join Date: Feb 2015
Location: Sydney
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
I'm about to purchase all the parts for this modification, the only issue is where can I get the RE Filler neck these days??
are-ex7 is offline
Old 03-24-15, 10:49 PM
  #88
JBF
Senior Member
iTrader: (13)

JBF's Avatar

Join Date: Apr 2011
Location: Willow Springs, CA
Posts: 606
Thanks: 0
Thanked 0 Times in 0 Posts
IRP makes one now
JBF is offline
Old 03-25-15, 06:40 AM
  #89
Full Member

Join Date: Feb 2015
Location: Sydney
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
legend cheers
are-ex7 is offline
Old 04-13-15, 07:20 AM
  #90
Full Member

Join Date: Feb 2015
Location: Sydney
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
IRP is out of stock, is there any where else?
are-ex7 is offline
Old 04-13-15, 01:54 PM
  #91
Goodfalla Engine Complete
iTrader: (28)

Monkman33's Avatar

Join Date: May 2005
Location: Kennewick, Washington
Posts: 3,196
Thanked 8 Times in 7 Posts
I thought IRP still had some dual -6 units in stock? This is what I am running. One port to the rear oil drain port and the other to a vented catch can for any crazy overflow (highly unlikely given the baffle design and dual side venting.
Monkman33 is offline
Old 04-16-15, 07:25 PM
  #92
Speed Demon
10 Year Member
iTrader: (5)

aoc007's Avatar

Join Date: Dec 2005
Location: SF Bay Area, CA
Posts: 687
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Monkman33 View Post
I thought IRP still had some dual -6 units in stock? This is what I am running. One port to the rear oil drain port and the other to a vented catch can for any crazy overflow (highly unlikely given the baffle design and dual side venting.
So the oil can transfer between the rear turbo drain and the filler neck? Hadn't thought of trying that.

Anyone tried this catch can? Universal Dual Catch Can Then I could see how much comes from the rear and how much from the filler. Also I like the media in there that allows the fuel to evaporate.

Blow by has been a big problem that I'm trying to solve. Apparently a lot of it is because the Pineapple oil pan has bad baffling (even with my trap doors around the pickup).
aoc007 is offline
Old 04-16-15, 08:13 PM
  #93
Goodfalla Engine Complete
iTrader: (28)

Monkman33's Avatar

Join Date: May 2005
Location: Kennewick, Washington
Posts: 3,196
Thanked 8 Times in 7 Posts
Originally Posted by aoc007 View Post
So the oil can transfer between the rear turbo drain and the filler neck? Hadn't thought of trying that.

Anyone tried this catch can? Universal Dual Catch Can Then I could see how much comes from the rear and how much from the filler. Also I like the media in there that allows the fuel to evaporate.

Blow by has been a big problem that I'm trying to solve. Apparently a lot of it is because the Pineapple oil pan has bad baffling (even with my trap doors around the pickup).
By venting from both sides, air will take the path of least resistance. The baffle in the filler neck will help as well. The catch can is mainly to catch the suspended residuals or in the event of one side getting clogged and oil exiting either side.
Monkman33 is offline
Old 04-21-15, 11:06 PM
  #94
Full Member

Join Date: Feb 2011
Location: Australia
Posts: 177
Thanks: 0
Thanked 3 Times in 3 Posts
Here is the catch setup I just made,
Its using the stock pcv points and valve, mainly for simplicity I have a spare 9mm vacuum only port on my turbo inlet to swap to if I decide to later.


I purchased a cheap square ebay catch can and some fuel safe foam for baffling.



Found a suitably sized piece of hose that screwed into the left over thread on the catch can inlet, and sealed it with rtv, not really necessary.




I then cut the foam to size, and punched a whole through it with the help of a drill bit and a saw blade.




I had a huge void from removing ac and powersteering that was perfect spot for my can, soo bashed out a simple bracket while the rtv was drying

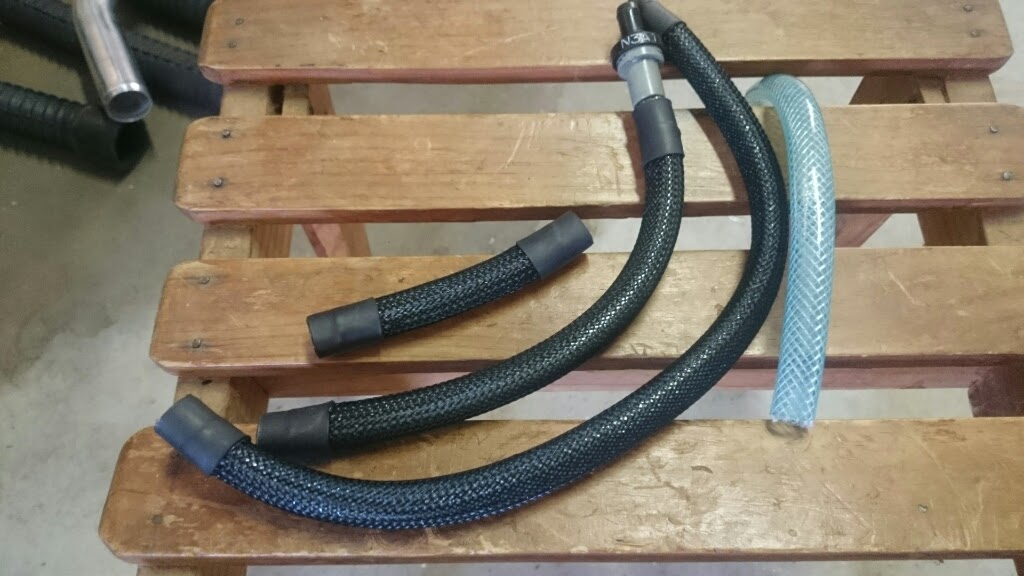

Didn't like the blue hose, was going to use some oem black rubber hose but couldn't find enough so cheap mans braided hose FTW!





And finished product, cars not running to see how well its working yet thou.





I deliberately mounted it facing backwards soo it was easy to see the level gauge and get to the drain plug but I think it came up super neat
squeakm is offline
Old 04-22-15, 10:26 AM
  #95
Too Many Projects
iTrader: (9)

0110-M-P's Avatar

Join Date: Feb 2003
Location: Atlanta, GA
Posts: 1,399
Thanks: 0
Thanked 0 Times in 0 Posts
I see one potential problem. If that hose goes deep enough into the catch can so that the end of it is completely submerged in oil, then there will be no way for pressure to vent out easily. It will have to push its way past the oil first. I would make sure the hose can't go past the top of the sight gauge or at least make a mark on the sight gauge showing where the hose ends.
0110-M-P is offline
Old 04-22-15, 04:11 PM
  #96
Dirty
iTrader: (4)

allenhah's Avatar

Join Date: Jul 2001
Location: Austin
Posts: 771
Thanked 0 Times in 0 Posts
I was thinking the same thing - and the fact that the can isn't vented would allow pressure to build up between the filler neck and the rear drain line, wouldn't it?

Still, I do appreciate the thought put into the setup!
allenhah is offline
Old 04-22-15, 04:34 PM
  #97
Too Many Projects
iTrader: (9)

0110-M-P's Avatar

Join Date: Feb 2003
Location: Atlanta, GA
Posts: 1,399
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by allenhah View Post
and the fact that the can isn't vented would allow pressure to build up between the filler neck and the rear drain line, wouldn't it?
It is vented, but only as well as the factory PCV system is since that is basically what it still is except with a catch can inline. Basically under vacuum it will be vented, but under boost it won't be.
0110-M-P is offline
Old 04-24-15, 01:12 AM
  #98
Full Member

Join Date: Feb 2011
Location: Australia
Posts: 177
Thanks: 0
Thanked 3 Times in 3 Posts
The hose only goes down about half way into the can, and is the oil input side of things ie from the crank case.
Its my understanding that this will work best when there is oil over the hose that way the oil will also act as a filter as the blowby and air has to go through the oil before it can be sucked back into the intake. it also prevents the blowby skipping the can altogether as it could possibly do especially with the baffeling I added

I also worried about the ill effects having a non vented can that was only ever subject to vacuum possibly pulling straight oil up from the sump. but the standard PCV allows some venting and should maintain a low lever vacuum.
Much like if you were to plumb it staright to the pre turbo vacuum point.

I preferred to use the standard pcv point as Im sure some blowby will still get through and then it wont go through the turbo and intercooler just the intake manifold.
squeakm is offline
Old 05-24-15, 09:13 PM
  #99
Full Member

Join Date: Feb 2015
Location: Sydney
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
I really want to run this setup on my car but I can't get the -10 oil filler neck.... IRP is sold out, should I get a series 5 steel neck fabbed up?
are-ex7 is offline
Old 05-25-15, 08:56 AM
  #100
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Thanked 19 Times in 18 Posts
I've used a ton of set ups, and there are a couple keys:

1. Enough capacity... I'd go for at least 1qt. if it's a track car on sticky tires that may potentially run with a completely full oil pan.
2. Being able to see how much is in the can
3. A large enough feed line and vent to relieve pressure (-10 is preferred)
4. Easy draining.

That last one is why those GReddy style cans are a pain in the ***. Once it's full you need to take it apart. I went (finally) with a 1qt. Jaz can. It's large enough, has a -10 inlet, is "natural" plastic so you can see how much is in there without taking it apart or any complicated sight tubing, and has a drain petcock, so you can get the stuff out easily. I use their radiator overflow bottle too, to make room for brake ducts.
Attached Thumbnails Oil catch can setup on my race car.-img_3471_sm.jpg
