Oil catch can setup on my race car.

Old 09-23-09, 02:08 AM
  #26
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
After getting some PMs and questions about this setup, I want to clarify something:

The old oil return line is NOT used as a oil return line, it becomes a air venting location in this setup.

Some people are thinking that this is there as an oil return line for the catch can, IT IS NOT, it is a VENT LINE. There is NO oil return line from the catch can back to the oil pan in my setup.

Any oil that accumulates in the catch can is drained later with a valve at the bottom of the can and then discarded.

Remember, the goal is not to 'catch' oil in the catch can and return it to the pan, the goal is to vent the pan so that air can escape without pushign oil out with it. The catch can is in place to catch the small amount of oil that may get by our venting and/or oil 'mist' in the air that we can accumulate in the can while letting the air get out. Ideally oil should never get to the catch can if the oil pan is vented properly.
damian is offline
Old 10-24-09, 06:32 AM
  #27
Mr.Epic
iTrader: (11)

Join Date: Jul 2009
Location: Missouri
Posts: 665
Thanked 0 Times in 0 Posts
Could you maybe show a simple illustration from Microsoft Paint or something

So for the rear oil drain you have a -10AN hose that runs up to the transmission area?

What is the 2nd line that's coming off the catch can that's going towards the firewall?
TheAsset is offline
Old 10-24-09, 11:06 AM
  #28
Rotary Freak
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,840
Thanked 1 Time in 1 Post
Originally Posted by M104-AMG View Post
Dale,

I also run 2-Viton lines to my catch-can from the same place.

I used stainless-steel tie-wraps to mount my catch-can behind the mount for the cruise-control cable assembly.

:-) neil
Dale-

I mis-spoke, I'm only running ONE VITON line to my oil-filler neck.

Have you (or others) found a solution for those of us with stock twins ?

Thanks,
:-) neil
M104-AMG is offline
Old 10-24-09, 11:20 AM
  #29
AponOUT!?
iTrader: (31)

theorie's Avatar

Join Date: Nov 2002
Location: Sarasota, FL
Posts: 3,521
Thanks: 0
Thanked 5 Times in 5 Posts
Originally Posted by RX72NR View Post
Looks like the RE Speed filler neck that I bought, he welded the -10an fitting and a baffle in it. Great job, I too bought the greddy can.

please tell me you have something covering that battery terminal post. it looks like its only about an inch or two away from the catch can lines. if that grounds out against anything....big sparks...maybe fire.
theorie is offline
Old 10-24-09, 03:45 PM
  #30
bow leggin'
iTrader: (25)

Scrub's Avatar

Join Date: Jul 2002
Location: Delaware
Posts: 6,058
Thanked 1 Time in 1 Post

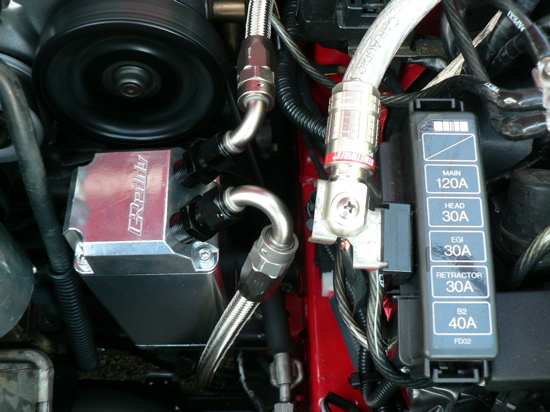

I think it's just the angle you're looking at it from. The fuse box appears to be secure as well.
Scrub is offline
Old 10-24-09, 10:51 PM
  #31
Full Member
iTrader: (1)

718FD3S's Avatar

Join Date: Mar 2009
Location: NyC
Posts: 61
Thanks: 0
Thanked 0 Times in 0 Posts
nice catch can setup.
718FD3S is offline
Old 10-25-09, 01:06 AM
  #32
Full Member
15 Year Member
iTrader: (2)

Join Date: Apr 2001
Location: Rochester Hills, MI
Posts: 241
Thanks: 0
Thanked 0 Times in 0 Posts
I don't do near the track events you do, but wanted to do it once and do it right. The only difference is I used the cheaper push loc hose and fittings, and just used a 1/2 npt tap to put an -10 an fitting in the re speed filler neck. Works great, I get nothing but moisture out of it for the most part.
MeLoN350 is offline
Old 10-26-09, 04:39 PM
  #33
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Originally Posted by MeLoN350 View Post
I don't do near the track events you do, but wanted to do it once and do it right. The only difference is I used the cheaper push loc hose and fittings, and just used a 1/2 npt tap to put an -10 an fitting in the re speed filler neck. Works great, I get nothing but moisture out of it for the most part.
That sounds like an excellent way to do the hoses as well. The lines do not need to be high pressure, so push loc would work great, and be a easy to use and affordable alternative.
damian is offline
Old 10-26-09, 04:43 PM
  #34
SideWayZ The Only Way
iTrader: (11)

FD3S2005's Avatar

Join Date: Jun 2005
Location: Davie, Florida
Posts: 4,841
Thanks: 0
Thanked 0 Times in 0 Posts
here is a question, when is it necessary to get a catch can?
FD3S2005 is offline
Old 10-26-09, 04:49 PM
  #35
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Originally Posted by TheAsset View Post
Could you maybe show a simple illustration from Microsoft Paint or something

So for the rear oil drain you have a -10AN hose that runs up to the transmission area?

What is the 2nd line that's coming off the catch can that's going towards the firewall?
Sure, when I get some time I will post a diagram similar to the one I did for my grounding kit install thread, with overlayed graphics of where things go.
damian is offline
Old 10-26-09, 06:34 PM
  #36
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Originally Posted by FD3S2005 View Post
here is a question, when is it necessary to get a catch can?
once you start dumping a lot of oil smoke out of your exhaust during hard cornering... usualy happen on the track only, not really during street driving.
damian is offline
Old 02-25-10, 10:45 PM
  #37
Rotary Freak
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,840
Thanked 1 Time in 1 Post
Originally Posted by DaleClark View Post
Excellent, Damian!

I wonder if there's a way to do something similar for people running twins that still use that oil return on the back of the block.

<SNIP>

The key outside the box part of your design is the fitting on the passenger side of the block - that's just brilliant!

Dale
So where are people venting for the right side of the block when you're using the twins ?

:-) neil
M104-AMG is offline
Old 02-26-10, 11:56 AM
  #38
IRP Engine - Complete!
iTrader: (28)

Monkman33's Avatar

Join Date: May 2005
Location: Pasco, Washington
Posts: 3,192
Thanked 8 Times in 7 Posts
Originally Posted by M104-AMG View Post
So where are people venting for the right side of the block when you're using the twins ?

:-) neil
I too asked that very same question in this thread back in 2008.... And I have also asked it in other threads of this type, I have not seen a definitive answer.
Monkman33 is offline
Old 03-17-10, 06:35 AM
  #39
The wankel way!!
5 Year Member

TURSTY's Avatar

Join Date: May 2008
Location: New Zealand
Posts: 462
Thanks: 0
Thanked 0 Times in 0 Posts
Im doing this same thing now with mine. Heres what I did the the right side and too little room to use a normal fitting thanks to the wastgate on my car.

Ill post pics of it all finished when I get the rest of the parts back for the car.

TURSTY is offline
Old 03-29-10, 01:16 PM
  #40
[Kay Essin] [Tank Bomb]
5 Year Member
iTrader: (17)

Snaple07's Avatar

Join Date: Oct 2008
Location: Sioux Falls, SD
Posts: 392
Thanks: 0
Thanked 0 Times in 0 Posts
SD

Originally Posted by damian View Post

This pic shows the basic setup and routing I have now. I plan to redoe the lines in the future, place the tank in a better place for the line routing:




More internal baffling, I had the welder weld in a small tube that passes through the filler neck, the bottom side that you cant see I angled so that the bottom is very open. This also prevent any oil being poured in to go into the vent line.


Very nice thread...and yes I know this thread is 1-2 years old...it's just good to see what experienced track and AutoX racers create through wisedom/trial and error.

If you don't mind me asking - Could you custom weld an aluminum filler neck exactly like yours for me? (you may need to market this simple design and profit from it)

If so how much would it cost me if you custom created/welded me an aluminum filler neck like yours (my engine is S5 13BT but the spacing between your filler neck as in comparison to mine is almost exactly the same, if not it is the same).

Shipped to Sioux Falls SD 57104

Thanks and much appreciated

-Matthew
Snaple07 is offline
Old 03-29-10, 01:45 PM
  #41
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Thanks Mattew,

I purchased the actual neck and then created the extra port and baffle for the line to the catch can and had a local shop weld it in place.

The best thing would be to get the original maker of the neck to make another 'catch can' version, with my changes....but I dont rememebr who originally made it. LOL
damian is offline
Old 03-30-10, 11:46 AM
  #42
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,808
Thanked 10 Times in 9 Posts
Re Speed made that oil filler neck. I'm not sure if they always stock. If they don't they do some Group Buys now and then for it.

http://mrcmfg.com/catalog/index.php?cPath=114_54
gracer7-rx7 is offline
Old 03-30-10, 02:25 PM
  #43
Banned. I got OWNED!!!
iTrader: (3)

Join Date: Nov 2001
Location: London, Ontario
Posts: 2,483
Thanks: 0
Thanked 0 Times in 0 Posts
Damien emailed us and told us about the thread here.

We most certainly could work up a "Damian Racing" version of our filler for those that want to add the large -10 line and catch can.

We are finishing our current group buy for the next batch of fillers this week. I will start looking into the new design and should have something over the next few weeks.

We have been doing these on group buys only for the last few months to cut back on inventory levels. The plan is to bring them back to "in stock" over the next month and may add this one to the line up.

Thanks,
-billy
Re-Speed.com is offline
Old 03-30-10, 02:46 PM
  #44
[Kay Essin] [Tank Bomb]
5 Year Member
iTrader: (17)

Snaple07's Avatar

Join Date: Oct 2008
Location: Sioux Falls, SD
Posts: 392
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Re-Speed.com View Post
Damien emailed us and told us about the thread here.

We most certainly could work up a "Damian Racing" version of our filler for those that want to add the large -10 line and catch can.

We are finishing our current group buy for the next batch of fillers this week. I will start looking into the new design and should have something over the next few weeks.

We have been doing these on group buys only for the last few months to cut back on inventory levels. The plan is to bring them back to "in stock" over the next month and may add this one to the line up.

Thanks,
-billy
Much appreciated, I will look forward to the finished product.

Thanks,

-Matt
Snaple07 is offline
Old 03-30-10, 02:56 PM
  #45
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
excellent, thanks for the response Billy.
damian is offline
Old 03-30-10, 09:52 PM
  #46
Rotary Freak
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,840
Thanked 1 Time in 1 Post
Originally Posted by Re-Speed.com View Post
Damien emailed us and told us about the thread here.

We most certainly could work up a "Damian Racing" version of our filler for those that want to add the large -10 line and catch can.

We are finishing our current group buy for the next batch of fillers this week. I will start looking into the new design and should have something over the next few weeks.

We have been doing these on group buys only for the last few months to cut back on inventory levels. The plan is to bring them back to "in stock" over the next month and may add this one to the line up.

Thanks,
-billy
Billy,

I already ordered, but haven't received my oil-filler. Can you make mine the "Damian Racing" version ?

Thanks,
:-) neil
M104-AMG is offline
Old 06-12-10, 08:58 PM
  #47
Dirty
iTrader: (4)

allenhah's Avatar

Join Date: Jul 2001
Location: Austin
Posts: 771
Thanked 0 Times in 0 Posts
Looks like this could be used for the filler neck? I'm not sure what the second hole would be used for in Damian's setup though...

https://www.rx7club.com/showthread.php?t=895397
allenhah is offline
Old 06-13-10, 01:13 AM
  #48
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Originally Posted by allenhah View Post
Looks like this could be used for the filler neck? I'm not sure what the second hole would be used for in Damian's setup though...

https://www.rx7club.com/showthread.php?t=895397
Good post, yeah that would be a good solution for the filler neck. I wonder if he say my thread here and got some ideas ;-)
damian is offline
Old 03-28-11, 05:59 PM
  #49
The wankel way!!
5 Year Member

TURSTY's Avatar

Join Date: May 2008
Location: New Zealand
Posts: 462
Thanks: 0
Thanked 0 Times in 0 Posts
Hey Damian, I have this same setup on my track car (almost identical) and after the cars first testing session on a right hand (clockwise) track, its still filling a 1Litre catch can and making a right mess of the engine bay/windscreen after about 5-6 laps? The car is making about 345kw on 17psi but it does the same thing on low boost of 11psi. Only ever fills the can on the track and never on the street. And its only happening during HARD cornering laps. If im lazy around the corners, its not an issue.

How is yours holding up? Can you offer any other advise?
TURSTY is offline
Old 03-29-11, 02:10 AM
  #50
Rotor Head Extreme
iTrader: (8)

t-von's Avatar

Join Date: Apr 2002
Location: Midland Texas
Posts: 6,697
Thanks: 0
Thanked 8 Times in 6 Posts
Originally Posted by TURSTY View Post
Hey Damian, I have this same setup on my track car (almost identical) and after the cars first testing session on a right hand (clockwise) track, its still filling a 1Litre catch can and making a right mess of the engine bay/windscreen after about 5-6 laps? The car is making about 345kw on 17psi but it does the same thing on low boost of 11psi. Only ever fills the can on the track and never on the street. And its only happening during HARD cornering laps. If im lazy around the corners, its not an issue.

How is yours holding up? Can you offer any other advise?

Pics of your set-up would help!
t-von is offline
