Oil catch can setup on my race car.

Old 10-08-08, 12:51 AM
  #1
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Oil catch can setup on my race car.

This is one that many track junkies have battled for a loooooong time, including me, trying many different ways to solve it.

What I can tell you, is that after trying 3 different setups and years of making oily mess of the engine bay and side of my race car, my current setup has been a great solution for me. Both Andy (gooroo) and I run similar setups and we basically can run an entire weekend without having to empty the oil catch can anymore. Does it sill fill a bit, yes, as it should since there will be some oil in the air going through it, but it solved the previous problems we had where we would fill the catch can part way through a session and end up blowing oil all over, in, and around our cars. This was one of my biggest pet peeves, I hated having to deal with an oily mess every session. But now I drive in bliss, not worrying about 'the oily messy monster' coming back to visit :-)

Ok, for those that do not even know what I am talking about, let me start with why we even do a catch can. I am going to really simplify things since this is not a thread to teach why it happens, rather it is to show a good setup to do to manage it. So here it is in short, basically our oil pan get pressurized a bit when on boost. If there is pressure in the oil pan and oil is sloshed around and it by an opening into the pan area (filler neck exit, turbo oil drain holes, et) then the pressure will shoot the oil out the opening.

Blah blah, and 3 more paragraphs later, ...so when you track your car, the lateral Gs from turning make even more problems by moving the oil around and you end up filling a catch can up quickly if it is not setup to vent well.

Anyway, after trying different setups, I found what was very important was the size of the hole the air could vent through, and the locations of the vents. Basically you want the pan to be vented properly when turning right or left, and when under decel or accel.

Vent Locations:
For the vent locations, I had limited options if I ruled out drilling new vent holes in the block. So we basically have the oil filler neck, and the unused oil return hole that stock turbos use (single turbo setup typically use the front oil return hole, and the rear one gets blocked off). These 2 locations end up working well if vented properly, as the unused oil return hole is in the right rear of the block and takes care of venting the right hand turns and also deceleration, the filler neck is on the left side of the engine and close to the middle, so it basically takes care of the left hand turns and does well enough with acceleration.

Vent line size:
For the vent line size, I decided to move way up from the common small vac fittings typically used, and went with a hefty -10 an size. The idea here is that even with oil splashing up, there is still a large enough vent pathway for the air to still escape while the oil falls back down to the pan. This proved to be a good vent line size. Here is a link to the vent line I used:

Jegs -10 AN Pro-flo Braided Hose
http://www.jegs.com/i/JEGS/555/110931/10002/-1


The catch tank:
I tried a few catch tanks it the past and was not very happy with them, then I found one on Jegs that was just about perfect. It had exaclty what I wanted, internal baffle, a drain valve, and an option for -10 fittings. Here is the link to it:

Jegs oil breather tank.
http://www.jegs.com/i/JEGS/555/52200/10002/-1


AN Fittings:
You will need some AN fittings, but what you need will depend on how you route the lines

Jegs -10 AN union fittings, to go from catch tank to the lines, you will need 2 of these.
http://www.jegs.com/i/Russell/799/660370/10002/-1

ATP turbo - oil return flange with -10 an flare
http://www.atpturbo.com/Merchant2/me...egory_Code=BCS

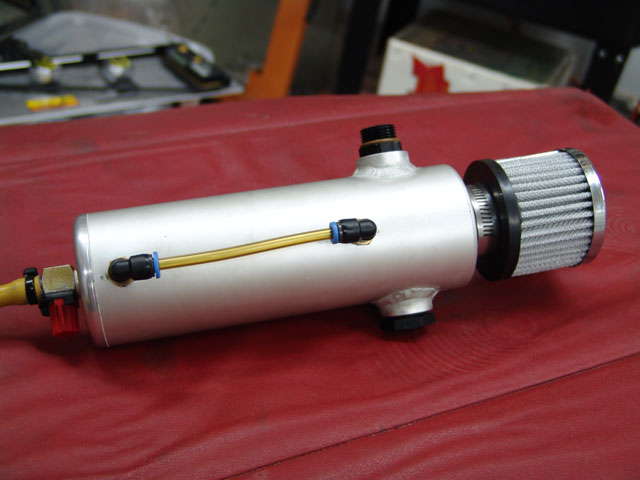

Here is a picture of the catch tank, as yo can see I added a view finder thingy to it so I could see how full it was with a quick peek:

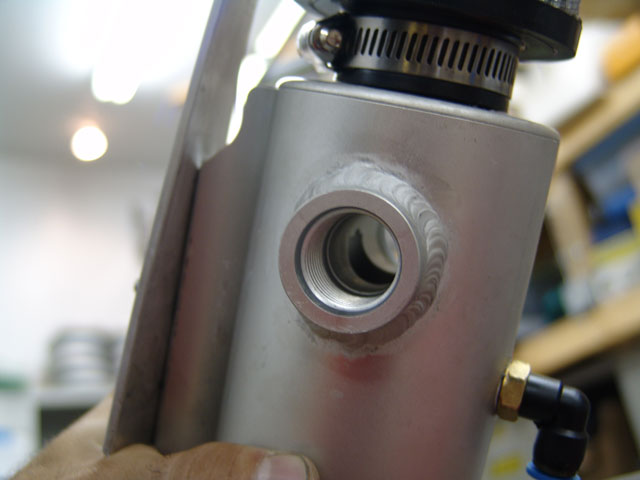

I think this is a critial part, the tank is internally baffled to allow better separation of air and oil, as you can see in this pic:

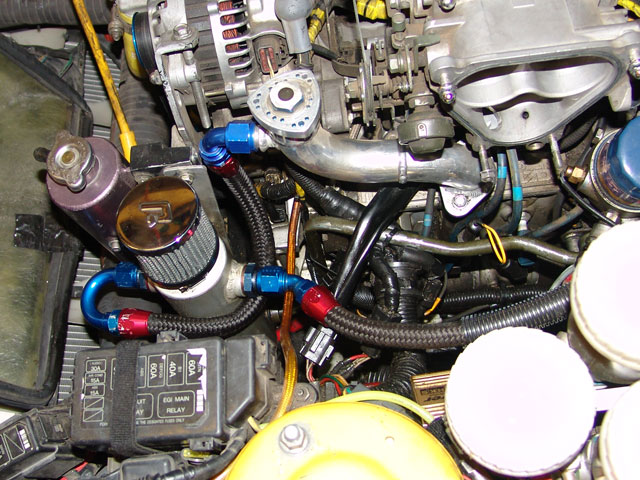

This pic shows the basic setup and routing I have now. I plan to redoe the lines in the future, place the tank in a better place for the line routing:

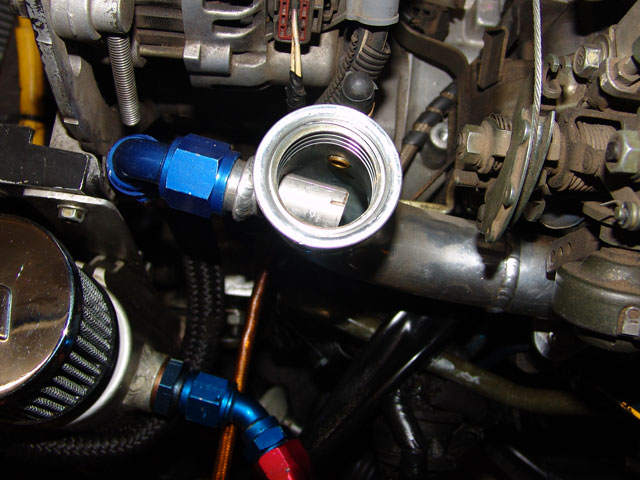

More internal baffling, I had the welder weld in a small tube that passes through the filler neck, the bottom side that you cant see I angled so that the bottom is very open. This also prevent any oil being poured in to go into the vent line.




And finally a pic of the fitting that goes to the unused oil return line. The line is routed up and over the trans, to the catch tank. Be sure to shield it from heat.




Trust me, between Andy and I, we have a lot of experience testing different setups and after years of oily messy track car, I can now go an entire race weekend and not have to empty the catch tank!!!


This may be my biggest success on the track car of them all!!!! I Fing HATED oily track car!!!! :-) lol
damian is offline
Old 10-08-08, 12:55 AM
  #2
****** of disaster
10 Year Member
iTrader: (1)

thetech's Avatar

Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Thanks: 0
Thanked 0 Times in 0 Posts
Fantastic write up Damian! I am just starting to tackle this problem myself so the timing couldnt have been better
thetech is offline
Old 10-08-08, 04:19 AM
  #3
SINFUL7
10 Year Member
iTrader: (37)

KaiFD3S's Avatar

Join Date: Apr 2004
Location: Alaska
Posts: 6,574
Thanks: 0
Thanked 1 Time in 1 Post
daym nice write up as always...I will be doing this...
KaiFD3S is offline
Old 10-08-08, 07:06 AM
  #4
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,072
Thanked 244 Times in 209 Posts
Excellent, Damian!

I wonder if there's a way to do something similar for people running twins that still use that oil return on the back of the block.

FYI, I run a Jaz catch can on my car, 2 Viton lines going from the 2 oil fill nipples to the catch can. I empty it at every oil change, and it's not particuarly full. People running on the street won't have the problems track guys have with the PCV system. But, the catch can keeps all that oil mess in the can and not in the intercooler piping and IC itself.

The key outside the box part of your design is the fitting on the passenger side of the block - that's just brilliant!

Dale
DaleClark is offline
Old 10-08-08, 09:32 AM
  #5
Newbie
10 Year Member
iTrader: (8)

Join Date: Feb 2002
Location: MI
Posts: 1,171
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by DaleClark View Post
Excellent, Damian!

I wonder if there's a way to do something similar for people running twins that still use that oil return on the back of the block.


Dale
Could they tap the pan itself?
JHew84 is offline
Old 10-08-08, 01:16 PM
  #6
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,812
Thanked 12 Times in 11 Posts
thank you
thank you
thank you
gracer7-rx7 is offline
Old 10-08-08, 01:39 PM
  #7
Rotary Freak
iTrader: (7)

Join Date: Oct 2004
Location: FL
Posts: 2,841
Thanked 2 Times in 2 Posts
Originally Posted by DaleClark View Post
Excellent, Damian!

I wonder if there's a way to do something similar for people running twins that still use that oil return on the back of the block.

FYI, I run a Jaz catch can on my car, 2 Viton lines going from the 2 oil fill nipples to the catch can. I empty it at every oil change, and it's not particuarly full. People running on the street won't have the problems track guys have with the PCV system. But, the catch can keeps all that oil mess in the can and not in the intercooler piping and IC itself.

The key outside the box part of your design is the fitting on the passenger side of the block - that's just brilliant!

Dale
Dale,

I also run 2-Viton lines to my catch-can from the same place.

I used stainless-steel tie-wraps to mount my catch-can behind the mount for the cruise-control cable assembly.

:-) neil
M104-AMG is offline
Old 10-08-08, 01:45 PM
  #8
Long time on-looker
iTrader: (33)

Join Date: Oct 2005
Location: Columbus, OH
Posts: 834
Thanked 16 Times in 16 Posts
great write up Damian. I've been fighting this ever since I've had my car.

It seems that the best solution to the problem is to vent both sides of the motor, however I intend to stay with the twins and do not want to disassemble the motor to tap the front cover as some have. Does anyone have a better idea of how those of us still running twin turbos can vent the other side?
Smokey The Talon is offline
Old 10-08-08, 02:34 PM
  #9
****** of disaster
10 Year Member
iTrader: (1)

thetech's Avatar

Join Date: Aug 2001
Location: Santa Monica, CA
Posts: 1,115
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by JHew84 View Post
Could they tap the pan itself?
No. There should be no spot in the pan (ideally) that is not full of oil.
thetech is offline
Old 10-09-08, 11:23 AM
  #10
fd0
formerly chillin_rx7_guy
10 Year Member
iTrader: (8)

fd0's Avatar

Join Date: Mar 2003
Location: WA
Posts: 1,149
Thanks: 0
Thanked 0 Times in 0 Posts
Excellent! Too bad I just bought a Greddy oil catch can. . Maybe I'll sell it...
fd0 is offline
Old 10-09-08, 12:06 PM
  #11
17,600 hp everyday!
5 Year Member
iTrader: (3)

phantom works's Avatar

Join Date: May 2004
Location: SoCal
Posts: 331
Thanks: 0
Thanked 0 Times in 0 Posts
pure genius !
phantom works is offline
Old 10-11-08, 05:09 PM
  #12
Sua Sponte
15 Year Member
iTrader: (31)

Brent Dalton's Avatar

Join Date: Aug 2001
Location: Savannah
Posts: 3,122
Thanks: 0
Thanked 1 Time in 1 Post
Awesome write up!!! *pull out my list and add another thing to the "to do" list
Brent Dalton is offline
Old 10-11-08, 08:45 PM
  #13
In the Garage
5 Year Member
iTrader: (2)

oo7arkman's Avatar

Join Date: Mar 2006
Location: Central FL
Posts: 1,406
Thanks: 0
Thanked 0 Times in 0 Posts
Great write up Damian. This is something I would spend lots of time in the garage with the hood open trying to think of ways to takle this. Although I am now cursing under my breathe as I add another thing on my list of things to do....
oo7arkman is offline
Old 10-12-08, 04:45 PM
  #14
Rotary Enthusiast

Join Date: Jun 2005
Location: sydney
Posts: 937
Thanked 20 Times in 19 Posts
Originally Posted by thetech
Originally Posted by JHew84
Could they tap the pan itself?
No. There should be no spot in the pan (ideally) that is not full of oil.
The 12hr endurance cars over here back in the day, ran a plumb back catch tank system. A weld on -10 went just behind the oil level sensor - might have been a bit of oil in the return line, but that's no biggie IMO.
billyboy is offline
Old 10-12-08, 08:23 PM
  #15
Goodfalla Engine Complete
iTrader: (28)

Monkman33's Avatar

Join Date: May 2005
Location: Kennewick, Washington
Posts: 3,196
Thanked 8 Times in 7 Posts
If I am retaining the sequential twins, where would be a good location to put the return line?
Monkman33 is offline
Old 10-12-08, 10:58 PM
  #16
Eats, Sleeps, Dreams Rotary
10 Year Member

7racer's Avatar

Join Date: Apr 2001
Location: Dallas, Texas
Posts: 3,737
Thanks: 0
Thanked 0 Times in 0 Posts
dang I was hoping the new Oil filler neck would do the trick...obviously it hasn't for you. =[
7racer is offline
Old 10-17-08, 06:52 PM
  #17
DragonFly
Thread Starter
iTrader: (2)

damian's Avatar

Join Date: May 2002
Location: Minnesota
Posts: 4,242
Thanks: 0
Thanked 3 Times in 2 Posts
Thanks for all the compliments fellas. ;-)
damian is offline
Old 10-26-08, 08:31 PM
  #18
Racing Spirit
5 Year Member
iTrader: (2)

kwerks's Avatar

Join Date: Jun 2007
Location: NNJ
Posts: 557
Thanks: 0
Thanked 0 Times in 0 Posts
awesome thank you
kwerks is offline
Old 10-26-08, 09:06 PM
  #19
Rotary Freak
iTrader: (5)

Johny zoom's Avatar

Join Date: Jun 2002
Location: Va
Posts: 1,549
Thanks: 0
Thanked 0 Times in 0 Posts
sorry if Im missing something. So it dosent have a vacuum source?
Johny zoom is offline
Old 10-26-08, 09:50 PM
  #20
AponOUT!?
iTrader: (31)

theorie's Avatar

Join Date: Nov 2002
Location: Sarasota, FL
Posts: 3,521
Thanks: 0
Thanked 5 Times in 5 Posts
very nice write up, looks great too.
theorie is offline
Old 11-04-08, 11:44 PM
  #21
OTT
Representin since '86
10 Year Member
iTrader: (1)

OTT's Avatar

Join Date: Aug 2004
Location: Tahuya, Washington
Posts: 362
Thanks: 0
Thanked 0 Times in 0 Posts
Great info. Did you have that filler neck made?
OTT is offline
Old 11-05-08, 12:22 AM
  #22
Banned. I got OWNED!!!

Join Date: Apr 2008
Location: BALAD IRAQ>ny,ma,ct
Posts: 354
Thanks: 0
Thanked 0 Times in 0 Posts
best setup for stock twins please
gripp2maxx is offline
Old 11-05-08, 12:28 AM
  #23
paying to play
5 Year Member
iTrader: (1)

RX72NR's Avatar

Join Date: Jun 2006
Location: Renton,WA.
Posts: 1,021
Thanks: 0
Thanked 0 Times in 0 Posts
Looks like the RE Speed filler neck that I bought, he welded the -10an fitting and a baffle in it. Great job, I too bought the greddy can.
Attached Thumbnails Oil catch can setup on my race car.-rx7anct.jpg
RX72NR is offline
Old 11-05-08, 03:20 PM
  #24
Senior Member

3rd Gen Jeremy's Avatar

Join Date: Nov 2006
Location: Memphis
Posts: 448
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Johny zoom View Post
sorry if Im missing something. So it dosent have a vacuum source?
+1 on that.
3rd Gen Jeremy is offline
Old 12-08-08, 03:17 PM
  #25
KM48 Burnout
10 Year Member
iTrader: (4)

ReZ311's Avatar

Join Date: Nov 2001
Location: Ventura County, CA
Posts: 1,687
Thanks: 0
Thanked 0 Times in 0 Posts
Killer write up. Just in time.
ReZ311 is offline
