need help, where does this hose go?

Thread Tools

Search this Thread

Old 04-24-03, 12:35 PM
  #1
HARRRRRRRRR

Thread Starter

ttpowerd's Avatar

Join Date: Jan 2002
Location: Marietta GA
Posts: 1,858
Likes: 0
Received 0 Likes on 0 Posts
need help, where does this hose go?
I can't believe I am asking this but I pulled the secondary turbo intake pipe yesterday and accidently pulled a hose out with it. Now I can't figure out where it goes Pic is attached. It is the hose that attaches to the top of the rear control valve.

Thanks,
Bryan
ttpowerd is offline
Reply Like
Old 04-24-03, 12:36 PM
  #2
HARRRRRRRRR

Thread Starter

ttpowerd's Avatar

Join Date: Jan 2002
Location: Marietta GA
Posts: 1,858
Likes: 0
Received 0 Likes on 0 Posts
ttpowerd is offline
Reply Like
Old 04-24-03, 12:40 PM
  #3
HARRRRRRRRR

Thread Starter

ttpowerd's Avatar

Join Date: Jan 2002
Location: Marietta GA
Posts: 1,858
Likes: 0
Received 0 Likes on 0 Posts

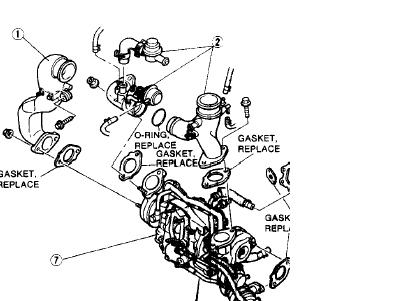

where the hose goes...
ttpowerd is offline
Reply Like
Old 04-24-03, 12:41 PM
  #4
HARRRRRRRRR

Thread Starter

ttpowerd's Avatar

Join Date: Jan 2002
Location: Marietta GA
Posts: 1,858
Likes: 0
Received 0 Likes on 0 Posts
ttpowerd is offline
Reply Like
Old 04-24-03, 02:01 PM
  #5
Place your ad here...


saxyman990's Avatar

Join Date: Apr 2002
Location: Dayton, OH
Posts: 1,336
Likes: 0
Received 2 Likes on 2 Posts
There should be 4 little nipples sticking out of the turbo side of the LIM (close to the front). The hose you're talking about attaches to one of those (i believe it is the 2nd one from the bottom)

Rob
saxyman990 is offline
Reply Like
Old 04-24-03, 02:03 PM
  #6
HARRRRRRRRR

Thread Starter

ttpowerd's Avatar

Join Date: Jan 2002
Location: Marietta GA
Posts: 1,858
Likes: 0
Received 0 Likes on 0 Posts
Thanks, I'll look again tonight. That's where I thought it went but did not see it We shall see...

Thanks,
Bryan
ttpowerd is offline
Reply Like
Old 04-24-03, 02:21 PM
  #7
Lives on the Forum


DamonB's Avatar

Join Date: Feb 2001
Location: Dallas
Posts: 9,617
Likes: 0
Received 8 Likes on 7 Posts
Yeah, it's one of those. The nipples pass through the LIM and continue to the solenoid rack on the other side.
DamonB is offline
Reply Like

Trending Topics

Old 04-24-03, 04:30 PM
  #8
canadian monster

iTrader: (2)

puma's Avatar

Join Date: Mar 2001
Location: Trois-Rivières, Qc, Can
Posts: 2,083
Likes: 0
Received 0 Likes on 0 Posts
third one from top
puma is offline
Reply Like
