Need help with ground locations
12-09-16, 07:40 PM
#1
Need help with ground locations

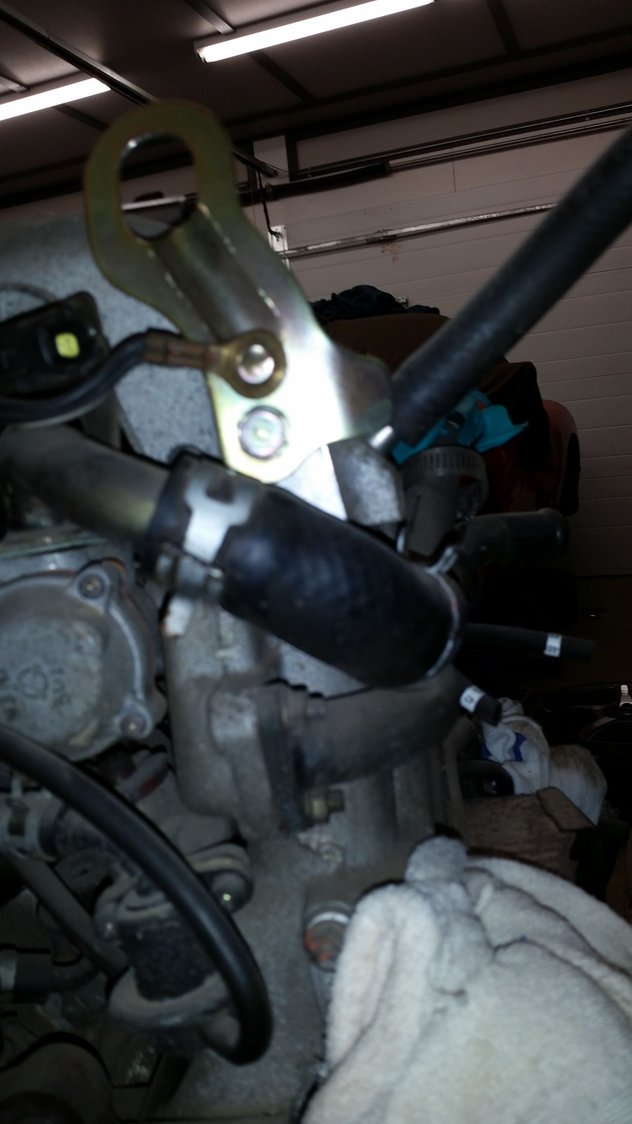

So I built a new engine harness (emissions) from scratch and salvaged the grounds and transmission bit of the old harness to save time cause they appeared to be in good shape. Now I have two ring style terminals on the harness and can't remember for the life of me where they actually go. They connect in between each other but I would imagine that they would go to different spots. Ill post a pic in the next post.
12-11-16, 05:53 PM
#4
the ring connector by the AWS is the ground that is located under the stock ignition coil bracket. not sure about the other one, but im sure it is another ground.
actually the one next to the water temp sensor is the ring connector under the coil bracket. not sure if the other is for the other rotor housing.
actually the one next to the water temp sensor is the ring connector under the coil bracket. not sure if the other is for the other rotor housing.
Trending Topics
12-13-16, 11:30 AM
#9
Ground by water temp sensor plug goes on stock solenoid rack/coil bracket.
Ground by the aws goes on the rear engine hook.
Ground by the ecu plugs goes on the ecu bracket.
Don't forget the main engine ground that is on the charging harness. It goes to a bracket behind the power steering pump. Usually I eliminate that bracket as it makes it more difficult to get to the spark plugs and bold that ground next the coolant drain on the block.
Ground by the aws goes on the rear engine hook.
Ground by the ecu plugs goes on the ecu bracket.
Don't forget the main engine ground that is on the charging harness. It goes to a bracket behind the power steering pump. Usually I eliminate that bracket as it makes it more difficult to get to the spark plugs and bold that ground next the coolant drain on the block.
