Need help going back to stock
Hey guys I purchase the car with a hollow bonez and want to go back to stock cat for smog. Recently got a stock cat and notice a flange on the side. my hollow cat does not have this. 1)so what does this flange hook up to. 2)also got a down pipe with a bung hole what is the bung hole for. 3) can I pass CA smog with stock CAT put back on non stock down pipe greddy exhaust.
Thanks for your help
Thanks for your help
#4
No Game
Thread Starter
Join Date: Nov 2004
Location: IRVINE, So Cali
Posts: 376
Likes: 0
Received 0 Likes
on
0 Posts
air injection line? what is that think mine was taken off when the modded cat was installed. whats' it llok like and where does the other side attacj to?
#5
Moderator
iTrader: (7)
The secondary air line runs alongside the downpipe and transmission and connects to the ACV (which is between the turbos and UIM)
You will find the FSM and Parts lists helpful: www.iluvmyrx7.com
Dave
You will find the FSM and Parts lists helpful: www.iluvmyrx7.com
Dave
#6
No Game
Thread Starter
Join Date: Nov 2004
Location: IRVINE, So Cali
Posts: 376
Likes: 0
Received 0 Likes
on
0 Posts
sorry I'm lost anyone have actual pics or links to actual pics? All I see under my car is the flange on the cat which is capped off. I think I am completely missing the ACV or it fell of or seller removed it and never gave it to me is it bad to run without this. pics of the acv and where it attaches to another solid objects would be appreciated. most sites I check talk about it or have simple drawings since I never seen it I don't exactly know what I should buy or connect it too. forgive my Ignorance
#7
Moderator
iTrader: (7)
Go to http://www.iluvmyrx7.com/3rd_gen_manuals.htm and download the 93 Factory Service Manual and 93 Parts Fiche.
In the FSM you will see the secondary air pump (ACV: the air control valve) on page F-115. The pipe is shown on F-128.
The parts list shows these items on 1-E5 (group 1371), and 2-D6 (group 4000).
Also look to see if you have an air pump. Generally, removing the air pump is the motivation for capping the line going to the cat.
The good news is these parts are pretty cheap in the for sale section. DO NOT buy them from the dealer.
Dave
In the FSM you will see the secondary air pump (ACV: the air control valve) on page F-115. The pipe is shown on F-128.
The parts list shows these items on 1-E5 (group 1371), and 2-D6 (group 4000).
Also look to see if you have an air pump. Generally, removing the air pump is the motivation for capping the line going to the cat.
The good news is these parts are pretty cheap in the for sale section. DO NOT buy them from the dealer.
Dave
Trending Topics
#9
No Game
Thread Starter
Join Date: Nov 2004
Location: IRVINE, So Cali
Posts: 376
Likes: 0
Received 0 Likes
on
0 Posts

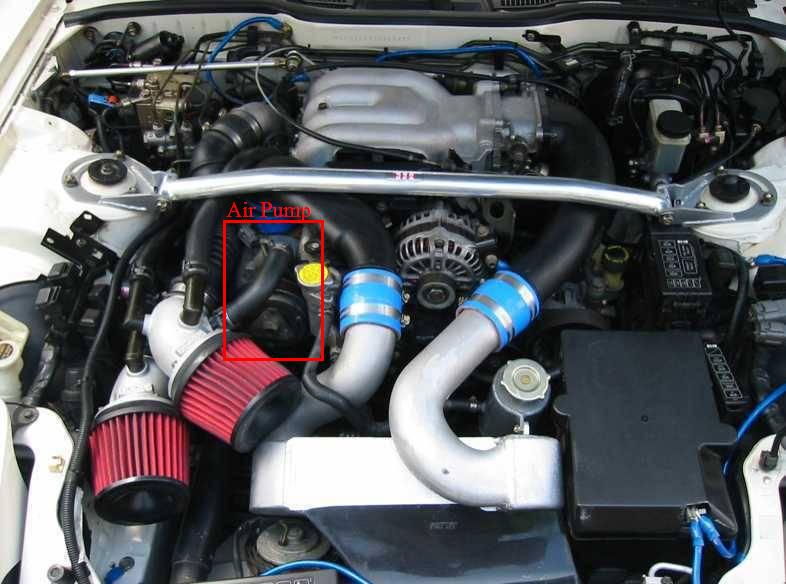

thanks guys I have the ACV, scotty picture really helped. thank you too geese. I guess what I missing is the piece that connects to it I believe its called the check valve (split) looks sor of like a bell. bottom page f-120 exactly where does that hook up the guide shows only an end nozzle which could be any nozzle sorry if I'm annoying really lost. and I do own the shop manual.
