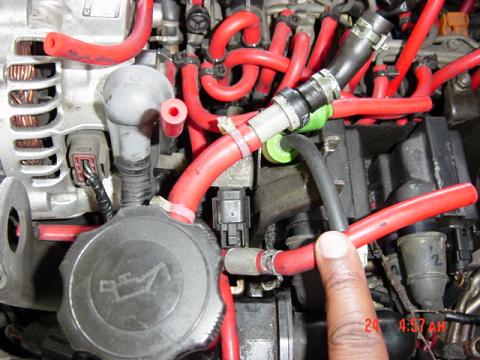

need help with this vac hose, i forgot to mark them so if anyone can please help i would like that thank you it might be something in it for you if you can help me

Trexthe3rd

That goes to one of the 4 nipples on the bottom of the UIM (upper intake manifold)

wiblergt

no, it goes to the flux capacitor!

UIM... Trexthe3rd = crazy!!!!

if you do that... it will interrupt the rotary bearings effect on the ac condensor when it fires the spec... torque... button... thingy.

good luck man!

mazda/feed

ok im totally lost lol the whatthingymajiny lol see thought it went to the uim too can any body post a pic to were it should be

Mahjik

iTrader: (1)

http://www.scuderiaciriani.com/rx7/v...e_diagram2.jpg

Sonny

That's the Purge Control solenoid check valve. It hooks to the Purge Control chamber that bolts to the bottom of the throttle body. See Mahjik's link for a picture.

Sonny

moktan_fdtt

Use this site, hope it helps
http://www.scuderiaciriani.com/rx7/v...e_diagram2.jpg

mazda/feed

thanks mahjik that helped out alot i thought that it went on the uim but does it suppose to have oil or junk in the lines i had some black mess in there looked like oil if so then i was right on the money

95R2-89TII Ground Zero

That line looks like the line that comes up into the bottom of the vaccum chamber in front of the Alt. It has the check valve on it also

wrankin

Please go and *look* at the vac hose diagram before making misleading/wrong statements like this one. The line from the vac tank below the alternator does not have a check valve in it, and it leads to the hard pipe rack in the rat's nest.


-bill
