My trunk mount battery
#1
Senior Member
Thread Starter
My trunk mount battery

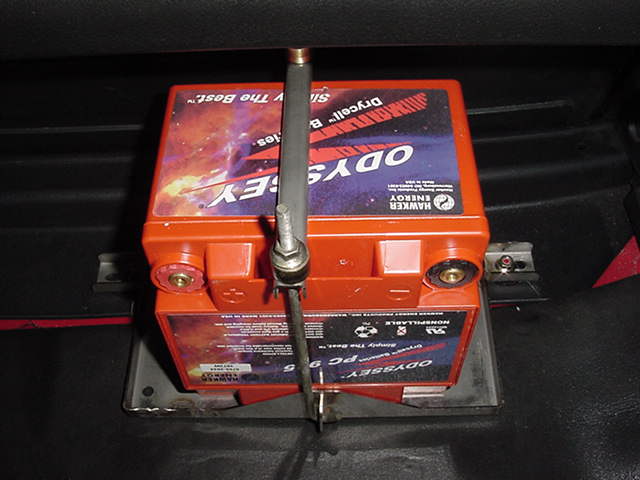

Here are some pics of my trunk mount battery using TurboJeff's SS tray.
I had to drill two new holes in the frame rail mounting flanges, & completely remove the cross brace mounting flange. But the PC925 fit nicely. The tray is mounted to 2 of the 3 rear bit studs.

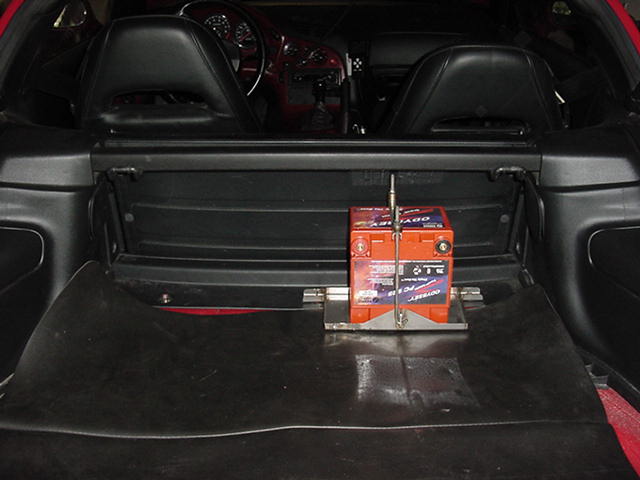

I'm not sure how the carpet would interfere wtih the mounting, & I'm sure holes would have to be cut, but since I have the Bose carpet & no Bose hose I just have that sheet laying back there. Someday I'll get a larger sheet to simulate a hatch carpet...
I had to drill two new holes in the frame rail mounting flanges, & completely remove the cross brace mounting flange. But the PC925 fit nicely. The tray is mounted to 2 of the 3 rear bit studs.
I'm not sure how the carpet would interfere wtih the mounting, & I'm sure holes would have to be cut, but since I have the Bose carpet & no Bose hose I just have that sheet laying back there. Someday I'll get a larger sheet to simulate a hatch carpet...
#5
Powered by** Rotary
looks good man. That last picture, i think it would be good if you had a 99 front lip or something. Looks kind of bold. But the battery relocation is well done.
#7
Uber Newb.
Join Date: Nov 2002
Location: LSU - Baton Rouge, Louisiana
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
I think it needs a battery box I've never liked the lok of bare metal (unpolished) inside of the interior of a car.
Nice location though. I bet it offsets the weight of the aftermarket piping, etc, better than the storage bin batterys.
Nice location though. I bet it offsets the weight of the aftermarket piping, etc, better than the storage bin batterys.
Trending Topics
#8
Senior Member
Thread Starter
Originally posted by BoOsTin FD
looks good man. That last picture, i think it would be good if you had a 99 front lip or something. Looks kind of bold. But the battery relocation is well done.
looks good man. That last picture, i think it would be good if you had a 99 front lip or something. Looks kind of bold. But the battery relocation is well done.
Thanks.
Yes, the 99+ looks good, but I actually prefer the pouty openings vs: the Smiley openings. Personal preference.
The thing looks completely stock from every angle except the front. I don't even have a spoiler on it. I've surprised an '03 SVT that had intake & full exhaust (turned out to be a pretty cool guy), & I really pissed off a GSXR...
#9
Senior Member
Thread Starter
Originally posted by DaedelGT
I think it needs a battery box I've never liked the lok of bare metal (unpolished) inside of the interior of a car.
I think it needs a battery box I've never liked the lok of bare metal (unpolished) inside of the interior of a car.
#11
Senior Member
Thread Starter
Originally posted by ttpowerd
What turbo is that? Looks great
What turbo is that? Looks great
"Looks great " Thanks. It's still pretty much thrown together right now, but in a few months after I move I plan on WB Dyno'ing it & having it to the point where it will pass tech inspections. Then comes a paint job.
#13
Senior Member
Thread Starter
Originally posted by ttpowerd
If I may make one suggestion: loose the stock radiator
I am debating now about turbos; rx6 b or gt35/40? *sigh* so many choices
If I may make one suggestion: loose the stock radiator
I am debating now about turbos; rx6 b or gt35/40? *sigh* so many choices
It'll happen. LIke I said, I just kind of threw it together.
#14
HARRRRRRRRR
Join Date: Jan 2002
Location: Marietta GA
Posts: 1,858
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by es
[sarcasm]WHAT? THAT RADIATOR IS M4D LIGHTWEIGHT! Hell, I was thinking about doing a radiator ellimination kit.[/sarcasm]
It'll happen. LIke I said, I just kind of threw it together.
[sarcasm]WHAT? THAT RADIATOR IS M4D LIGHTWEIGHT! Hell, I was thinking about doing a radiator ellimination kit.[/sarcasm]
It'll happen. LIke I said, I just kind of threw it together.
#17
Senior Member
Thread Starter
Originally posted by xstacy7

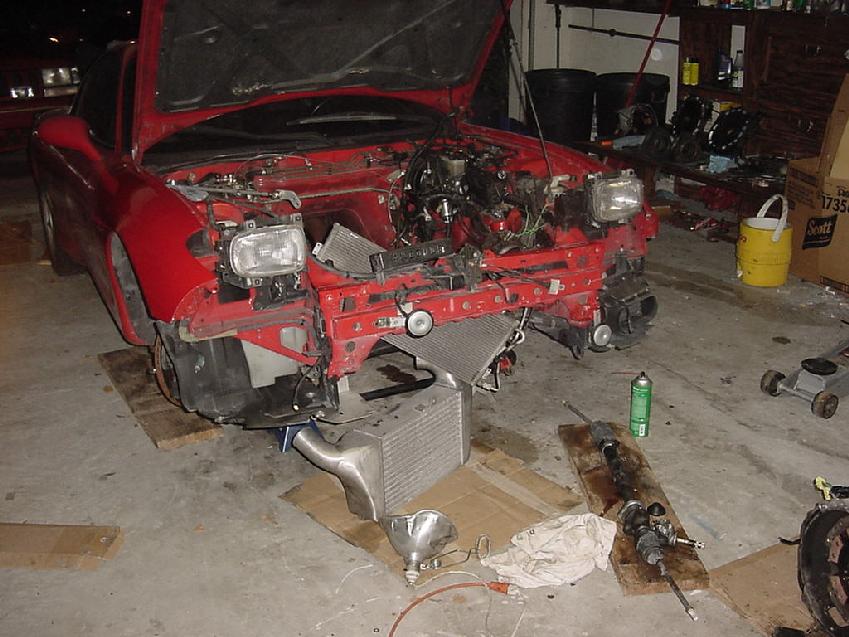

looks very nice man, I wouldn't have guessed it would have turned out like that from looking at the before picture
looks very nice man, I wouldn't have guessed it would have turned out like that from looking at the before picture
Yea, I had my doubts & felt pretty overwhelmed. But once I got all of the parts it only took about 4 weeks to get it all back together!
The port work took quite a while, but I built the motor one Friday after work.
#18
Senior Member
Thread Starter
Originally posted by curlybillbrosie
where did you rout the wires that go to the battery?
where did you rout the wires that go to the battery?
I will also use some sort of PVC conduit to pass through the panel.
#20
3rd gen junkie
Join Date: May 2002
Location: san diego
Posts: 604
Likes: 0
Received 0 Likes
on
0 Posts
yeah, you'd better get a summit box or something, because an open battery like that would never pass any kind of serious tech inspection (for autocross, track, etc)
