petros_rx7

I have build a fan controller with digital sensor from -50 to 150 Celsius.
It have 4 programmable outputs and also the ability to run after ignition off for programmable time.

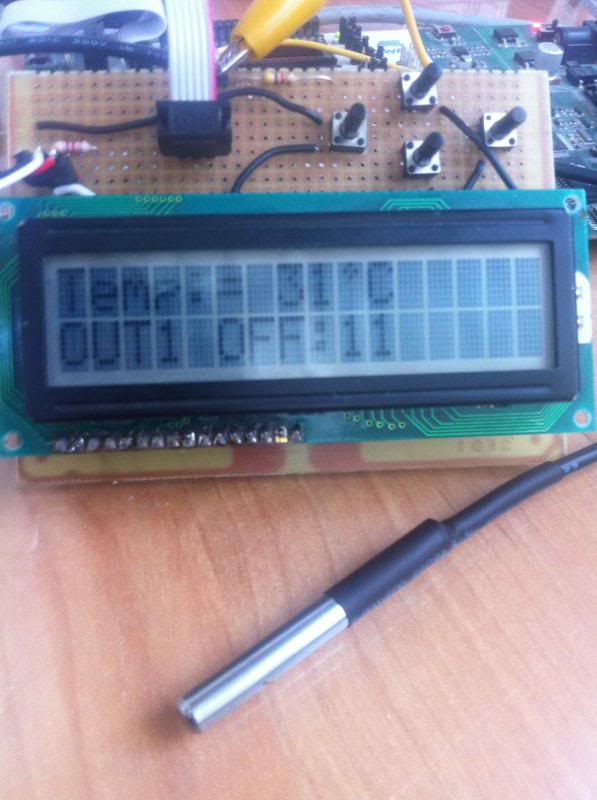

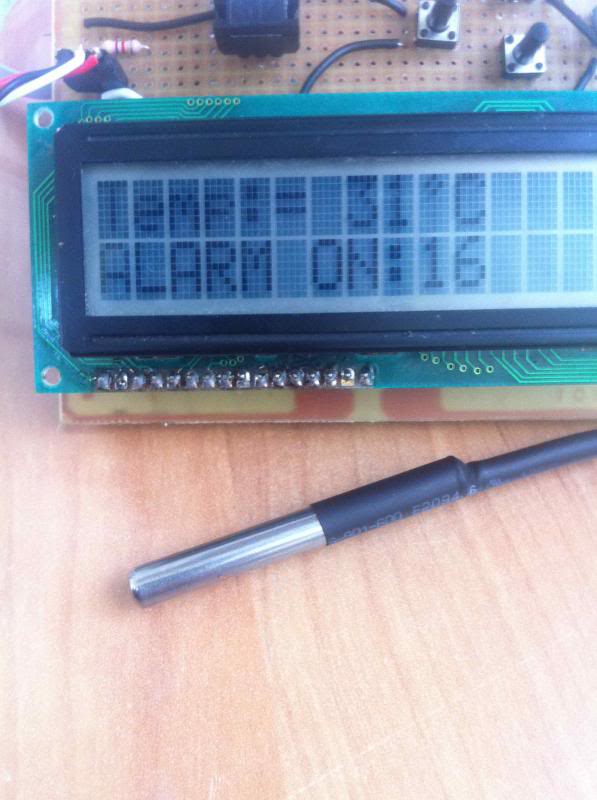

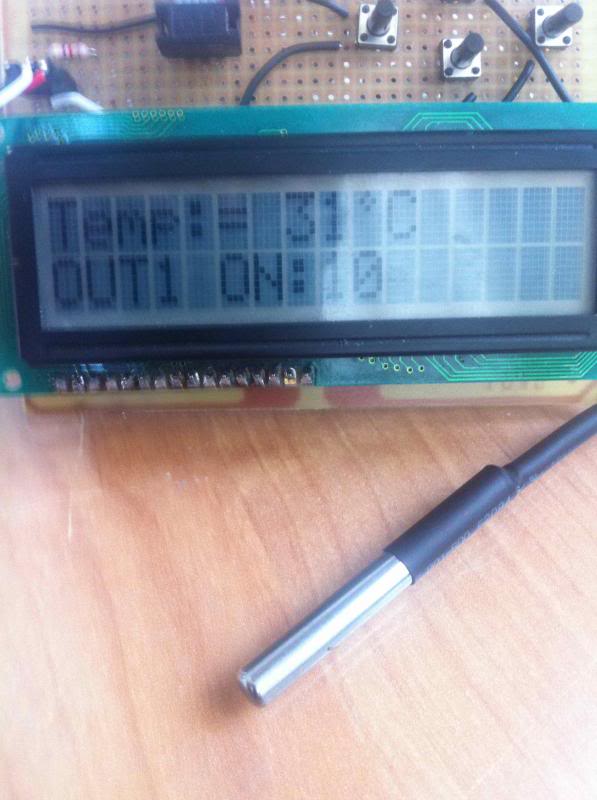

here some pics







IMG0560 - YouTube

airjordan223

iTrader: (8)

are you using a basic stamp or something like a propeller chip for this?

petros_rx7

I am using avr mc with assembly

Monkman33

iTrader: (28)

Is it on/off or pwm?

edgars95rx7

iTrader: (5)

where did you get the kit or pcb?

petros_rx7

It is not kit it is made all by me.
Pwm? No. single on off to trigger the oem relay.

James Paventi

iTrader: (34)

I like it!

I started playing with Atmel (via Arduino) micro-controllers a couple of years ago. I build an LED cube followed by an AC condenser fan controller for my 02 Avalanche.

I've been thinking of making a controller to lower my FD (driver or passenger) window half an inch when hatch opens and then roll the window back up when my hatch is shut. My hatch is nearly impossible to shut / latch when the windows are rolled up.

If I could stop tunning my BNRs for a couple of days maybe I would make it. LOL ...

James

petros_rx7

This for window is in near future after fan controller it is time to finish portable compression sensor

edgars95rx7

iTrader: (5)

nice. I like the controller could you post some schematics or parts you used? im interested in doing this my self

petros_rx7

The parts is the easy way and yes i can list them.
But i would not post my code for mc.

edgars95rx7

iTrader: (5)

could you email me the code?
