more broken stuff...diff mount???
#1
Rotary Enthusiast
Thread Starter
more broken stuff...diff mount???
okay was going under the car check things out and noticed a mount leaking. my guess is a diff mount since its sitting right behind the diff. i first noticed a clear gooey liquid on the ground and a trail that led to the mount then it dripped on my hand. looks like two mounts connected together on the same bracket but no clue where to pull it apart from. has onyone heard of this happening? my PPF was broken so i just welded it together and slapped it back on. car feels a lot better, but the diff mount may have been a band-aide holding everything together when the PPF was going. will i be able to replace it for a decent price? can i just get jimlab bushing and put them in there. what are my options?
kris
kris
#2
The Power of 1.3
Join Date: Aug 2001
Location: Shrewsbury, Massachusetts
Posts: 2,837
Likes: 0
Received 0 Likes
on
0 Posts
I don't think mounts have anything in them to leak. It could be something else dripping onto the mount and it looks like it's leaking.
I've never touched the mounts on an FD, but I did on my friends talon, they were just metal and a rubber (which was changed to urethane) bushing.
I've never touched the mounts on an FD, but I did on my friends talon, they were just metal and a rubber (which was changed to urethane) bushing.
#3
Lives on the Forum
I am pretty certain the rubber diff bushings are in fact fluid filled. To get them out you have to drop the diff as the carrier the bushings are mounted in is bolted to the top of the diff housing. Jimlab says you can drop the diff without pulling the axles and then get the bolts out with a wrench.
#4
Rotary Enthusiast
Thread Starter
yeah i was pretty sure that is what was leaking. im gonna probably see if i can rig up the KRIS ghetto mod. i dont know how solid the mounts are(cant be SOLID since they are fluid filled), but as an old honda trick we used to fill in motor mounts with ultra black sealant. allow it to cure for about a day or two and you have a pretty damn hard mount. has some give, but cmon, what the price of ultra black compared to diff mounts of polyurethane?
kris
kris
#5
Rotary Enthusiast
iTrader: (1)
Join Date: May 2003
Location: Dallas
Posts: 1,464
Likes: 0
Received 0 Likes
on
0 Posts
get the aftermarket mounts. they are not fluid filled like the stock ones. its pretty common for the diff mounts to go bad. mine is leaking a bit. it can cause wheel hop if not fixed. the broken PPF is dangerous though you may want to get a used or mazda speed one.
#7
The Power of 1.3
Join Date: Aug 2001
Location: Shrewsbury, Massachusetts
Posts: 2,837
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by DamonB
I am pretty certain the rubber diff bushings are in fact fluid filled.
I am pretty certain the rubber diff bushings are in fact fluid filled.
On a techinical note, why are they fluid filled? To give more cushion? Kinda like the water bed thing, sleeping on water, suspending a diff. on water?
Trending Topics
#8
Lives on the Forum
Originally posted by 911GT2
On a techinical note, why are they fluid filled? To give more cushion? Kinda like the water bed thing, sleeping on water, suspending a diff. on water?
On a techinical note, why are they fluid filled? To give more cushion? Kinda like the water bed thing, sleeping on water, suspending a diff. on water?
#9
I think they're fluid filled to dampen the vibrations. The solid ones will transmit more of the diff gear noise.
Don't forget to change your fuel filter while you have the diff dropped. Never gets any easier to get to.....
Don't forget to change your fuel filter while you have the diff dropped. Never gets any easier to get to.....
#10
Lives on the Forum
Originally posted by TailHappy
Don't forget to change your fuel filter while you have the diff dropped. Never gets any easier to get to.....
Don't forget to change your fuel filter while you have the diff dropped. Never gets any easier to get to.....
#11
2 babies - no back seats
Join Date: Nov 2001
Location: N. Wilm., Delaware?
Posts: 981
Likes: 0
Received 0 Likes
on
0 Posts
Pettit has a nice set:
SU-PK-DMS TRAK PRO STREET DIFFERENTIAL MOUNTS
Designed for demanding street applications, our kit exactly replaces the stock liquid filled differential mounts and minimizes compliance associated with the stock parts. 80 Hardness approximates OEM part but with slightly greater hardness and superior performance and life. $159.00
SU-PK-DMS TRAK PRO STREET DIFFERENTIAL MOUNTS
Designed for demanding street applications, our kit exactly replaces the stock liquid filled differential mounts and minimizes compliance associated with the stock parts. 80 Hardness approximates OEM part but with slightly greater hardness and superior performance and life. $159.00
#12
Rotary Freak
Join Date: Oct 2002
Location: Salem, IN
Posts: 1,625
Likes: 0
Received 0 Likes
on
0 Posts
i just ordered the pettit ones monday, i'll install them later this week and let everyone know what i think. i'm also replacing the pillow ball bushing and toe links at the same time
#13
Senior Member
Originally posted by DamonB
I am pretty certain the rubber diff bushings are in fact fluid filled.
I am pretty certain the rubber diff bushings are in fact fluid filled.
FD tip #265455634564: When changing the fuel filter, change the in-tank fuel filter as well.

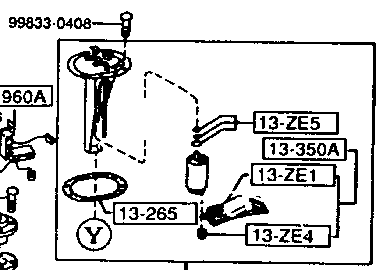

Part # JE17-13-ZE1 They're only $45 here so should be less than US$25 but they have cost more than a few people their motor. Marked as 13-ZE1 below.
-pete
