Main fuse

Reply



Old 01-13-18, 06:14 PM
  #1
Full Member
Thread Starter

Morodizal's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 51
Thanked 0 Times in 0 Posts
Main fuse

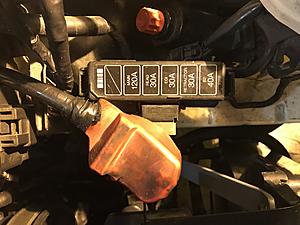

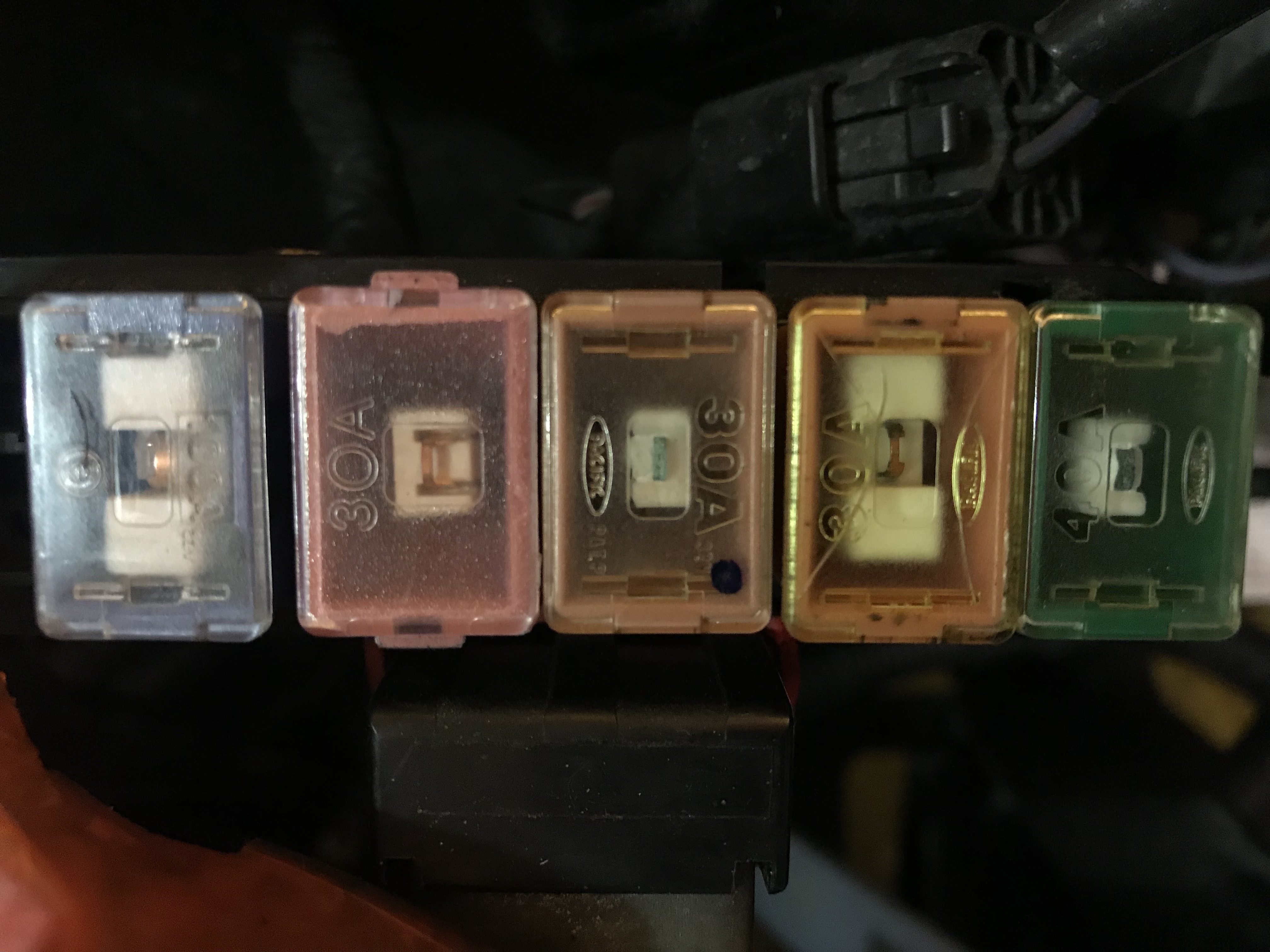

Hey guys. Just noticed my 1996 Jdm spec Fd is running a 100A main fuse instead of 120A. Have not noticed any issues, have had he car for 10 years. Can is cause any issues?
Cheers
Attached Thumbnails Main fuse-811fb0ee-85c7-4369-8a7d-03bb5c0171d6.jpeg   Main fuse-3d905401-dd23-4b02-9107-b9e51219c27b.jpeg
Morodizal is offline
Reply With Quote
Old 01-13-18, 10:04 PM
  #2
Rotary Enthusiast
iTrader: (1)

Gen2n3's Avatar

Join Date: Jun 2004
Location: Virginia Beach, VA
Posts: 931
Thanked 47 Times in 43 Posts
Morodizal,

You are fine. Running a lower rated fuse will not cause any issues. That means the threshold to blow the fuse is 20A lower than stock. If the fuse does blow, you could either replace it with another 100A fuse or return to the originally rated 120A fuse.

Sound electrical advice: NEVER install a fuse rated higher than the original rated circuit. For example, do NOT install a 40A fuse in a circuit rated for 30A.

Cheers,
George
Gen2n3 is offline
Reply With Quote
The Following User Says Thank You to Gen2n3 For This Useful Post:
Morodizal (01-14-18)
Old 01-14-18, 10:37 AM
  #3
RX-7 Bad Ass
iTrader: (48)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 10,220
Thanked 102 Times in 85 Posts
That looks like an aftermarket fuse - some previous owner popped it and couldn't find a 120. May be worth getting the right size (those fuses are cheap) but it won't cause anything weird.

Dale
DaleClark is offline
Reply With Quote
Old 01-14-18, 01:23 PM
  #4
Full Member
Thread Starter

Morodizal's Avatar

Join Date: Sep 2007
Location: New Zealand
Posts: 51
Thanked 0 Times in 0 Posts
Originally Posted by DaleClark View Post
That looks like an aftermarket fuse - some previous owner popped it and couldn't find a 120. May be worth getting the right size (those fuses are cheap) but it won't cause anything weird.

Dale
Cheers Guys, Fuse is on the way.
Morodizal is offline
Reply With Quote
