L.E.D. Brake lights

Old 11-17-06, 03:30 AM
  #1
Junior Member
10 Year Member
Thread Starter

Join Date: Nov 2002
Location: San Diego
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
L.E.D. Brake lights

I needed a more reliable brake light because of the tail lght cover im using. So what do you think?

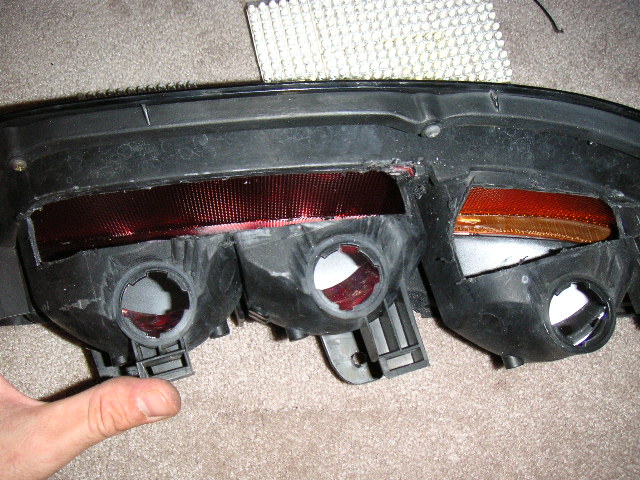

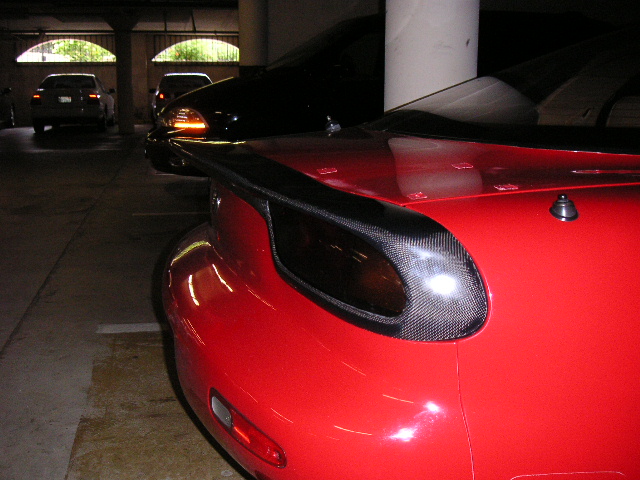

Attached Thumbnails L.E.D. Brake lights-4-006.jpg   L.E.D. Brake lights-4-063.jpg   L.E.D. Brake lights-4-049.jpg   L.E.D. Brake lights-4-068.jpg   L.E.D. Brake lights-coronado-speed-fest-063.jpg

Aldo is offline
Old 11-17-06, 03:40 AM
  #2
Rotary for life!

rexhvn's Avatar

Join Date: Oct 2005
Location: Somewhere...
Posts: 1,125
Thanked 1 Time in 1 Post
I like!!! I like!!! But it pokes out to much!!! Very nice though!
rexhvn is offline
Old 11-17-06, 04:06 AM
  #3
Junior Member
10 Year Member
Thread Starter

Join Date: Nov 2002
Location: San Diego
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks Man.

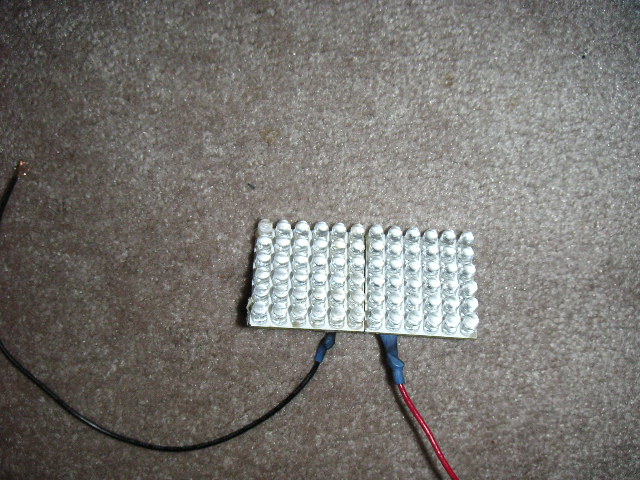

Its not a cheap alternative. It will set you back about 180 bucks in led panels.

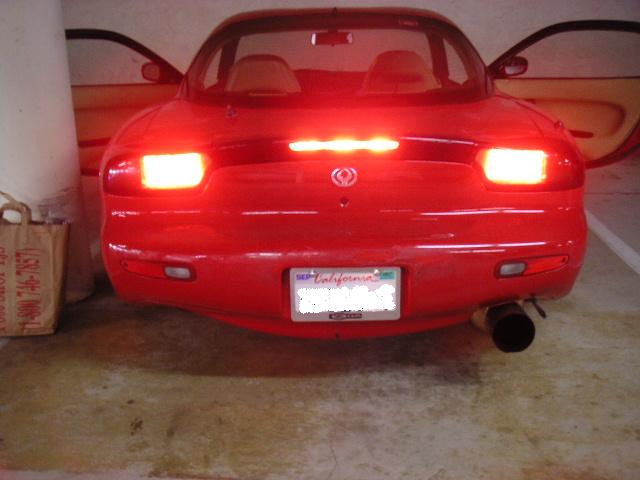

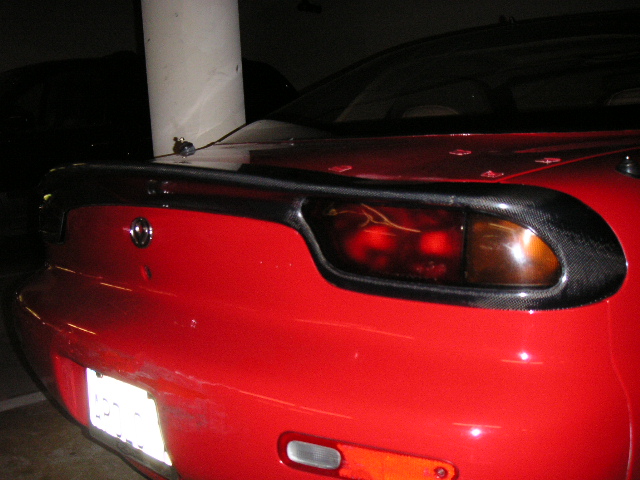

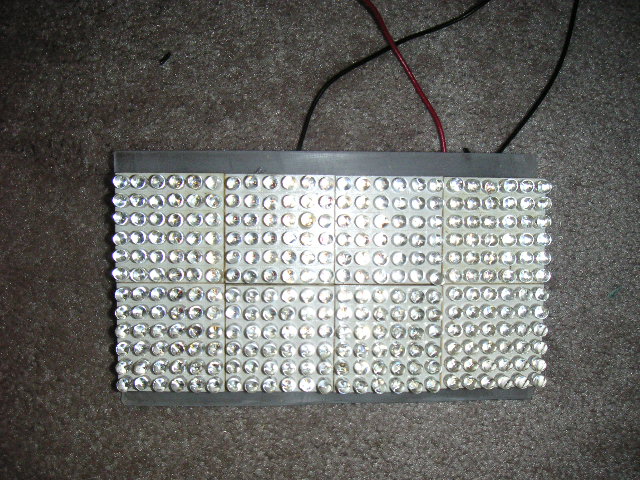

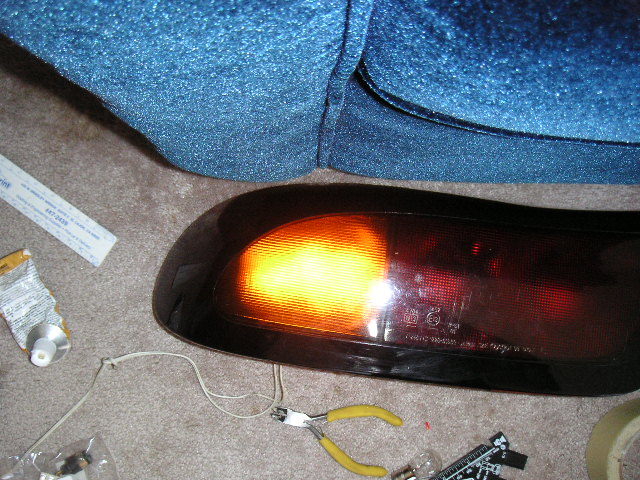

Attached Thumbnails L.E.D. Brake lights-rx7-rear.jpg   L.E.D. Brake lights-0-005.jpg   L.E.D. Brake lights-4-045.jpg   L.E.D. Brake lights-coronado-speed-fest-066.jpg   L.E.D. Brake lights-4-038.jpg

Aldo is offline
Old 11-17-06, 04:22 AM
  #4
Rotary for life!

rexhvn's Avatar

Join Date: Oct 2005
Location: Somewhere...
Posts: 1,125
Thanked 1 Time in 1 Post
Its worth it! Now I see the picture... it seems fine!!! I like it lots lol... well done.
rexhvn is offline
Old 11-17-06, 04:36 AM
  #5
Yes it's twin turbo...
5 Year Member
iTrader: (4)

*RX007*'s Avatar

Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Thanks: 0
Thanked 0 Times in 0 Posts
do they make those panels in circles? that would look awsome, great job btw!
*RX007* is offline
Old 11-17-06, 06:04 AM
  #6
proper motoring
10 Year Member

Join Date: Jan 2004
Location: USA
Posts: 1,708
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by *RX007*
do they make those panels in circles? that would look awsome, great job btw!
you could always use square panels and paint the inner lense (like '99 spec upgrade that lots of people do) to make them appear circular.
pugg57 is offline
Old 11-17-06, 09:10 AM
  #7
Senior Member
10 Year Member
iTrader: (10)

93vrfd_houston's Avatar

Join Date: Apr 2006
Location: houston, tx
Posts: 534
Thanks: 0
Thanked 0 Times in 0 Posts
looks pretty good, did you buy that rear spoiler from ken at shine auto? how much did the carbon version set you back? also how easy was it to pop on?
93vrfd_houston is offline
Old 11-17-06, 10:53 AM
  #8
Junior Member
10 Year Member
Thread Starter

Join Date: Nov 2002
Location: San Diego
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 93vrfd_houston
looks pretty good, did you buy that rear spoiler from ken at shine auto? how much did the carbon version set you back? also how easy was it to pop on?
Yes it is the shine auto sports tail light cover. Its not fully installed yet, im waiting to paint the car. Once its put on its going to be a bitch to take it off, because of the double sided tape required to hold it on.


RX 007 I remember seeing three inch round led assemblys online some where. They should be easy to find.
Aldo is offline
Old 11-17-06, 11:37 AM
  #9
Senior Member
5 Year Member

Join Date: Nov 2005
Location: ny
Posts: 269
Thanks: 0
Thanked 0 Times in 0 Posts
looks very clean, i think it is worth the money.
ultmtrx8 is offline
Old 11-17-06, 04:32 PM
  #10
Junior Member
10 Year Member
Thread Starter

Join Date: Nov 2002
Location: San Diego
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Heres the link to buy the lights.

http://www.superbrightleds.com/cgi-b...?product=OTHER


93Vrfd_Huston: I think Shine Auto is selling the tail light cover for $500.00. I paid 575 because of sales tax. Its very hard to get on and off. Its very well made. My only complaint which is not Shines fault is getting to spoiler on usally involves scratching the brake lenses up if you dont use percausions. Just put some tape on the leading edges as you instal and you will be fine.
Aldo is offline
Old 11-17-06, 04:44 PM
  #11
Not the company

RE-Amemiya's Avatar

Join Date: Jul 2004
Location: UT
Posts: 5,019
Thanked 4 Times in 4 Posts
Looks pretty good!
RE-Amemiya is offline
Old 11-17-06, 04:45 PM
  #12
Junior Member
10 Year Member
Thread Starter

Join Date: Nov 2002
Location: San Diego
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts

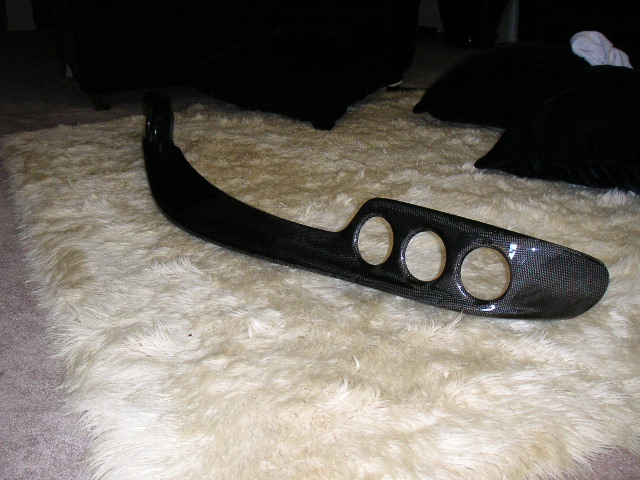

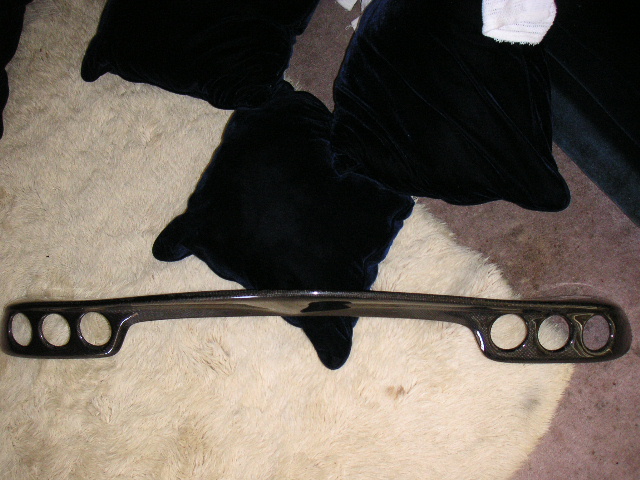

If anyones intrested im selling this tail light cover for $270 shipped. I never instaled it. I just like the shine one better.
Attached Thumbnails L.E.D. Brake lights-sns-2006-068.jpg   L.E.D. Brake lights-sns-2006-063.jpg   L.E.D. Brake lights-sns-2006-065.jpg
Aldo is offline
Old 11-17-06, 07:14 PM
  #13
Senior Member
iTrader: (6)

jojodotcom's Avatar

Join Date: Jan 2005
Location: Vancouver
Posts: 384
Thanked 0 Times in 0 Posts
Looks good~ But I would prefer LED with clear cover, so you could actually see the individual LEDs. And maybe in circular pattern so it appears like the 99-spec taillight~
jojodotcom is offline
Old 11-17-06, 08:25 PM
  #14
Wankel Kid
5 Year Member

RaPtOr-T's Avatar

Join Date: Jul 2005
Location: Charlotte, NC
Posts: 556
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by jojodotcom
Looks good~ But I would prefer LED with clear cover, so you could actually see the individual LEDs. And maybe in circular pattern so it appears like the 99-spec taillight~
Sounds good in theory but when a few LEDs fail it will look terrible.
RaPtOr-T is offline
Old 11-17-06, 08:30 PM
  #15
Yes it's twin turbo...
5 Year Member
iTrader: (4)

*RX007*'s Avatar

Join Date: Jun 2005
Location: Vacaville, California
Posts: 1,487
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by pugg57
you could always use square panels and paint the inner lense (like '99 spec upgrade that lots of people do) to make them appear circular.
did even think of that! great idea!
*RX007* is offline
Old 11-17-06, 09:34 PM
  #16
In the Garage
5 Year Member
iTrader: (2)

oo7arkman's Avatar

Join Date: Mar 2006
Location: Central FL
Posts: 1,406
Thanks: 0
Thanked 0 Times in 0 Posts
That turned out really good. Did you use 8 of those panel per side? I know LED's don't pull much power but did you just wire them together and then into the power from the car?
oo7arkman is offline
Old 11-18-06, 12:50 AM
  #17
Junior Member
10 Year Member
Thread Starter

Join Date: Nov 2002
Location: San Diego
Posts: 33
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by oo7arkman
That turned out really good. Did you use 8 of those panel per side? I know LED's don't pull much power but did you just wire them together and then into the power from the car?

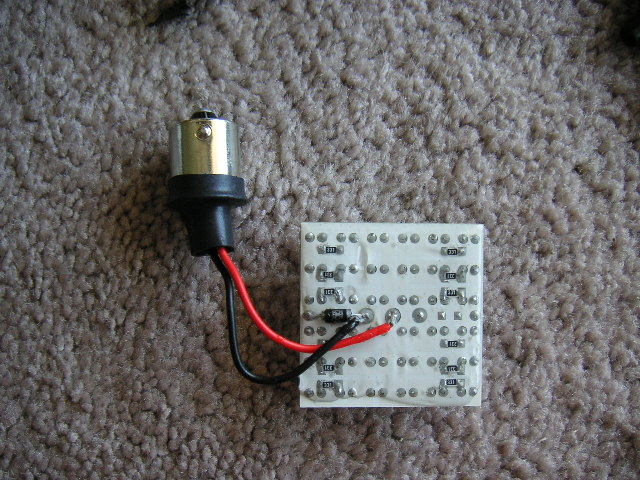

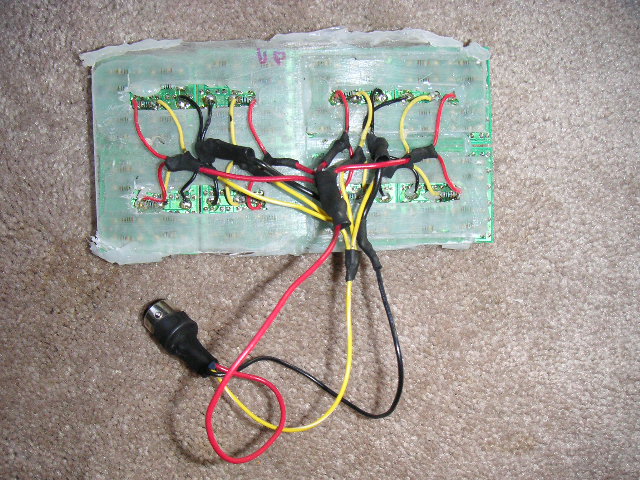

Yes, I used eight panels for the each brake light and two for the blinker. Each brake LED assembly has three wires coming off of it. Black is ground, yellow is running lights, and the red is for the brake light. Connect all of the yellow, red, and black wires together then solder it to the appropriate wire on one of the connectors you cut off of the panels. Then plug the conector from the panels to the factory rx7 socket, then simply replace the rx7 socket into the brake light assembly.

I found that the only glue that will hold the panels to the plexi glass is silicon glue. Similar to the stuff they seal fish tanks with.
Attached Thumbnails L.E.D. Brake lights-coronado-speed-fest-087.jpg   L.E.D. Brake lights-sns-2006-059.jpg
Aldo is offline
