f2racer

iTrader: (1)

Hey guys, just got my FIs back from RCEngineering. From the looks of their Injector Balance / Calibration Report, the FIs weren't in too bad shape before I sent them in considering they've got 104k miles on them. In any case, everything came back as I had expected. They injectors came back with new O-Rings (green on the top and black on the bottom), but also included in the box was a small baggy with what looks like another set of O-Rings. Are these the originals? Or were they being extra nice and including another set?

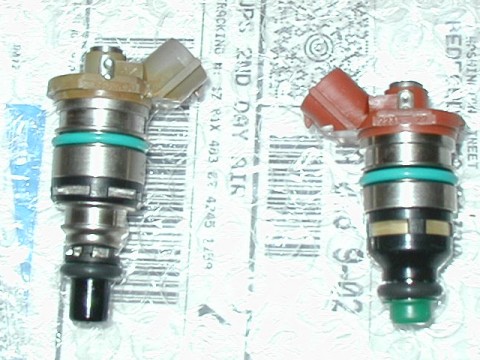

BTW, while I'm at it. It's been about 3 weeks since I took the injectors out of the car. Can someone tell me which are the primary and which are the secondary? Pic is below...

Thanks!

GoRacer

iTrader: (2)

They sent you back the originals. keep them for emergency spares if they look good. Don't F'up on them like I did! I went by the sheet they gave me and it was wrong. Do "NOT" mix them up!!! The 550's are beige and longer. The 850's are maroon (reddish/brown) and are short. Primary rail is on the block - use beige injectors. Secondary rail is on the intake manifold - use brown injectors. If you mix them up like I did, you will break the screens and Mazda does not sell replacements. I was lucky and the tech saved some and gave them to me. I sprayed the inside of the rail with wd-40 to slip them in and I put a few drops of oil on the o-rings and they dropped right in. Well, except for the 550's that I broke ...damnit

maxcooper

Yup, what he said. ^^^

BigIslandSevens

iTrader: (4)

Actually they do sell replacements. But do be carefull anywyas. The part #'s for the screens are as follows for those that might be needing them.
Air Bleed part #'s
Primary injector: 13-C610-N3A2

Secondary Injector: 13-C600-N3A1

GoRacer

iTrader: (2)

Are these the screens at the thin tip (injector end) that slide up and down? Not the stationary ones on the fat part towards the plug end, correct?

BigIslandSevens

iTrader: (4)

Those are the plastic air bleed screens that go inside the block and the intake manifold. Here is a link to mazdatrix and a picture towards the bottom of the part. I think we are talking about the same parts.

http://mazdatrix.com/c-6.htm

GoRacer

iTrader: (2)

^ nope, those relate to the primary rail "inside the block". What I broke was the screen filter just below the o-ring that is just below the pintle cap, on th injector iteself. Only the o-rings are listed in the parts fische.

I am debating buying new Power Enterprise 660's instead of using 850 in the primary rail though. I'm not sure how reliable a modified primary rail is and I don't want to go aftermarket. I don't want them leaking! I won't be over 400hp on twins anyhow.
