ignition timing advice
#1
imitek
Thread Starter
ignition timing advice
Hey im booked into dyno wensday to finnish tuning i hope
Just after some advice on timing
Running motec m2r
Crip set to 15

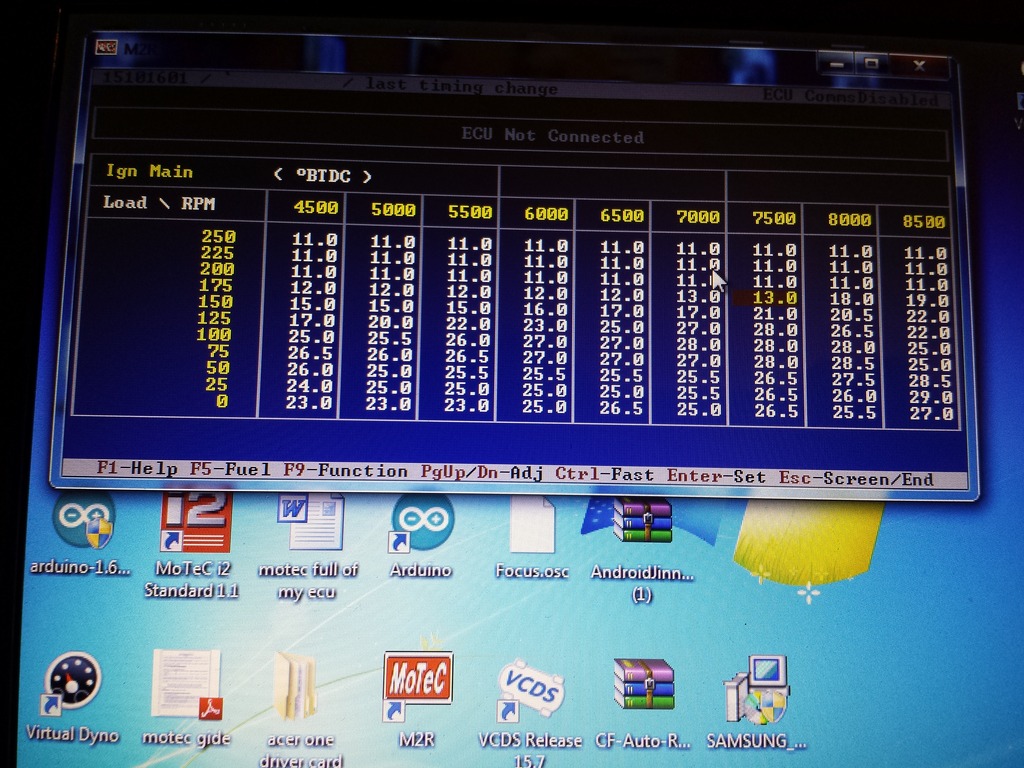

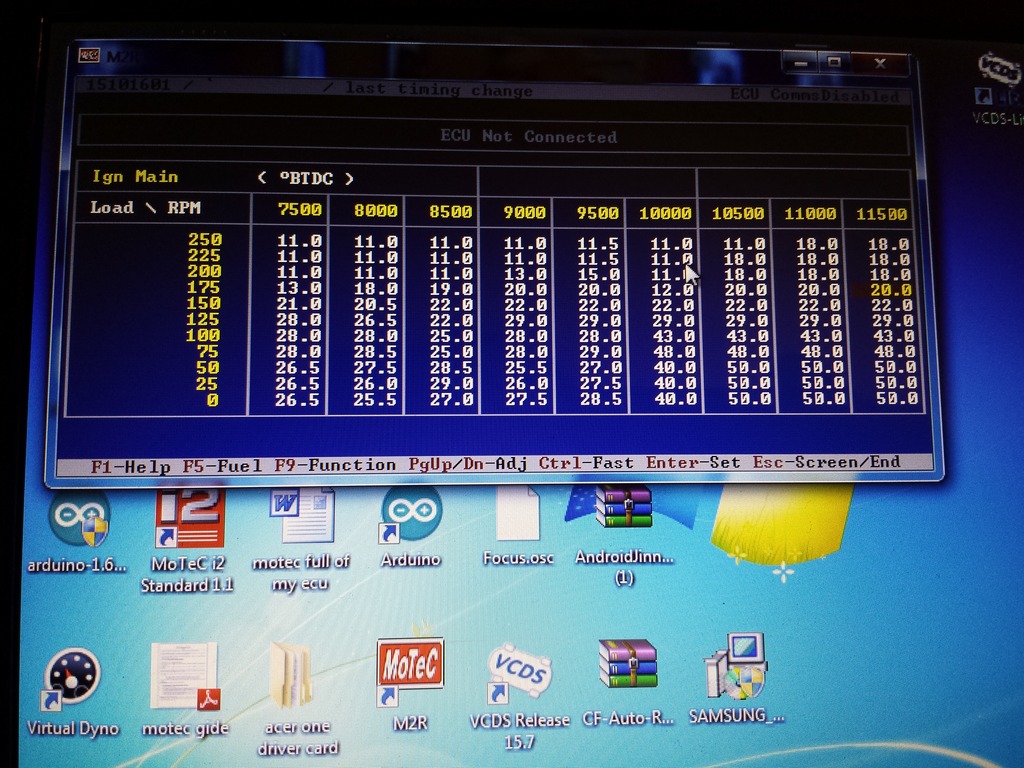

Ive taken screen shots so bit easyer
If im way off please let me no as it is im not getting any knock but only tuned to 6k rpm at 1.3bar
Just after some advice on timing
Running motec m2r
Crip set to 15
Ive taken screen shots so bit easyer
If im way off please let me no as it is im not getting any knock but only tuned to 6k rpm at 1.3bar
Last edited by imitek; 10-16-15 at 02:39 PM.
#5
~17 MPG
iTrader: (2)
The guys at HP Academy have a very nice webinar video specifically about tuning rotary ignition timing using FD3S on a dyno. Their site isn't free, you would need to sign up to be able to view the video. They demonstrate how to dial in timing at part throttle and full throttle, as well as the effects of leading vs trailing timing. The video shows live screen captures of their ECU software as well as the dyno charts, it's pretty nice.
https://www.hpacademy.com/previous-w...link-g4-vipec/
https://www.hpacademy.com/previous-w...link-g4-vipec/
#7
rotorhead
iTrader: (3)
Timing is pretty low in vacuum cruising areas. Your 50kpa and lower rows could easily have another 10 degrees. I don't know what your fuel octane is (or what turbo you have) but if it's good enough your higher boost area (200+ kpa) should be able to handle more timing than that at higher rpm, but only a dyno will be able to tell you if it's beneficial.
Trending Topics
#8
imitek
Thread Starter
#9
rotorhead
iTrader: (3)
Those don't look like Mazda coils. are the dwell tables appropriate for the coils? How is it set to control spark? Is it wasted spark on the leading and individual control on the trailing, like stock? Or something else? You can burn up the coil by charging it too much with incorrect dwell.
Last edited by arghx; 10-21-15 at 09:26 AM.
#10
imitek
Thread Starter
Those don't look like Mazda coils. are the dwell tables appropriate for the coils? How is it set to control spark? Is it wasted spark on the leading and individual control on the trailing, like stock? Or something else? You can burn up the coil by charging it too much with incorrect dwell.
Also set in single fire mode
Only 1 coil is dead other 3 are fine
#12
imitek
Thread Starter
yea m8 this is the whole file if you see anything wrong that you can help with would be appreciated
https://www.dropbox.com/s/vgk2mbzqvb...91302.T62?dl=0
its motec u can use m4 software
the timing has changed from the above pics im up and running again
https://www.dropbox.com/s/vgk2mbzqvb...91302.T62?dl=0
its motec u can use m4 software
the timing has changed from the above pics im up and running again
#13
imitek
Thread Starter

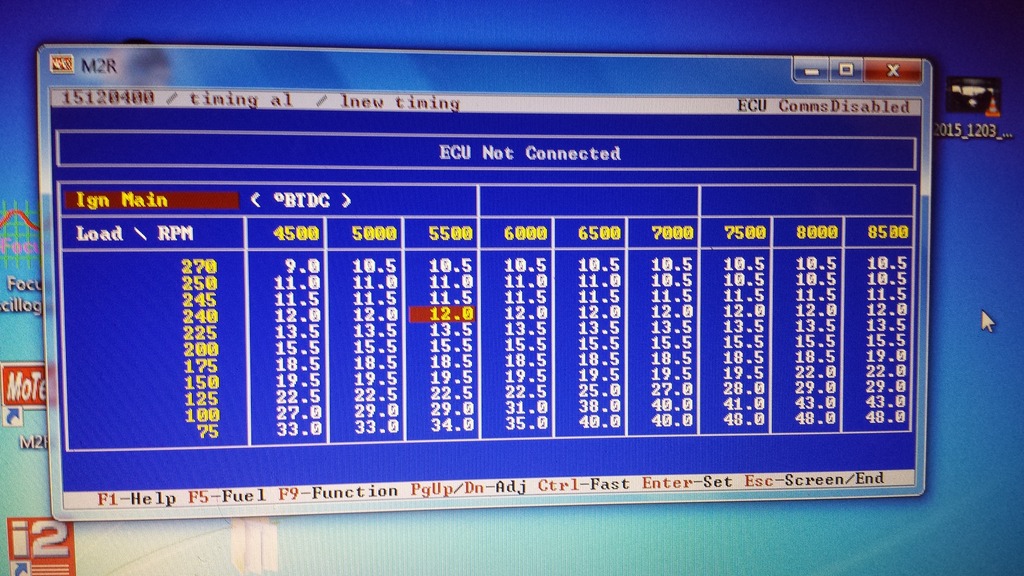

So i have alterd my timing seems to drive much better no knock
Any advice on it is it to advanced ?
Im hitting 1.5bar on t70 turbonetics
Injector duty is at 53% lol 4x 2200cc shell vpower
(No meth or water injection )
Havent yet got a chance to go back on dyno yet
I was expecting bit more beans from it might just be me
Thanks
Any advice on it is it to advanced ?
Im hitting 1.5bar on t70 turbonetics
Injector duty is at 53% lol 4x 2200cc shell vpower
(No meth or water injection )
Havent yet got a chance to go back on dyno yet
I was expecting bit more beans from it might just be me
Thanks
#15
imitek
Thread Starter
#17
imitek
Thread Starter
This was my plan i wanted it little closer just wanted to be sure i was not to advanced was all thats my main load point between 5k and 8k
#18
imitek
Thread Starter
