How do you install the primary injector?

Old 07-19-17, 02:35 PM
  #1
Rotary Enthusiast
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts
How do you install the primary injector?

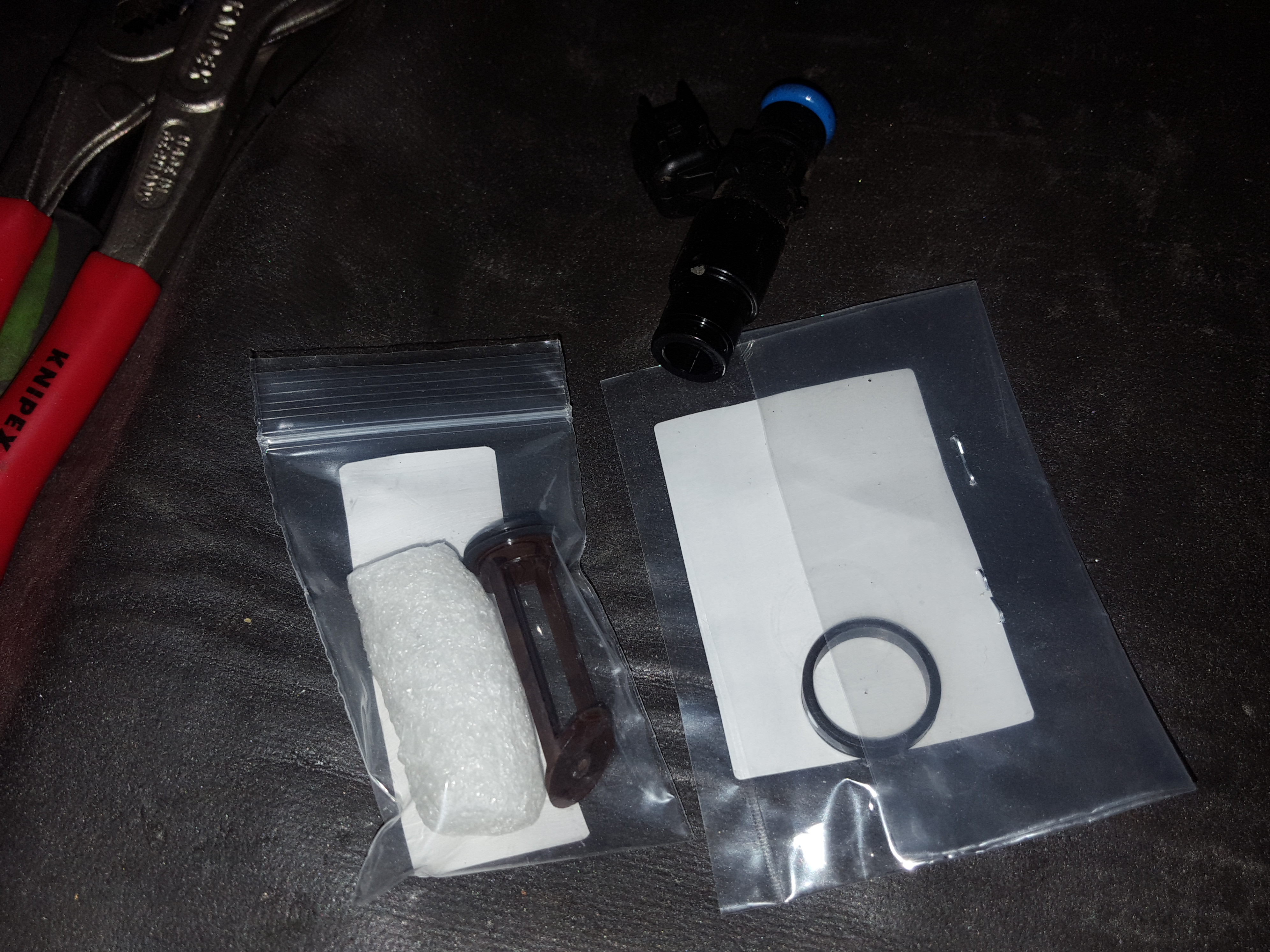

basic question.. I always installed my primary injectors with combination of o-rings that sealed fine, and I recently learned about the stock plastic piece with mesh that needs to be underneath the primary injectors. How do I install these parts in correct orientation and sequence? The block is 20b D-series which atkins rotary told me should use the FD style injector parts as seen.The primary injector holes are bare metal holes without any plastic or rubber sleeve. Thanks in advance.
Attached Thumbnails How do you install the primary injector?-20170719_122446.jpg
stickmantijuana is offline
Old 07-19-17, 10:05 PM
  #2
Rotary Enthusiast
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts
I thought this would've been a very easy question

over 200 views, and no reply.....

found out those things are called the fuel injector diffusers. Do you guys even use them with rebuilt engine? or just skip them like I did from the beginning?

I was hoping this would help with low rpm cruise.
stickmantijuana is offline
Old 07-19-17, 11:02 PM
  #3
Senior Member
iTrader: (1)

armans's Avatar

Join Date: Oct 2014
Location: America's finest city
Posts: 355
Received 6 Likes on 6 Posts
Originally Posted by stickmantijuana View Post
I thought this would've been a very easy question

over 200 views, and no reply.....

found out those things are called the fuel injector diffusers. Do you guys even use them with rebuilt engine? or just skip them like I did from the beginning?

I was hoping this would help with low rpm cruise.
Diffuser first, then rubber grommet (aka insulator).
I think the outer face of the diffuser faces the center of the engine (if I can say so) so it can provide a more uniform fuel mist into the combustion chamber.
armans is offline
The following users liked this post:
stickmantijuana (07-25-17)
Old 07-20-17, 08:41 AM
  #4
RX-7 Bad Ass
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,389
Received 308 Likes on 262 Posts
The diffuser is keyed so it will only go in the right way. The rubber seal goes around the end of the injector and basically seals it to the block so you don't have an air leak there.

Dale
DaleClark is offline
The following users liked this post:
stickmantijuana (07-25-17)
Old 07-20-17, 10:26 AM
  #5
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,640
Received 56 Likes on 54 Posts
When all else fails...



page F-106
Attached Thumbnails How do you install the primary injector?-primary_injector.png
arghx is offline
The following users liked this post:
stickmantijuana (07-25-17)
Old 07-20-17, 10:34 AM
  #6
Boilermakers!
iTrader: (114)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,439
Received 31 Likes on 28 Posts
You only need them for OEM injector and rail, as mentioned above the diffuser is keyed so it only goes in one way, then the rubber O-ring goes on the rail, it kind of sit between the rail and the block to fill that gap.

I see an EV14 in your picture, if you are running after market rail with EV14 then you don't need any of that.
ZE Power MX6 is offline
The following users liked this post:
stickmantijuana (07-25-17)
Old 07-22-17, 06:57 PM
  #7
Full Member

Join Date: Jun 2013
Location: LONDON
Posts: 243
Likes: 0
Received 1 Like on 1 Post
And don't skip the diffuser on a stock fuel setup, you'll flood the engine and wonder why it's happening.
OG BBF is offline
Old 07-24-17, 10:53 AM
  #8
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
Grommet is not used with top feed injectors. You need to install injector spacers. I do use the diffusers.


Banzai-Racing is online now
The following users liked this post:
stickmantijuana (07-25-17)
Old 07-24-17, 10:37 PM
  #9
Rotary Enthusiast
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts
man that's it. It just wouldn't fit with any combination of rubber stuff I have. thanks man. pm'd!
stickmantijuana is offline
Old 07-25-17, 09:00 AM
  #10
Rotary Enthusiast
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts

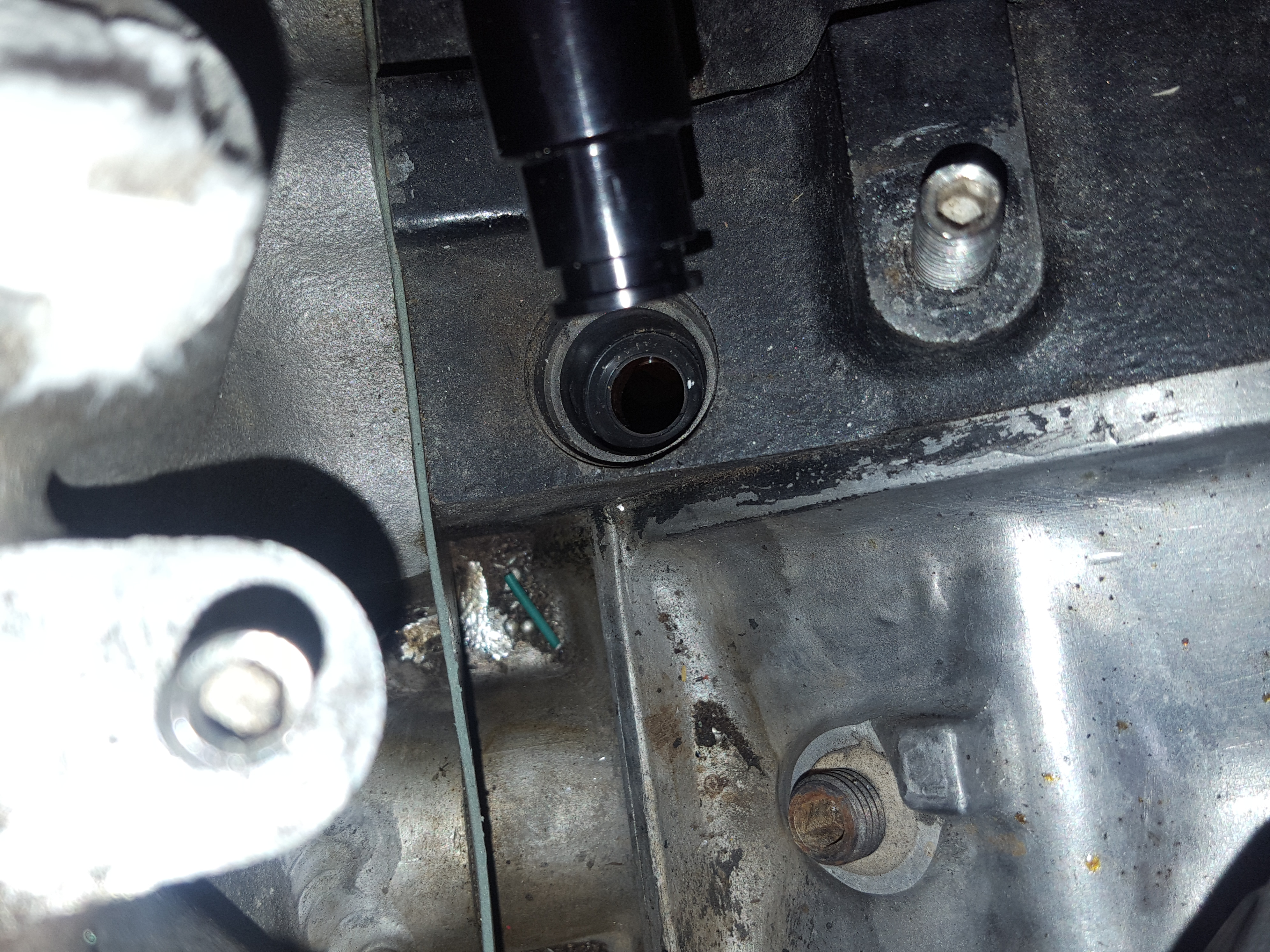

Ok. does your spacer go between the two as shown here?
Attached Thumbnails How do you install the primary injector?-20170725_062516.jpg
stickmantijuana is offline
Old 07-25-17, 09:04 AM
  #11
Rotary Enthusiast
Thread Starter
iTrader: (1)

Join Date: Dec 2006
Location: east
Posts: 927
Received 5 Likes on 4 Posts

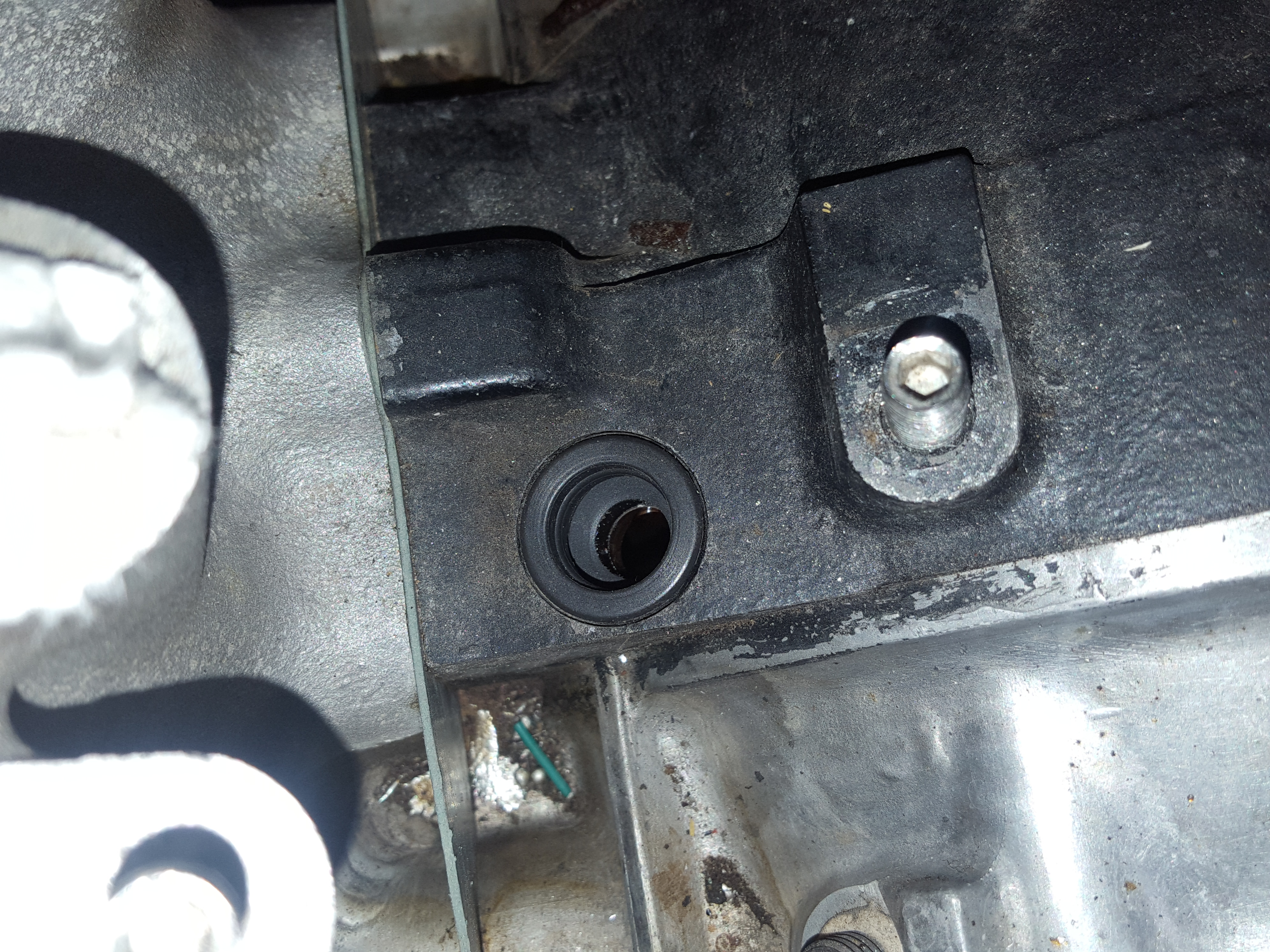

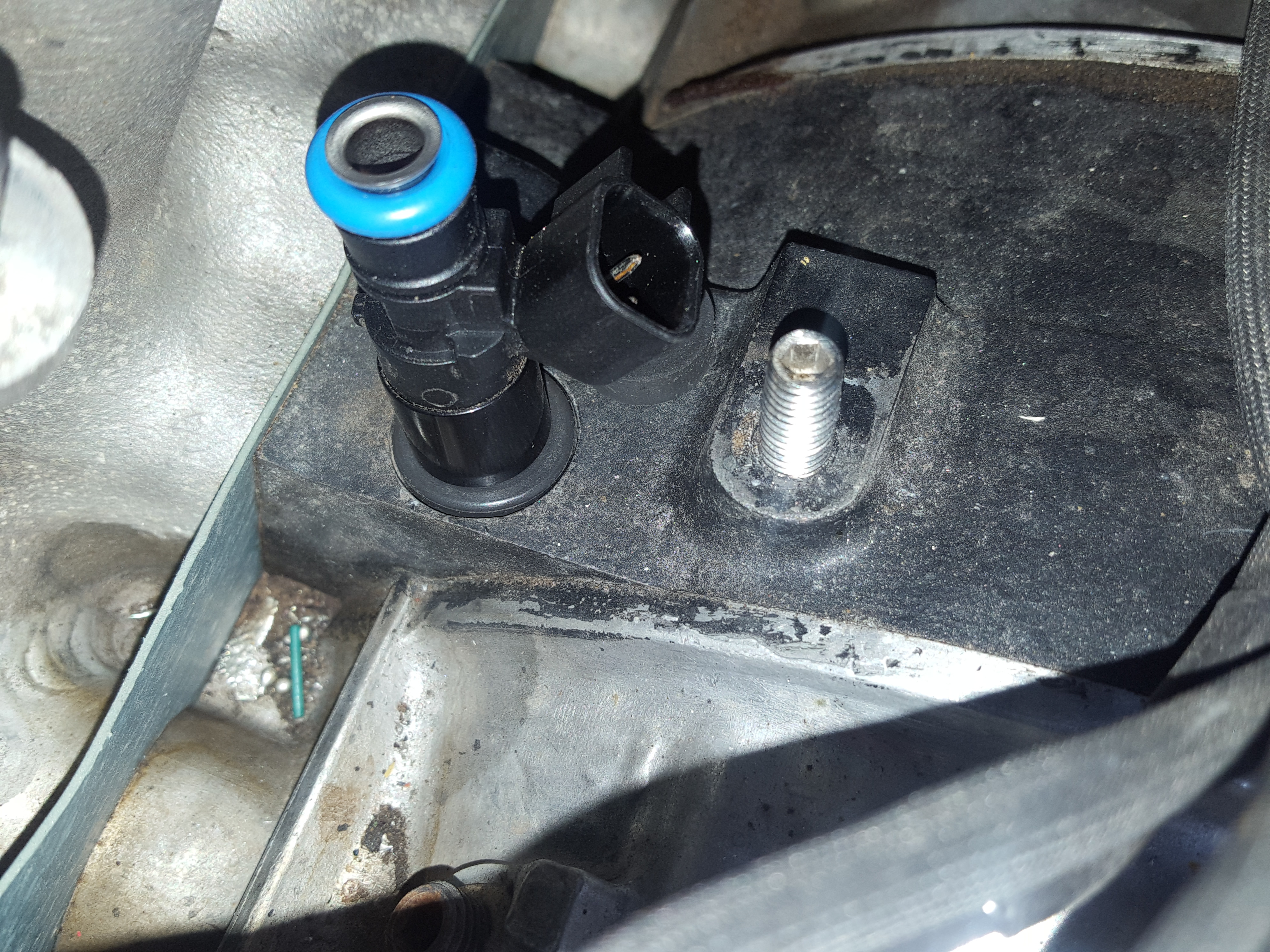

because if I do this, it blocks that tiny air port on the side of the injector hole in the iron. and it doesn't keep the injector perfectly straight and centered.. there's really nothing to keep the end of the injector centered in the injector hole in the iron.. is there a thick o-ring that goes where the groove is at the bottom hat of the injector?

sorry... just never seen how it's supposed to look. I never used the diffuser before. thank you.

on the upside, the diffuser fit like a glove. thanks everyone!
Attached Thumbnails How do you install the primary injector?-20170725_063745.jpg   How do you install the primary injector?-20170725_063642.jpg
stickmantijuana is offline
Old 07-25-17, 09:35 AM
  #12
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,620
Received 84 Likes on 68 Posts
You have some sort of spacer, looks like you need an o-ring on it to seal properly. There appears to be a groove for one.
Banzai-Racing is online now
Old 07-26-17, 10:39 AM
  #13
endless build
iTrader: (11)

7krayziboi's Avatar

Join Date: Nov 2013
Location: Canada , Alberta
Posts: 1,056
Received 15 Likes on 15 Posts
What about ID 1000 in primary,
Better with or without diffuser ?
7krayziboi is offline
Old 07-27-17, 11:55 AM
  #14
Boilermakers!
iTrader: (114)

ZE Power MX6's Avatar

Join Date: Nov 2002
Location: Chicago, IL
Posts: 2,439
Received 31 Likes on 28 Posts
You only need diffuser for stock injector.
ZE Power MX6 is offline
Old 07-30-17, 07:12 AM
  #15
Full Member
iTrader: (3)

onewhippedpuppy's Avatar

Join Date: Oct 2015
Location: Wichita, KS
Posts: 80
Likes: 0
Received 2 Likes on 2 Posts
With a stock injector, the spacer fits perfectly around the end of the injector. It's pretty obvious where they should be when you're in there. With aftermarket stuff, all bets are off.
onewhippedpuppy is offline
