jjoshj

I have searched, even looked at a service manual but anyway I have been putting my new motor in, and can't for the life of me figure out where this hose goes? It is part of the three lines that snake under the UIM. I can't see anywhere where it connects to and it's been a while since I have touched the car. Someone help, only thing holding me up right now.
Comes up by the TB, and it's not one of the cooler hoses for the TB either, they are taken care of.

Cheers.

tafkamb2

A picture slightly further back would be helpful. But its either a fuel line or part of the thermowax from what I can tell.

jjoshj

How many hoses should connect to TB? 2 or 3? There is a potential pipe at bottom of TB that may have been blocked off it could have come from, rendering this hose just blank? I'll get a pic from further back.

jjoshj

Sephek

iTrader: (20)

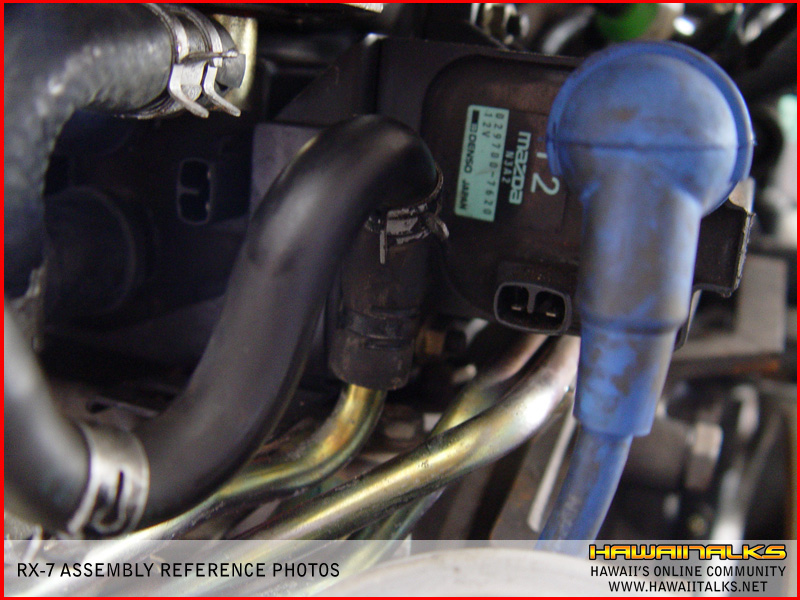

It looks like right above the coilpack. Maybe this can help?



source (warning over 200 assembly images)

jjoshj

^^ It looks like the hose I need to know about goes out of the picture and that one above coil packs is another hose. I'll have a look though your source!

Mahjik

iTrader: (1)

Your hose looks like it's coming from the fuel system. If so, it's part of the evaporative system and routes to a catch tank which mounts under the throttle body.

XLR8

iTrader: (52)

^+1

jjoshj

Yep that would be right, pretty sure it was never connected to anything in my case from when I pulled motor.

Cheers, I can now continue.
