help with installing short shifter

Thread Tools

Search this Thread

Old 09-18-02, 08:59 PM
  #1
MIA

Thread Starter

Crashunit's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
help with installing short shifter

ok Ive taken off the center console, unbolted the cover and even took out the bolts for the short shifter. Now I know its suppose to yank right out, but I think when I redid my tranmission, they got a little too happy with the sealent. Ive yanked at it for the past hour and its not moving at all. Even tried banging it... any ideas?

Old 09-18-02, 09:02 PM
  #2
canadian monster

iTrader: (2)

puma's Avatar

Join Date: Mar 2001
Location: Trois-Rivières, Qc, Can
Posts: 2,083
Likes: 0
Received 0 Likes on 0 Posts
start by removing the shifter, maybe you'll be able to see what is stuck.

remove the 3 bolts on it.

i suppose you bought a b&m if you try to remove that part.
Old 09-18-02, 09:05 PM
  #3
Hamado things my way!


P'cola FD's Avatar

Join Date: Oct 2001
Location: Pensacola, Florida
Posts: 1,245
Likes: 0
Received 0 Likes on 0 Posts
You could try tapping a 90 degree flat prybar under it, and lightly prying it up. Or putting a big screwdriver to it, at an angle, and using a hammer on the screwdriver, knocking it loose.
Old 09-18-02, 09:12 PM
  #4
MIA

Thread Starter

Crashunit's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by puma
start by removing the shifter, maybe you'll be able to see what is stuck.

remove the 3 bolts on it.

i suppose you bought a b&m if you try to remove that part.
Thanks, that worked. BTW anyone know what type of transmission oil we use again?
Old 09-18-02, 09:12 PM
  #5
Senior Member


legendr35's Avatar

Join Date: Nov 2001
Location: so. cal.
Posts: 588
Likes: 0
Received 0 Likes on 0 Posts
don't Yank it by pulling on it. what you need to do is push the stock shifter towards one side, this will force it to slide loose.
Old 09-18-02, 09:17 PM
  #6
Hamado things my way!


P'cola FD's Avatar

Join Date: Oct 2001
Location: Pensacola, Florida
Posts: 1,245
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by Crashunit


Thanks, that worked. BTW anyone know what type of transmission oil we use again?
75w90
Old 09-18-02, 09:29 PM
  #7
canadian monster

iTrader: (2)

puma's Avatar

Join Date: Mar 2001
Location: Trois-Rivières, Qc, Can
Posts: 2,083
Likes: 0
Received 0 Likes on 0 Posts
i suppose it just wasn't coming out because the plastic thing on the shifter wasn't coming out straight with the shifter still in, is it?
Old 09-18-02, 10:28 PM
  #8
I'm a CF and poop smith


skunks's Avatar

Join Date: Aug 2001
Location: Hawaii
Posts: 3,958
Likes: 0
Received 1 Like on 1 Post

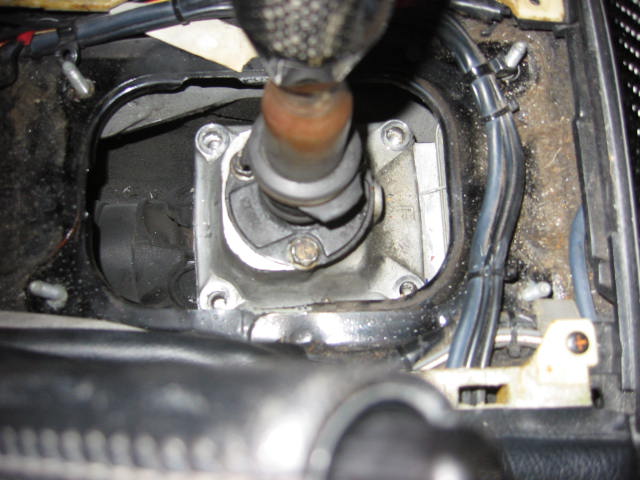

are you sure you took out all the bolts? from that pic, it looks like u still have a couple in there
Old 09-18-02, 10:30 PM
  #9
1JZ powered


jspecracer7's Avatar

Join Date: Jul 2001
Location: Where there's only two seasons, hot and wet! I love Okinawa
Posts: 4,423
Likes: 0
Received 0 Likes on 0 Posts
Originally posted by skunks
are you sure you took out all the bolts? from that pic, it looks like u still have a couple in there
He's got it right. Those were the 4 bolts I took out to install my B&M ss.
Old 09-18-02, 11:29 PM
  #10
MIA

Thread Starter

Crashunit's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
Yeah Im done installing the B&M shifter and added alittle more transmission oil too Shifts perfectly and doesnt grind or shake anymore. Took it out for a test drive and smoked a Supra TT along the way . I love it, much better precise, and quicker shifting.

It was just stuck cause it was glued in pretty tight and taking off the top three bolts help me get more leverage to yank it out with a mini crow bar.
Old 09-19-02, 12:07 AM
  #11
MIA

Thread Starter

Crashunit's Avatar

Join Date: Aug 2001
Location: Los Angeles
Posts: 342
Likes: 0
Received 0 Likes on 0 Posts
I just got a few replies of people asking for pics of it installed, so i just went to tear down my dash again to take some pics for all of you .

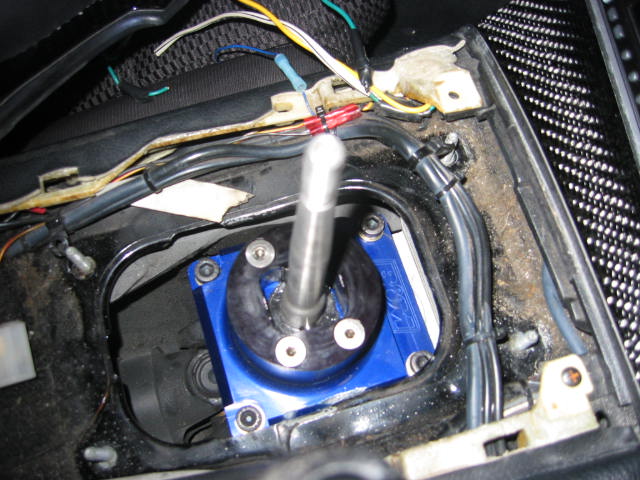

Here is what the B&M shifter should look like once you bolt it in, and take out the stock shifter.



Much cleaner and nicer looking

BTW you can get a good deal thru my sponser in my sig as well.

Last edited by Crashunit; 09-19-02 at 12:30 AM.
