Help with a connector please

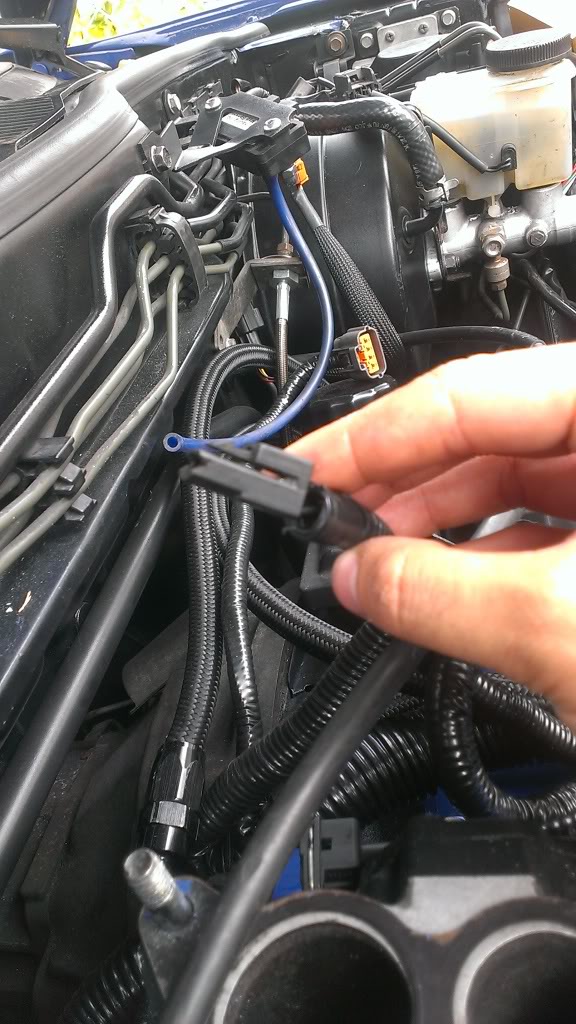

I'm Trying To Figure Out Where This Connector Goes And What Its For.
The Wire For It Is Black With Red Dots. THanks For The Help In Advance.
The Wire For It Is Black With Red Dots. THanks For The Help In Advance.
11-02-13, 01:30 PM
#2
That's in the engine harness, right? There are only two connectors like that in that harness. One is for the water temp sensor, which is located near the knock sensor on the side of the block. Other is the coolant level sensor wire where it passes between the engine and power harness, it connects to the power harness over by the purge solenoid.
HTH
EDIT: Have you changed the hose to your brake booster? If so, make sure its not a strait through pipe or you'll get issues. They have some kind of restrictor valve in them
HTH
EDIT: Have you changed the hose to your brake booster? If so, make sure its not a strait through pipe or you'll get issues. They have some kind of restrictor valve in them
11-02-13, 02:11 PM
#3
Rotary Freak
Judging by the position, it's the one that goes to the ACV (switching?), which appears to be deleted on your lim.
11-02-13, 03:12 PM
#5
¿¿What are pistons??
Thread Starter
iTrader: (7)
Join Date: May 2003
Location: Queens NYC
Posts: 1,261
Likes: 0
Received 0 Likes
on
0 Posts
Coolant level sensor sounds right since the damn thing keeps giving off an unbearable buzzing lol. Can anyone tell me exactly where it is located? I have everything else connected except for this thing.
