Front Bumper Gap

Hey folks. I took of the front bumper to get painted and when I put it back on there seems to be a larger gap than before I took it off. Any way to correct this?
Reply
Old Oct 14, 2013 | 10:13 AM
  #2
golson's Avatar
Thread Starter
Full Member
Tenured Member 05 Years
iTrader: (3)

Joined: Jul 2013
Posts: 185
Likes: 0
From: Huntsville, Al
Bump...Anyone?
Reply
Old Oct 14, 2013 | 02:18 PM
  #3
Oun's Avatar
Oun
I can confirm.
Tenured Member 15 Years
Veteran: Army
iTrader: (3)

Joined: Sep 2005
Posts: 1,069
Likes: 0
From: Las Vegas, NV
brb, restarting computer since pics didn't work.
Reply
Old Oct 14, 2013 | 02:22 PM
  #4
p00shy's Avatar
Full Member
iTrader: (4)

Joined: Feb 2010
Posts: 219
Likes: 3
From: San diego, ca
Did you just remove the bumper? Nothing else?? Pictures would help please.

I sometime get the bumper stuck but only because I left the screws in place after removal so I don't lose them.

Just check the side nuts and top bolts. Maybe yours hitting some loose wires and plugs.
Reply
Old Oct 14, 2013 | 03:54 PM
  #5
golson's Avatar
Thread Starter
Full Member
Tenured Member 05 Years
iTrader: (3)

Joined: Jul 2013
Posts: 185
Likes: 0
From: Huntsville, Al
Yes. All I did was remove the bumper. I don't have before pics, but I know it was a lot tighter around the hood and headlights. I don't see how you could mess up the alignment on the bumper when the side bolts are very tight tolerence and no way to move bumper in any direction when secured.

Any ideas folks?

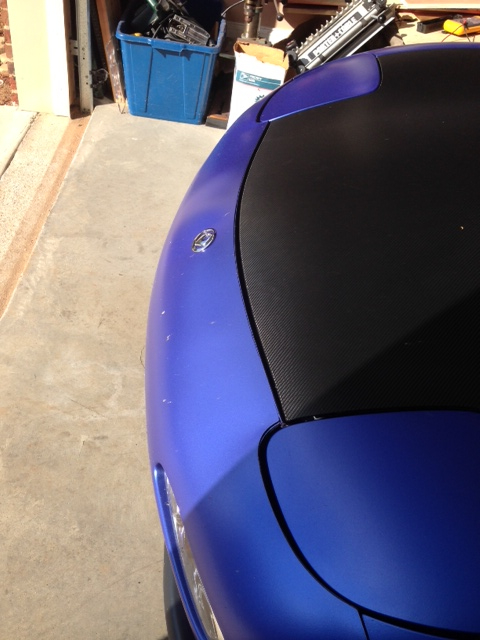

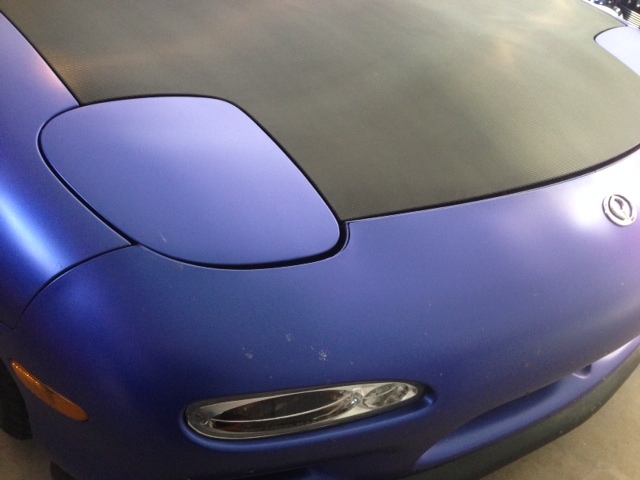

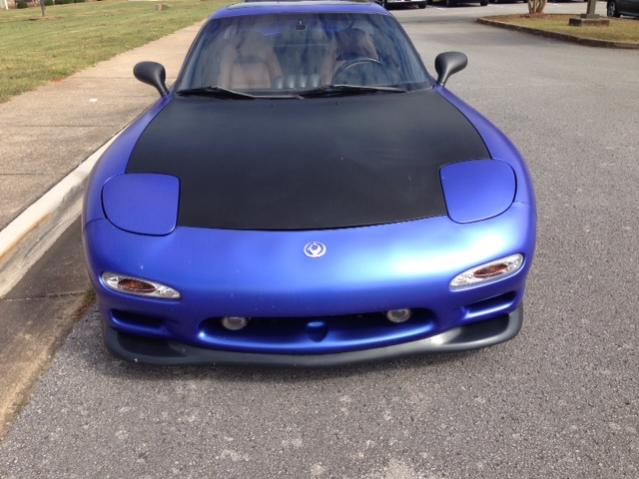

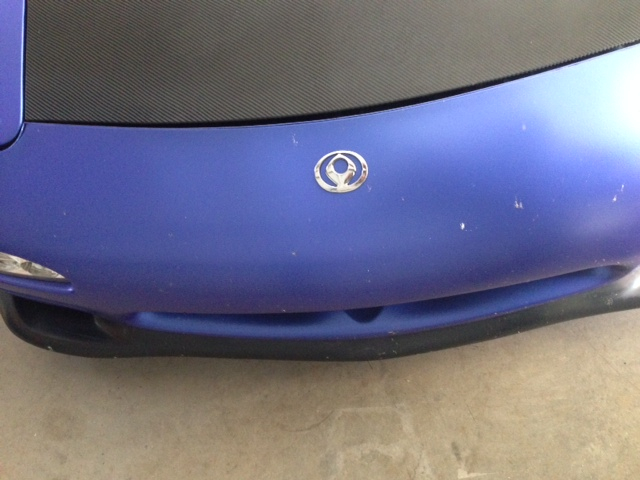

Attached Thumbnails Front Bumper Gap-photo-1%5B3%5D.jpg   Front Bumper Gap-photo-2%5B1%5D.jpg   Front Bumper Gap-photo-3%5B1%5D.jpg   Front Bumper Gap-photo-4%5B1%5D.jpg
Reply
Old Oct 15, 2013 | 04:22 AM
  #6
Oun's Avatar
Oun
I can confirm.
Tenured Member 15 Years
Veteran: Army
iTrader: (3)

Joined: Sep 2005
Posts: 1,069
Likes: 0
From: Las Vegas, NV
When it was being painted, did you heat bake it to dry or left it overnight? It could have been hung or had tension on part of the bumper while it was drying.

you can try working it out with a heat gun and pushing from the other side to have it bend up a bit more.

good luck OP
Reply
Old Oct 15, 2013 | 05:50 AM
  #7
SA3R's Avatar
10-8-10-8
Tenured Member: 10 Years

Joined: Jan 2012
Posts: 848
Likes: 12
From: Australia
Did you change the color of any parts you painted? Or just a repaint?
Reply
Old Oct 15, 2013 | 07:25 AM
  #8
golson's Avatar
Thread Starter
Full Member
Tenured Member 05 Years
iTrader: (3)

Joined: Jul 2013
Posts: 185
Likes: 0
From: Huntsville, Al
Originally Posted by Oun
When it was being painted, did you heat bake it to dry or left it overnight? It could have been hung or had tension on part of the bumper while it was drying.

you can try working it out with a heat gun and pushing from the other side to have it bend up a bit more.

good luck OP
Your exactly right. I hung the bumper from the midle to dry overnight. WOW never thought these bumpers would do this....Live and learnn I guess. I would re-heat but that won't happen since the paint is actually Plati Dip...That would met pretty easy...Thanks for the reply.
