Free MONEY to anyone who can figure out my NO SPARK problem.
#1
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Free MONEY to anyone who can figure out my NO SPARK problem.
I've got no spark on my leading coil. I've replaced ecu's, ignitors, small coil wiring harness with no fix. I've also ran a jump from the ignitor to the coil harness thinking there might be a break in the wires somewhere. Continuity shows good.
Quick run down of what problem led up to this.
Everytime I would turn right, my car would peter off and die. Finally it wouldn't start up. I looked underneith my front drivers side fender and the tire had rubbed through the wiring harness. It rubbed through the map sensor wire and the light yellow with black stripe, that wire go's to the ignitor. It didn't wear all the way through but wore the outer plastic off so that there was bare wire showing.I seperated those wires for the time being. I know that the 3 bar map sensor was fried because it was showing very weird readings. I hooked up a stock map sensor and it ran for around 5 seconds and then shut off. Readings were back to normal. No spark since then.
Someone please help.
Quick run down of what problem led up to this.
Everytime I would turn right, my car would peter off and die. Finally it wouldn't start up. I looked underneith my front drivers side fender and the tire had rubbed through the wiring harness. It rubbed through the map sensor wire and the light yellow with black stripe, that wire go's to the ignitor. It didn't wear all the way through but wore the outer plastic off so that there was bare wire showing.I seperated those wires for the time being. I know that the 3 bar map sensor was fried because it was showing very weird readings. I hooked up a stock map sensor and it ran for around 5 seconds and then shut off. Readings were back to normal. No spark since then.
Someone please help.
#3
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Scrub
have you made sure it's properly grounded?
#5
RX-7 Bad Ass
iTrader: (55)
The wires in the fender well carrying the ignition signal have steel braided covers around them to reduce noise in the signal. If that braid touches the inner core wire, the signal grounds out and the coil won't get the signal. The braid is grounded somewhere in the harness, BTW.
Dale
Dale
#6
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Jesuscookies
I'll put it here too. Make sure you have re-adjusted your map sensor settings on your EMS. If you switched to stock, you need to re-calibrate, or the car will not run.
#7
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DaleClark
The wires in the fender well carrying the ignition signal have steel braided covers around them to reduce noise in the signal. If that braid touches the inner core wire, the signal grounds out and the coil won't get the signal. The braid is grounded somewhere in the harness, BTW.
Dale
Dale
Trending Topics
#8
RX-7 Bad Ass
iTrader: (55)
If the jumper isn't shielded, you might be getting some noise.
Also, make sure your spark plugs aren't just really fouled out.
Dale
Also, make sure your spark plugs aren't just really fouled out.
Dale
#9
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DaleClark
If the jumper isn't shielded, you might be getting some noise.
Also, make sure your spark plugs aren't just really fouled out.
Dale
Also, make sure your spark plugs aren't just really fouled out.
Dale
Any ideas?
I'm clueless......
Last edited by LUPE; 05-04-05 at 05:19 PM.
#13
get a good test light. make sure it is computer safe and high impedence. on the connector to the leading coil. the fsm will tell you which is the powr which is the ground, it does not matter much you will find out. clip the light on the neg of the battery. prob the connector to the coil on side should light the test light and that will be the power side. should be steady. then put the clip on the batt pos. prob the other terminal. it should pulse with the car cranking. this is the ignitor suppling and removing the ground to the coil so it will collapse and fire the high tension lead. this should put you in the right side of things. also i have seen coils within spec that do not fire that ohm test only looks at the primary windings i belive..
Last edited by mad_7tist; 05-04-05 at 05:46 PM.
#15
ohm out the harness wiring for the leading coil for open circuits, crank sensors like BOTTLEFED suggested. Id try another igniter, I've gone through a couple bad ones before. There are drivers inside, seperate for trailing vs leading. Id try another.
#18
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
All fuses "look" good?
I'll try and do the tests everyone mentioned.
What else could I have fried that has to do with ignition? I've swapped out the computer, ignitor and coil harness already.
I'll try and do the tests everyone mentioned.
What else could I have fried that has to do with ignition? I've swapped out the computer, ignitor and coil harness already.
#19
PV = nRT
Join Date: Jan 2003
Location: New Zealand (was California)
Posts: 2,250
Likes: 0
Received 0 Likes
on
0 Posts
Test the fuses with a multi-meter (continuity).
Rubbing through wires causes wires to touch - hence shorting out and blowing fuses.
You will get no spark with a blown EGI fuse or damaged EGI relay.
Rubbing through wires causes wires to touch - hence shorting out and blowing fuses.
You will get no spark with a blown EGI fuse or damaged EGI relay.
#20
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by clayne
Test the fuses with a multi-meter (continuity).
Rubbing through wires causes wires to touch - hence shorting out and blowing fuses.
You will get no spark with a blown EGI fuse or damaged EGI relay.
Rubbing through wires causes wires to touch - hence shorting out and blowing fuses.
You will get no spark with a blown EGI fuse or damaged EGI relay.
Last edited by LUPE; 05-04-05 at 10:59 PM.
#21
Banned. I got OWNED!!!
Thread Starter
Join Date: Apr 2005
Location: Belleville, IL
Posts: 5,506
Likes: 0
Received 0 Likes
on
0 Posts
My trailing coils fires.
My leading coil doesn't fire.
Is the only thing that could cause this is a break in a wire somewhere?
All help is much appreciated.
My leading coil doesn't fire.
Is the only thing that could cause this is a break in a wire somewhere?
All help is much appreciated.
Last edited by LUPE; 05-04-05 at 11:06 PM.
#25
~17 MPG
iTrader: (2)
You seem to be a bit frantic here, as if you're not thinking clearly. I'm guessing you'll have much better luck with a thorough, systematic approach.
Can you please re-state all the things you've tried, and what was the result of them?
for instance,
Leading Coil:
1. Replaced coil. No improvement.
2. Connected leading coil to trailing output from igniter. Leading coil fired. This suggests that the leading coil is OK.
Igniter:
1. Replaced igniter. No improvement.
Wires between leading coil & Igniter:
1. Checked for continuity between Leading coil & Igniter. (write result here)
2. (swap wires if possible, similar to what you did with the trailing coil above)
Wires between Igniter & ECU:
1. (Check for continuity, switch wires if possible)
Fuses
...
Relays
...
Spark plugs
...
ECU
...
Good Luck,
-s-

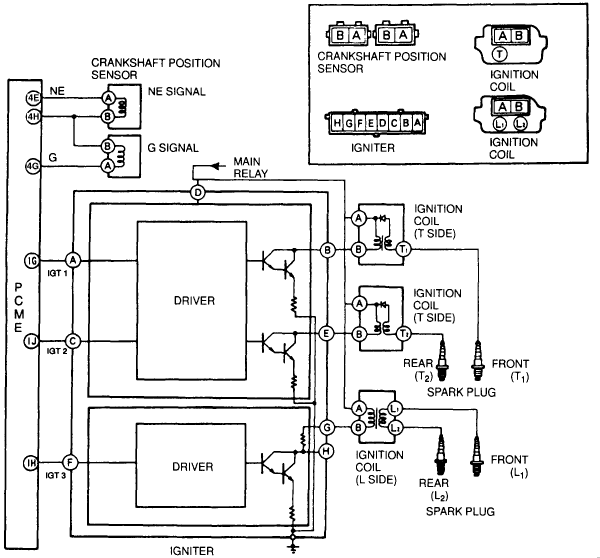

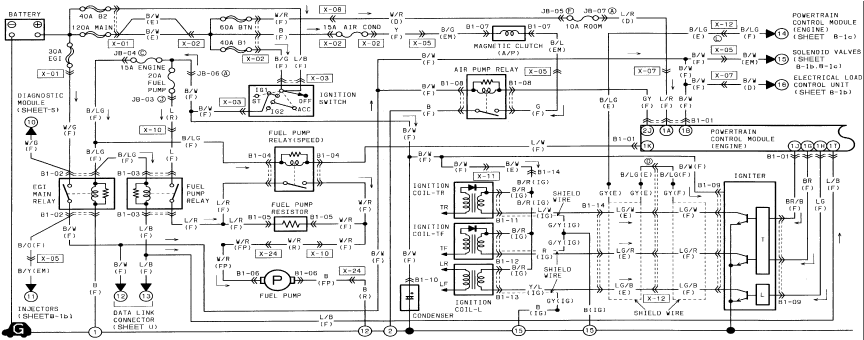

PS, Rotorhead, which manual are those diagrams from? I need to buy a copy of that one.
Can you please re-state all the things you've tried, and what was the result of them?
for instance,
Leading Coil:
1. Replaced coil. No improvement.
2. Connected leading coil to trailing output from igniter. Leading coil fired. This suggests that the leading coil is OK.
Igniter:
1. Replaced igniter. No improvement.
Wires between leading coil & Igniter:
1. Checked for continuity between Leading coil & Igniter. (write result here)
2. (swap wires if possible, similar to what you did with the trailing coil above)
Wires between Igniter & ECU:
1. (Check for continuity, switch wires if possible)
Fuses
...
Relays
...
Spark plugs
...
ECU
...
Good Luck,
-s-
PS, Rotorhead, which manual are those diagrams from? I need to buy a copy of that one.
Last edited by scotty305; 05-05-05 at 12:09 AM.
