FMIC chargePipeRouting
after removing the battery/tray, entire a/c system, stock intake, & intercooler today, i was wondering how i am going to run piping to a FMIC.
the radiator takes up much of the room, i'm basically wondering how i'm going to run 2.5" piping past it.
so can anyone with a FMIC, (either with a complete FMIC kit, or custom piping) tell me how the piping is run past or around the radiator? if you have pics even better
thanks
the radiator takes up much of the room, i'm basically wondering how i'm going to run 2.5" piping past it.
so can anyone with a FMIC, (either with a complete FMIC kit, or custom piping) tell me how the piping is run past or around the radiator? if you have pics even better
thanks
#2
Planning my come back
iTrader: (7)
Join Date: Feb 2003
Location: Austin, Tx
Posts: 3,393
Likes: 0
Received 0 Likes
on
0 Posts
all FMIC move the raditor back by tilting it almost straigh up so the pipping for the FMIC can go around it. There are other ways but it required some cutting of the front frame.
#4
https://www.rx7club.com/single-turbo-rx-7s-23/post-your-single-turbo-setup-33502/
There is like a bizzlian pictures in here^^^
(post your single turbo thread)
There is like a bizzlian pictures in here^^^
(post your single turbo thread)
#5
And to save you the headace, jsut buy a kit that comes with everything, unless you liek headaces of buying expensive custom pipes to fit ebay intercoolers (or whatever your planning)
It will be cheaper to get everything all together, and you can bolt it directly on in your driveway with perfect fit.
It will be cheaper to get everything all together, and you can bolt it directly on in your driveway with perfect fit.
Trending Topics
#9
Rotary Enthusiast
Join Date: Jan 2004
Location: New Zealand
Posts: 1,003
Likes: 0
Received 0 Likes
on
0 Posts

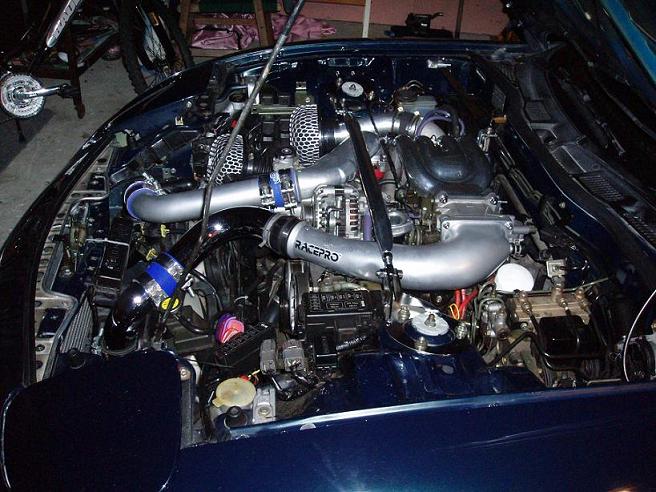

heres mine bro, I did it all myself ezy peezy.
just used 90 and 45 degree bends with a custom front mount IC and couplers.
I had to run my plumbing over the top of the Radiator and just dropped my radiator by fabricating some extension brackets onto the existing bottom radiator brackets.
good luck!
just used 90 and 45 degree bends with a custom front mount IC and couplers.
I had to run my plumbing over the top of the Radiator and just dropped my radiator by fabricating some extension brackets onto the existing bottom radiator brackets.
good luck!
#11
Rotary Enthusiast
Join Date: Jan 2004
Location: New Zealand
Posts: 1,003
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by c00lduke
I ran my charge pipe alog the top of the frame rail on the pass side of the radiator. Works just fine.
Hmmm, now I feel pretty shameful compared to this, geee thanks bro
#12
Planning my come back
iTrader: (7)
Join Date: Feb 2003
Location: Austin, Tx
Posts: 3,393
Likes: 0
Received 0 Likes
on
0 Posts
here is the best way I found that I liked
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/my-custom-apexi-gtr-core-installation-266387/
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/my-custom-apexi-gtr-core-installation-266387/
#15
Rotary Enthusiast
Thread Starter
spekdah - i like your setup alot, thats almost exactly how i am planning to run mine. very nice work!
and thanks for the pictures everyone, it helps alot.
and thanks for the pictures everyone, it helps alot.
