smoke wagon

iTrader: (4)

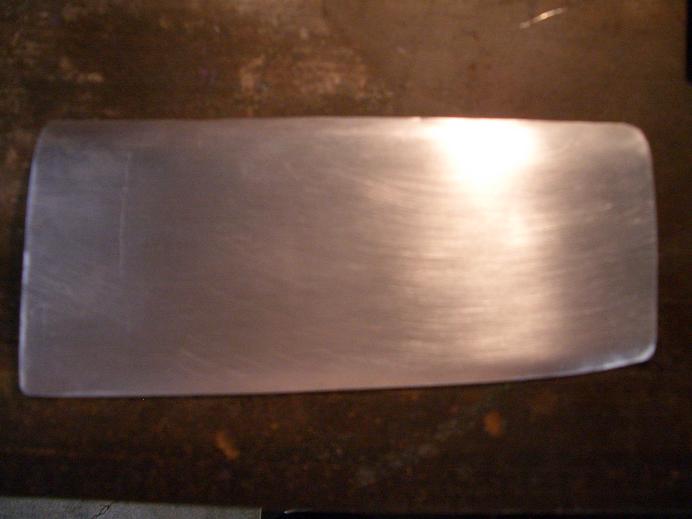

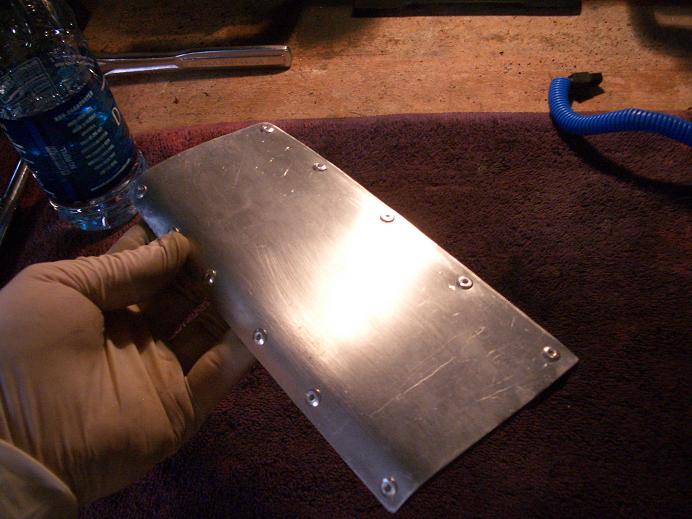

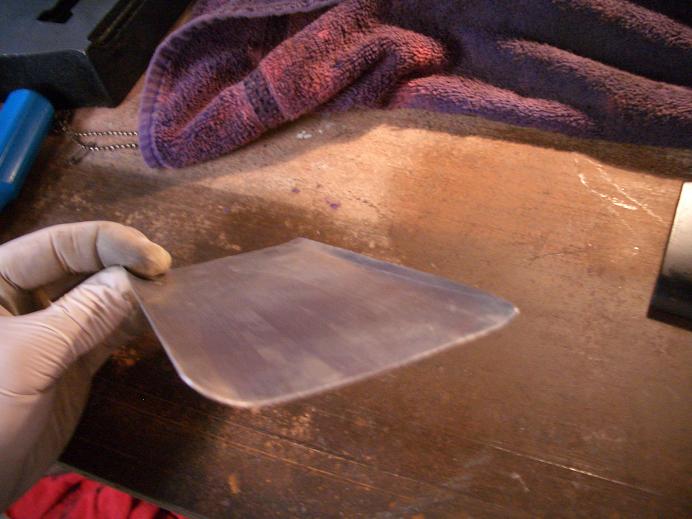

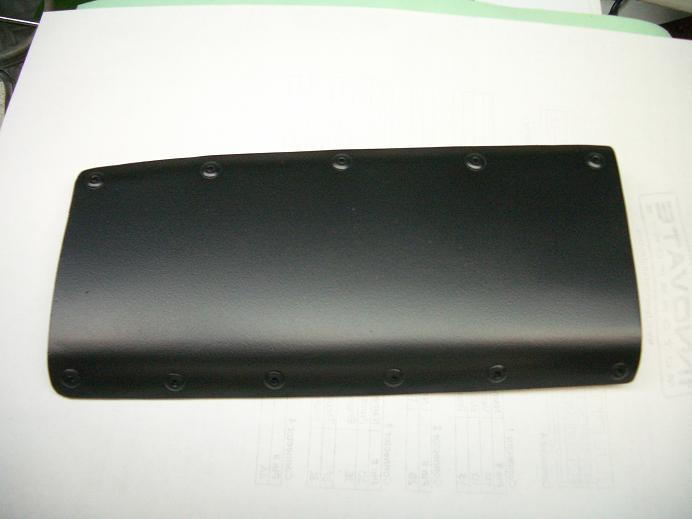

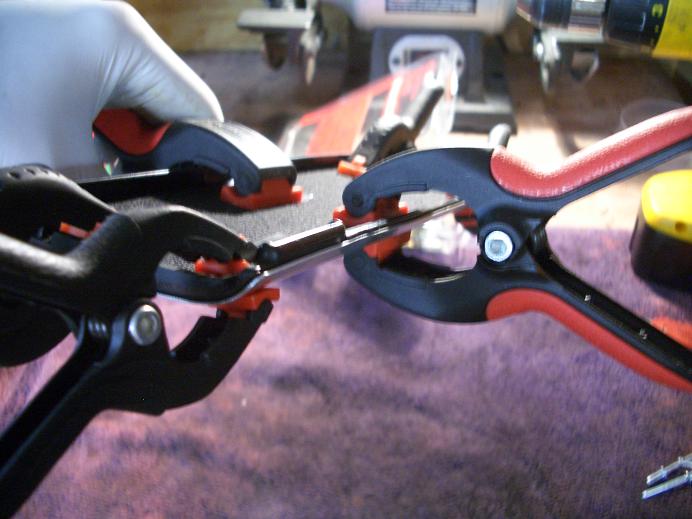

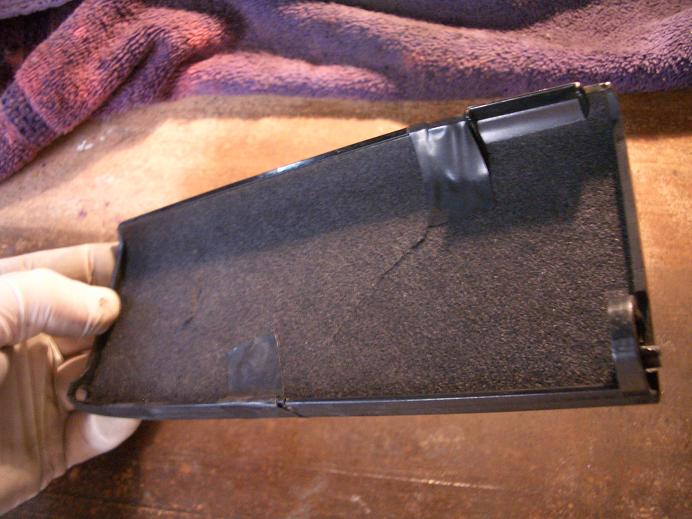

my storage bin was broken and i didnt want to buy another one so i used some glue, rivits, and made an alluminum cover to it and i think i came out well. also while doing it i decided to do somthing about the ate up door trim. the rubber coating was rubbing off pretty bad. it took a scotch bright pad to it and got it ready for paint. not thinking about it i grabed some brakeleen sprayed some on a old shirt and rubbed on the trim. the out come slightly melted the scratch markes away and polished it up. sence this trim peace will be gittin rubbed on and the out come looked alright i left it that way.

i though id share.

ryan

smoke wagon

iTrader: (4)

others

smoke wagon

iTrader: (4)

look any good

mrhetrick

iTrader: (18)

I'm pretty worthless when it comes to working on my own car, so when I see you guys coming up with little fixes like this, it impresses me.

Not bad.

Mike

smoke wagon

iTrader: (4)

thanks it was kinda a accedent with the trim. i was suprized the brakeleen didnt melt the plastic.

smoke wagon

iTrader: (4)

also the bins hidge broke off causing the lid to be thrown into the seat were i would then accedently sit on it breaking it. i drilled out wear it used to connect and put a rivit in so the lid wont be flying anywere now.

badddrx7

iTrader: (7)

Good start on fabricating your own repairs. If it works for you, works for me. Good eye !


Later

njstreetrx7

good idea but the rivets just throw it off for me. i thinka better option would have been to to use a very strong epoxy in the middle of crack and more on the inside..bondo the crack or plastic filler. then sand to smooth finish. and theeennn use duplicolor int spray paint cause it matches the interior trim color better.

good luck

Sgtblue

iTrader: (16)

A suggestion.......another weak point is the pivots which can be reinforced with a bit of fiberglass resin if they've not broken already.

smoke wagon

iTrader: (4)

everything is maily for short term replacement till i get enough money to be able to spend it on less important things.

yuichiror

iTrader: (1)

Good work! Actually, I like the rivet look.

smoke wagon

iTrader: (4)

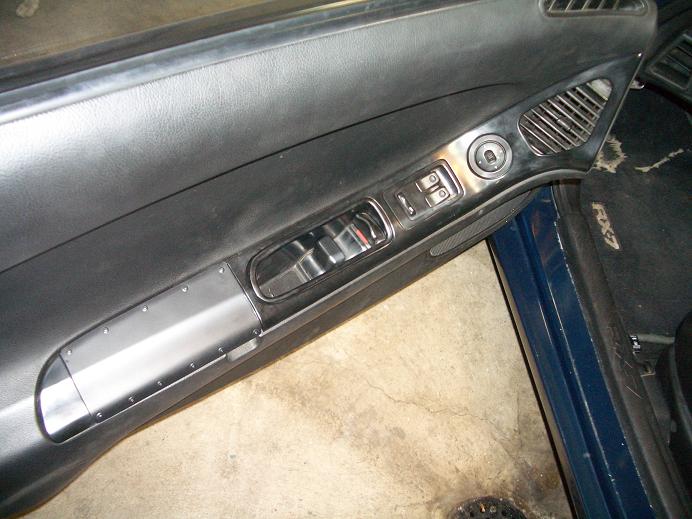

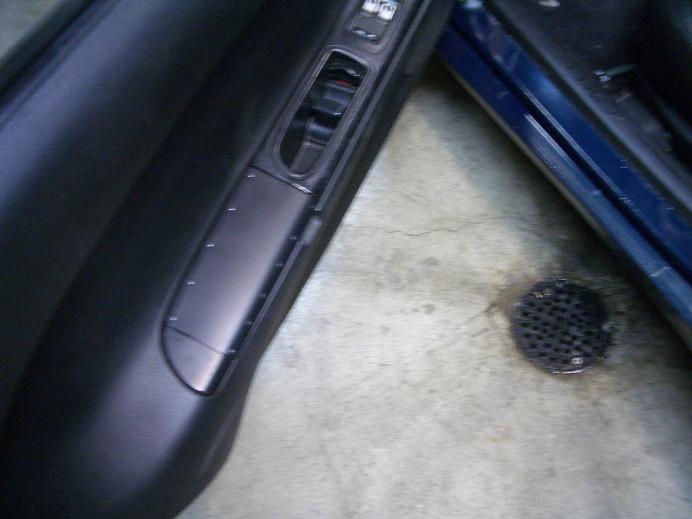

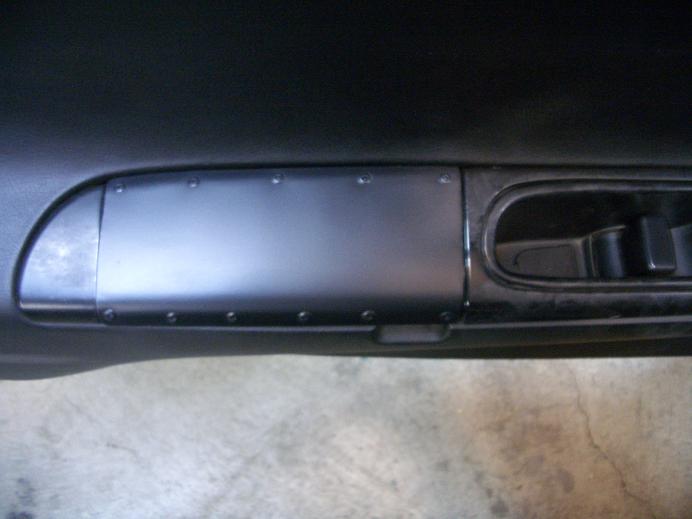

thanks, the last two pictures are the finished product, with the trim done too.

7_rocket

iTrader: (6)

Nice work, but the rivets are throwing it off.

MrNizzles

iTrader: (5)

Yah, I agree, without the rivets, the "look" would be perfect. It just doesn't seem to match. But great job none the less.

str8ryd

iTrader: (473)

Honestly, if you painted the whole driver plastic the door cubby would look WAYYY better. It's an effective solution, I guess, but still needs some work to look great.

theorie

iTrader: (31)

mine broke also....

i super glued it back together, then sanded and re-painted it with krylon plastic bonding semi-gloss black. it doesn't match perfectly, but it looks better than being broken. i plan on resurfacing all of my interior pieces soon because that rubber/paint covering is coming off (i have a '93)

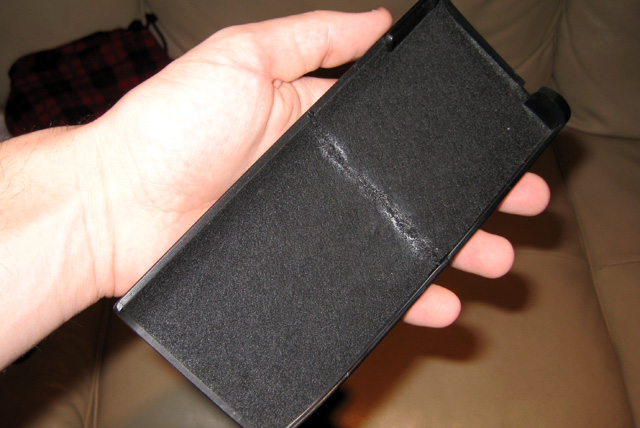

here's mine after fixing it. you can see on the underside where it was cracked in half. the super glue seems too have fused the two pieces back together pretty well.

brando54009

brakleen is a multi purpose cleaner in my garage.

i like that plate idea too. is it removable? on a hinge?

smoke wagon

iTrader: (4)

i used the alluminum to streagthen it because its right were my elbow sits, i didnt think it would hold up if i glued it and painted the top. i mainly did it to have a solution for the broken bin lid with out spending anything.

the bin lid is rivited to the bin i had to reattach it because it broke there too.

also i decided not to paint the rest of the trim because it gets touched alot and i didnt want it to chip. if just the bin gets chipped its and easy and fast fix. besides i kinda like the two tone look.

smoke wagon

iTrader: (4)

also i origanally was going to pait the trim but decided not to because of what the brakeleen did to the trim and the above mentioned.

thanks for the replies.

ryan
