Finally installed 99-spec lip!! How I did it without drilling!
#1
Finally installed 99-spec lip!! How I did it without drilling!
How I did it:
1. Removed all plastic tabs and locating pins on the SIDES of the 99 lip, after the brake ducts, using a sharp blade. The front ones fit the 93-95 bumper just fine.
2. Removed stock lip
3. Attached 2 side bolts for each half lip first and worked my way to the front, this made my life easier
4. Tightened everything up, note that I DID NOT drill any extra holes
5. I zip-tied the right and left side undertrays in the front as there's no place to bolt them in the 99 lip. The sides were bolted using stock locations

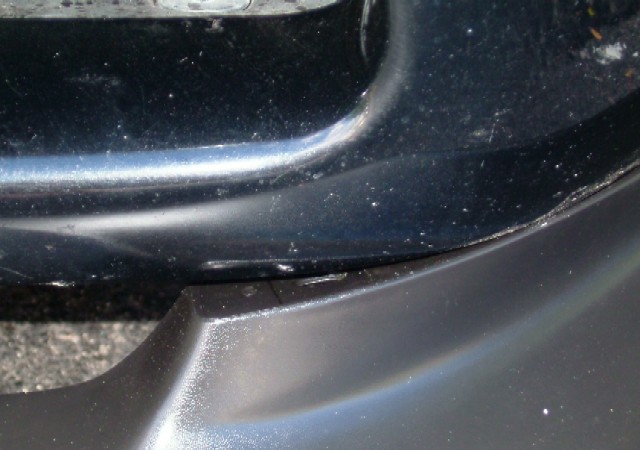

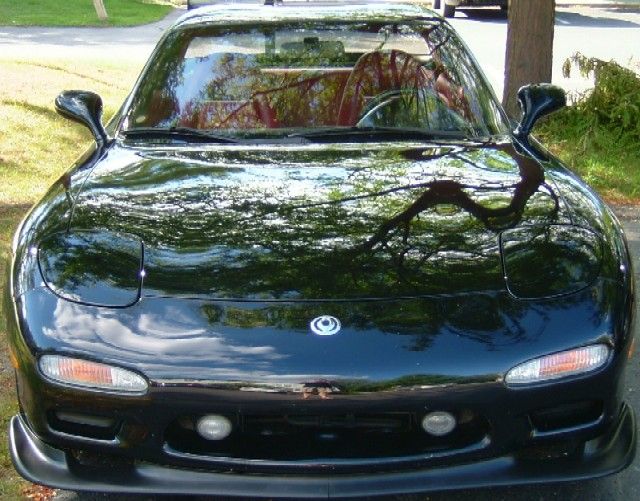

Fit is not perfect, I'm debating whether to drill one extra hole on each side to make it fit better. I like how it looks though
1. Removed all plastic tabs and locating pins on the SIDES of the 99 lip, after the brake ducts, using a sharp blade. The front ones fit the 93-95 bumper just fine.
2. Removed stock lip
3. Attached 2 side bolts for each half lip first and worked my way to the front, this made my life easier
4. Tightened everything up, note that I DID NOT drill any extra holes
5. I zip-tied the right and left side undertrays in the front as there's no place to bolt them in the 99 lip. The sides were bolted using stock locations
Fit is not perfect, I'm debating whether to drill one extra hole on each side to make it fit better. I like how it looks though
#3
Banned. I got OWNED!!!
Join Date: Jul 2004
Location: DET
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
I'm trying to think of another sports car with a cheesy piece of plastic hanging off the front bumper that basically does absolutely nothing unless you are going 120 (and questionable what value it has even then)
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
#5
Power Trippin'
iTrader: (4)
Originally Posted by FD from R1
I'm trying to think of another sports car with a cheesy piece of plastic hanging off the front bumper that basically does absolutely nothing unless you are going 120 (and questionable what value it has even then)
I never understood modifications that do not improve performance....
Trending Topics
#10
Power Trippin'
iTrader: (4)
Originally Posted by FD from R1
it looks dumb to me.....and I see it as offering no real performance advantage whatsover....as I said, perhaps minor increase in downforce at 120+
#11
Originally Posted by FD from R1
I'm trying to think of another sports car with a cheesy piece of plastic hanging off the front bumper that basically does absolutely nothing unless you are going 120 (and questionable what value it has even then)
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
#12
Originally Posted by SpeedKing
IMO, it *belongs* on the car, compared to the stock Touring/Base lip.
#15
Mr. Links
iTrader: (1)
Originally Posted by FD from R1
it looks dumb to me.....and I see it as offering no real performance advantage whatsover....as I said, perhaps minor increase in downforce at 120+
gimmicky....
gimmicky....
Last edited by Mahjik; 09-10-04 at 02:17 PM.
#16
Rotary Freak
iTrader: (6)
Join Date: Jan 2002
Location: Golden, CO
Posts: 1,807
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Mahjik
Actually, I noticed more stability even at highway speeds. It's definitely functional.
#18
Forever Modified
iTrader: (1)
Join Date: Dec 2003
Location: WA
Posts: 1,423
Likes: 0
Received 0 Likes
on
0 Posts
In that case I better take the black tint off my car because I'm a ricer now.
I think its a better improvement over the shitty 1" lip that most come with. But I have to agree I think the R1 and R2, lip looks more agressive because they are a beefier lip. On top of that both were not only designed for more agressive appearance, but to direct more cold air into the radiator and intercooler even below 120mph, on top of the added benefit of downforce.
Originally Posted by FD from R1
I'm trying to think of another sports car with a cheesy piece of plastic hanging off the front bumper that basically does absolutely nothing unless you are going 120 (and questionable what value it has even then)
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
I think its a better improvement over the shitty 1" lip that most come with. But I have to agree I think the R1 and R2, lip looks more agressive because they are a beefier lip. On top of that both were not only designed for more agressive appearance, but to direct more cold air into the radiator and intercooler even below 120mph, on top of the added benefit of downforce.
#21
I installed a 93 r1 lip on my base model yesterday and could have sworn I felt more stability on the highway, it just felt like the front was heavier and stuck to the ground more than it did driving it earlier that day with the 1" stock lip. My real goal was to increase stability over 120mph though since I'm taking it to the track on Friday. I've heard that sevens are weird over 120 due to front-end lift, so whatever downforce I can get up front is welcome.
Plus it looks much better than the stock base lip and not ricey at all. I'm not convinced on the 99+ lip though especially if it doesn't fit perfectly.
Plus it looks much better than the stock base lip and not ricey at all. I'm not convinced on the 99+ lip though especially if it doesn't fit perfectly.
#22
"Challenged" since 1993
Join Date: Sep 2002
Location: Columbus, Oh
Posts: 540
Likes: 0
Received 0 Likes
on
0 Posts

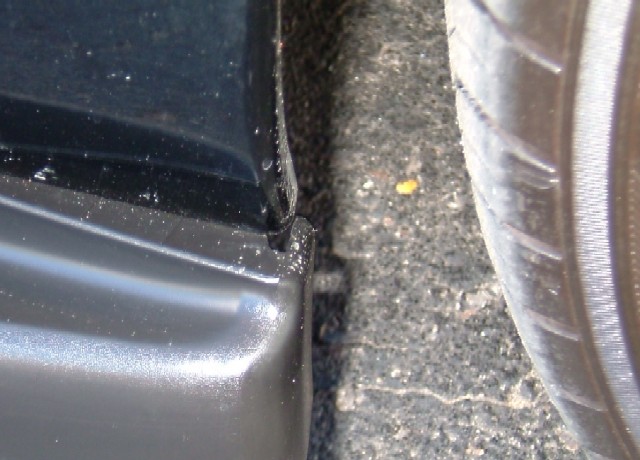

With a just a bit of attention to the alignment, the only part that doesnt mate almost perfectly is the ends, which are about 1 cm longer (towards the tires).

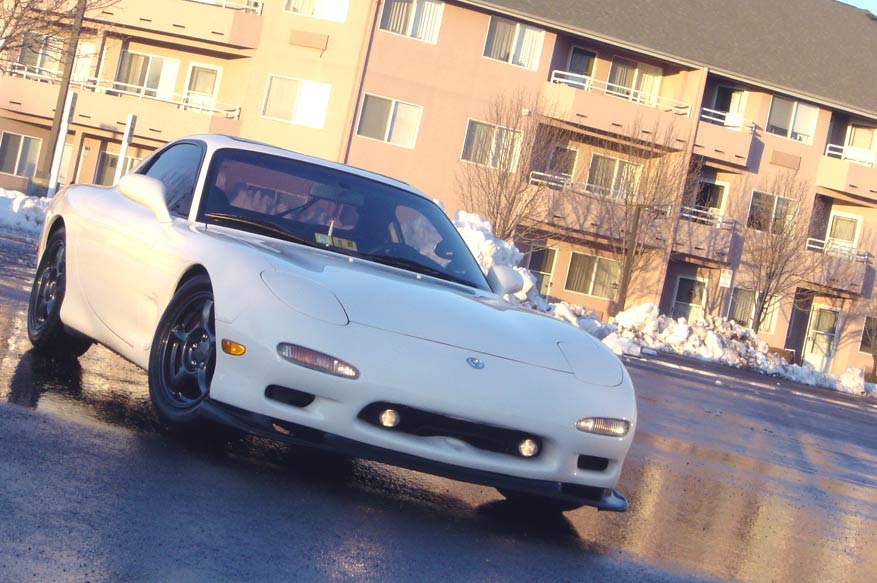

I love the looks of mine:
I love the looks of mine:
Last edited by Rotarded; 11-02-04 at 03:25 PM.
#23
Weird Cat Man
Originally Posted by FD from R1
I'm trying to think of another sports car with a cheesy piece of plastic hanging off the front bumper that basically does absolutely nothing unless you are going 120 (and questionable what value it has even then)
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
Yeah it doesn't matter at 50 mph, but when I'm going 150, I sure love the planted feel!
#24
Cheap Bastard
iTrader: (2)
Originally Posted by jayk
......... I've heard that sevens are weird over 120 due to front-end lift, so whatever downforce I can get up front is welcome.
My preference would be to have the R1 lip. To me, it looks better with the 93-95 bumper. My only concerns are scraping it on curbs, and getting the car on my ramps when I work on it. I suspect that the downforce is similar with both.
#25
DGRR 2017 4/26-4/30, 2017
iTrader: (13)
Originally Posted by FD from R1
I'm trying to think of another sports car with a cheesy piece of plastic hanging off the front bumper that basically does absolutely nothing unless you are going 120 (and questionable what value it has even then)
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
I never understood modifications that do not improve performance....it's why I always shake my head at ricers
First of all, most of us when we see a riced out car, we immediately think its slow.. So, why not rice it out and make it go fast?? that would be something.. hmm..
