Old Apr 8, 2008 | 10:21 PM
  #1
LAN's Avatar
LAN
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years
iTrader: (1)

Joined: Aug 2003
Posts: 992
Likes: 0
From: USA
FEED style hood ● Engine Torque Damper ● NEO



Some thoughts about these 3 things...
● Feed style hood
● Engine torque damper
● Neo syntethic gear oil

Ok, let's make this quick.

Huge van backed into me - Fried hood & bumper etc - his insurance paid.
-Got the Feed style hood
-No bumper: 99spec on B.O.
-Neo are still in the bottle. Will do that next oil change while the car is on the lift.

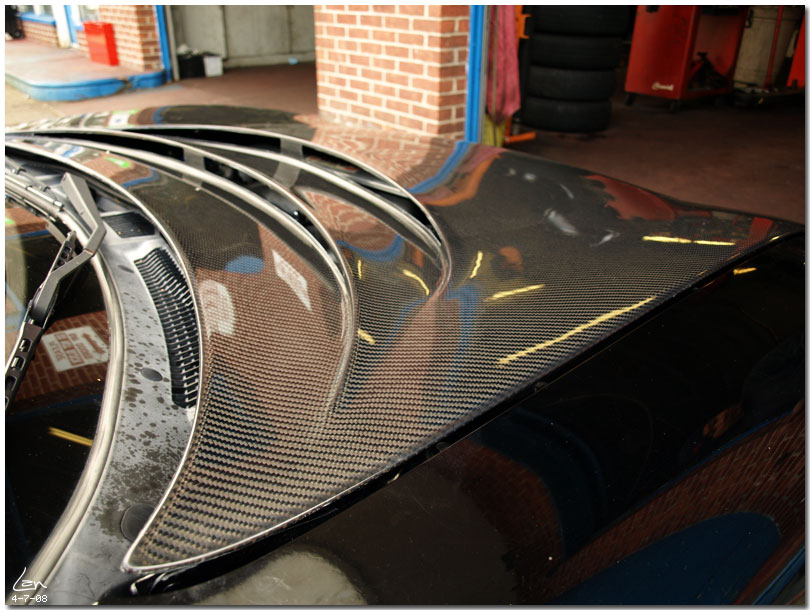

Feed Style hood -

-Got a great deal on it.
-Quality: 1 of 10: (10 is best) 7 for me.
-It feels flimsy

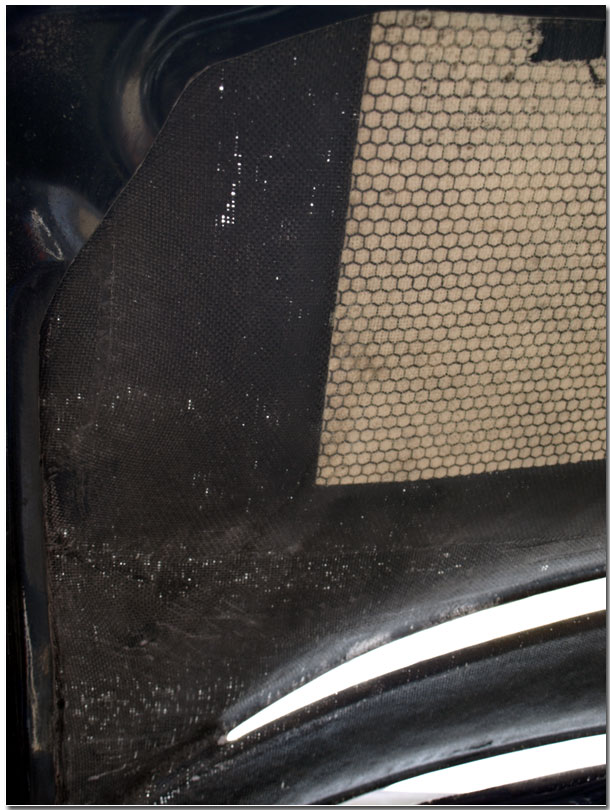

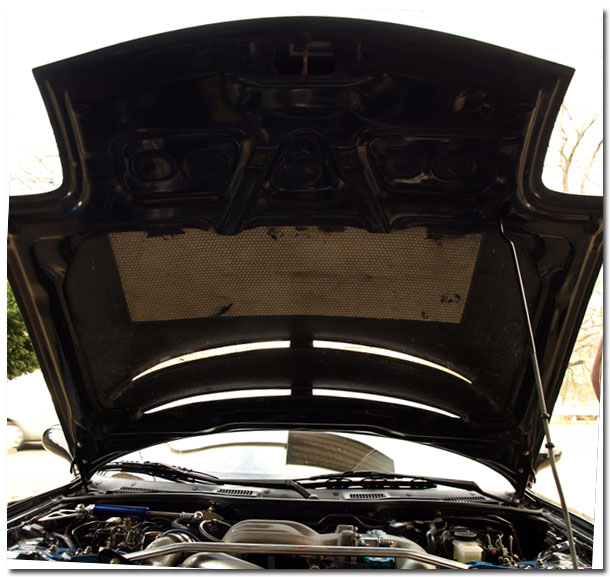

-Thin carbon, you can see through when it up (see pic)
-Some minor fitment issue. Install is easy four bolts, but some minor gaps.
Car has never been on an accident or fenders have been removed. Everything is straight.
-Hood latch seems like it's going to go through the crispy crunch type cereal thickness hood.
-Coat is weak, about 20% dull
-Carbon looks light in color (Not sure if it's the coating or so)
I've seen other carbon hood/materials and they're much darker and looks like in a glass eye candy gloss. Kind of like this -- ]Carbon350z]
-Since it's really light, it jumps around sometimes.

-It's really light compared to the stock during installation - No weighing was done.
-The vents seem to work. My Temp dropped 3ºC
When the car is on idle, the hot air is felt coming out and some heat vapor is visible during idle/stop on a 45ºF or less weather.

Here's a thread with similar hood and did some 'test' and observation
[Another Feed style hood]

Well, I can't think of anything else.
I like it, it looks good on the car but the quality could be better.
I'll wash the car and maybe it'll get shinier, but I'm afraid of using chemicals on it. it might even get duller.

Recommendation?
- I would with some warnings.
- I wouldnt "highly" recommend it though mainly because of the quality and some slight fitment issues.



ETD: Engine Torque Damper -

-This thing works too.
If someone is going to install one, pay attention to the way the car starts, shifting etc. before and after installation. My mounts are fine. The aluminum pieces of the mounts were replaced with iron.

- Easy installation


VIBRATION - (I deleted it)
- I used some Australian kangaroo leather against the fender wall and rubber bushings all over. The bracket that attaches to the manifold has 2 holes. In case someone doesn't realize, they both need to be bolted on.

-it's adjustable.

2 things that lack Garfinkle's brace. Ease of installation and adjustable link. It's also solid. Some prefers with dampening.

I guess there's nothing more....

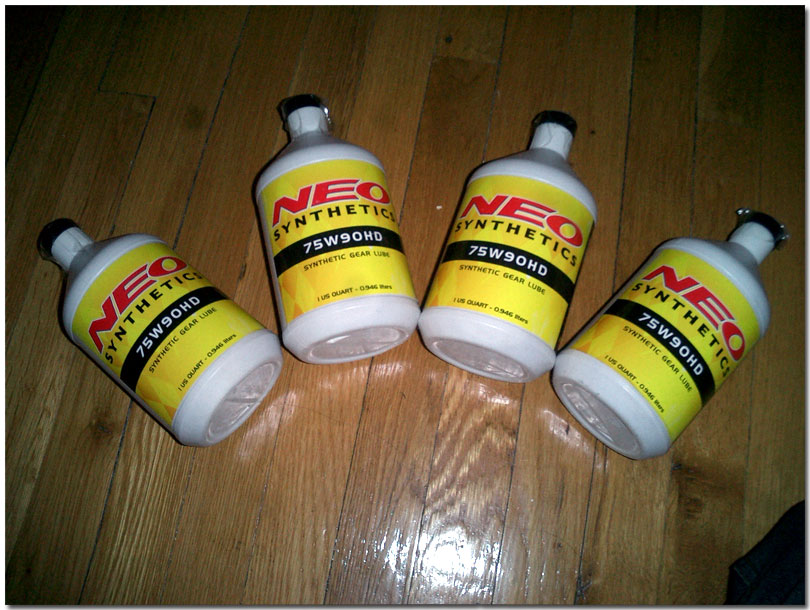

NEO Synthetic Gear Lube -

-No comments yet. Have not replaced the fluids.
..some other time.




OK, ENOUGH WITH THE NONSENSE -

PIX TIME - - - -

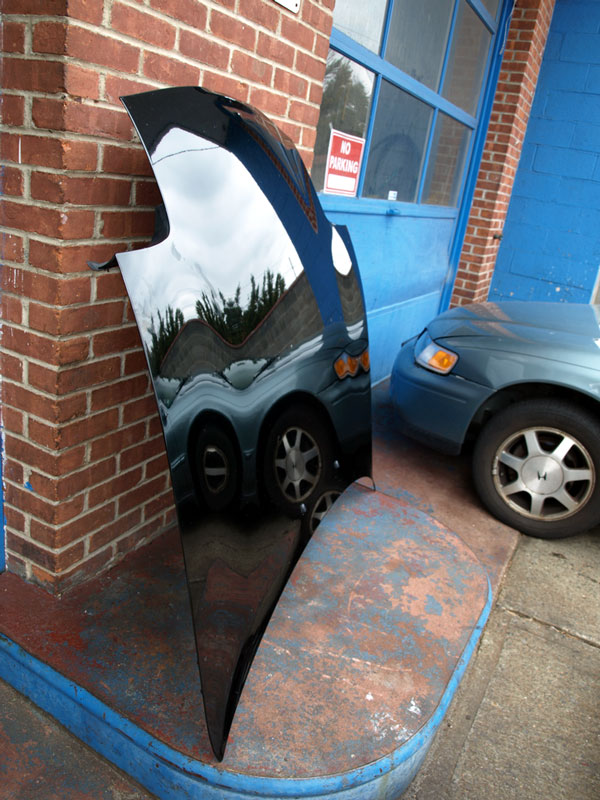

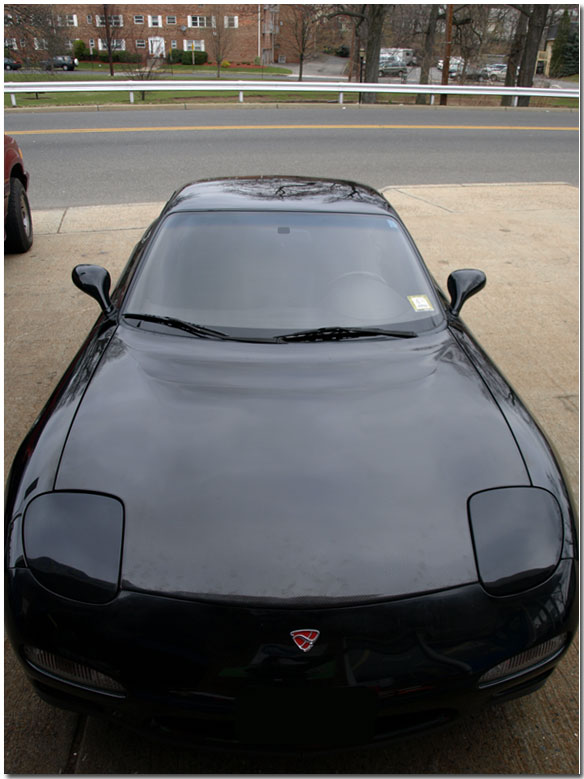

The old hood. WHO WANTS IT?

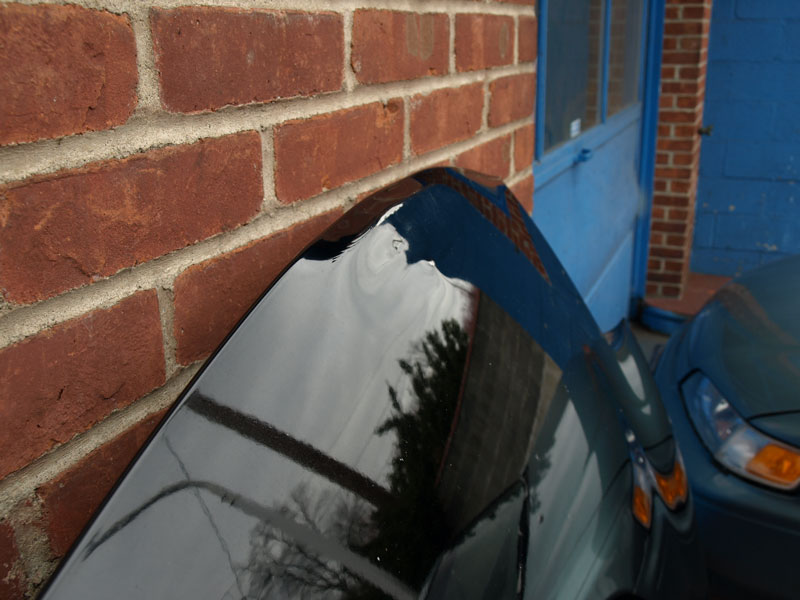

Minor damage

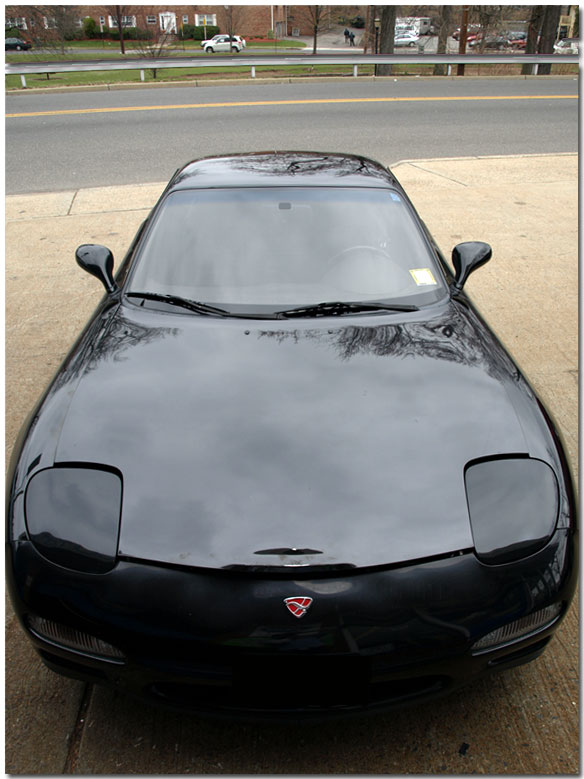

Hood & Bumper Damages | After the "Fix"

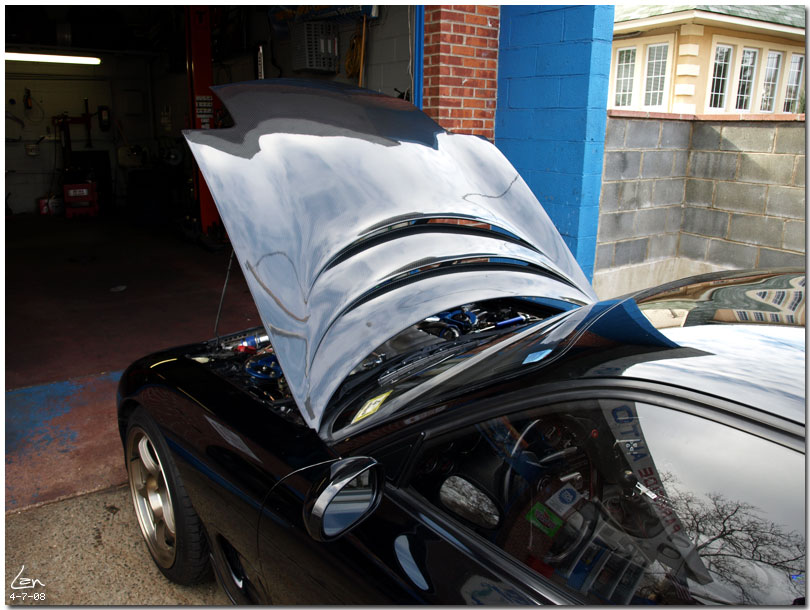

Under the hood view






Attached Thumbnails FEED style hood ● Engine Torque Damper ● NEO-rp1010891.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010890.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010868.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010895.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010928.jpg

FEED style hood ● Engine Torque Damper ● NEO-rp1010920.jpg

Last edited by LAN; Apr 8, 2008 at 10:35 PM.
Reply
Old Apr 8, 2008 | 10:22 PM
  #2
LAN's Avatar
LAN
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years
iTrader: (1)

Joined: Aug 2003
Posts: 992
Likes: 0
From: USA




Here it is...

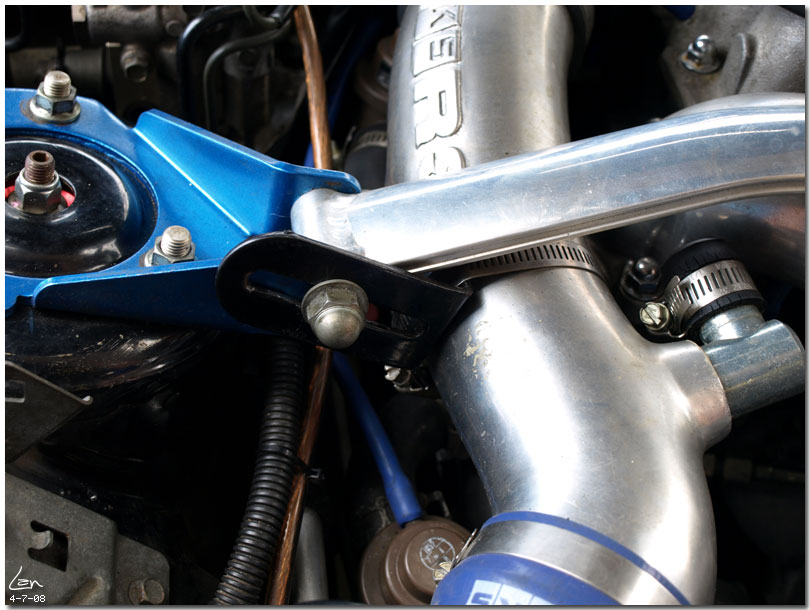

ETD & some bracket for the intake

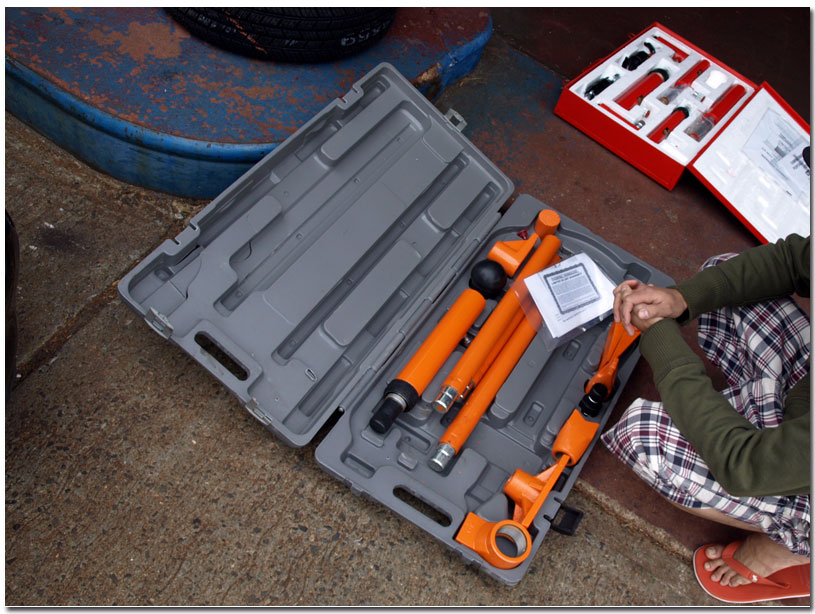

The tools used for the bumper





Attached Thumbnails FEED style hood ● Engine Torque Damper ● NEO-rp1010931.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010940.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010924.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010921.jpg   FEED style hood ● Engine Torque Damper ● NEO-rp1010875.jpg

FEED style hood ● Engine Torque Damper ● NEO-rp1010971.jpg

Last edited by LAN; Apr 8, 2008 at 10:42 PM.
Reply
Old Apr 8, 2008 | 10:28 PM
  #3
LAN's Avatar
LAN
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years
iTrader: (1)

Joined: Aug 2003
Posts: 992
Likes: 0
From: USA













Attached Thumbnails FEED style hood ● Engine Torque Damper ● NEO-rp1010913.jpg   FEED style hood ● Engine Torque Damper ● NEO-rcimg8791.jpg
Reply
Old Apr 8, 2008 | 10:29 PM
  #4
sevensix's Avatar
rotor rotor pow.
Tenured Member 15 Years
iTrader: (1)

Joined: Mar 2005
Posts: 3,170
Likes: 1
From: Southern CA
so who made the hood. and what are those bumper tools they look fun, i think heat gun usually is good for minor dents to the bumper
Reply
Old Apr 8, 2008 | 10:47 PM
  #5
LAN's Avatar
LAN
Thread Starter
Rotary Enthusiast
Tenured Member 20 Years
iTrader: (1)

Joined: Aug 2003
Posts: 992
Likes: 0
From: USA

I guess the heatgun can work, but the aluminum upper stay/bumper retainer whatever you call it got damaged so the bumper takes the form of it.

The 'bumper tools' are just hydroulics.

Reply
Old Apr 8, 2008 | 10:52 PM
  #6
sevensix's Avatar
rotor rotor pow.
Tenured Member 15 Years
iTrader: (1)

Joined: Mar 2005
Posts: 3,170
Likes: 1
From: Southern CA
hood brand?
Reply
Old Apr 8, 2008 | 11:35 PM
  #7
dradon03's Avatar
Derwin
Tenured Member 10 Years
iTrader: (2)

Joined: Apr 2005
Posts: 2,888
Likes: 0
From: MTL, QC
Lan Garfinkle's ETB does have dampening. Notice where your Ebay peice has ball joints, Garfinkle's floats in the rubber just perfectly. Garfinkle's ETB is perfect for what it does.

I have the FEED hood also and must say that I would def. recommend hood pins and some grinding of the latch was required to allow it to fit in the latch catch.
Reply
Old Apr 8, 2008 | 11:38 PM
  #8
pinkrx7's Avatar
fadedvr=pink
Tenured Member 05 Years
iTrader: (2)

Joined: Nov 2005
Posts: 1,402
Likes: 1
From: Sacramento,CA
nice review and info.
Reply
Old Apr 9, 2008 | 01:41 AM
  #9
Smitter's Avatar
94 Single Turbo FD
Tenured Member: 15 Years

Joined: May 2006
Posts: 1,418
Likes: 1
From: Calgary, Alberta, Canada
i have the shine auto feed hood. except mine is the frp fibreglass
fitment is good except for the back corners of the hood near the windshield. the hood seems to sit higher then the fender line. yours looks like it does the same

the latch looks like its constructed of a piece of all-thread bar. less then impressive.

i can also vouch for the hood being a little under the flimsy side. it is light though. u can see it bouncing slightly while driving. i am not running any hood pins @ this time and have had no problems doin a couple 200km/hr pulls.

i also think the hood could use a little cleaning up on the underside where the inside layer is trimmed away.

the looks of the hood is definetly its strong point.
Reply
Old Apr 9, 2008 | 05:05 AM
  #10
GARCO MOTORWORKS's Avatar
Banned. I got OWNED!!!

Joined: Jul 2004
Posts: 1,179
Likes: 1
From: next to the polishing wheel!!!
Where can I buy the new SOLID Garfinkle engine torque brace .Does it cost less than the old style with rubber bushings at each end ?
Reply
Old Apr 9, 2008 | 07:20 AM
  #11
TK7's Avatar
TK7
Senior Member
Tenured Member 15 Years
iTrader: (6)

Joined: Feb 2006
Posts: 593
Likes: 7
From: Richmond, ky
^HAHAHA!

i dont know, but ill sure take the original design whenever its available!
Reply
Old Apr 9, 2008 | 08:21 AM
  #12
1souped7's Avatar
Banned. I got OWNED!!!

Joined: Jan 2008
Posts: 170
Likes: 0
From: Trent
Where do you get the engine torque brace?
Reply
Old Apr 9, 2008 | 08:32 AM
  #13
theorie's Avatar
AponOUT!?
Tenured Member 15 Years
iTrader: (31)

Joined: Nov 2002
Posts: 3,521
Likes: 13
From: Sarasota, FL
Originally Posted by 1souped7
Where do you get the engine torque brace?
looks like a "replica" feed torque damper off of ebay
Reply
Old Apr 9, 2008 | 08:40 AM
  #14
skir2222's Avatar
I win
Tenured Member 15 Years

Joined: Jun 2004
Posts: 1,875
Likes: 2
From: NJ
Originally Posted by 1souped7
Where do you get the engine torque brace?
Ebay
Reply
Old Apr 9, 2008 | 10:28 AM
  #15
BigWillieStyles's Avatar
Rotary Enthusiast
Tenured Member 15 Years

Joined: May 2005
Posts: 986
Likes: 0
From: Okayama - Japan
thats my favourite hood, they are super expensive. Your rims look great, what are they?
Reply
Old Apr 9, 2008 | 10:30 AM
  #16
dradon03's Avatar
Derwin
Tenured Member 10 Years
iTrader: (2)

Joined: Apr 2005
Posts: 2,888
Likes: 0
From: MTL, QC
Just about the FEED hood.

Shaving the hood stops alittle completely solves the problem. I hate eBay.
Reply
Old Apr 9, 2008 | 11:10 AM
  #17
Smitter's Avatar
94 Single Turbo FD
Tenured Member: 15 Years

Joined: May 2006
Posts: 1,418
Likes: 1
From: Calgary, Alberta, Canada
^^
shaving the hood stops will let the back of the hood sit down?

the corners are high near the windshield where the hood bolts to the hinges
Reply
Old Apr 9, 2008 | 01:49 PM
  #18
FuturePerfect's Avatar
Garaged
Tenured Member 10 Years

Joined: Nov 2005
Posts: 243
Likes: 0
From: Lansing, IL
Originally Posted by GARCO MOTORWORKS
Where can I buy the new SOLID Garfinkle engine torque brace .Does it cost less than the old style with rubber bushings at each end ?
Originally Posted by TK7
^HAHAHA!

i dont know, but ill sure take the original design whenever its available!
+1. This Garfinkle guy should get crackin'!
Reply
Old Apr 9, 2008 | 03:22 PM
  #19
FDSeoul's Avatar
Corea FD
iTrader: (8)

Joined: Dec 2007
Posts: 4,378
Likes: 1
From: San Diego
dude that feed style bonnet is the ****!!!! pure porno
Reply
Old Apr 9, 2008 | 03:27 PM
  #20
FDSeoul's Avatar
Corea FD
iTrader: (8)

Joined: Dec 2007
Posts: 4,378
Likes: 1
From: San Diego
btw the neo syn stuff is worth it's weight in gold. after the change out give it about two day for the oil to really soak into all the gears and it like butter..
Reply
Old Apr 9, 2008 | 03:42 PM
  #21
dial8's Avatar
Registered User
Tenured Member 10 Years
iTrader: (4)

Joined: Oct 2004
Posts: 1,090
Likes: 0
From: Pacifica
Nice pics, love hood. I have the RB etb and I think its about the same price. But if you're going 99 spec front, you need FEED front lamps too
Reply
Old Apr 9, 2008 | 03:43 PM
  #22
jeroentje.nl's Avatar
Full Member
Tenured Member 15 Years

Joined: Jul 2005
Posts: 163
Likes: 0
From: The Netherlands
if the hood is to high near de wind screen try this.

Put a spacer between the hood and de hinges
only between the 2 front bolds not the one closest to the wind screen
This will help the hinges to go down lower
Reply
Old Apr 9, 2008 | 07:11 PM
  #23
mono4lamar's Avatar
In the burnout box...
Tenured Member 10 Years
iTrader: (32)

Joined: Oct 2003
Posts: 4,453
Likes: 2
From: New York
I want the Feed hood... One day!
Reply
Old Apr 9, 2008 | 09:21 PM
  #24
Scrub's Avatar
bow leggin'
Tenured Member: 20 Years
iTrader: (25)

Joined: Jul 2002
Posts: 6,061
Likes: 5
From: Delaware
Originally Posted by mono4lamar
I want the Feed hood... One day!
I want the original FEED hood....one day
Reply
Old Apr 10, 2008 | 01:57 AM
  #25
evotechnik's Avatar
XS Tuned FD
Tenured Member 05 Years
iTrader: (1)

Joined: Sep 2007
Posts: 307
Likes: 0
From: Corona
FYI the FEED hood sits higher in the back because its meant to be used with the FEED front fenders. The fenders sit slightly higher in the back where the hood sits. It sits flush on my car but I have the Burnout fenders.
