Ebay Short Shifter-Install and Write up
Welcome ALL
This is my first write up on anything really, so don’t bash me if I forgot anything.
Ok well this is the cheap EBay FD3s Short Shifter, the price of these things is great
Shifter – 25.00
Shipping – 13.00
Tax – None < Thank good for the Internet
Total – 38.00
Ok,

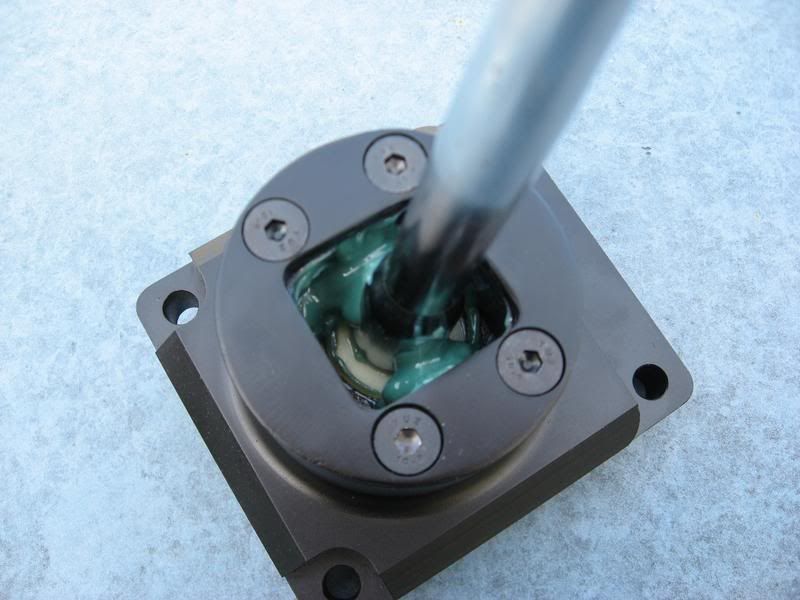

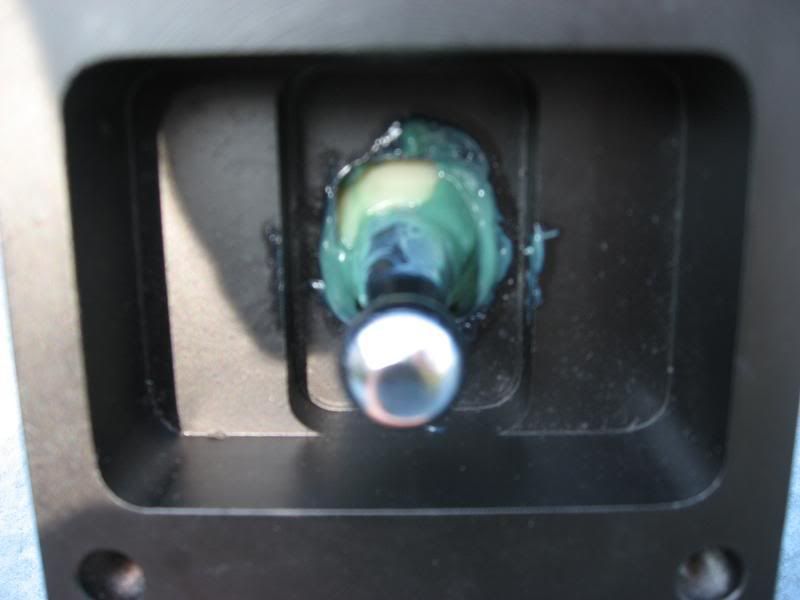

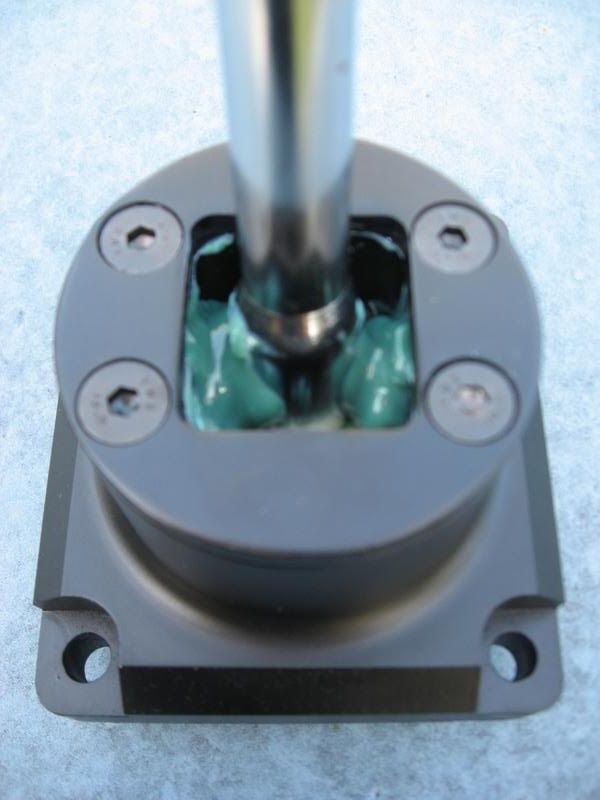

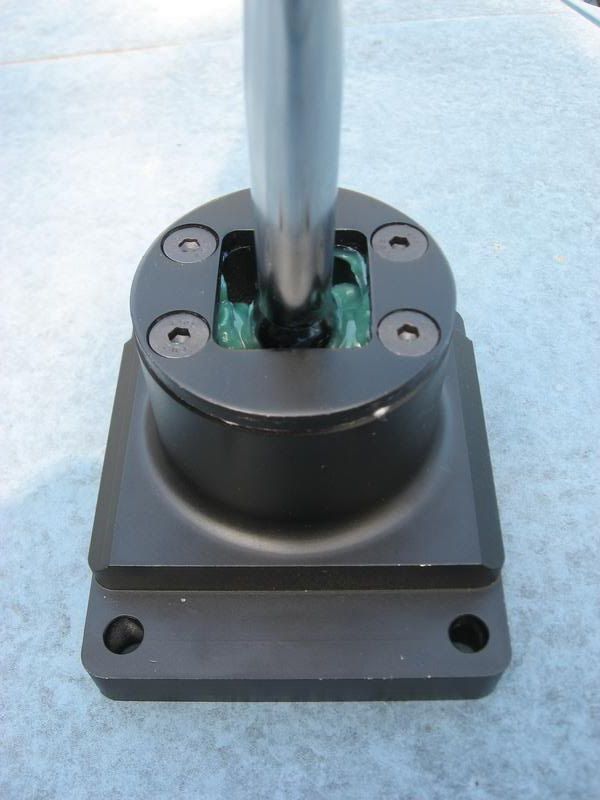

Here we have the short shifter, basically right out of the box, the only thing I did was replace that “CHEAP” grease that they used with a Castrol HD Grease.
Good now that we have a good idea of what the product looks like and the construction of it, we can start with the removal of the stock shifter.
First remove the center console with shifter boot, this is just snapped into there, just carefully remove it and disconnect a few electrical lines.

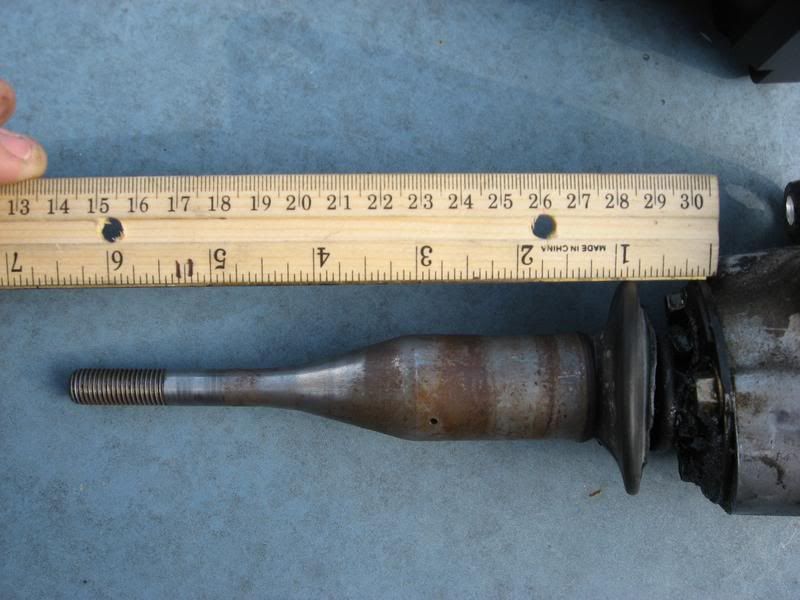

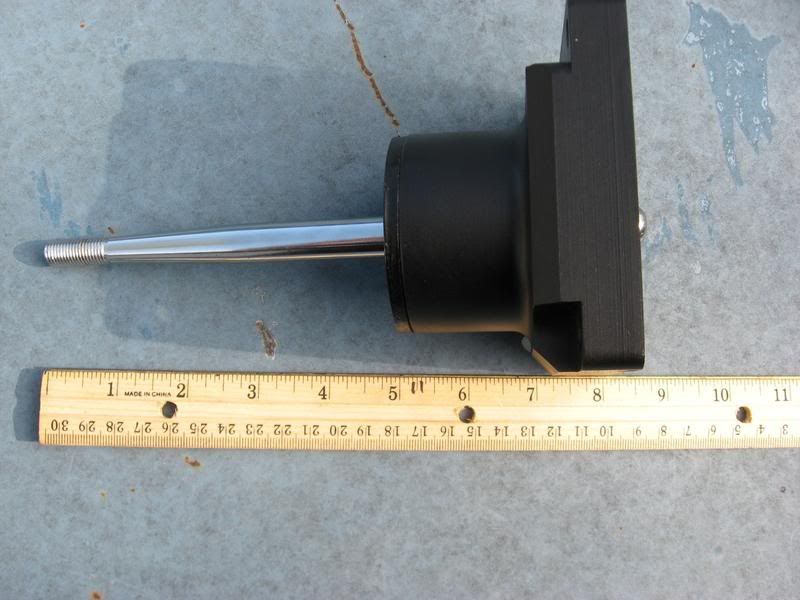

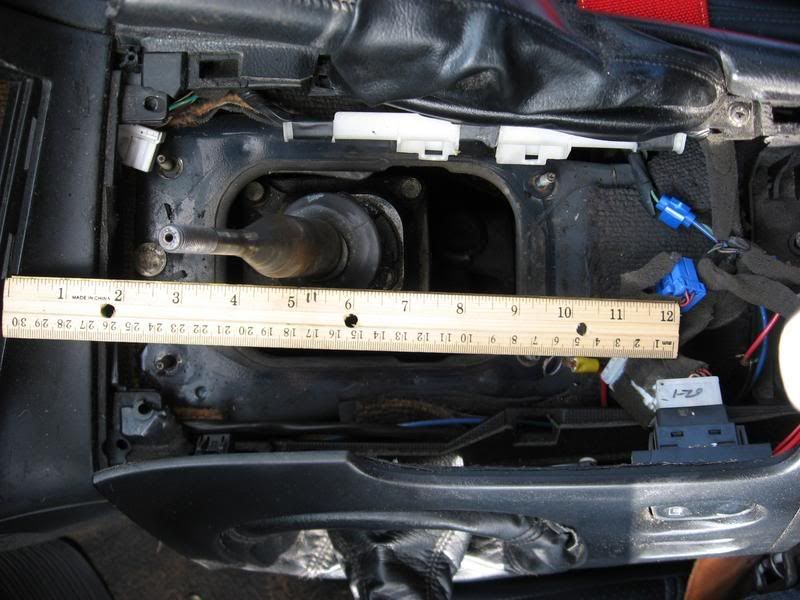

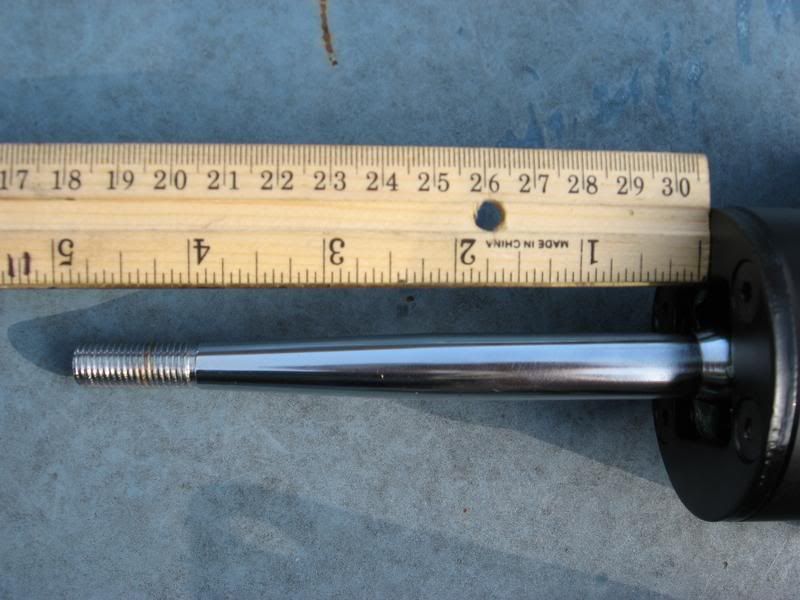

Just to compare the stock shifter to the new short shifter, here are some measurements.

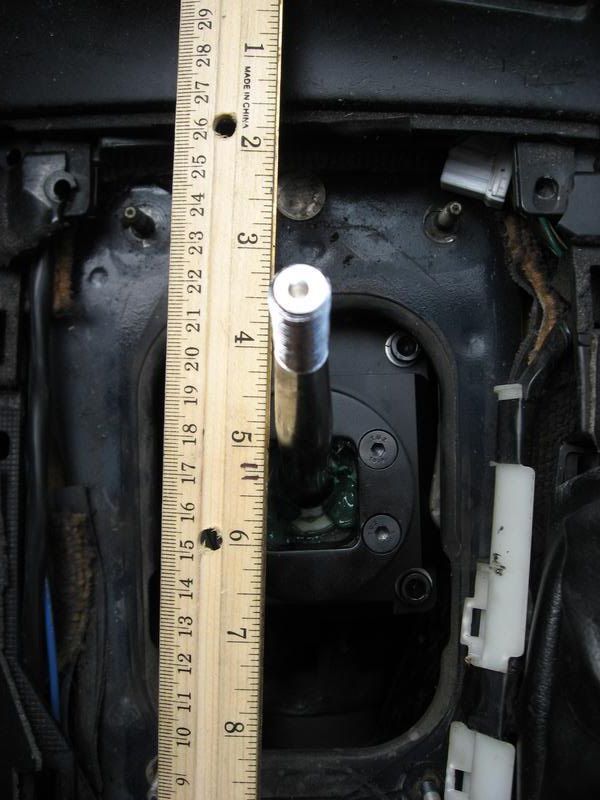

3rd Gear

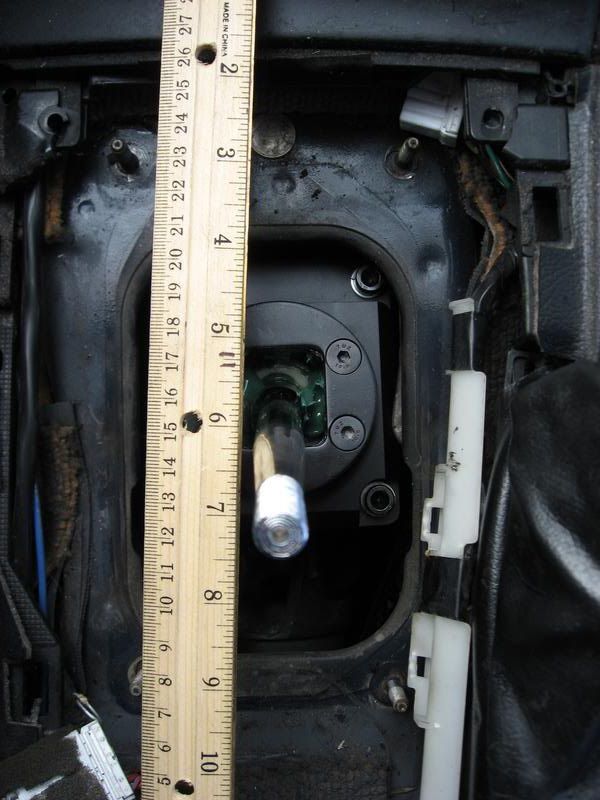

4th Gear
This is my first write up on anything really, so don’t bash me if I forgot anything.
Ok well this is the cheap EBay FD3s Short Shifter, the price of these things is great
Shifter – 25.00
Shipping – 13.00
Tax – None < Thank good for the Internet
Total – 38.00
Ok,
Here we have the short shifter, basically right out of the box, the only thing I did was replace that “CHEAP” grease that they used with a Castrol HD Grease.
Good now that we have a good idea of what the product looks like and the construction of it, we can start with the removal of the stock shifter.
First remove the center console with shifter boot, this is just snapped into there, just carefully remove it and disconnect a few electrical lines.
Just to compare the stock shifter to the new short shifter, here are some measurements.
3rd Gear
4th Gear
#2
Next remove the 4 – 10mm nuts that hole the grommets and cover plate. You should be at this point.
Next remove the 4 – 12mm bolts that hold the shifter and the old base to the trans. It may not want to come off easily, so you will have to either pry it up with a flat head screw driver or the easy way just push the shifter to the left or right all the way until the base pops off the trans. The reason why it is stuck is do to the sealant used on the base. You should be at this point now.

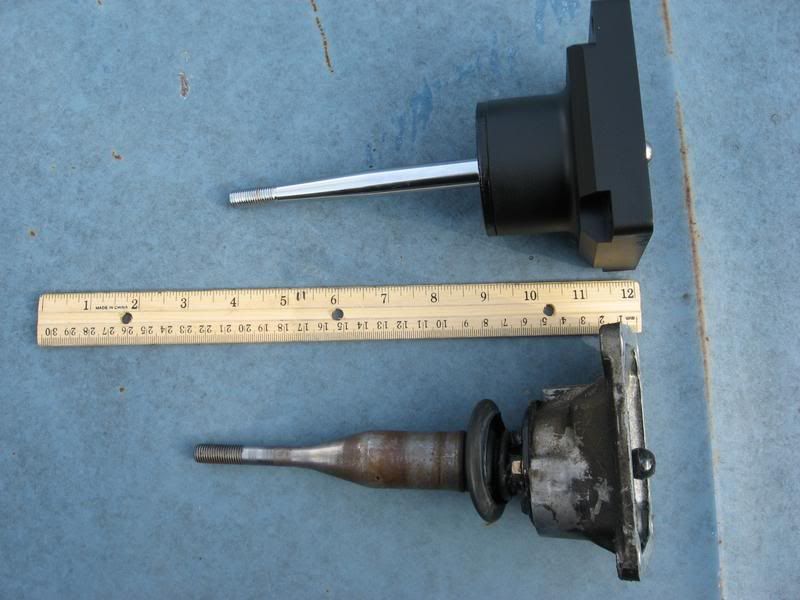

Now that we have both shifter out we can compare them even more
Now it is time to install the new shifter
Use a small amount of sealant to the base of the new shifter, and then place the new shifter on the Trans.
Install the Hex head bolts that are provided with the kit. These bolts are longer than the stock ones. The bolt on the top passenger side is a little hard to get to, you may want to get a prey bar to move the trans over to the driver side just to get the bolt in the hole.

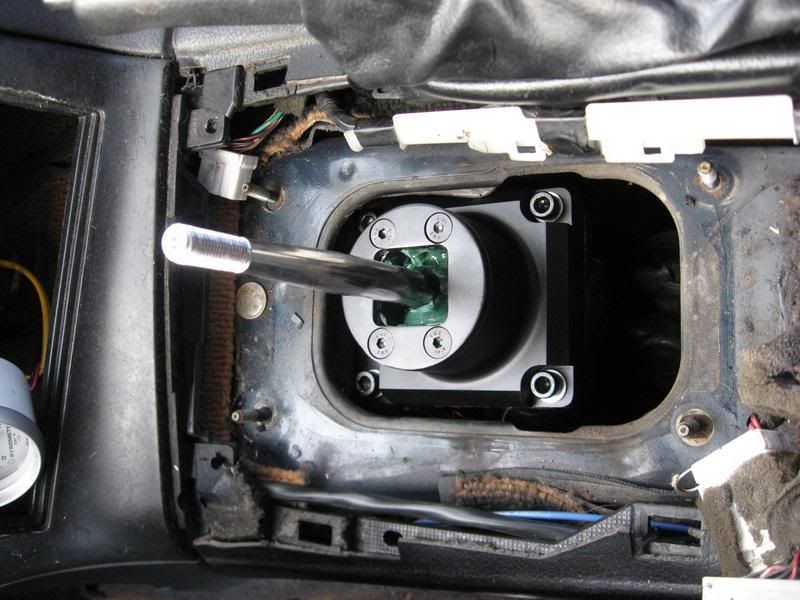

Now you should be at this point.
Now the most famous words ever in the automotive industry,
“Installation is the reversal of removal” Not I wouldn’t stop here
Replace the cover plate and the rubber commits. Thus we come to the ONLY down side of the whole shifter that I have found.

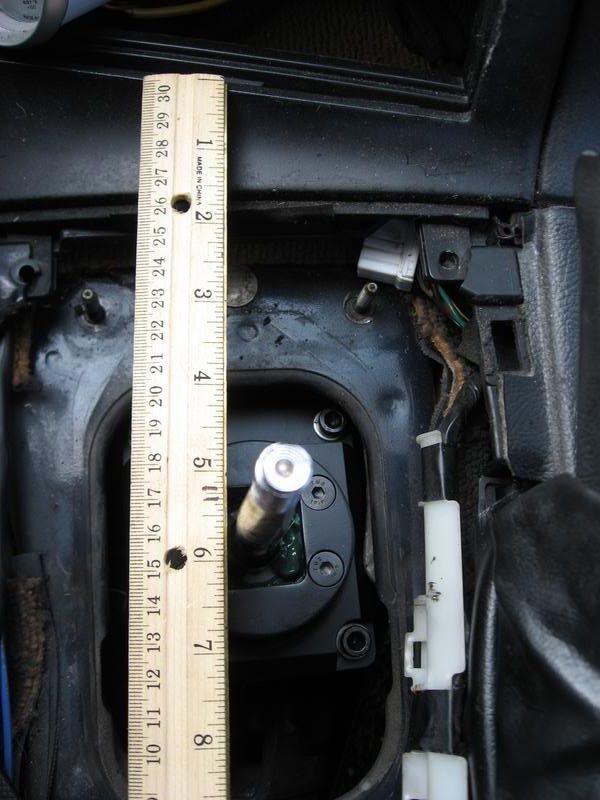

Now lets see what the distance is of a shift
Now just snap back into place the center console and reinstall your shifter ****.
I have all ready went for a test drive, OMG this thing is really stiff and the shifts are pretty short, I would go as far is saying it is ˝ of the stock one.
I hope to like this write up, like I said this is my first on ever so I think I got most of it.
I personally love this shifter so far and see no difference than the other 100+ short shifters.
Next remove the 4 – 12mm bolts that hold the shifter and the old base to the trans. It may not want to come off easily, so you will have to either pry it up with a flat head screw driver or the easy way just push the shifter to the left or right all the way until the base pops off the trans. The reason why it is stuck is do to the sealant used on the base. You should be at this point now.
Now that we have both shifter out we can compare them even more
Now it is time to install the new shifter
Use a small amount of sealant to the base of the new shifter, and then place the new shifter on the Trans.
Install the Hex head bolts that are provided with the kit. These bolts are longer than the stock ones. The bolt on the top passenger side is a little hard to get to, you may want to get a prey bar to move the trans over to the driver side just to get the bolt in the hole.
Now you should be at this point.
Now the most famous words ever in the automotive industry,
“Installation is the reversal of removal” Not I wouldn’t stop here
Replace the cover plate and the rubber commits. Thus we come to the ONLY down side of the whole shifter that I have found.
Now lets see what the distance is of a shift
Now just snap back into place the center console and reinstall your shifter ****.
I have all ready went for a test drive, OMG this thing is really stiff and the shifts are pretty short, I would go as far is saying it is ˝ of the stock one.
I hope to like this write up, like I said this is my first on ever so I think I got most of it.
I personally love this shifter so far and see no difference than the other 100+ short shifters.
#5
7-itis
iTrader: (1)
Join Date: Aug 2004
Location: UPSTATE New York
Posts: 399
Likes: 0
Received 0 Likes
on
0 Posts
You found a dime!!!
Nice write up, however what is the recommended amount of oil around the mechanism in the tranny? While you're in there, you might as well top that off... I know in my fb it was above the "cup" slightly.
Nice write up, however what is the recommended amount of oil around the mechanism in the tranny? While you're in there, you might as well top that off... I know in my fb it was above the "cup" slightly.
#7
Originally Posted by edwin-82/rx7
You found a dime!!!
Nice write up, however what is the recommended amount of oil around the mechanism in the tranny? While you're in there, you might as well top that off... I know in my fb it was above the "cup" slightly.
Nice write up, however what is the recommended amount of oil around the mechanism in the tranny? While you're in there, you might as well top that off... I know in my fb it was above the "cup" slightly.
Yep the Cost of this is now 37.90
Trending Topics
#13
I have had a few people ask about witch one on ebay it was, here is the one i bought http://cgi.ebay.com/ebaymotors/ws/eB...m=250042591231
I got a discount on the shipping for buying something before with them.
I got a discount on the shipping for buying something before with them.
Last edited by Rx7_Nut13B; 11-09-06 at 09:17 PM. Reason: Added shipping
#14
White chicks > *
iTrader: (33)
Originally Posted by Daniel577h
does it make a wierd whinning noise like alot of other short shifters?
Mine makes a noise. But it goes away after driving it for a while. But since i bought a new short shifter, i got the noise again.
I kinda like the noise. I have no radio currently and when im decelerating in gear, like when approaching a turn, it makes my car sound like a race car. lol Idk, hard to explain but i like it.
#15
[QUOTE=Rx7_Nut13B]Well this oil is supplyed from the Trans gear lube, so when there is hard acceleration the oil will make its way up. Well this is what i have been told.
Not true. Completely separate compartments. You have to top it up when you have the shifter out.
Also, it's a good time to replace that worn out shifter boot (pretty good price from Ray at Malloy Mazda) and you need to improvise some way to seal it to the new, much thinner shaft of the shifter. Also (yikes!) I didn't see the plastic bushing that fits on the (transmission) end of the shifter on either your old or new shifter. This is a critical piece of the mechanism! (maybe I just missed it?) Good write up. . .also, spell checker if you have it!
Not true. Completely separate compartments. You have to top it up when you have the shifter out.
Also, it's a good time to replace that worn out shifter boot (pretty good price from Ray at Malloy Mazda) and you need to improvise some way to seal it to the new, much thinner shaft of the shifter. Also (yikes!) I didn't see the plastic bushing that fits on the (transmission) end of the shifter on either your old or new shifter. This is a critical piece of the mechanism! (maybe I just missed it?) Good write up. . .also, spell checker if you have it!
#16
Speed Mach Go Go Go
iTrader: (2)
Join Date: Oct 2001
Location: My 350Z Roadster kicks my RX7's butt
Posts: 4,772
Likes: 0
Received 2 Likes
on
2 Posts
Those don't come with and can't fit the plastic cap on that bottom end ball of the shifter lever. I have mine machined down and used a metal one. No rattles but sold it and replaced with a RE-A version. You might be able to sand it down with a dremal but a machine shop could do it in 5 min and shouldn't charge you much. The metal cap is what $10 or $15 and the plastic is $5 or $10. I never had a rattle problem. Nice idea on changing the grease, never thought of it.
