Does this clutch fork look bent?
10-10-12, 07:28 PM
#1
Does this clutch fork look bent?
I was tuning a car that started having a slipping clutch at higher boost. When I pulled the peep hole off, this fork seems like its bent but I cant say for sure as I have none to compare too. Does it look like its bent? it does to me.
thewird
thewird
10-10-12, 08:02 PM
#3
It was replaced yesterday with a used one by a random shop (not by a car). The clutch in it before was supposedly new and this one is slipping the same exact way (around 5.5k in 3rd gear it jumps to 7k and stays there) so I don't think its the clutch itself. I jacked the car up and took that picture. The car is relatively stock with only 12 PSi, I don't think its a power issue LOL.
thewird
thewird
10-10-12, 08:03 PM
#4
looks fine to me but that isn't to say that the top ear we cannot see is cracked. the cast iron base can and does crack.. make sure there is some free play in the pedal first. but even if it was bent or cracked it would have more an issue releasing the clutch than not holding it.
maybe the car is just making too much for the clutch!
maybe the car is just making too much for the clutch!
Last edited by RotaryEvolution; 10-10-12 at 08:06 PM.
10-10-12, 08:28 PM
#5
looks fine to me but that isn't to say that the top ear we cannot see is cracked. the cast iron base can and does crack.. make sure there is some free play in the pedal first. but even if it was bent or cracked it would have more an issue releasing the clutch than not holding it.
maybe the car is just making too much for the clutch!
maybe the car is just making too much for the clutch!
thewird
Trending Topics
10-12-12, 02:06 PM
#9
Senior Member
clutch fork
The clutch fork is made of hard cast alloy. It will crack rather than bend, usually developing cracks around the pivot point hole. I had mine break this way after putting on a more heavy duty clutch and pressure plate. More spring force leads to failure of the fork. If the release fork is broken, you will not be able to release the clutch. It will be engaged all the time.
If it is slipping at high rpm, as your power and torque build up, there is 1) insufficient spring pressure from your pressure plate, 2) worn friction lining on clutch disc, 3) grease or oil contamination on the friction surface of the disc or pressure plate, 4) something hanging up (burrs or dirt on input shaft or something obstructing the pivots on the pressure plate) that prevents the pressure plate from moving the disc to fully engaged position or 5) your last comment- too much power. After I upgraded to my stage 2 engine, upgraded turbos, upgraded exhaust, etc, my first full-throttle run spun the nearly new stock clutch when I shifted into second gear. An upgrade to the ACT setup was able to handle the increased torque. If you are going to remove the clutch, bite the bullet and put on one of the HD aftermarket clutch-PP setups. They last longer and you will have the ability to spin tires at will.
If it is slipping at high rpm, as your power and torque build up, there is 1) insufficient spring pressure from your pressure plate, 2) worn friction lining on clutch disc, 3) grease or oil contamination on the friction surface of the disc or pressure plate, 4) something hanging up (burrs or dirt on input shaft or something obstructing the pivots on the pressure plate) that prevents the pressure plate from moving the disc to fully engaged position or 5) your last comment- too much power. After I upgraded to my stage 2 engine, upgraded turbos, upgraded exhaust, etc, my first full-throttle run spun the nearly new stock clutch when I shifted into second gear. An upgrade to the ACT setup was able to handle the increased torque. If you are going to remove the clutch, bite the bullet and put on one of the HD aftermarket clutch-PP setups. They last longer and you will have the ability to spin tires at will.
10-13-12, 07:49 PM
#11
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,892
Likes: 0
Received 114 Likes
on
66 Posts
It does look a little strange but maybe to not being well focused.

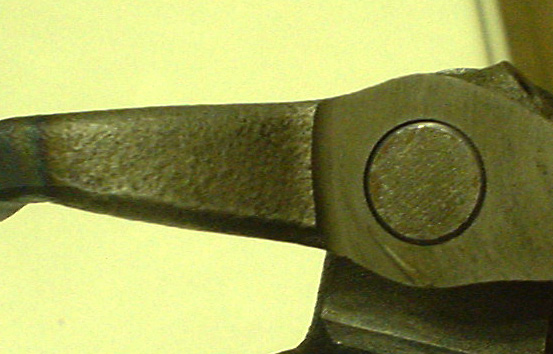

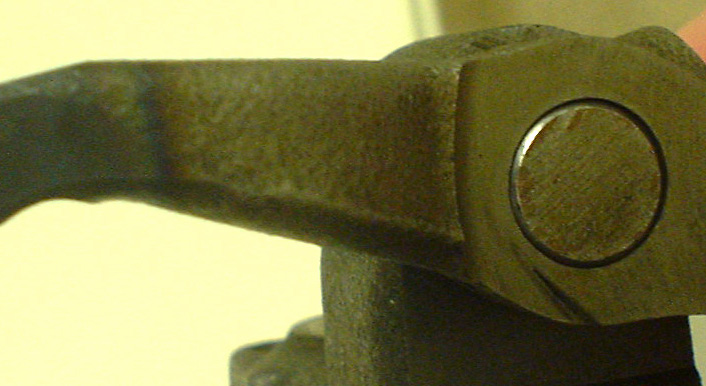

Just took these two pictures im my houses without a flash. Two different angles to the rotating axis.
Just took these two pictures im my houses without a flash. Two different angles to the rotating axis.
