A different approach to a FMIC

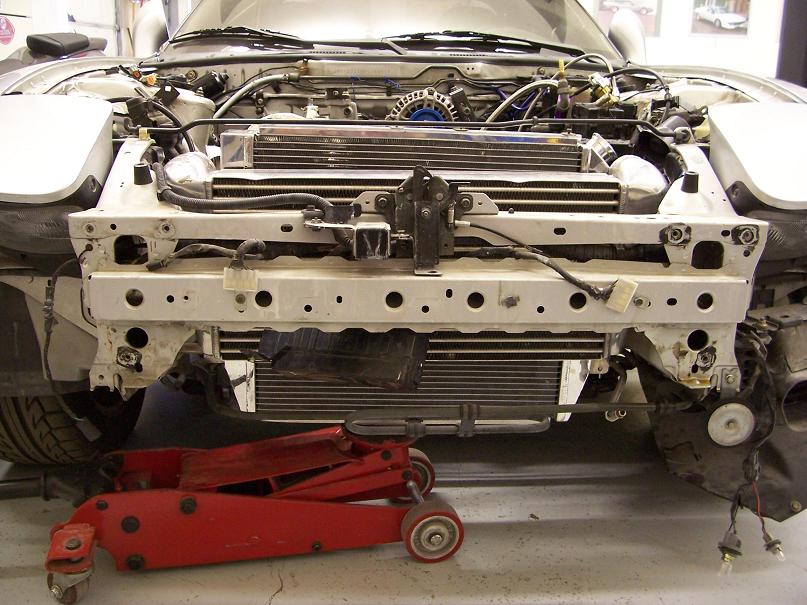

I had some spare parts laying around and kinda just tossed this together. The only thing that sucks is I would have to move to non-pop up lights to retain the ambient air intake where the second oil cooler would be. It reminds me of an old friends 1st gen...
#3
Teddy bears have claws
iTrader: (2)
Join Date: Aug 2004
Location: Eugene/Springfield, OR
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Way to go on fabbing up your own stuff. I love to see people make their own parts, and such. I would suggest trying to lower the intercooler, though. As said before, it doesn't look like it'll get much airflow. If you put your bumper on, I think you'll see that it's sitting higher than the opening in the bumper, and that you can lower it quite a bit, without it sticking out the bottom.
Try looking at the Apex'i GT-Spec fmic. It sits behind the bumper reinforcements, like yours, and is tucked under the bar that the hood latch is bolted to.
Try looking at the Apex'i GT-Spec fmic. It sits behind the bumper reinforcements, like yours, and is tucked under the bar that the hood latch is bolted to.
Trending Topics
#11
Senior Member
iTrader: (2)
Join Date: Oct 2001
Location: Baltimore
Posts: 678
Likes: 0
Received 0 Likes
on
0 Posts

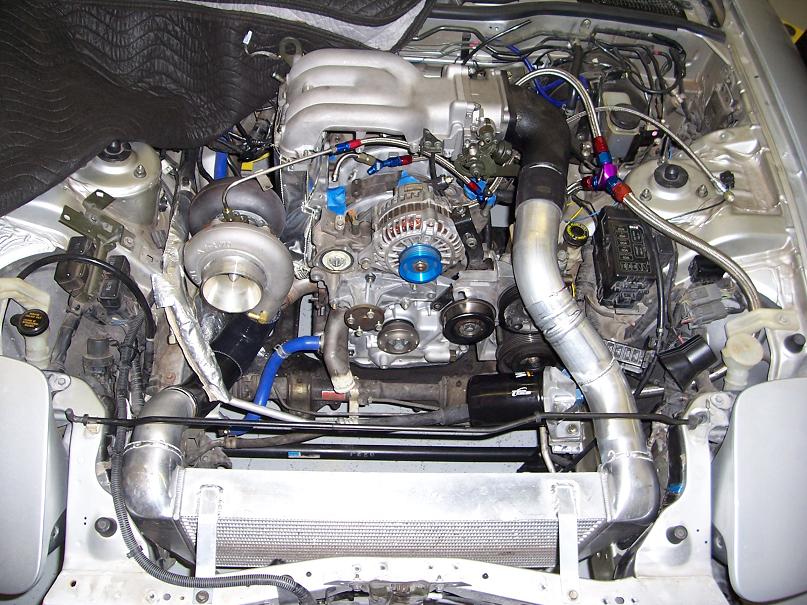

i THINK that it works really well, when i originally installed it i still had AC in place and a very slightly damaged coolant seal on the rear rotor. I just rebuilt the motor and took the AC out but I haven't gotten it off of the dyno yet to really see what the temps are. I had a very similar setup on my FC and it worked great. I see a vented hood in my future as well though
#12
Rotary Freak
iTrader: (6)
I did this on my FC with an SRT-4 FMIC, the piping is short, boost responst is nearly stock with a hybrid TO4b. It still needs some more ducting, it seems to stay pretty cool. I will log some intake temps in the future.
FWIW, dyno'd @ 230rwhp at 7-9psi S4 13bt stock ports
TMIC Heat soak is a thing of the past.
FWIW, dyno'd @ 230rwhp at 7-9psi S4 13bt stock ports
TMIC Heat soak is a thing of the past.
#16
Please somebody help!!!
iTrader: (1)
Join Date: Sep 2005
Location: Woodridge, IL
Posts: 1,442
Likes: 0
Received 0 Likes
on
0 Posts
Here you go, there are a few others that are similar but I can't recall offhand.
https://www.rx7club.com/forum/album.php?albumid=567
https://www.rx7club.com/forum/album.php?albumid=567
#17
Here you go, there are a few others that are similar but I can't recall offhand.
https://www.rx7club.com/forum/album.php?albumid=567
https://www.rx7club.com/forum/album.php?albumid=567
#20
looking for 82-83 corolla
iTrader: (6)
Join Date: Aug 2005
Location: ar
Posts: 451
Likes: 0
Received 0 Likes
on
0 Posts
ya wanna post some pics of this cause the banzai 20b im thinking of has a true frontmount with a vertical radiator.... i know cause i coppied it as i liked it so much very clean and effective.
seen here do you have a different one in mind?
https://www.rx7club.com/showthread.p...ghlight=banzai
z
#21
Rotary Enthusiast
iTrader: (3)
Join Date: Jan 2007
Location: st. louis
Posts: 1,000
Likes: 0
Received 0 Likes
on
0 Posts
how about making a custom undertray with NACA ducts to feed the inlet? The pic below is of an undertray for an NSX
This was from http://www.nsxprime.com/forums/showthread.php?t=116208
This was from http://www.nsxprime.com/forums/showthread.php?t=116208
#22
Rotary Enthusiast
iTrader: (3)
Join Date: Jan 2007
Location: st. louis
Posts: 1,000
Likes: 0
Received 0 Likes
on
0 Posts
here is an excel file on how to design these naca ducts:
http://sports.racer.net/tech_info/ae...calculator.xls
I have not had a chance to read the NACA article on these ducts. I am unsure of what mach number flow the above duct is optimized to (it says it is based off of curve fits of several optimized ducts). It would be interesting if someone could run CFD simulations using a genetic algorithm optimizing air flow/drag at the mach number in question to see how close it comes to approximating the duct designed using this excel sheet. I doubt anyone is actually this bored but it would be interesting none the less.
http://sports.racer.net/tech_info/ae...calculator.xls
I have not had a chance to read the NACA article on these ducts. I am unsure of what mach number flow the above duct is optimized to (it says it is based off of curve fits of several optimized ducts). It would be interesting if someone could run CFD simulations using a genetic algorithm optimizing air flow/drag at the mach number in question to see how close it comes to approximating the duct designed using this excel sheet. I doubt anyone is actually this bored but it would be interesting none the less.
#23
here is an excel file on how to design these naca ducts:
http://sports.racer.net/tech_info/ae...calculator.xls
I have not had a chance to read the NACA article on these ducts. I am unsure of what mach number flow the above duct is optimized to (it says it is based off of curve fits of several optimized ducts). It would be interesting if someone could run CFD simulations using a genetic algorithm optimizing air flow/drag at the mach number in question to see how close it comes to approximating the duct designed using this excel sheet. I doubt anyone is actually this bored but it would be interesting none the less.
http://sports.racer.net/tech_info/ae...calculator.xls
I have not had a chance to read the NACA article on these ducts. I am unsure of what mach number flow the above duct is optimized to (it says it is based off of curve fits of several optimized ducts). It would be interesting if someone could run CFD simulations using a genetic algorithm optimizing air flow/drag at the mach number in question to see how close it comes to approximating the duct designed using this excel sheet. I doubt anyone is actually this bored but it would be interesting none the less.
