Dead instrument cluster new owner - please help
#26
Full Member
Thread Starter
Update: I cleaned up all the screws and the connectors at the back of the flexy board and I bent the tabs outward to make better connection with the harness connectors. I reconnected the cluster, started the engine and all three small gauges fuel, oil and coolant temperature work fine. Then I connected a wire to the +12 screw of the tacho and connected the other end to B+ but no luck, the tacho needs servicing. If anyone has a spare tacho, just so I can check the signal is ok, I will return it in the same condition. Would really appreciate it. Attached are few picture of the working gauges and the
back connectors.
back connectors.
#27
Full Member
Thread Starter
I think I am going to try repair odometer, speedo and tacho circuit board, I found a very good blog post how to do it and I am not lacking soldering skills:
https://www.rx7club.com/3rd-generati.../#post12213800
https://www.rx7club.com/3rd-generati.../#post12213800
#29
Full Member
Thread Starter
#31
Lives on the Forum
iTrader: (26)
On the menu

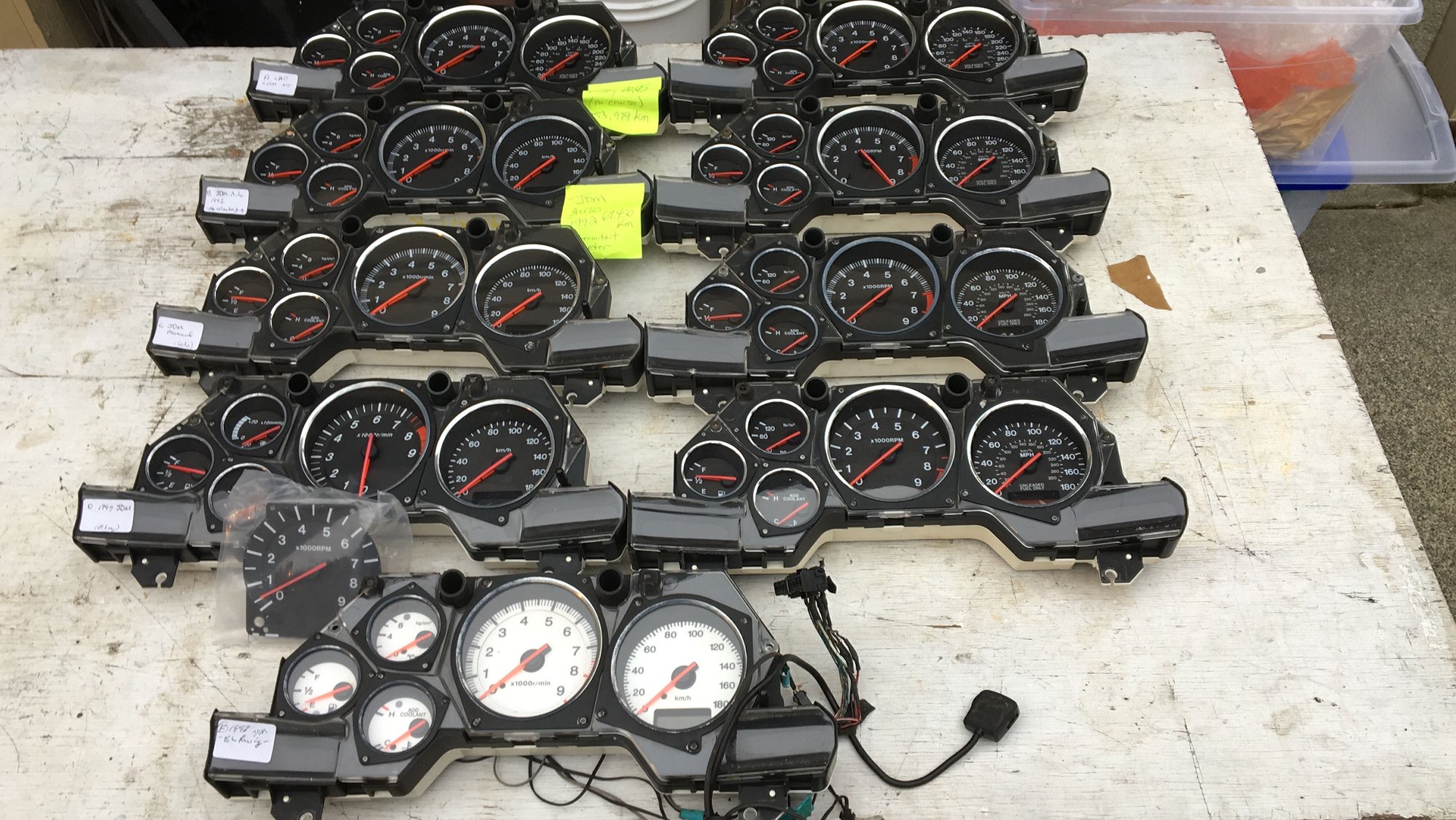

Top to bottom, left to right:
CdnDM Lhd Manual
JDM Rhd Autol
JDM Rhd Manual
JDM Rhd 99 Tac Conversion (w/boost gauge)
CdnDM Lhd Manual
USDM Lhd Auto
USDM Lhd Auto
USDM LHD Manual
Bottom
JDM Rhd ELRacing White Face conversion
All the above are untested and some have corroded flexi-boards or burned out odometers. I am curious how many complete working units can come from this collection.
CdnDM Lhd Manual
JDM Rhd Autol
JDM Rhd Manual
JDM Rhd 99 Tac Conversion (w/boost gauge)
CdnDM Lhd Manual
USDM Lhd Auto
USDM Lhd Auto
USDM LHD Manual
Bottom
JDM Rhd ELRacing White Face conversion
All the above are untested and some have corroded flexi-boards or burned out odometers. I am curious how many complete working units can come from this collection.
#32
Eats, Sleeps, Dreams Rotary
iTrader: (283)
I think I am going to try repair odometer, speedo and tacho circuit board, I found a very good blog post how to do it and I am not lacking soldering skills:
https://www.rx7club.com/3rd-generati.../#post12213800
https://www.rx7club.com/3rd-generati.../#post12213800
#33
Full Member
Thread Starter
Top to bottom, left to right:
CdnDM Lhd Manual
JDM Rhd Autol
JDM Rhd Manual
JDM Rhd 99 Tac Conversion (w/boost gauge)
CdnDM Lhd Manual
USDM Lhd Auto
USDM Lhd Auto
USDM LHD Manual
Bottom
JDM Rhd ELRacing White Face conversion
All the above are untested and some have corroded flexi-boards or burned out odometers. I am curious how many complete working units can come from this collection.
CdnDM Lhd Manual
JDM Rhd Autol
JDM Rhd Manual
JDM Rhd 99 Tac Conversion (w/boost gauge)
CdnDM Lhd Manual
USDM Lhd Auto
USDM Lhd Auto
USDM LHD Manual
Bottom
JDM Rhd ELRacing White Face conversion
All the above are untested and some have corroded flexi-boards or burned out odometers. I am curious how many complete working units can come from this collection.
#34
Full Member
Thread Starter
#35
Lives on the Forum
iTrader: (26)
Update: Nine gets you Seven
Sent the collection to one of the specialists named above. He was able to recover seven fully functioning units out of the nine, plus a collection of working gauges from the remaining two that could not be fully rebuiilt.
This is a terrific result and very encouraging for anyone thinking of fixing a "dead" cluster.
Stay tuned.
This is a terrific result and very encouraging for anyone thinking of fixing a "dead" cluster.
Stay tuned.
#36
Full Member
Thread Starter
Sent the collection to one of the specialists named above. He was able to recover seven fully functioning units out of the nine, plus a collection of working gauges from the remaining two that could not be fully rebuiilt.
This is a terrific result and very encouraging for anyone thinking of fixing a "dead" cluster.
Stay tuned.
This is a terrific result and very encouraging for anyone thinking of fixing a "dead" cluster.
Stay tuned.
#38
Junior Member
I'm kind-of late to this party but I had the same problem. Most importantly the odometer (~45k) was broke and I nearly had a heart attack. Found an article about replacing the caps (same thing happens with TVs Stereos, etc). After doing that the cluster came back to life.
