Custom V Mount and front bumper for $30?
07-24-13, 08:38 PM
#1
Custom V Mount and front bumper for $30?
Hey guys first off stay with me if my spelling is off I'm typing this on my phone.
So I wanted buy a v mount setup but I simply don't have 700 to 1000 that I can spend so I figured hey why not try it myself? Worst that can happen is it doesn't work and I put it back....
So off I go to local hardware store where I picked up a long piece of angle iron with holes predrilled. That cost me about 17.99 plus tax.

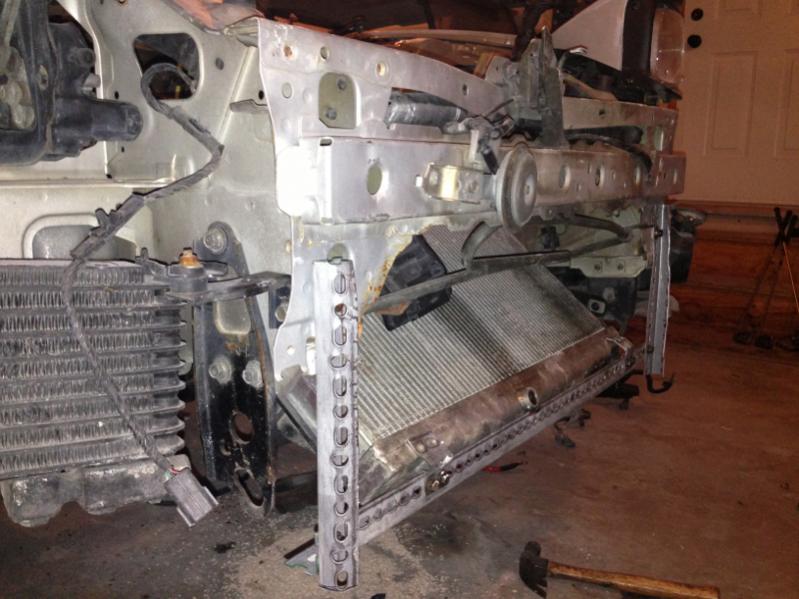

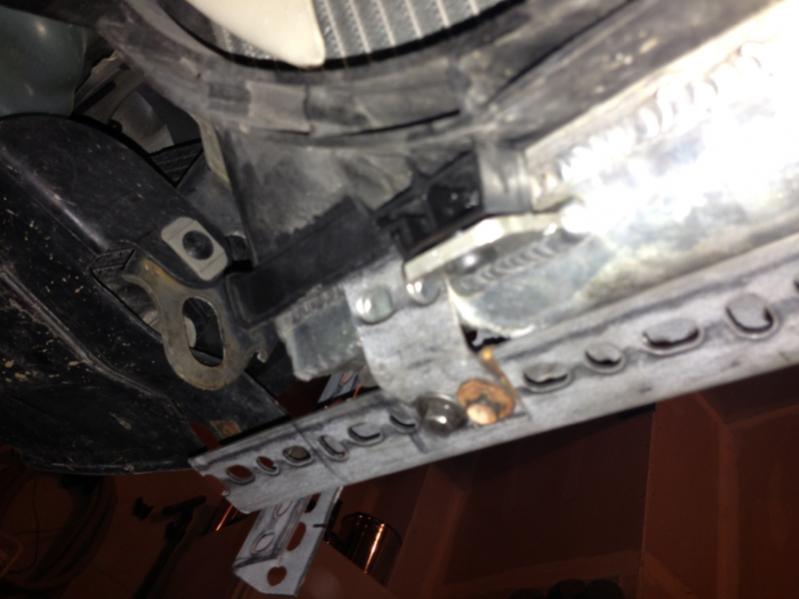

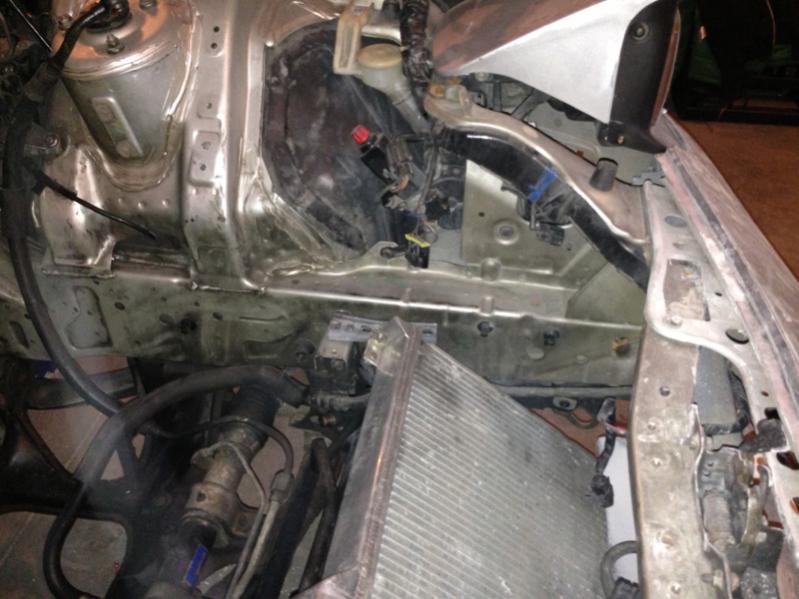

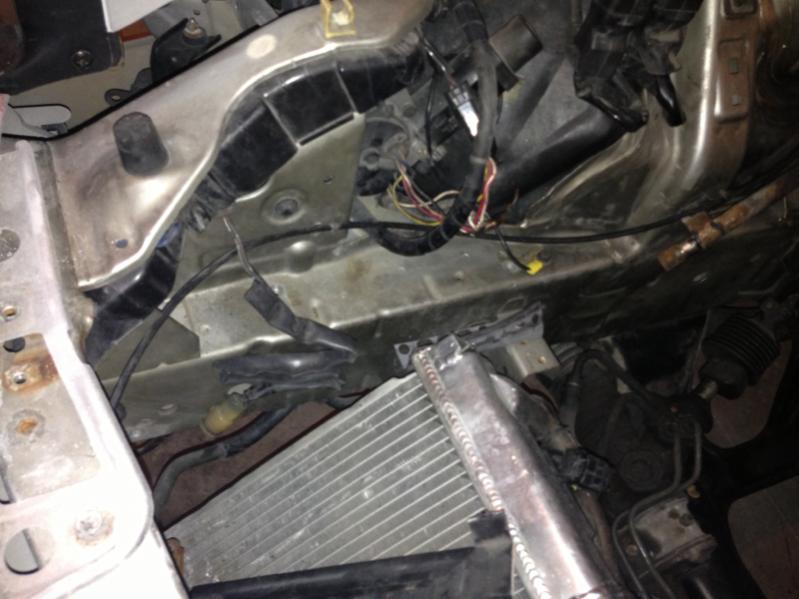

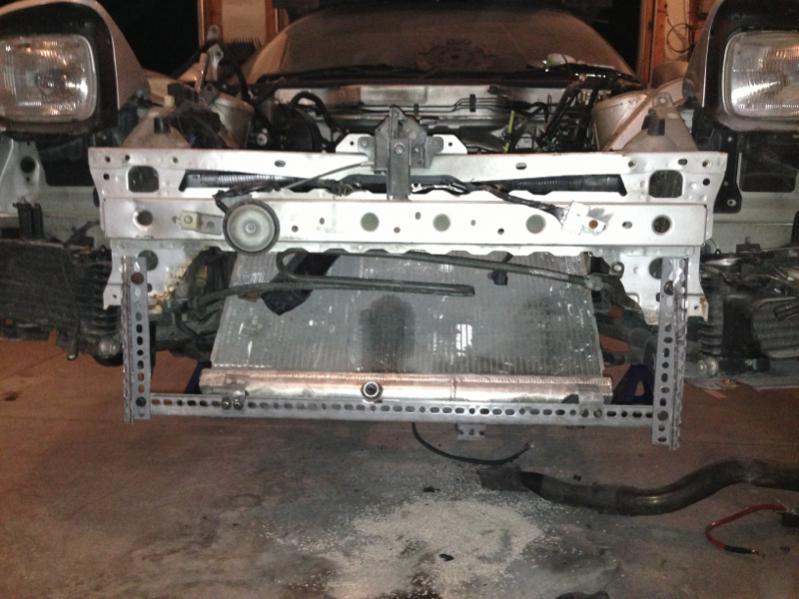

So I cut two 11 inch strips off and put them into factory holes already in the front of the car. Next I cut off a piece that went lengthwise for the rad to sit in. Now I had a bracket to work with. After a few cuts I had it still down in. Then I cut up four small strips and bolted them on the front and back to hold it in place.

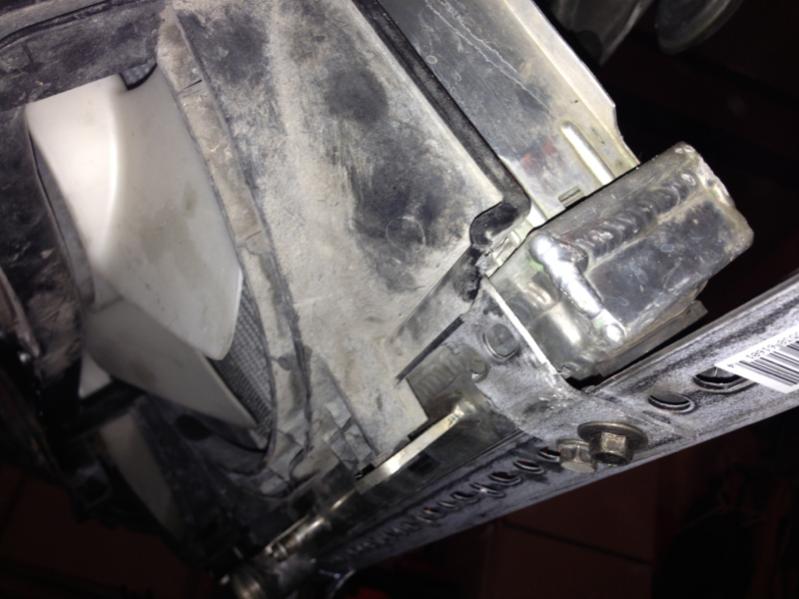

Up top I cut two more strips and just simply bolted them to stock position of the rad and off the bracket for the intercooler support.
After that its super solid and I can shake the whole car before it moves.

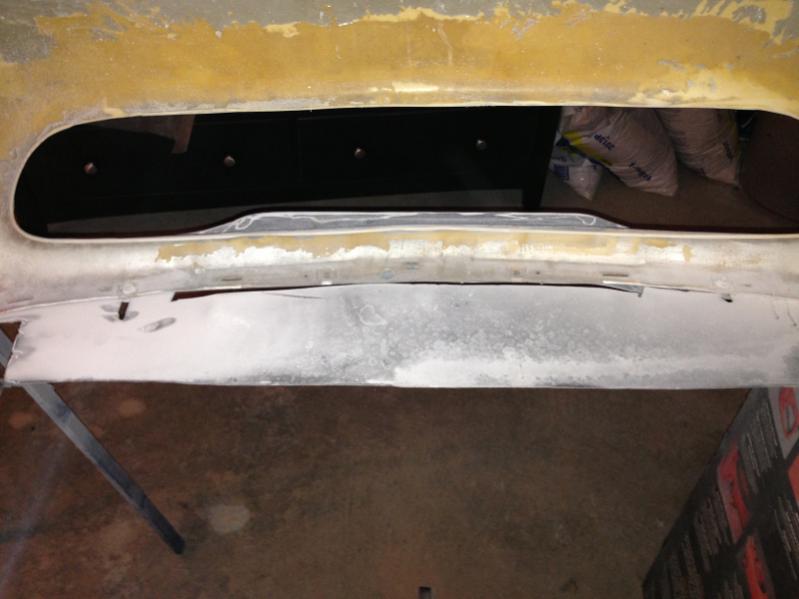

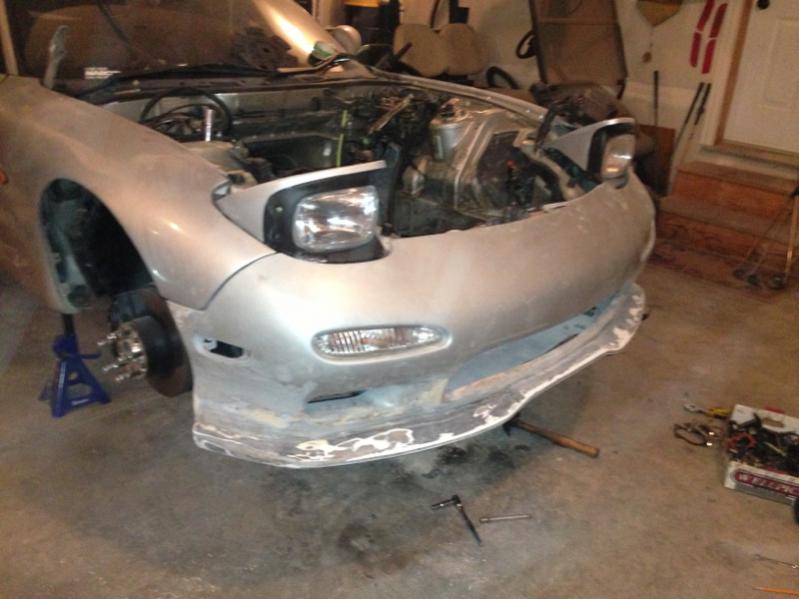

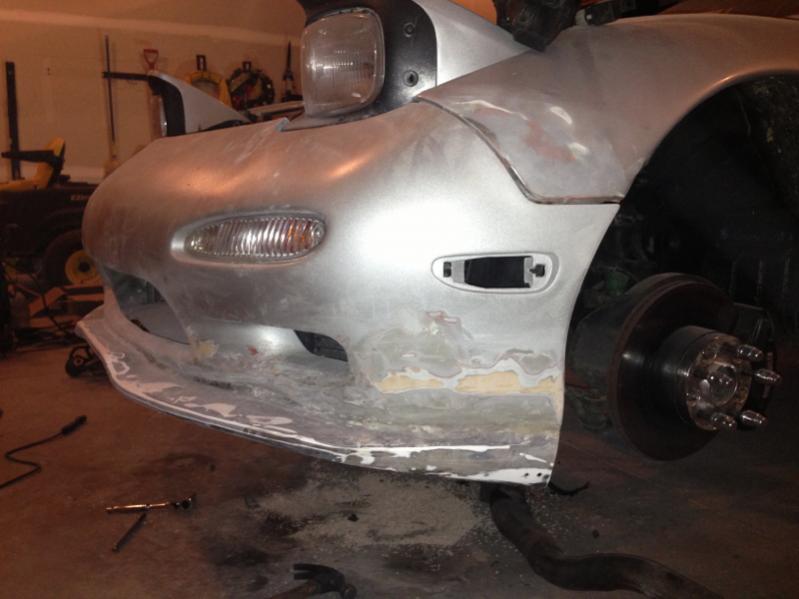

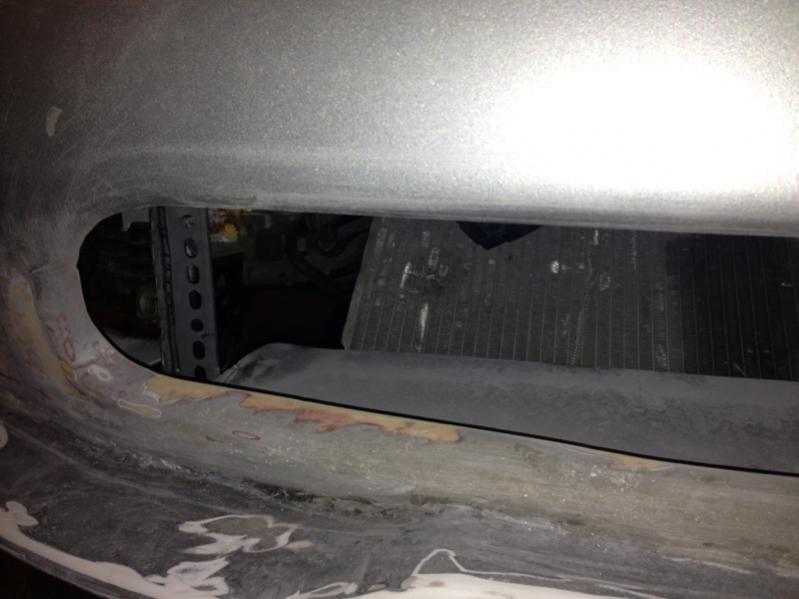

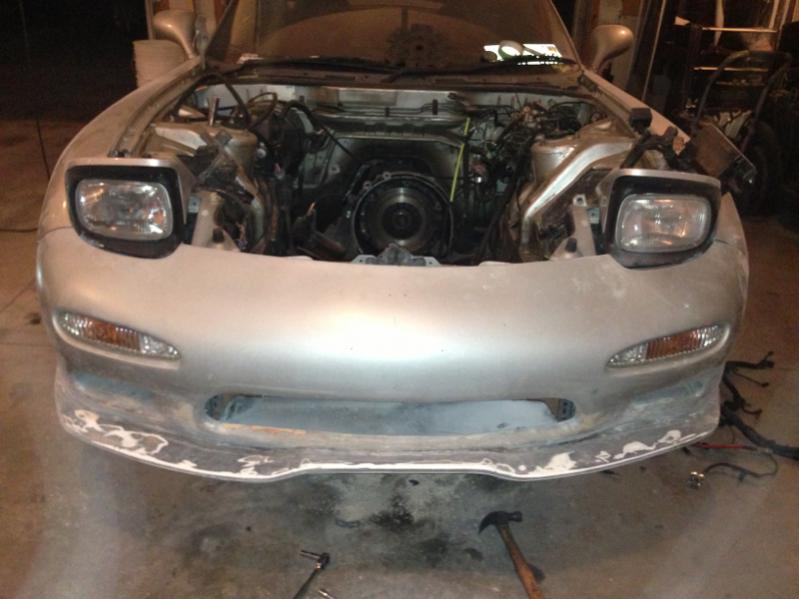

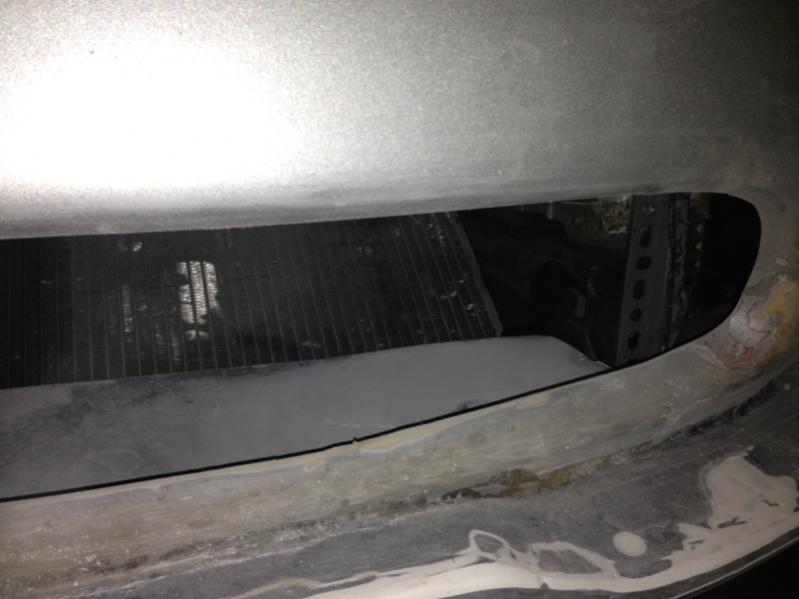

Next I had an old bumper that came on the car from Japan which was ugly so I cut that in half and mounted the bottom lip like part in my oem bumper. Check my build thread for how I did that. Well with this it had a very large rear diffuser on the bottom half of the bumper so I left it then cut out parts so it would fit back on and look at that it fits great and will bring the air I need up into the rad!
I still have not gotten my intercooler yet but ill will keep this updated once I pick it up and mount that to!
I know it looks kind of redneck but if you don't have the cash maybe it might help someone out. Also you don't really need to weld or drill anything just a few cuts.

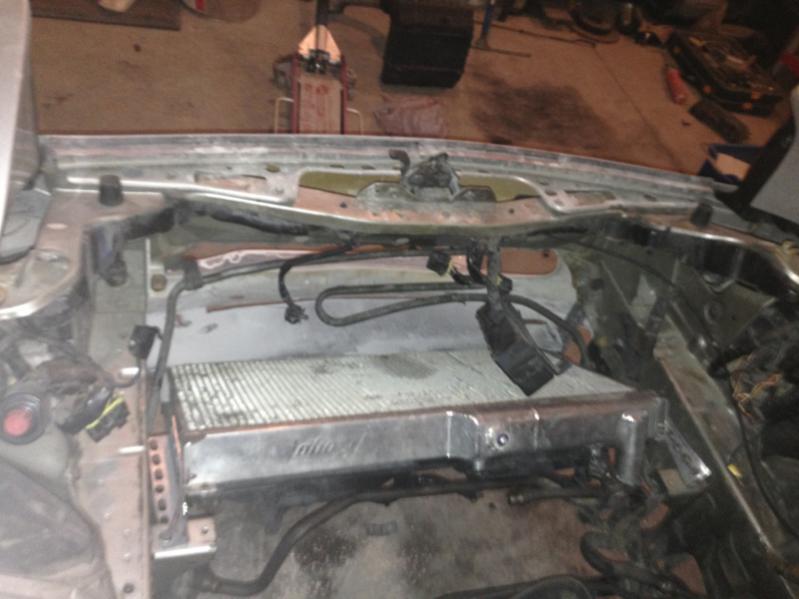

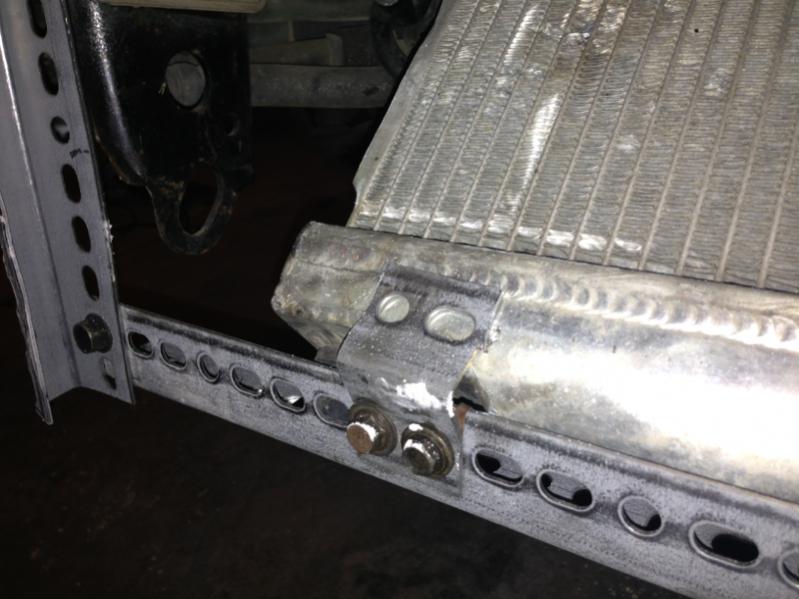

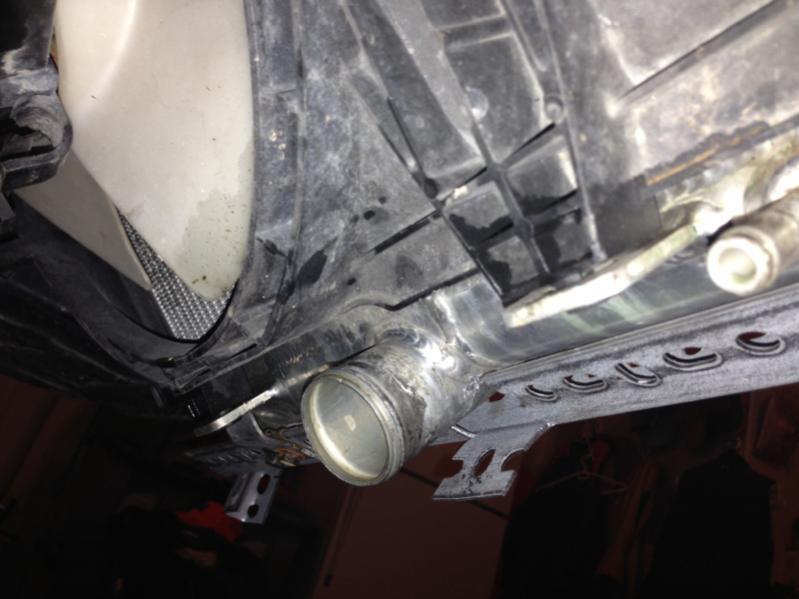

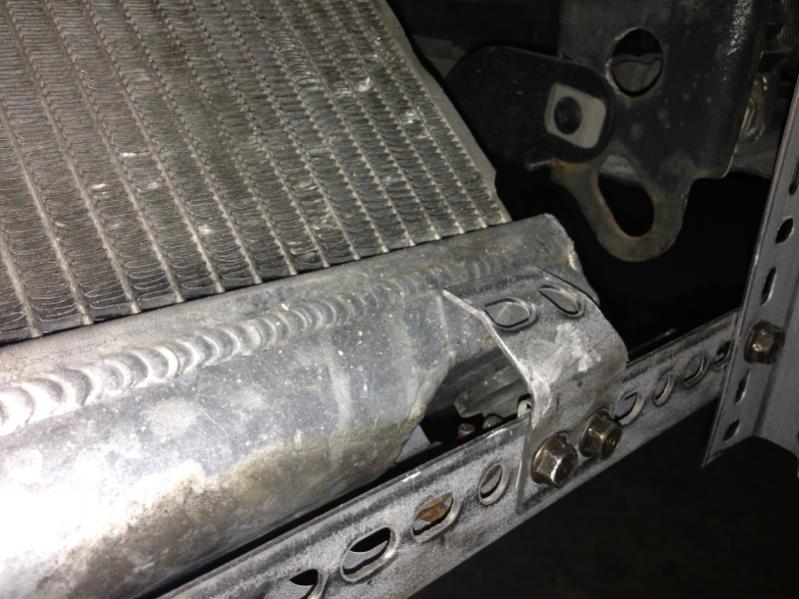

Here are the photos enjoy!
-Will
So I wanted buy a v mount setup but I simply don't have 700 to 1000 that I can spend so I figured hey why not try it myself? Worst that can happen is it doesn't work and I put it back....
So off I go to local hardware store where I picked up a long piece of angle iron with holes predrilled. That cost me about 17.99 plus tax.
So I cut two 11 inch strips off and put them into factory holes already in the front of the car. Next I cut off a piece that went lengthwise for the rad to sit in. Now I had a bracket to work with. After a few cuts I had it still down in. Then I cut up four small strips and bolted them on the front and back to hold it in place.
Up top I cut two more strips and just simply bolted them to stock position of the rad and off the bracket for the intercooler support.
After that its super solid and I can shake the whole car before it moves.
Next I had an old bumper that came on the car from Japan which was ugly so I cut that in half and mounted the bottom lip like part in my oem bumper. Check my build thread for how I did that. Well with this it had a very large rear diffuser on the bottom half of the bumper so I left it then cut out parts so it would fit back on and look at that it fits great and will bring the air I need up into the rad!
I still have not gotten my intercooler yet but ill will keep this updated once I pick it up and mount that to!
I know it looks kind of redneck but if you don't have the cash maybe it might help someone out. Also you don't really need to weld or drill anything just a few cuts.
Here are the photos enjoy!
-Will
